ARB Pump Up Kit Us Std High Temp V2 Orange 7 for Brushless Twin Air Compressor

SKU: 171302V2
$150.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Universal compatibility: Works with all ARB compressor models—single or twin, 12 V or 24 V.

Ideal for 4x4s, trucks, RVs, campers, trailer setups—especially those requiring inflation from a distance.

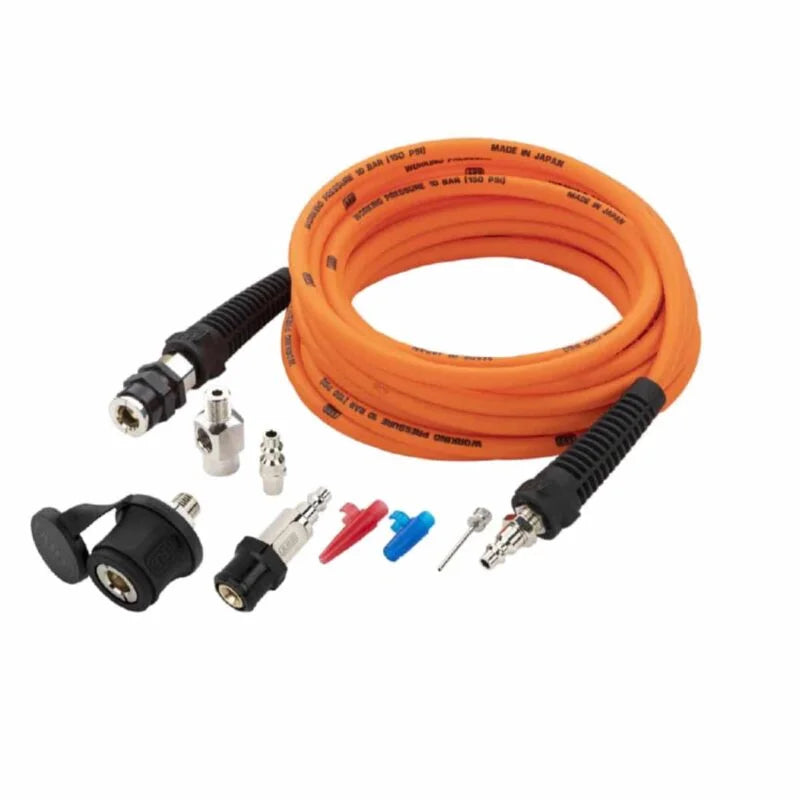

7 m high‑temp hose with quick‑connect fittings

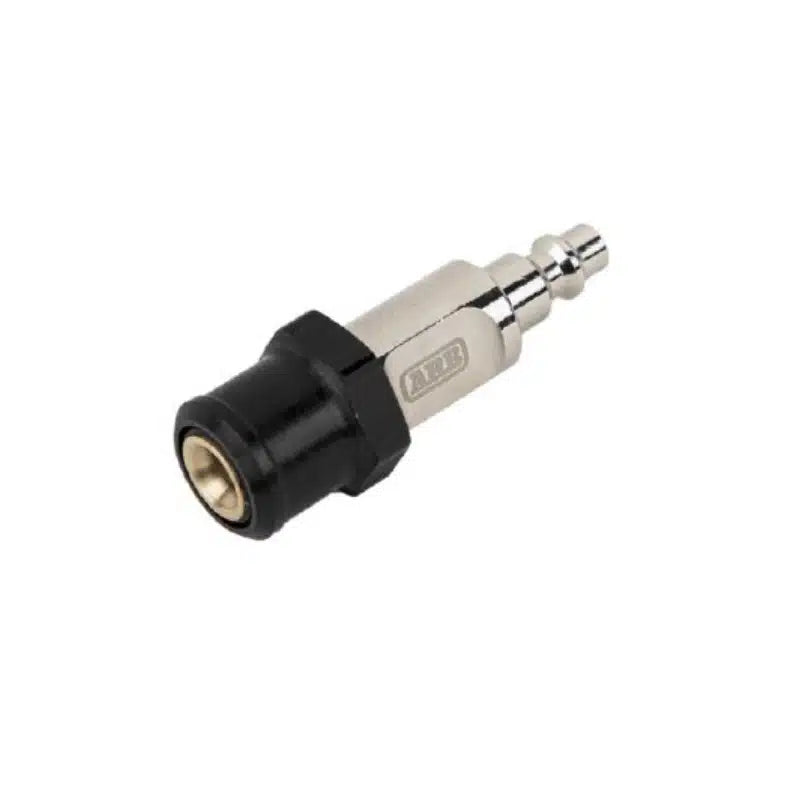

Quick‑connect air coupling with dust cap

Quick‑connect tyre inflation chuck

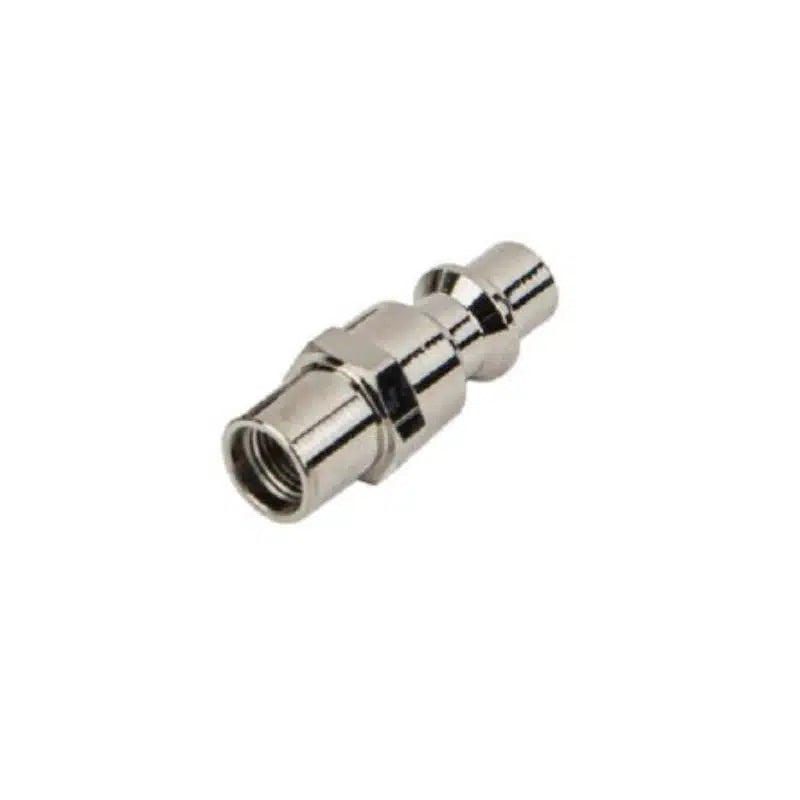

T‑piece adapter for compressor hookups

Tyre bead seating fitting

Additional inflation accessory kit (for gear, toys, mattresses)

Hose Length: 7 m (23 ft)

Package Size: Approx. 13.7″ × 9.2″ × 3.5″ (350 × 235 × 90 mm)

Weight: ~1 kg (2.2 lbs)

Fully redesigned V2 kit: every component was overhauled with new fittings and a more flexible, durable hose crafted from high-grade materials sourced from Japan

 [{"variant_id":"51733558296849" , "metafield_value":""}]

ARB Pump Up Kit Us Std High Temp V2 Orange 7 for Brushless Twin Air Compressor

$150.00
Description

The ARB 171302V2 Pump-Up Kit is a rugged, high-performance inflation solution designed for use with ARB air compressors. This updated V2 version features a 7-meter high-temp, abrasion-resistant hose and essential inflation accessories—built to handle demanding 4x4, off-road, and workshop environments.

Whether you’re inflating tires after a trail run, airing up camping gear, or powering air tools, this kit gives you the reliability and flexibility ARB is known for.

FEATURES

Long 7 m hose for wide reach around larger vehicles.

Rated for 150 psi, built to withstand high temperatures and abrasion

Leak-free quick-connect coupling with dust cap keeps contaminants out

Secure inflator chuck grips valve automatically, freeing your hands

Includes a T-piece adapter and various fittings for broad inflating capabilities

FAQ's

Q: What’s new in V2 vs original?
A: Hose extended to 7 m (from 6 m) and now made from high‑temp Japanese-grade material; upgraded fittings prevent leaks and improve flexibility.

Q: Max pressure rating?
A: 150 psi—suitable for most tire inflation needs.

Q: Includes adapter for ARB twin compressors?
A: Yes—a T-piece adapter is included for easy hookup to twin/combo compressors.

Q: Can it be used for inflating toys/air mattresses?
A: Yes—extra fittings are included for inflating gear, balls, mattresses, and more

Specifications

Model: 171302V2

Hose Length: 7 m (23 ft)

Maximum Pressure: 150 psi

Hose Material: High-temp, abrasion resistant

Fittings: US standard quick-connect

Leak Prevention: Dust-cap coupling; sealed chuck

T-Piece Adapter: Included (CKMA/CKMTA compatible)

Additional Fittings: Tyre bead seating; air mattress/toy adapters

Installation Information

Plug-and-play ready: simply attach to onboard air compressor via quick-connect fittings.

No special tools required; hose and chuck snap together easily, minimizing setup time

Warranty Information

Covered by ARB’s standard 3-year warranty in Australia. This warranty protects against manufacturing defects and faulty workmanship when the product is used under normal operating conditions.

PICKUP OR SHIPPING

Pickup available from Elevate Automotive. We offer Australia-wide and worldwide shipping.
