Off-Grid 12V & 24V Power Systems in Perth

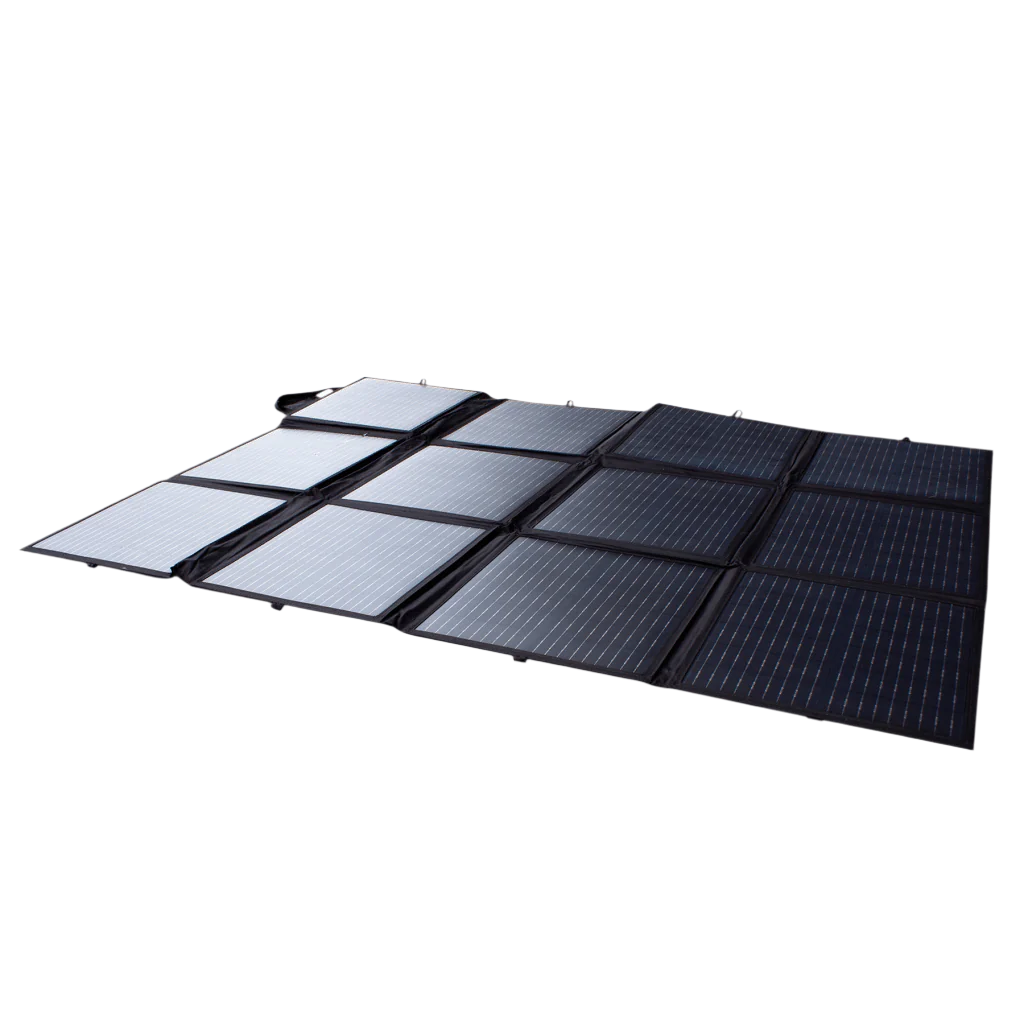

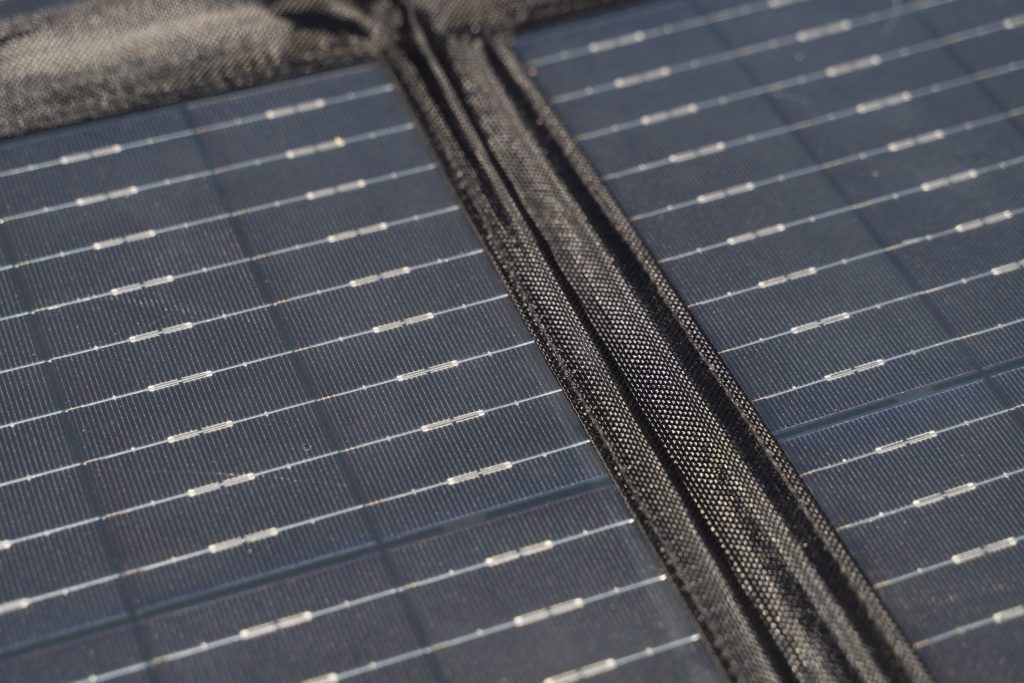

A working off-grid system charges the auxiliary battery from the alternator while you drive, tops it up from solar when you stop, and keeps the loads separated from the crank battery so you never wake up to a flat vehicle. Everything on this page is the hardware that makes that loop reliable — the DC-DC charger, the isolator, the shunt, the distribution hub and the inverter that runs the 240V side.

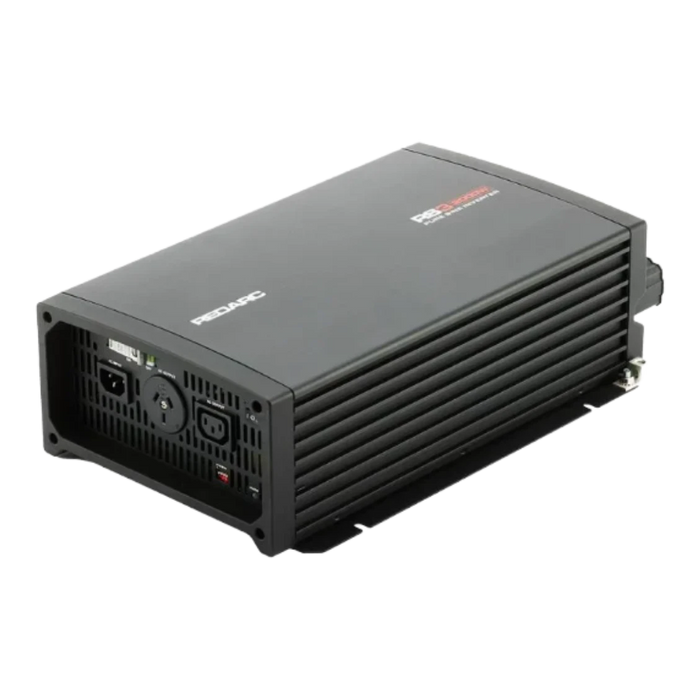

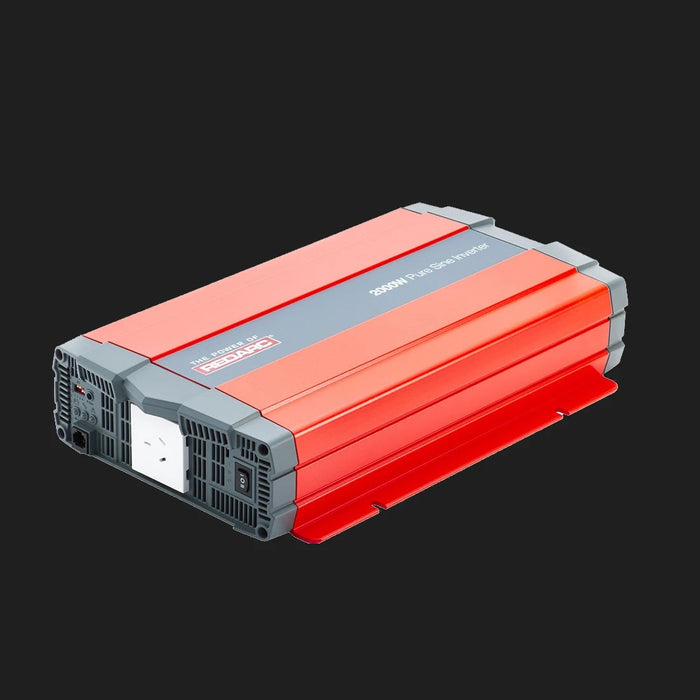

Start from the loads. A 40L fridge, LED lights and a phone charger sit around 40-60Ah a day and want a 100-120Ah lithium bank fed by a 25A DC-DC. Add a 2000W inverter running a kettle or induction cooktop and you're looking at 200-300Ah of lithium and a 40-50A charger. Full canopy and caravan builds with air-con go bigger again — send us the load list and we'll size it properly.

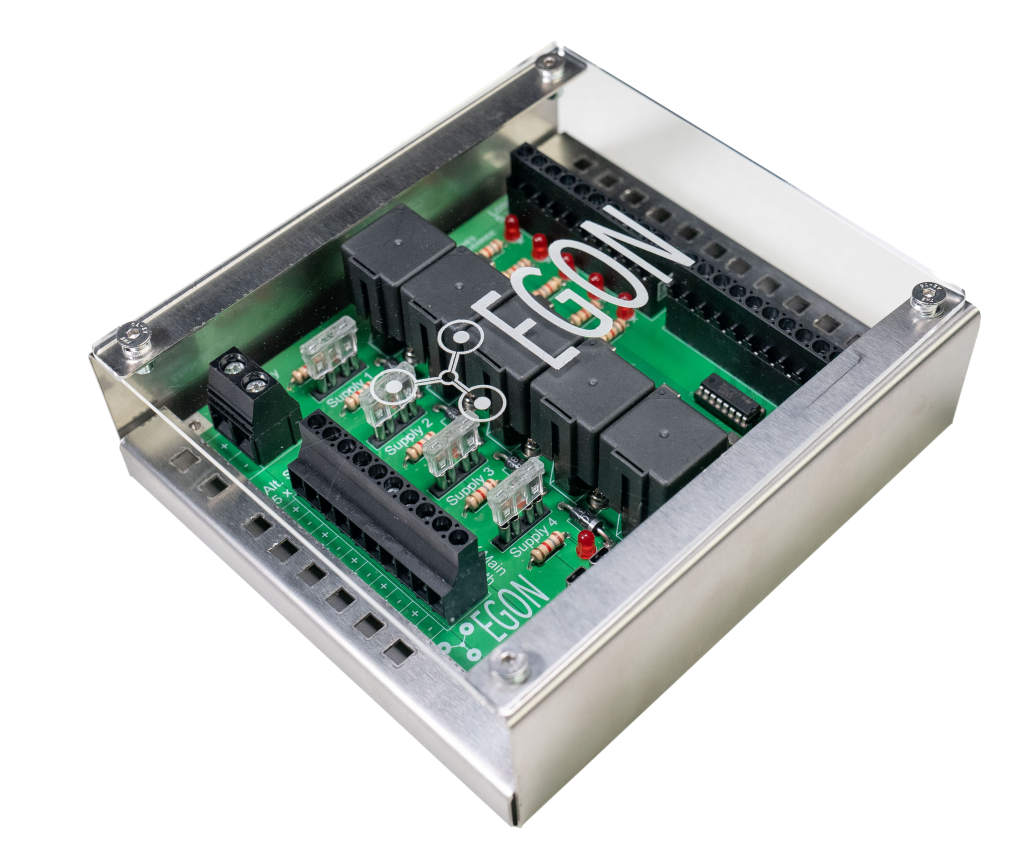

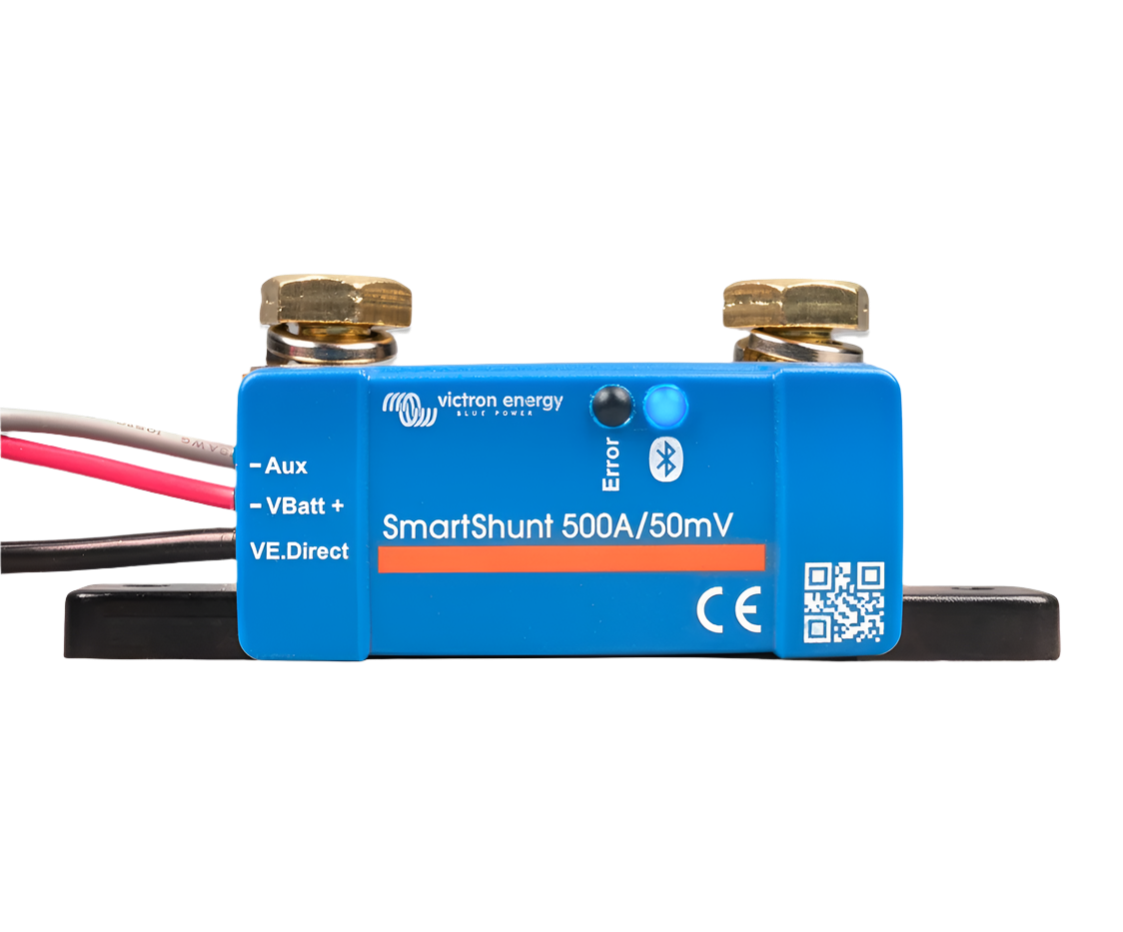

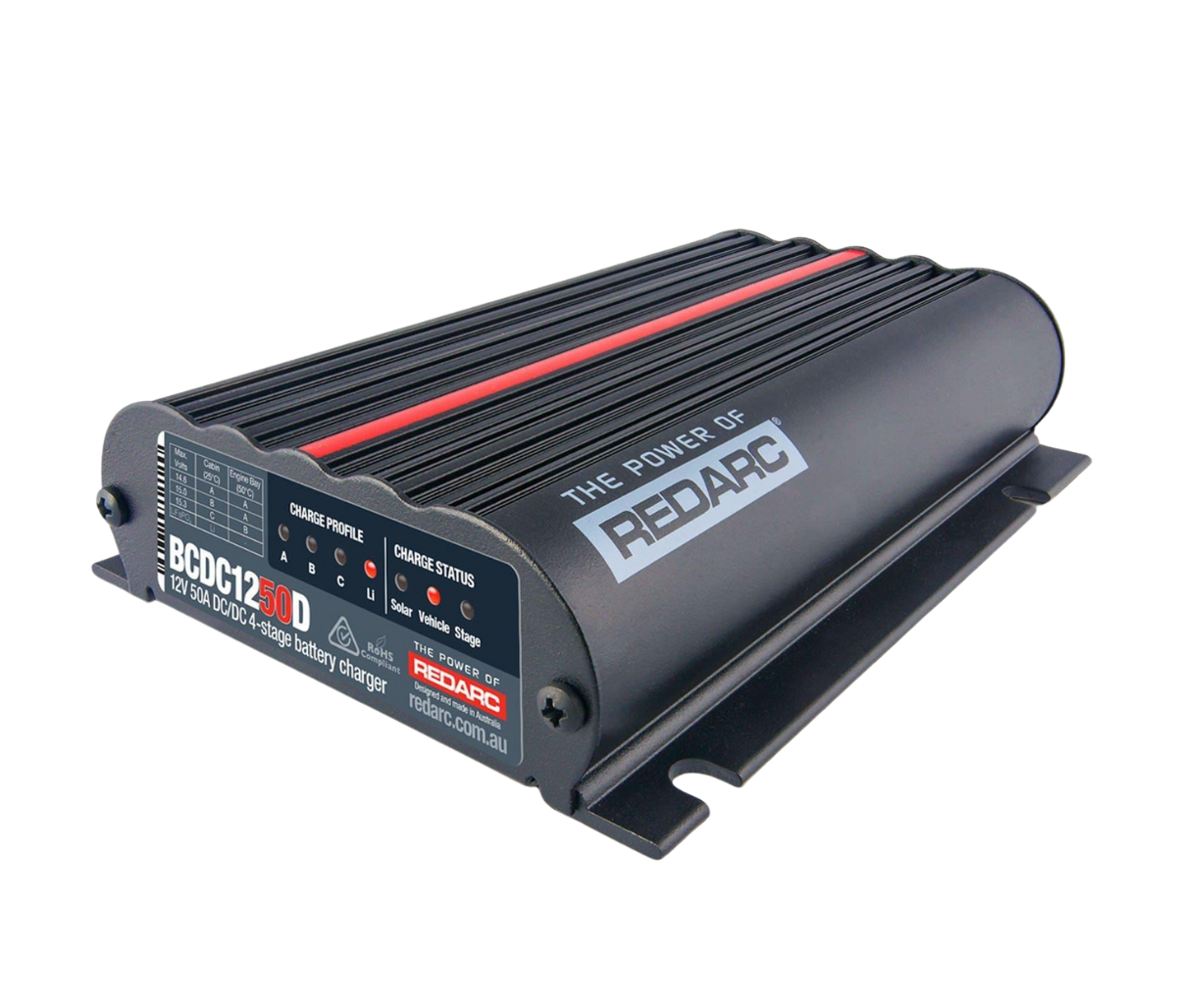

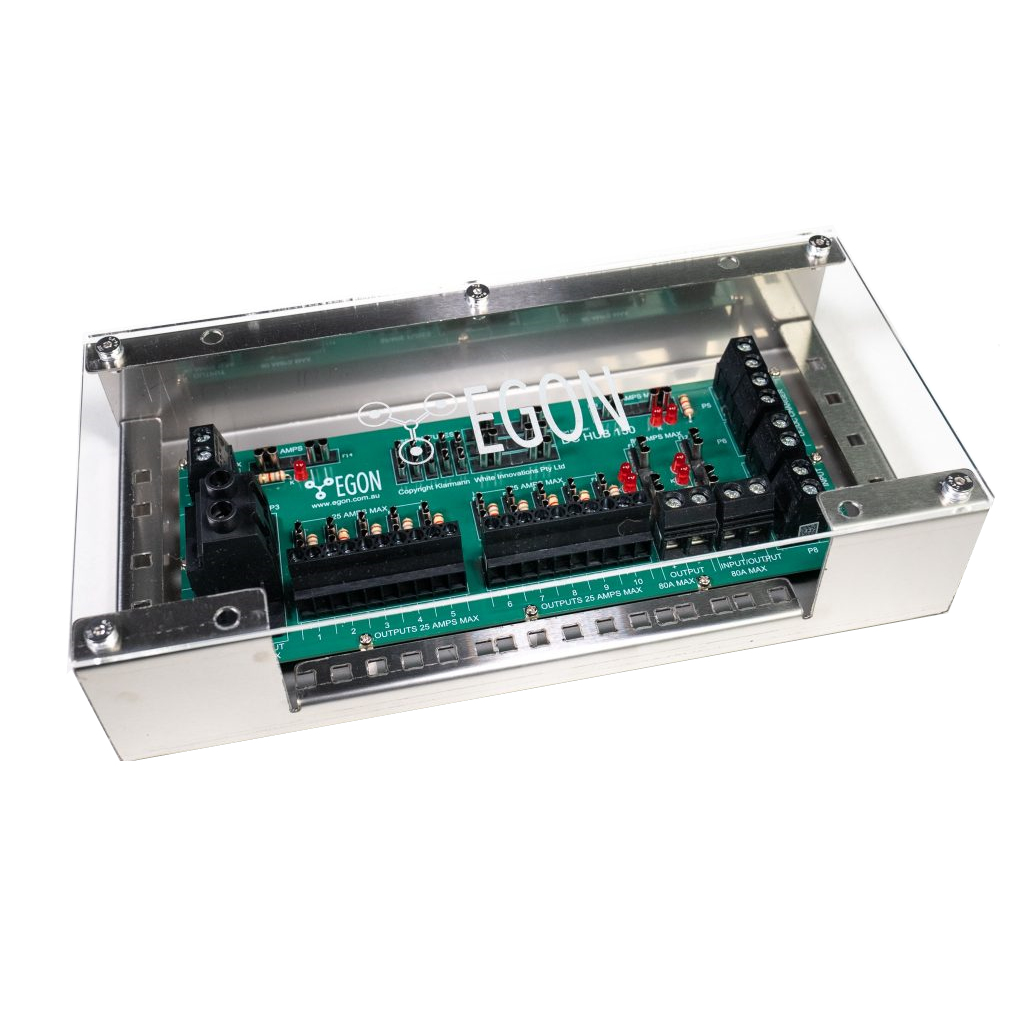

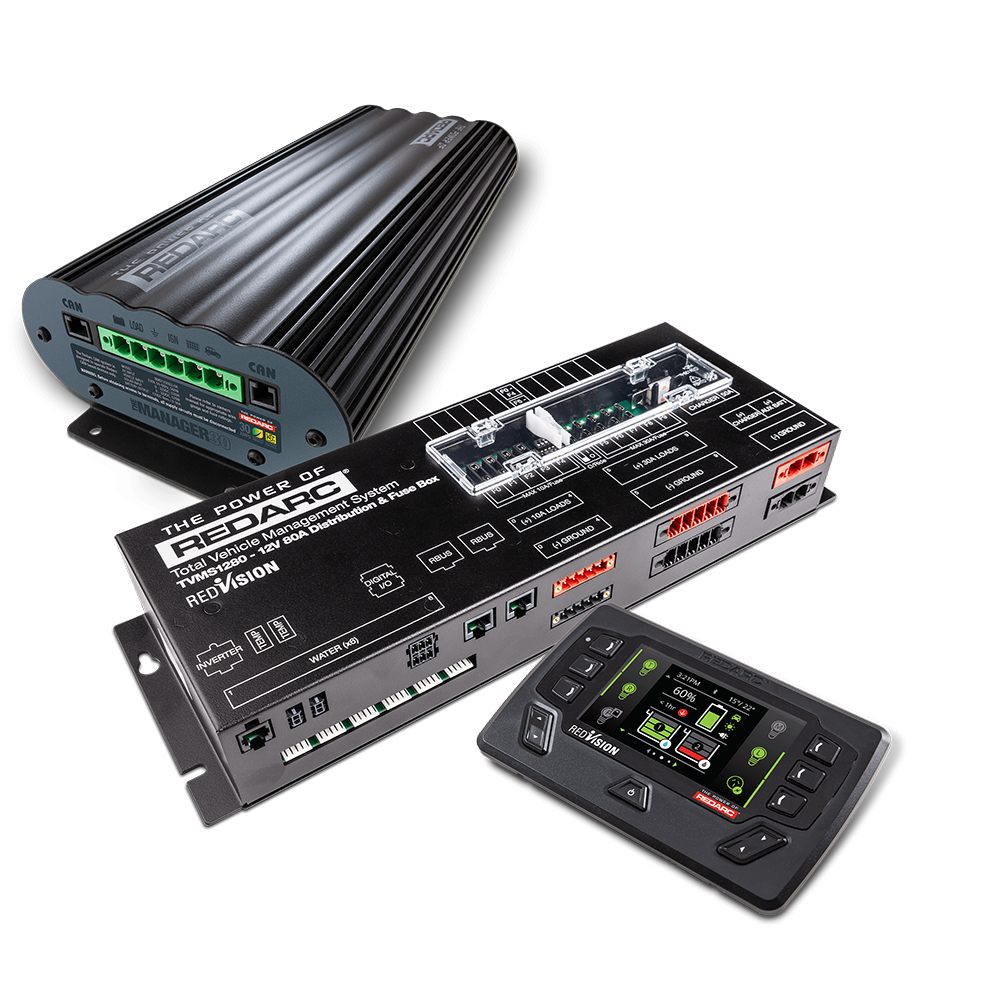

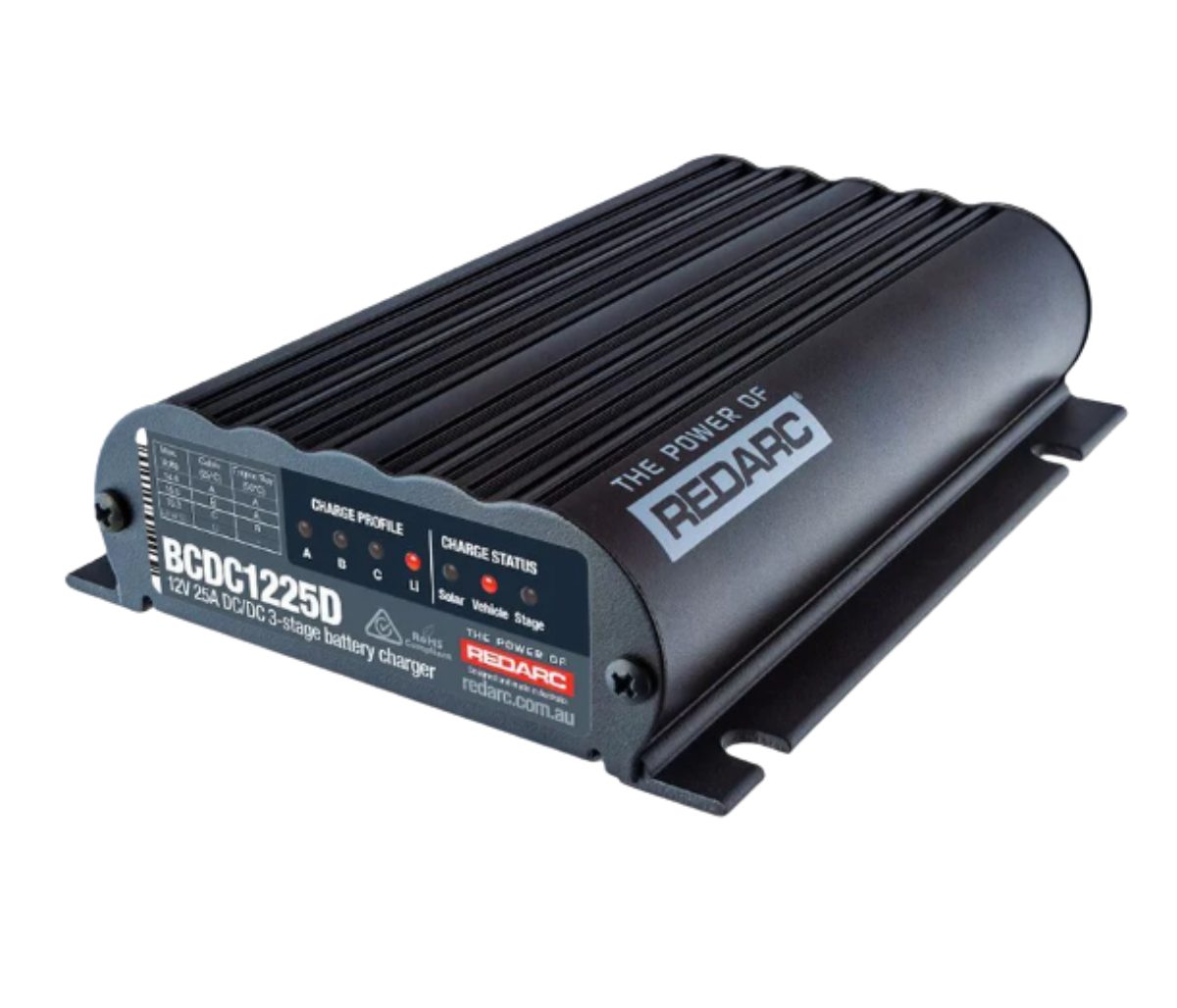

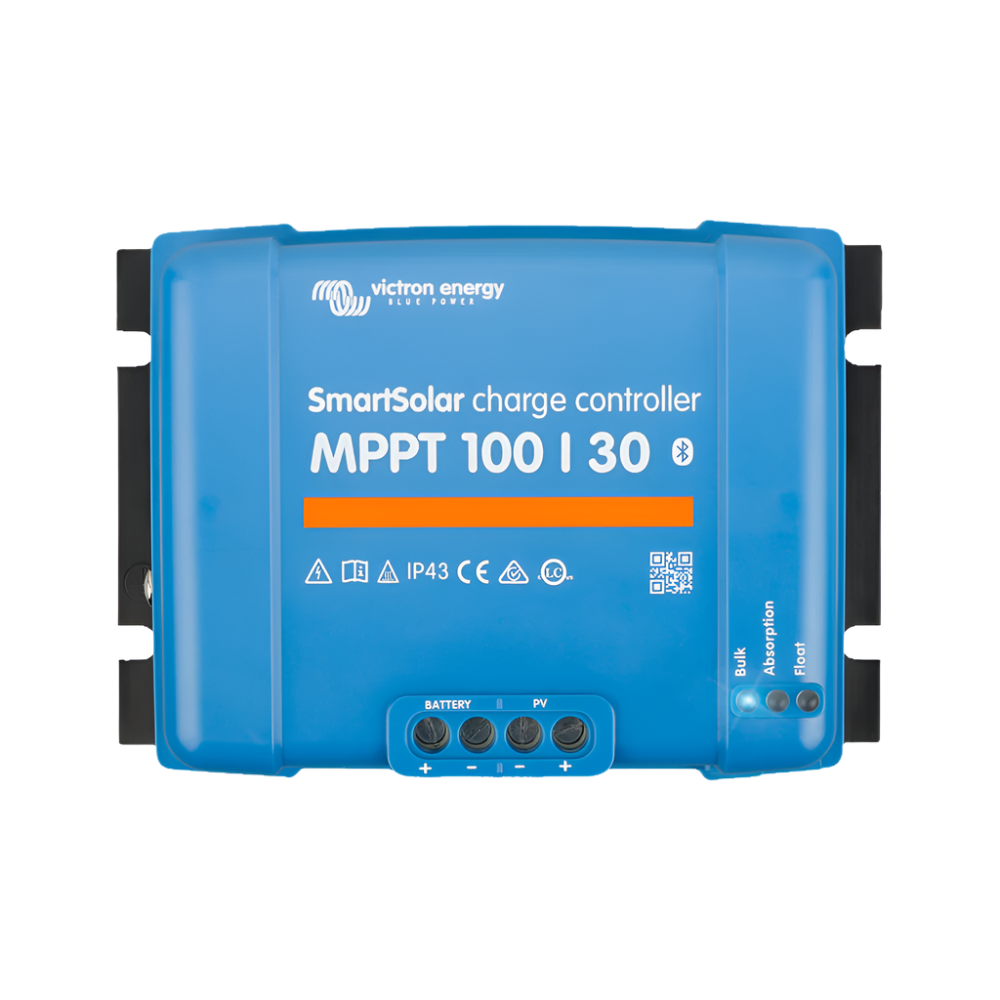

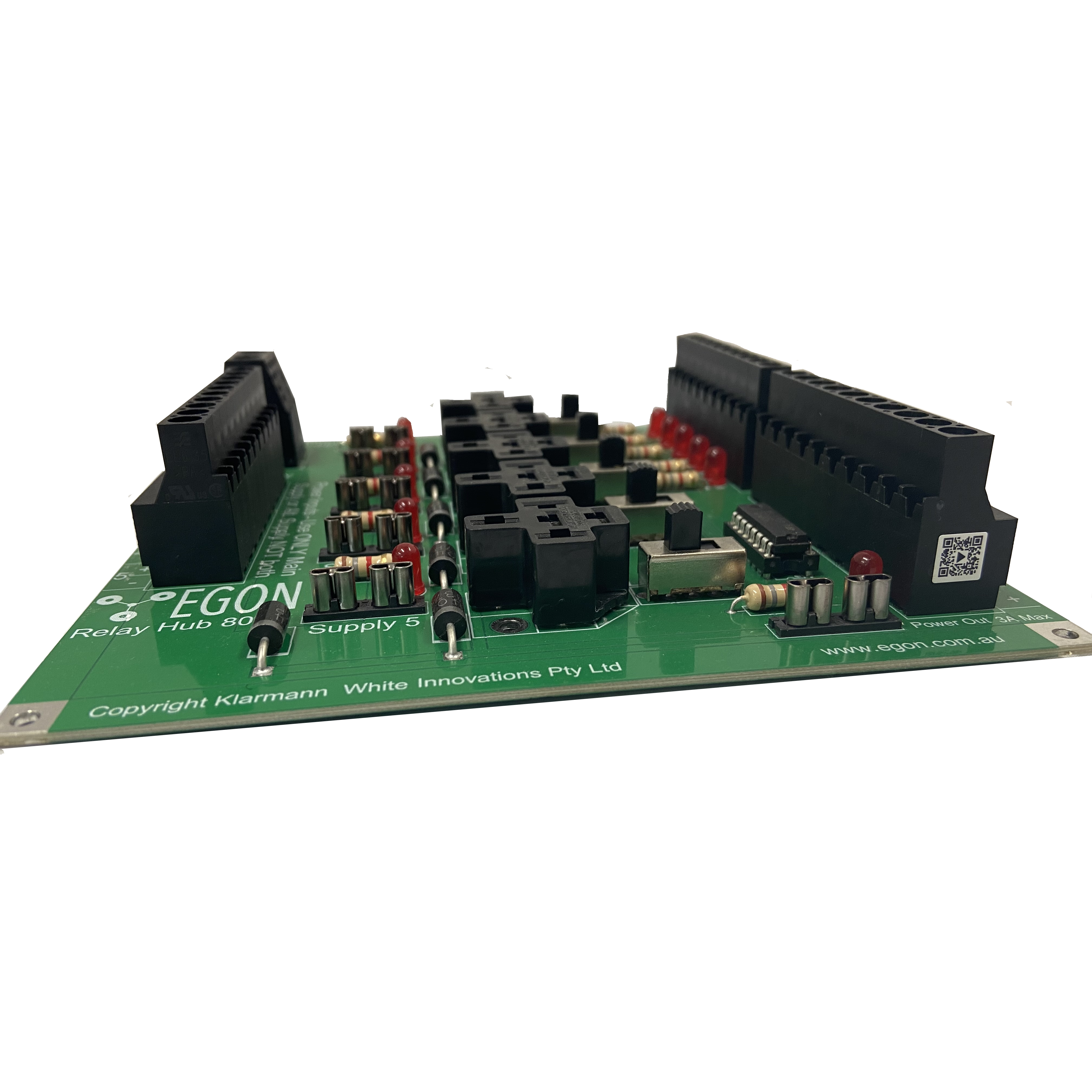

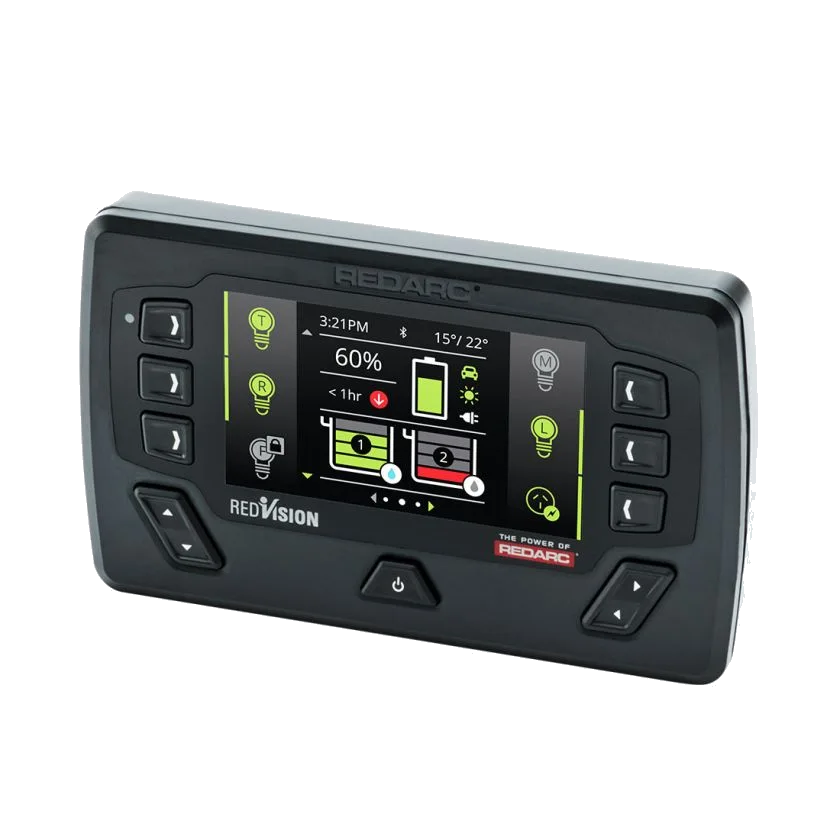

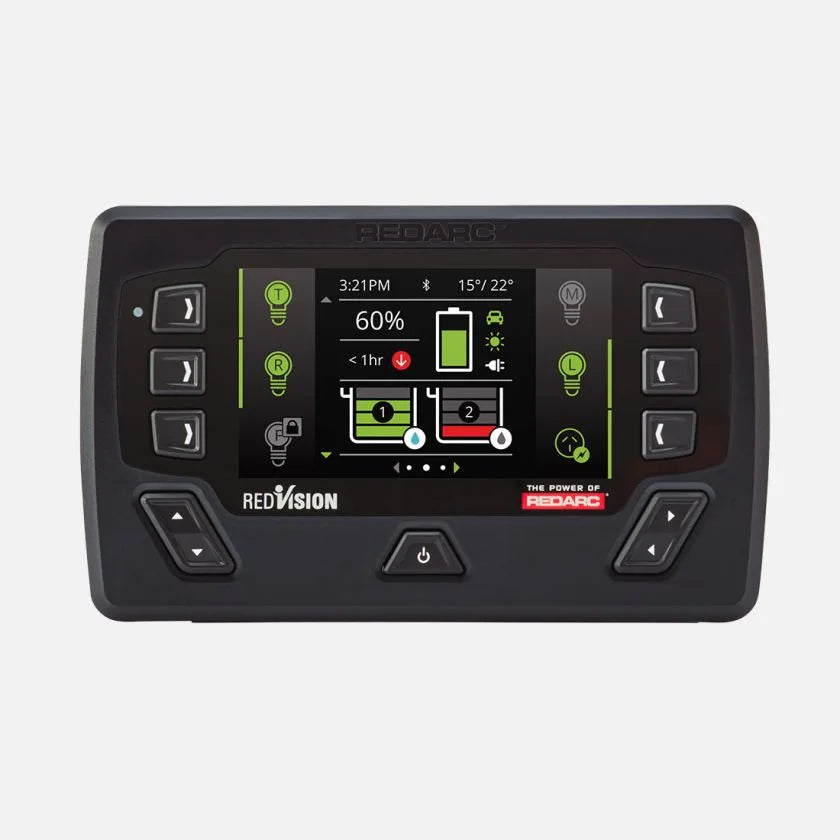

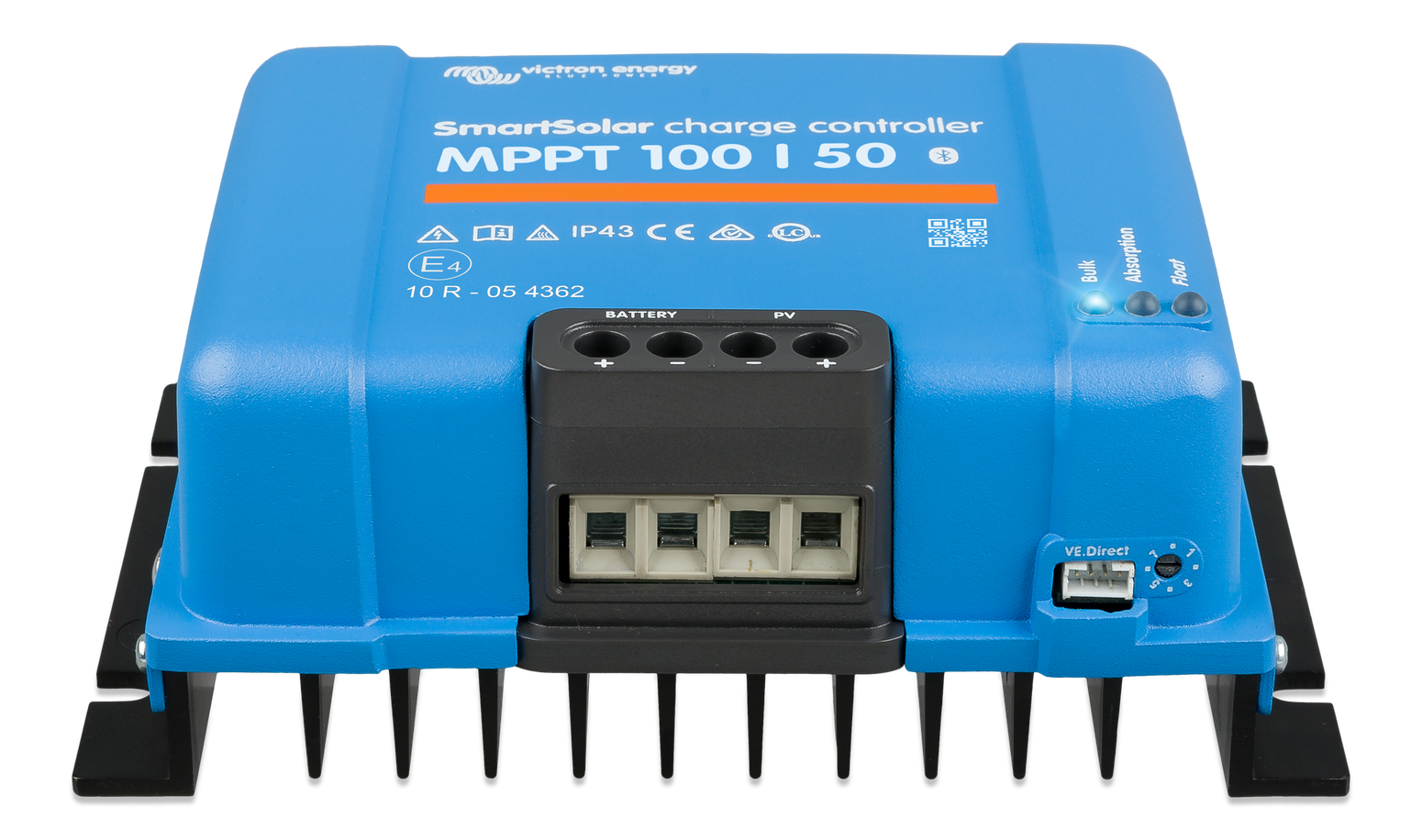

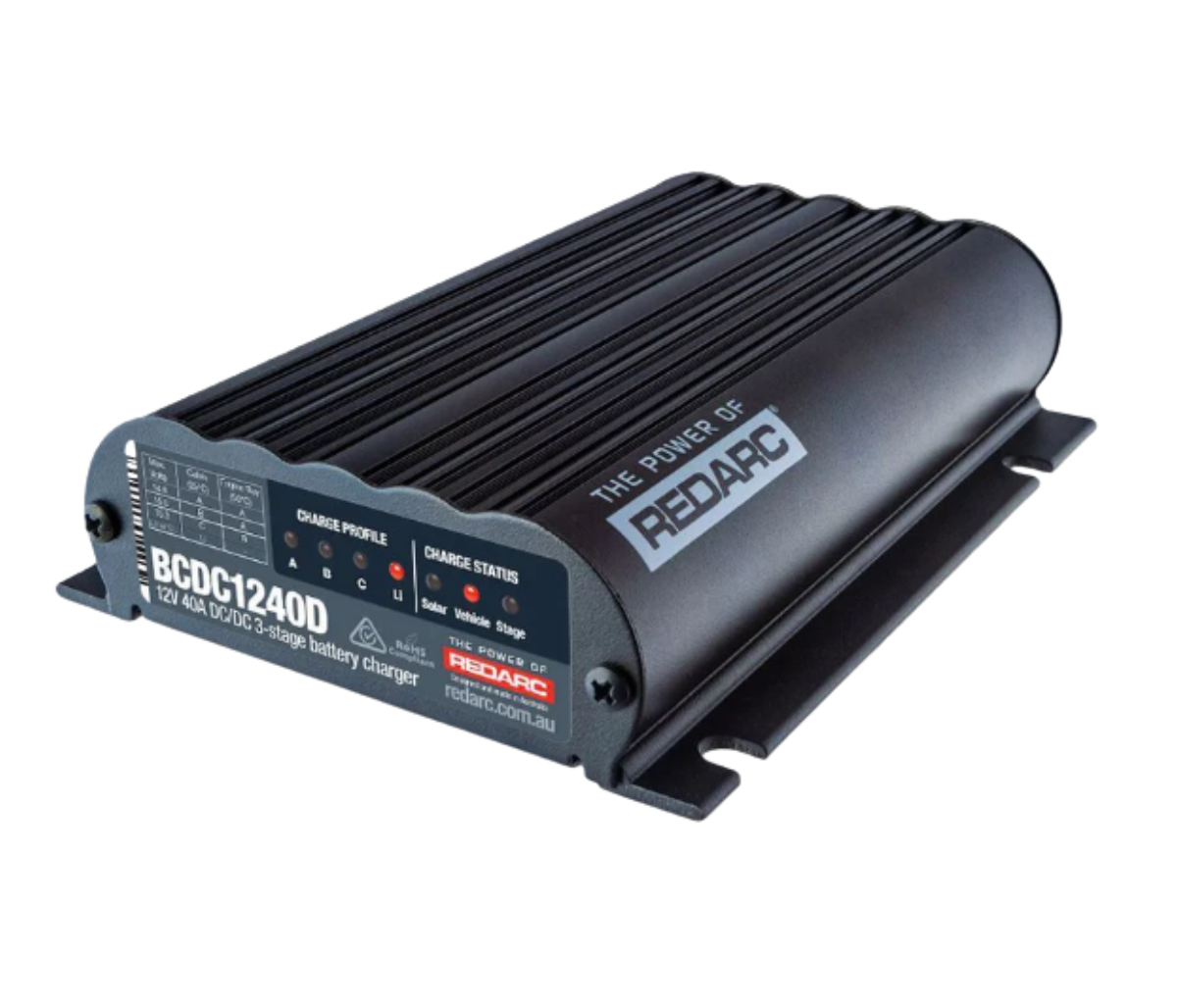

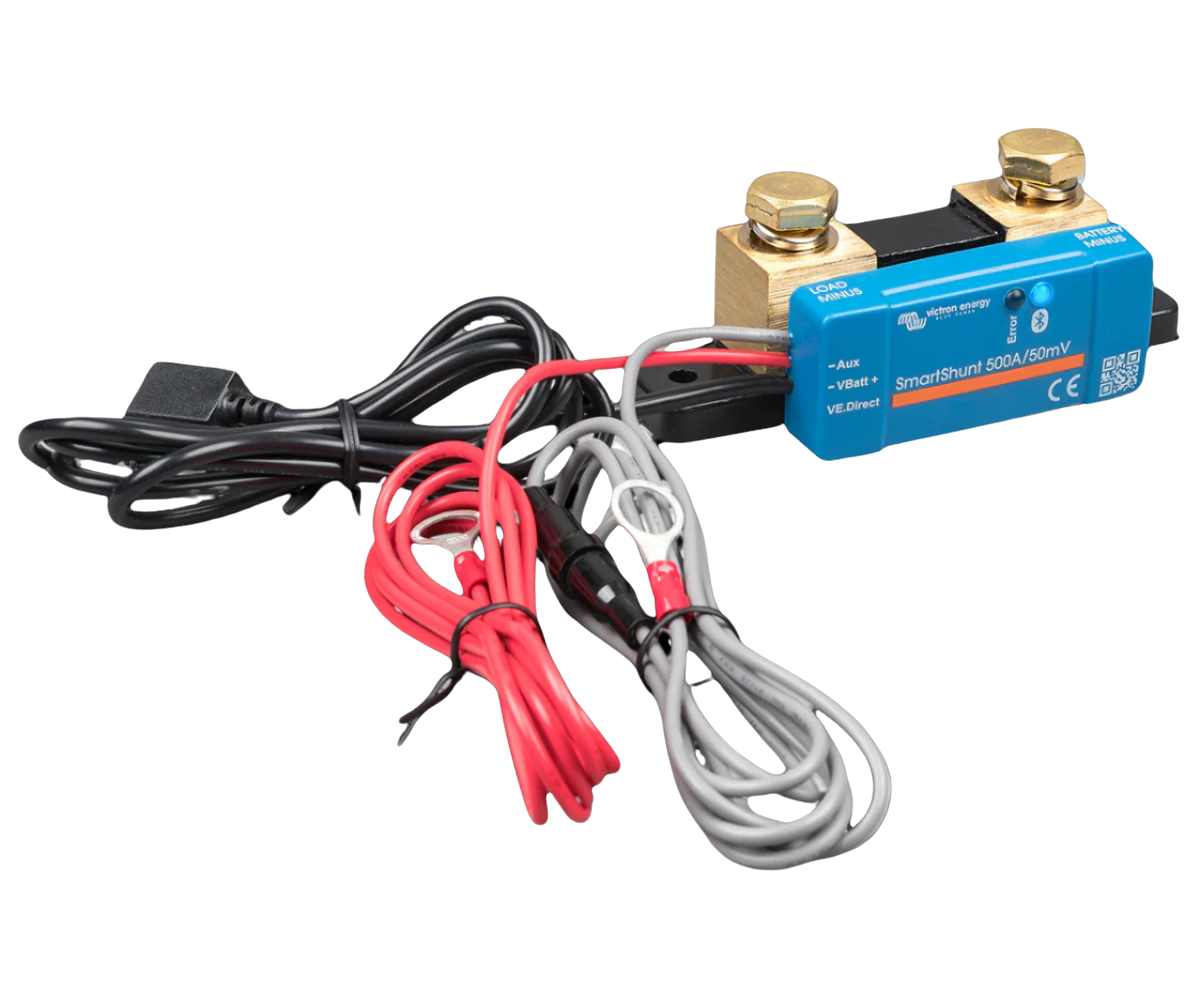

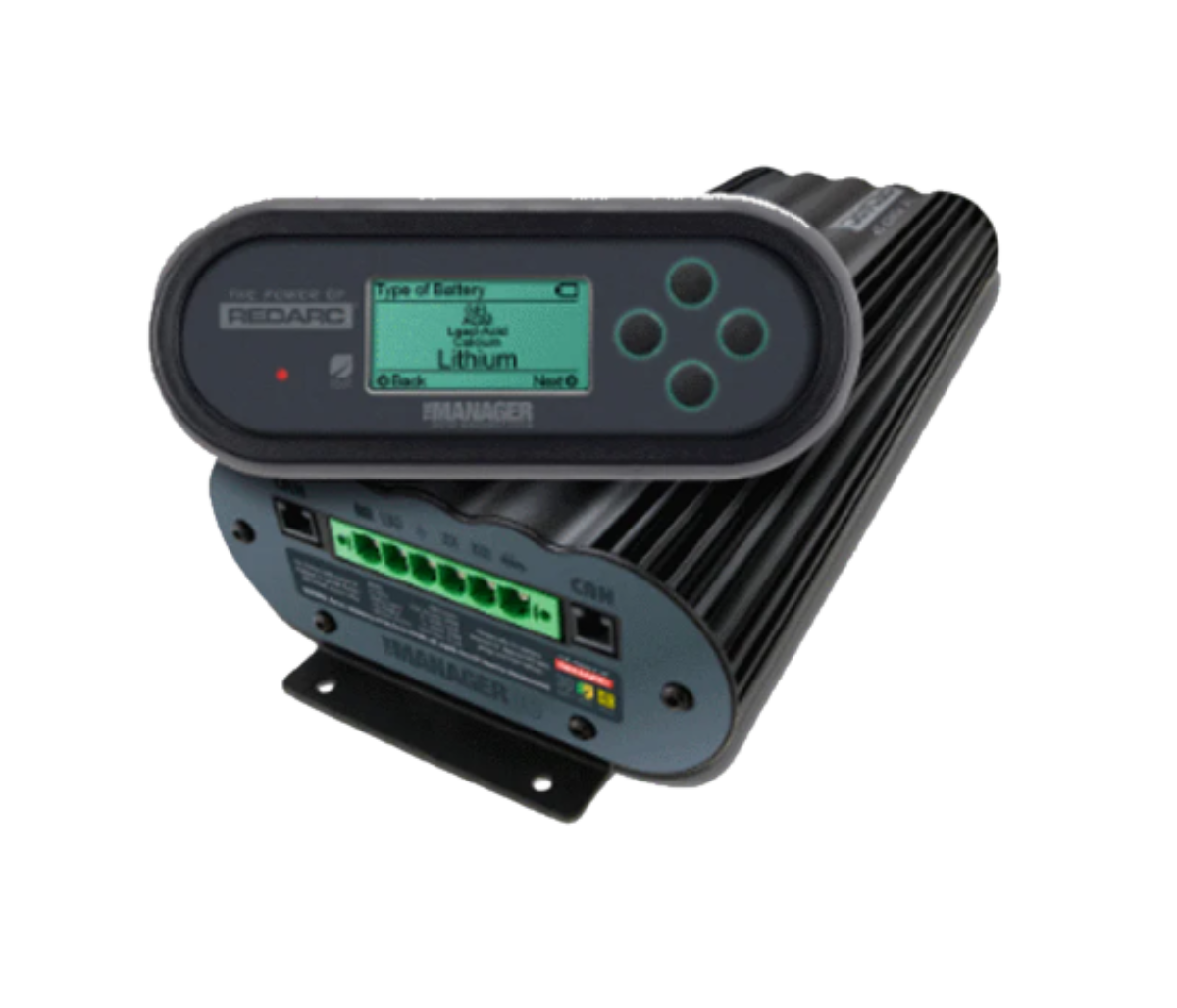

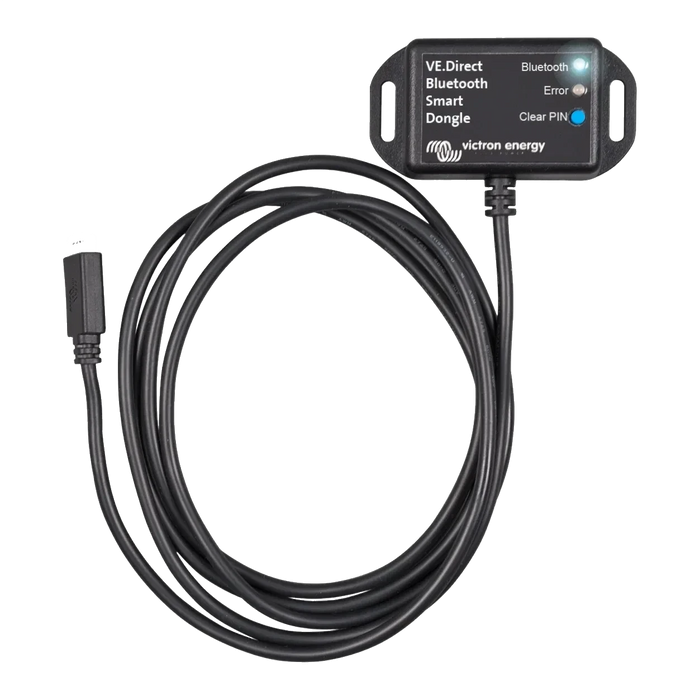

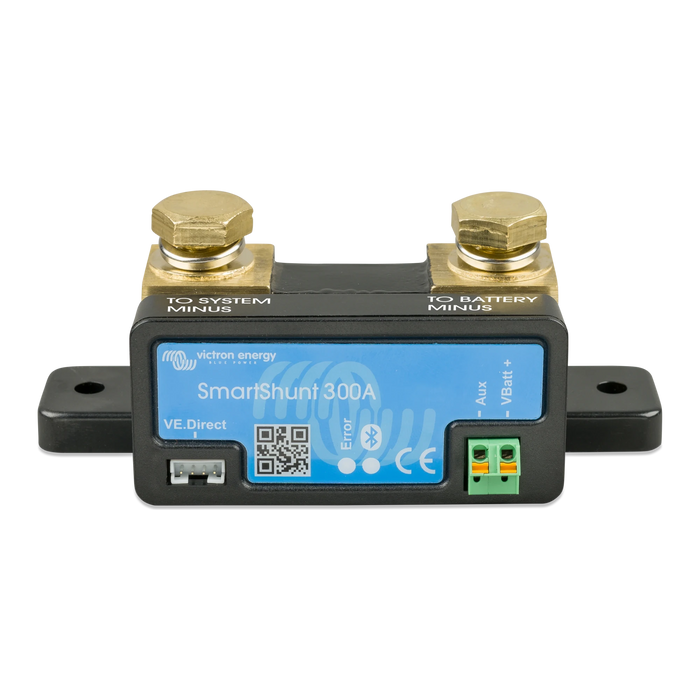

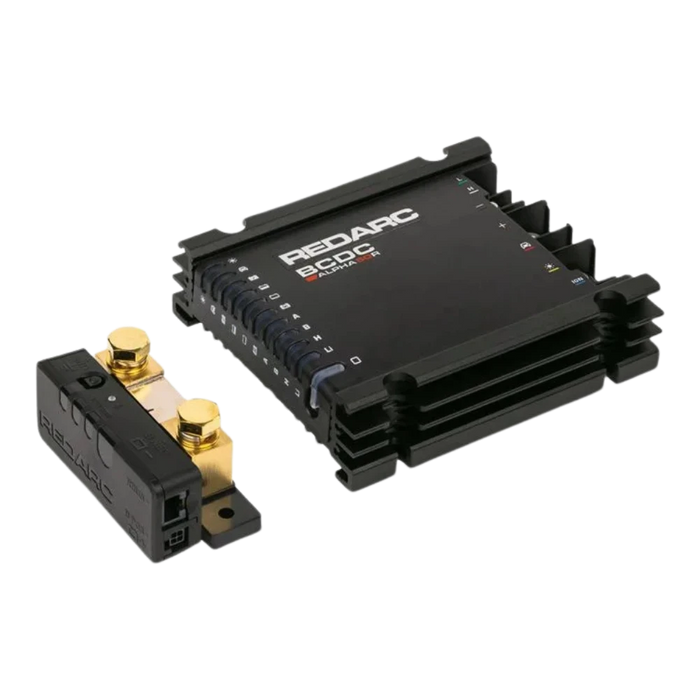

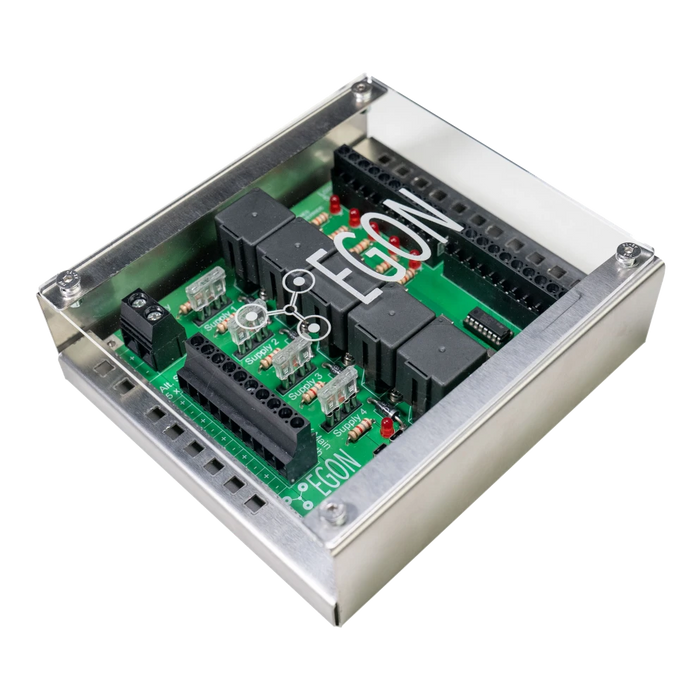

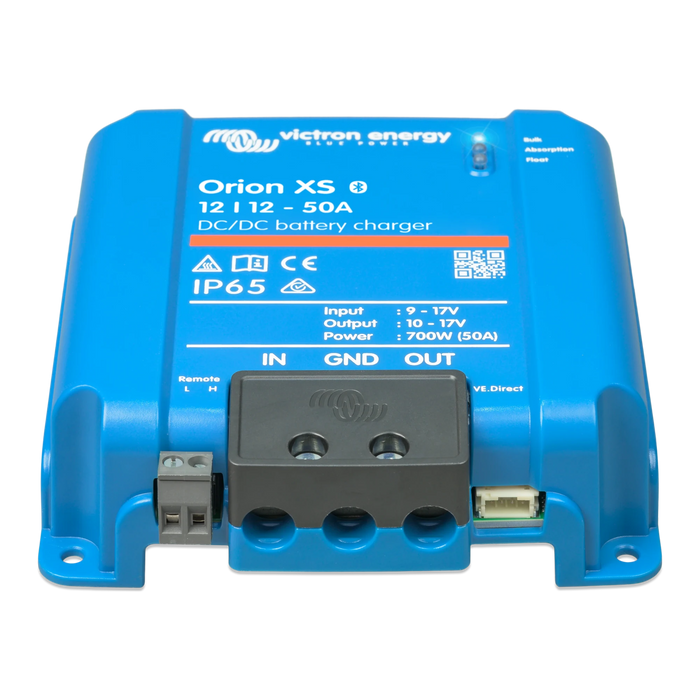

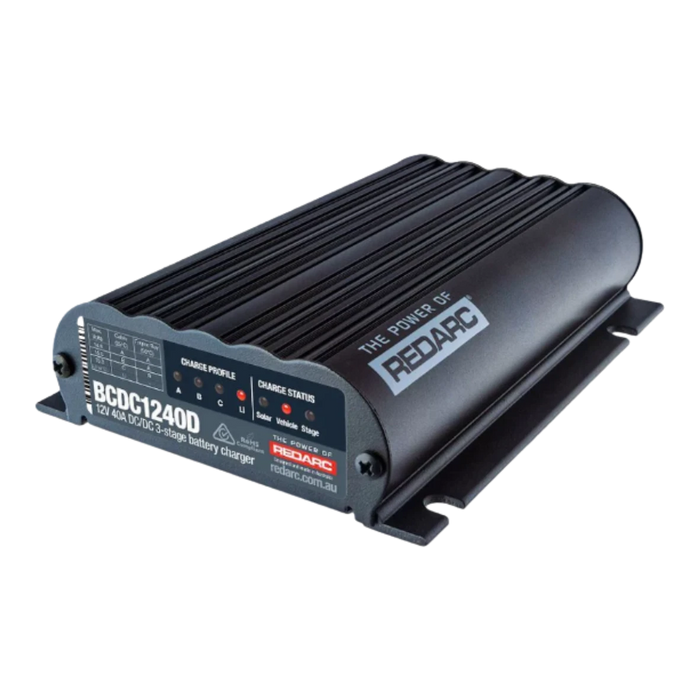

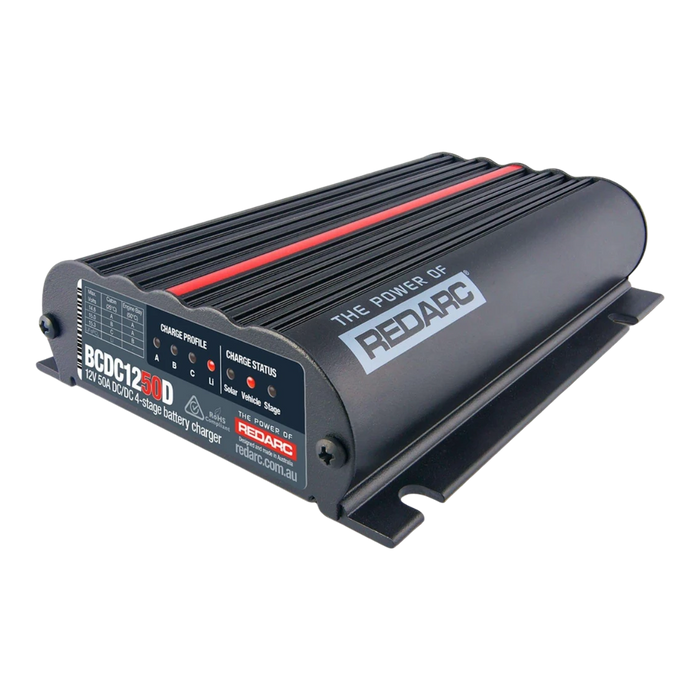

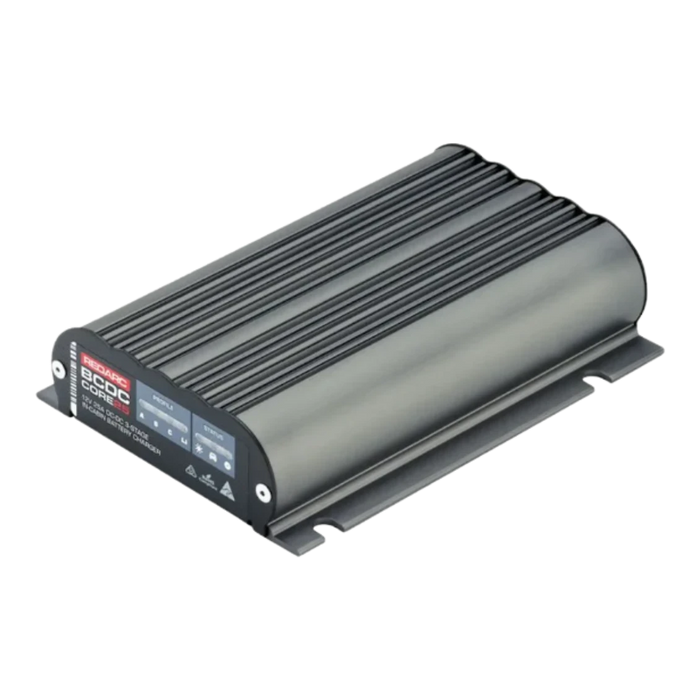

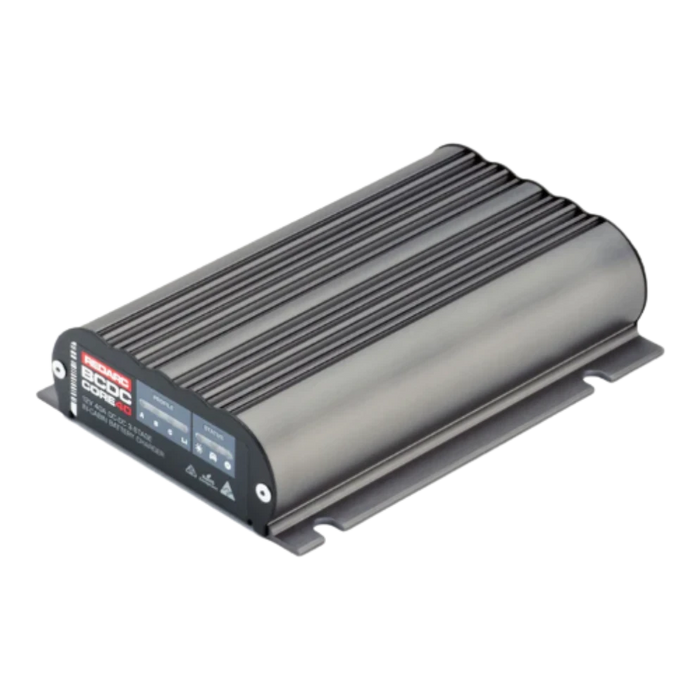

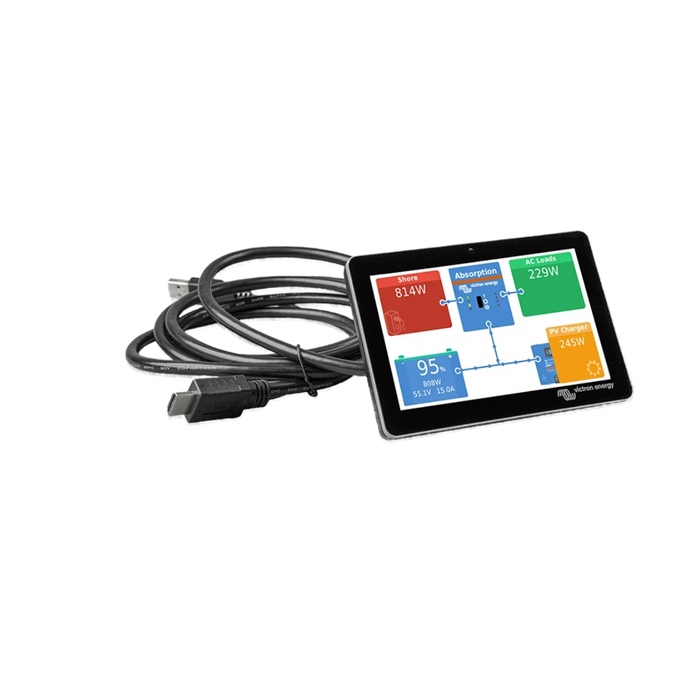

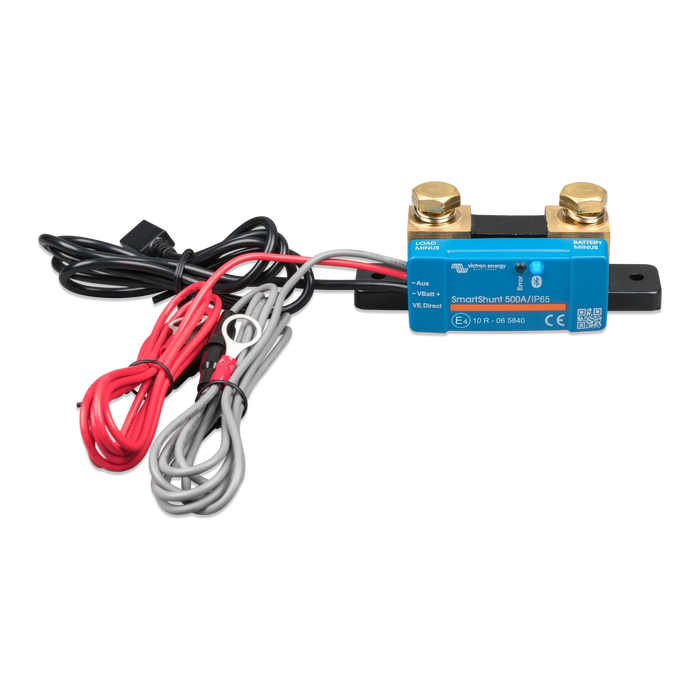

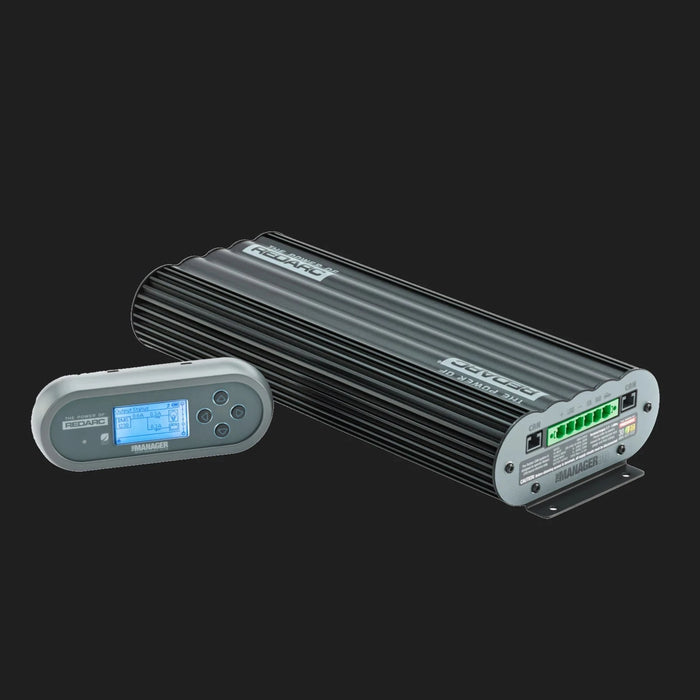

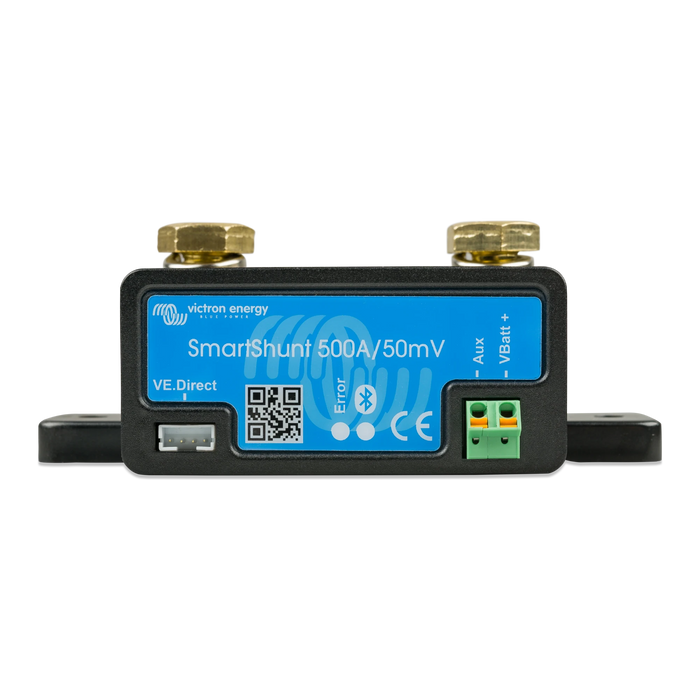

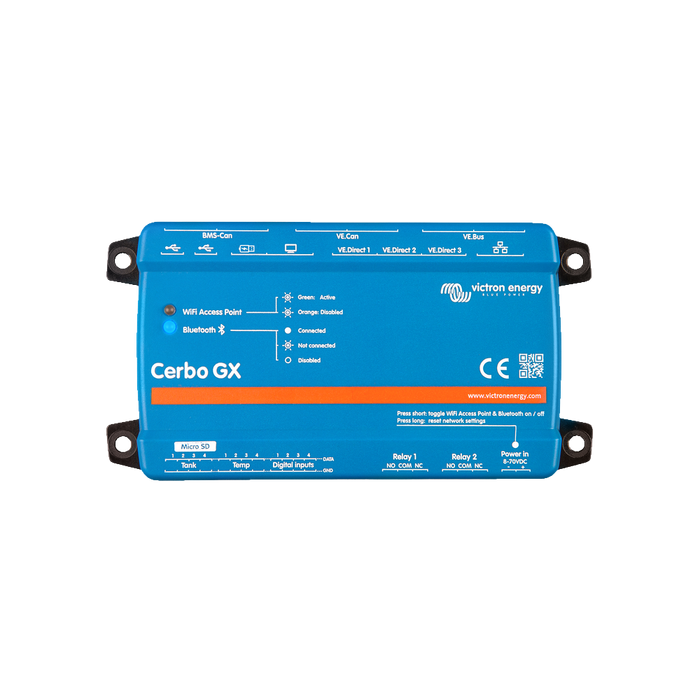

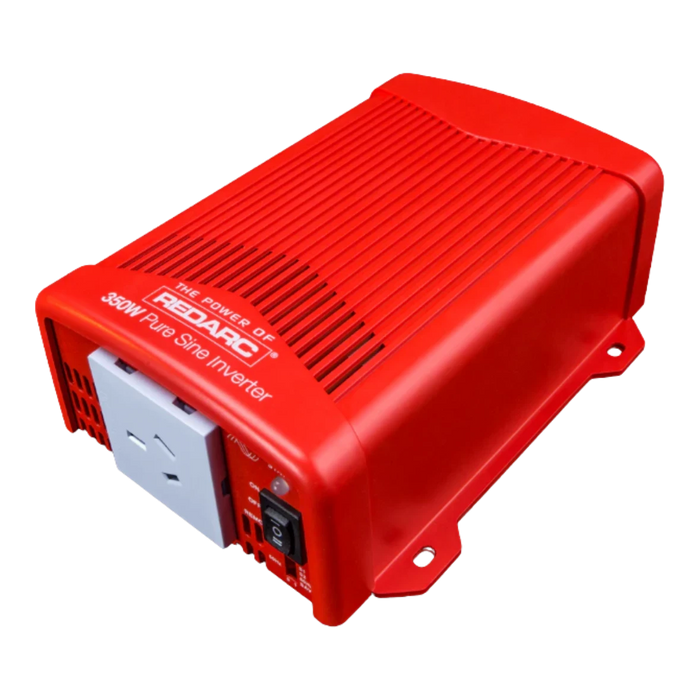

Redarc's BCDC and Manager30 range is our default for touring — Australian-built, warranty we've never had trouble with, and simple to install. Victron suits fully integrated systems with SmartShunt, Cerbo GX and Bluetooth monitoring end to end. Enerdrive covers the well-priced middle ground for caravans, and Egon's DC-Hub bundles the fuses, bus bars and mounting into one tidy plate that saves half a day on install.

A 40A DC-DC charger pulls 40A continuously from the alternator, on top of the vehicle's normal load. Late-model 70 Series, 200 Series and DMax alternators are known for cooking under that duty cycle, so we stock our own [alternator upgrade wiring kits](/collections/alternators) for VDJ and 4JJ3 engines. If you're stepping up from a lead-acid AGM to a lithium bank, an alternator upgrade is usually the next honest conversation.

A power system is only as good as the cable, fuse and mounting behind it. We design the full loop — battery, charger, isolator, shunt, distribution and inverter — and fit it at our Bayswater workshop with proper labelling and documentation you can hand to the next auto-electrician who touches it. Bring us the vehicle and the load list, and we'll build it once.
