Custom Lithium Caravan/RV Lithium Batteries

SKU: CL-RV400

Lead times can vary. The average wait time is 2-3 weeks. Please contact us for an ETA before purchasing

$3,650.00
Amp Hours400AH
Add compliance KitNO Compliance Kit

Ideal for use in caravans, RVs, and other off-grid applications. Designed for installation inside caravans when used with the AU/NZ Lithium Compliance Kit.

1x Custom Lithium RV Battery (capacity varies by model)

Optional Compliance Kit sold separately

400Ah Model

Dimensions: 400mm (L) x 235mm (W) x 260mm (H)
Weight: 35 kg

450Ah Model

Dimensions: 400mm (L) x 235mm (W) x 260mm (H)
Weight: 35 kg

550Ah Model

Dimensions: 405mm (L) x 310mm (W) x 260mm (H)
Weight: 50 kg

620Ah Model

Dimensions: 405mm (L) x 310mm (W) x 260mm (H)
Weight: 50 kg

Crafted with premium A-grade LiFePO4 cells and housed in a rugged, vibration-resistant ABS case, this battery is engineered for long life and maximum safety. The integrated Heltech BMS protects against overheating, over-discharge, and short circuits, while the active balancer ensures optimal cell performance. Designed specifically for caravan and RV installation, it pairs seamlessly with the AU/NZ Lithium Compliance Kit to meet regulatory requirements.

[{"variant_id":"50611948060945" , "metafield_value":""},{"variant_id":"50611948618001" , "metafield_value":""},{"variant_id":"50611949142289" , "metafield_value":""},{"variant_id":"50611949797649" , "metafield_value":""},{"variant_id":"50611949895953" , "metafield_value":""},{"variant_id":"50611950190865" , "metafield_value":""},{"variant_id":"50611950420241" , "metafield_value":""},{"variant_id":"50611951927569" , "metafield_value":""}]

Custom Lithium Caravan/RV Lithium Batteries

$3,650.00
Description

Power your caravan or RV with Custom Lithium’s advanced lithium auxiliary batteries, designed to deliver high current performance and reliability for your off-grid adventures.

Equipped with a high current Heltech BMS and active cell balancing, these batteries provide robust power to luxuries such as air conditioning, induction cookers, coffee machines, and more — allowing you to enjoy the comforts of home even in the most remote locations.

Engineered with premium A-grade automotive LiFePO4 cells, these batteries combine safety, longevity, and efficiency in a high-strength ABS enclosure built to withstand vibration and harsh travel conditions.

Certified Australian Made and built in Brisbane, Custom Lithium’s RV batteries are the ultimate energy solution for your travels.

FEATURES

Australian-made in Brisbane

7-year warranty

Individually bench tested

High-strength ABS enclosure

Premium A-grade automotive LiFePO4 cells

High current Heltech BMS

Continuous 380A discharge capability

Active cell balancing for optimal battery health

FAQ's

Q: Can I swap my AGM Deep Cycle battery for a Custom Lithium battery?
A: Only if your charging system supports lithium charging profiles with bulk voltages between 14.2–14.6V and float voltages between 13.4–13.6V.

Q: What size DC-DC charger do I need?
A: We recommend a 40A DC-DC charger for faster recharge, but 25A–30A chargers are also compatible. All DC-DC chargers we supply support lithium batteries.

Q: What charging profile should I use?

A: Charge voltage should be between 14.2V and 14.6V with absorption/float voltage between 13.4V and 13.6V. Use LiFePO4 settings if available.

Q: Are Custom Lithium batteries IEC-62619 certified?
A: Yes, all use IEC-62619 certified components and comply with AS/NZS 3001 standards.

Specifications

400Ah Model

Battery Chemistry: LiFePO4
Capacity: 400Ah
Continuous Discharge Current: 380A
Peak Discharge Protection: 1800A
Continuous Charge Current: 100A
Peak Charge Current: 200A
Dimensions (mm): 400 x 235 x 260
Weight: 35 kg
Operating Temperature: -20°C to 60°C
Terminals: M10
Charge Voltage Range: Bulk 14.2–14.6V | Float 13.4–13.6V
Cut Off Voltage: 10.5V
Nominal Voltage: 12.8V
Warranty: 7 years

450Ah Model

Battery Chemistry: LiFePO4
Capacity: 450Ah
Continuous Discharge Current: 380A
Peak Discharge Protection: 1800A
Continuous Charge Current: 100A
Peak Charge Current: 200A
Dimensions (mm): 400 x 235 x 260
Weight: 35 kg
Operating Temperature: -20°C to 60°C
Terminals: M10
Charge Voltage Range: Bulk 14.2–14.6V | Float 13.4–13.6V
Cut Off Voltage: 10.5V
Nominal Voltage: 12.8V
Warranty: 7 years

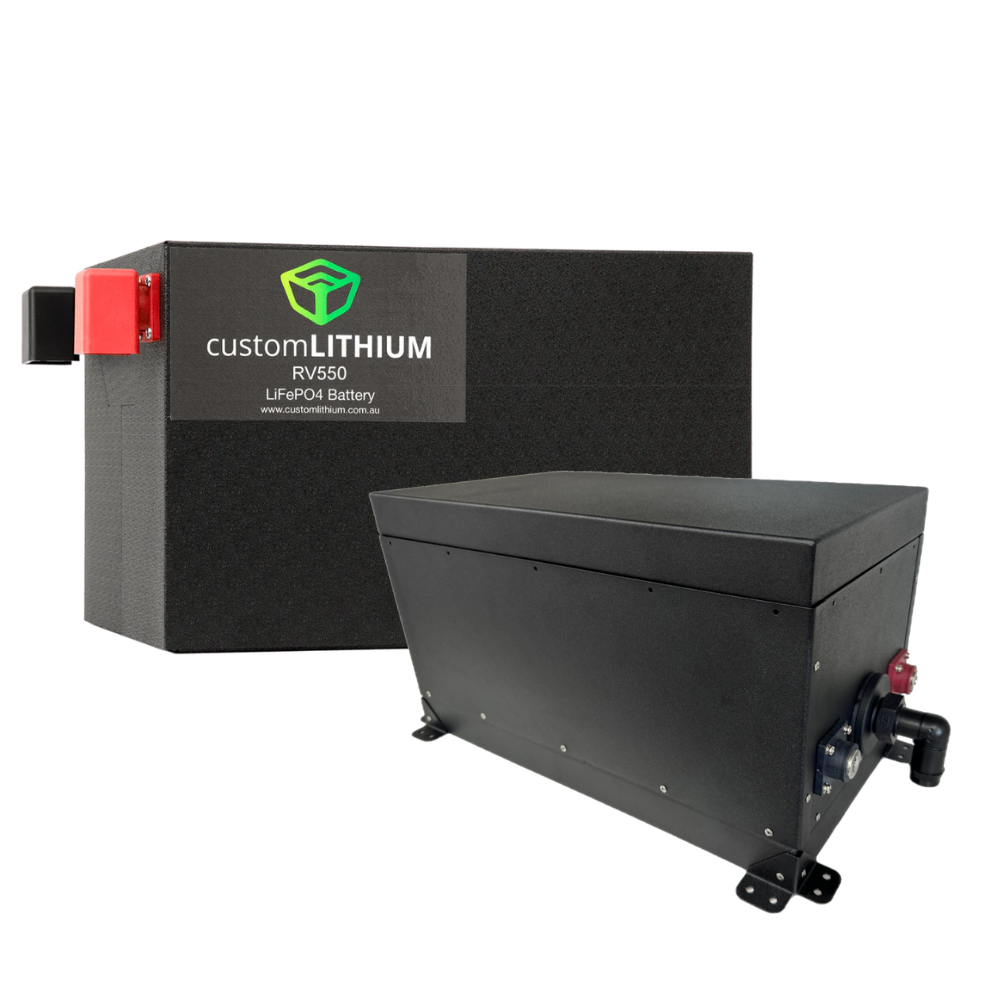

550Ah Model

Battery Chemistry: LiFePO4
Capacity: 550Ah
Continuous Discharge Current: 380A
Peak Discharge Protection: 1800A
Continuous Charge Current: 100A
Peak Charge Current: 200A
Dimensions (mm): 405 x 310 x 260
Weight: 50 kg
Operating Temperature: -20°C to 60°C
Terminals: M10
Charge Voltage Range: Bulk 14.2–14.6V | Float 13.4–13.6V
Cut Off Voltage: 10.5V
Nominal Voltage: 12.8V
Warranty: 7 years

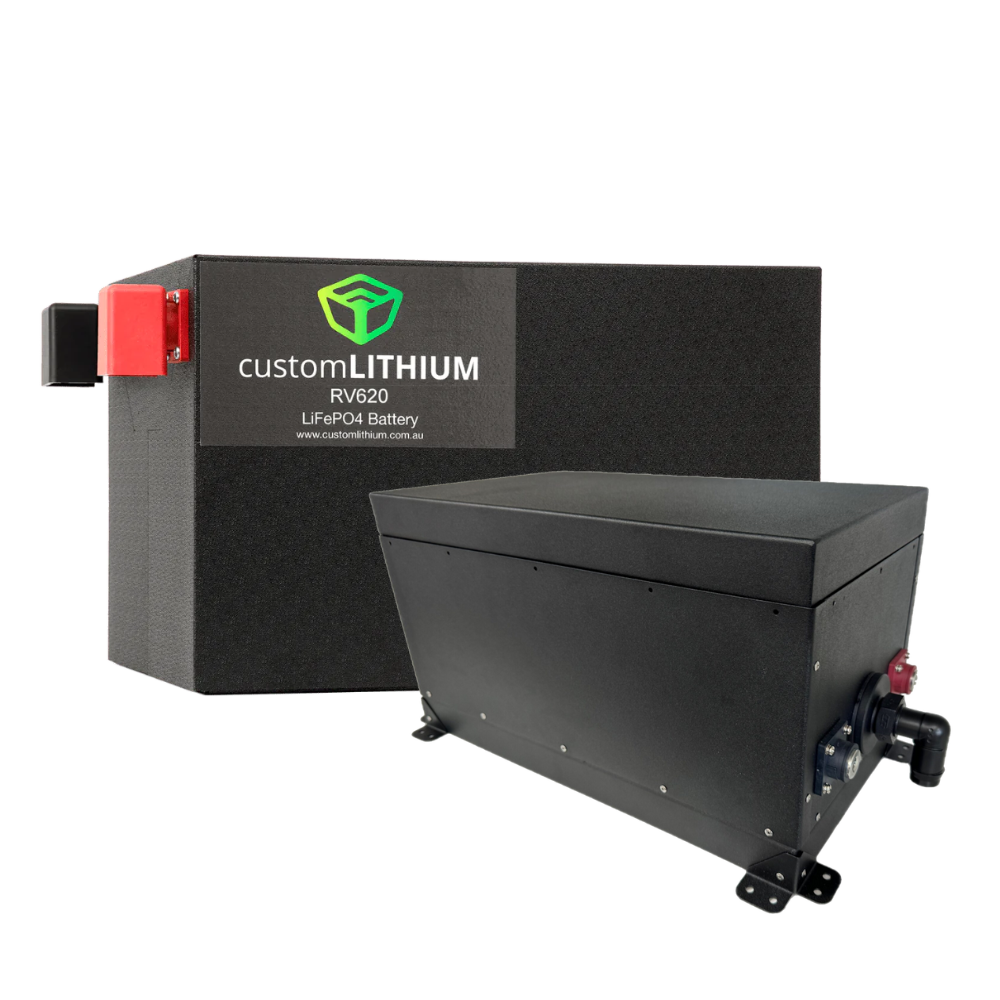

620Ah Model

Battery Chemistry: LiFePO4
Capacity: 620Ah
Continuous Discharge Current: 380A
Peak Discharge Protection: 1800A
Continuous Charge Current: 100A
Peak Charge Current: 200A
Dimensions (mm): 405 x 310 x 260
Weight: 50 kg
Operating Temperature: -20°C to 60°C
Terminals: M10
Charge Voltage Range: Bulk 14.2–14.6V | Float 13.4–13.6V
Cut Off Voltage: 10.5V
Nominal Voltage: 12.8V
Warranty: 7 years

Installation Information

Installation should be completed by a qualified technician.

Compliance Kit sold separately to meet AU/NZ regulations.

Wiring kits are not included. Professional installation services are available at our Bayswater, WA workshop.

Download Mounting Orientation Instructions

Warranty Information


Includes a 7-year manufacturer’s warranty from Custom Lithium.

Full terms are available by contacting our team.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Shipping: Australia-wide shipping
