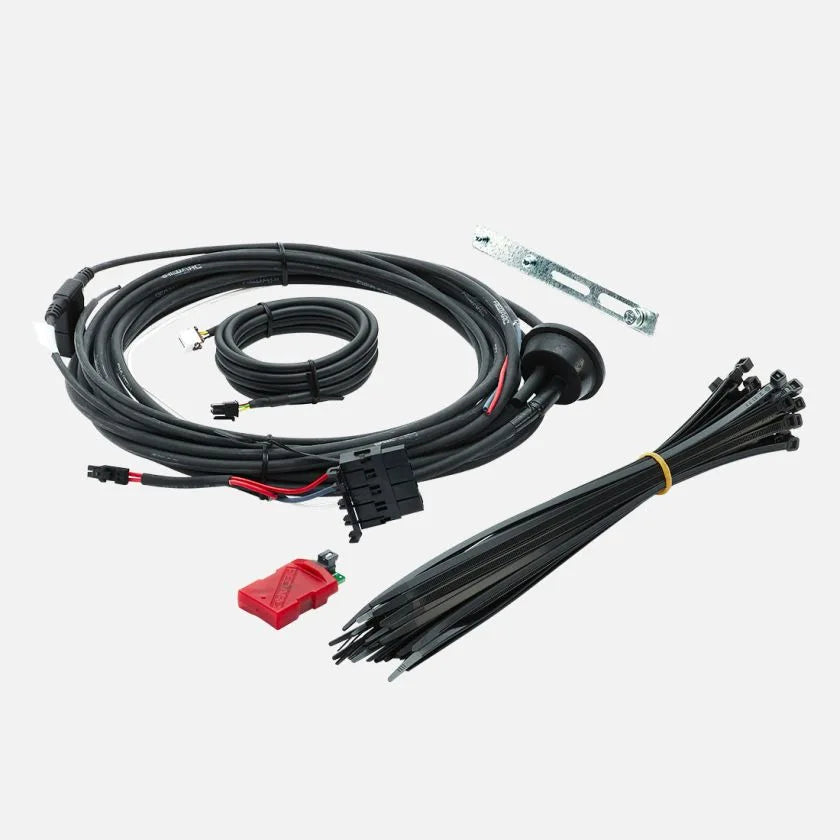

Wiring harness kit with cables and connectors on a white background
Wiring harness kit with cables and connectors on a white background

Redarc Wiring Kit To Suit Ranger And Everest With AEB

SKU: TPWKIT-012
$299.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ford Ranger:

PX3 (MY18 onwards) – Required

PX & PX2 – Optional (Backward compatible)

Ford Everest:

MY18 onwards – Required

Pre-MY18 – Optional (Backward compatible)

Note: The Tow-Pro Elite 12V (EBRH-ACCV3-12) is not compatible with Ford Ranger and Everest models. Use the Tow-Pro Elite (EBRH-ACCV3) paired with the TPWKIT-012 for these installations.

Wiring harness

Wago boot

Encapsulated protection device

Mounting bracket

Grommets


Cable ties

TPWKIT-012 Manual

Next Gen Ford Ranger (FY23+) Fitting Instructions

Install Guide for Ford Vehicles

Box Dimensions: 290 x 290 x 65mm

Weight: 970g


Compatible with all current Ford Ranger and Ford Everest models. Includes both CAT5 (V2) and 8-pin (V3) cables to suit any version of the Tow-Pro brake controller.

 [{"variant_id":"39283258228845" , "metafield_value":""}]

Redarc Wiring Kit To Suit Ranger And Everest With AEB

$299.00
Description

The REDARC TPWKIT-012 Tow-Pro Wiring Kit is a vehicle-specific kit designed to simplify the installation of the Tow-Pro Elite and Tow-Pro Classic electric brake controllers in Ford Ranger and Ford Everest models (with or without AEB).

This plug-and-play kit includes everything needed for a clean, reliable install — no wire cutting or guesswork required. It supersedes TPWKIT-001 and supports both V2 and V3 Tow-Pro versions with appropriate data cables included.

FEATURES

Vehicle-specific harness

Supports Tow-Pro V2 & V3

Avoids fault codes

Faster installation

All hardware included


FAQ's

Q: Will this kit fit my 2023 Ford Ranger Wildtrak?
A: Yes, it’s compatible with all current Ford Rangers.

Q: Do I need to buy anything extra?
A: No, the kit includes all required components, but a switch insert is not included.

Specifications

Voltage: 12V / 25A

Application: Ford Ranger & Everest

Warranty: 2 Years

Switch Insert: Not included




Installation Information

Designed for quick, clean installations without impacting factory electronics.

The kit includes:

Fused electric brake harness

Mounting bracket

Wago boot

Encapsulated protection device

Grommets

Cable ties

Cable ties

Comprehensive fitting instructions
























Warranty Information


2-year REDARC warranty covering manufacturing defects under normal conditions.

PICKUP OR SHIPPING

Pickup available from Elevate Automotive. We offer Australia-wide and worldwide shipping.
