Elevate Alternator Upgrade Wiring Kit for 70 Series VDJ

SKU: ASM-Alt-Wiringkit-1VD-FTV
$225.00
  • VEHICLE

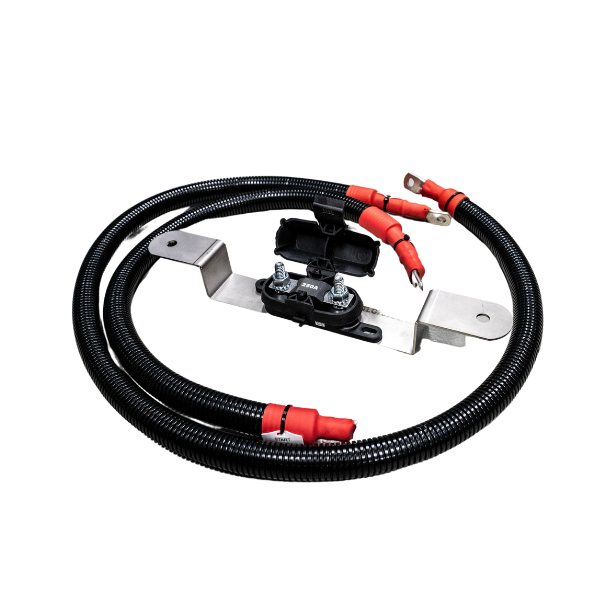

  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Toyota LandCruiser 70 & 200 Series (All variants with 1VD-FTV V8 turbo diesel engine)

2m 0 B&S red cable

4x 50-8 lugs

25mm heatshrink

Mega fuse holder

250A mega fuse

20mm conduit

Elevate 70 Series intercooler-mounted single fuse bracket

N/A – custom cable lengths and universal mounting

Kit designed for vehicles with 1VD-FTV motors and aftermarket alternators. Ensure compatibility with your alternator model.

 [{"variant_id":"46906400997649" , "metafield_value":""}]

Elevate Alternator Upgrade Wiring Kit for 70 Series VDJ

$225.00
Description

If you own a 70 or 200 Series Land Cruiser with a 1VD-FTV motor and plan to run a high-demand electrical setup—such as large DC-DC chargers—an alternator upgrade is usually essential. That’s why we’ve created this upgraded alternator wiring kit, specifically designed to simplify the install process for upgraded alternators on all 70 & 200 Series models with the V8 turbo diesel engine.

The kit includes heavy-duty wiring, lugs, heatshrink, conduit, and a Elevate-engineered intercooler-mounted single mega fuse bracket, making it a clean and secure installation above the intercooler.

Whether you're fitting a 240A Jaylec Black Series or a 250A Endura brushless alternator, this kit helps safely route and fuse your upgraded charging cable.

FEATURES

Heavy-duty cabling for high current alternator output


Pre-lugged for easy installation


Intercooler-mounted bracket for clean, elevated fuse placement


Suits aftermarket alternators up to 250A

FAQ's

Q: Will this work with my factory alternator?
A: This kit is designed for use with upgraded alternators. For factory setups, see our standard charge wiring options.

Q: Is the fuse holder waterproof?
A: It is designed for engine bay use and offers a secure, splash-resistant seal when installed properly.

Specifications

Cable Size: 0 B&S (2m red)


Fuse: 250A Mega Fuse


Lugs: 4x 50-8


Conduit: 20mm


Fuse Holder: Single Mega Fuse Holder


Mount: Intercooler-mounted Klarmann Bracket


Engine: 1VD-FTV V8 only

Installation Information

Mount fuse holder bracket to the intercooler using Elevate's included hardware.

Drill holes as needed for cable routing.

Recommended for use with upgraded alternators only.

Warranty Information

12-month replacement warranty on wiring and fuse components.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
