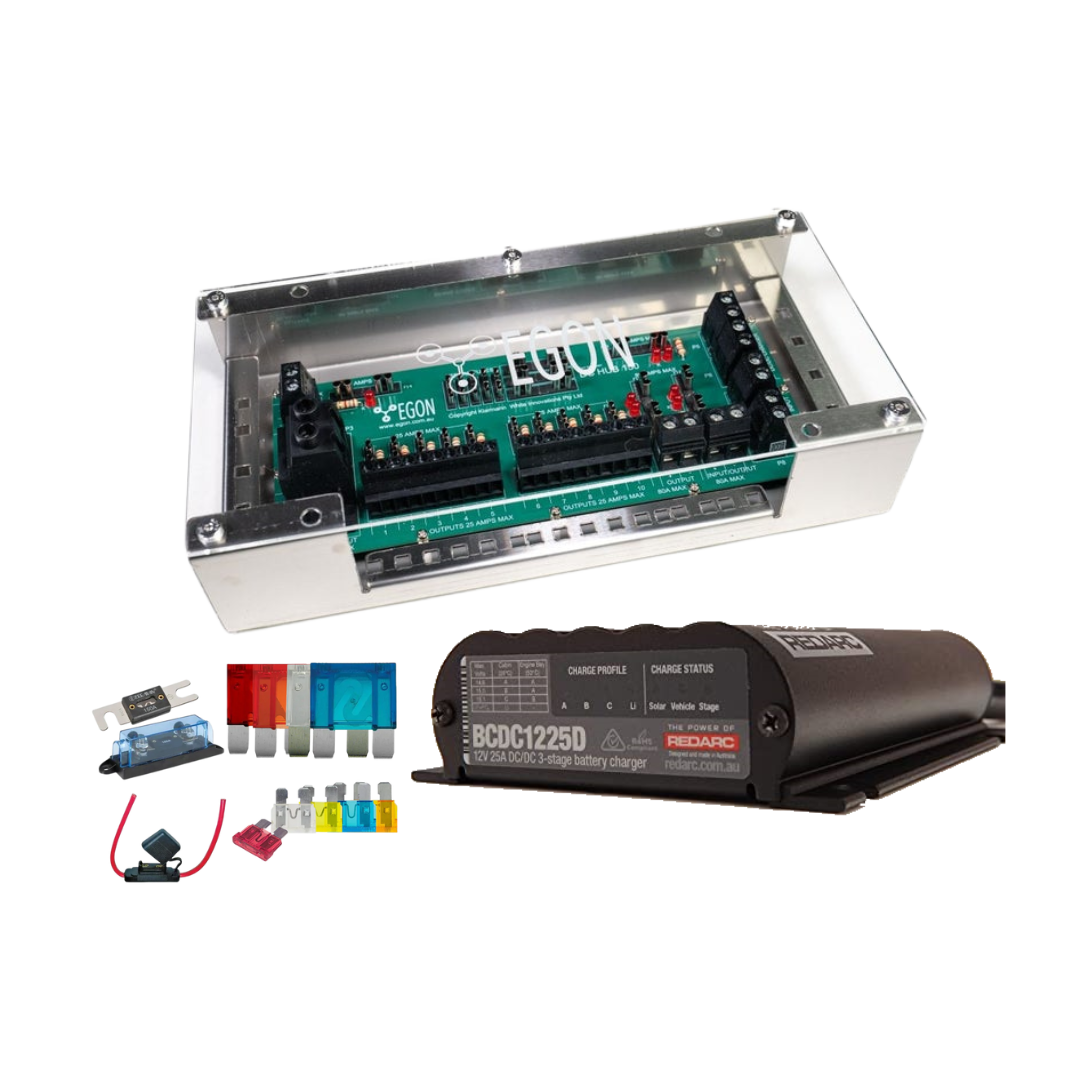

BCDC1225D Kit with EGON DC Hub & Optional Inverters

SKU: KIT-EGONBCDC1225D
$1,392.70 $1,466.00
OptionNo Inverter
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Universal fit. Compatible with most 12V and dual battery vehicle setups including 4WDs, utes, vans, caravans, and camper trailers.


REDARC BCDC1225D Charger

EGON DC Hub

EGON DC Hub Fuse Kit

Optional Inverter with fuse + holder

User guides

EGON DC Hub: 225mm x 135mm x 60mm

BCDC1225D: 150mm x 120mm x 37mm

Victron Inverter: 295mm x 180mm x 105mm

REDARC 2000W Inverter: 420mm x 255mm x 83mm

Developed in collaboration between REDARC and EGON to simplify 12V installations with robust, Australian-designed components. Built for harsh conditions.

 [{"variant_id":"40124863021165" , "metafield_value":""},{"variant_id":"40124864888941" , "metafield_value":""},{"variant_id":"40124863905901" , "metafield_value":""}]

BCDC1225D Kit with EGON DC Hub & Optional Inverters

$1,392.70 $1,466.00
Description

This EGON & REDARC Kit is a complete 12V electrical solution ideal for dual battery setups in 4WDs, caravans, and off-grid vehicles.

Featuring the REDARC BCDC1225D 25A DC-DC charger, EGON DC Hub Kit, and EGON’s custom Fuse Kit, this system is designed for fast, clean, and reliable DIY installation.

Add your choice of 1200W Victron or 2000W REDARC inverter for 240V power anywhere you go.

FEATURES

Full 12V electrical system

MPPT solar input

Green Power Priority

Pre-wired hub for reduced install time

Multiple output ports for accessories

Compact and rugged design

FAQ's

Q: Is this kit compatible with lithium batteries?
A: Yes, the BCDC1225D supports lithium, AGM, GEL, standard lead-acid, and calcium batteries.

Q: Can I install this without an auto electrician?
A: Yes, this kit is designed for easy DIY installation using the pre-wired EGON DC Hub.

Q: What inverter should I choose?
A: Choose Victron 1200W for lighter use (e.g., laptops, lights), or REDARC 2000W for high-draw appliances (e.g., kettles, microwaves).

Specifications

Redarc BCDC1225D DC-DC Charger

Input Voltage: 12V nominal (compatible with 12V systems)
Output Current: 25A continuous
Charging Sources: Simultaneous charging from alternator and solar (MPPT solar regulator included)
Solar Input Voltage Range: 8V to 40V
Dimensions (LxWxH): Approx. 182mm x 92mm x 65mm
Weight: Approx. 1.5kg

EGON DC Hub Kit

Central DC input/output fuse box for streamlined wiring
Includes fuse holders and fuses for battery inputs and accessory outputs
Simplifies and reduces installation time
Dimensions: Compact design suited for vehicle mounting

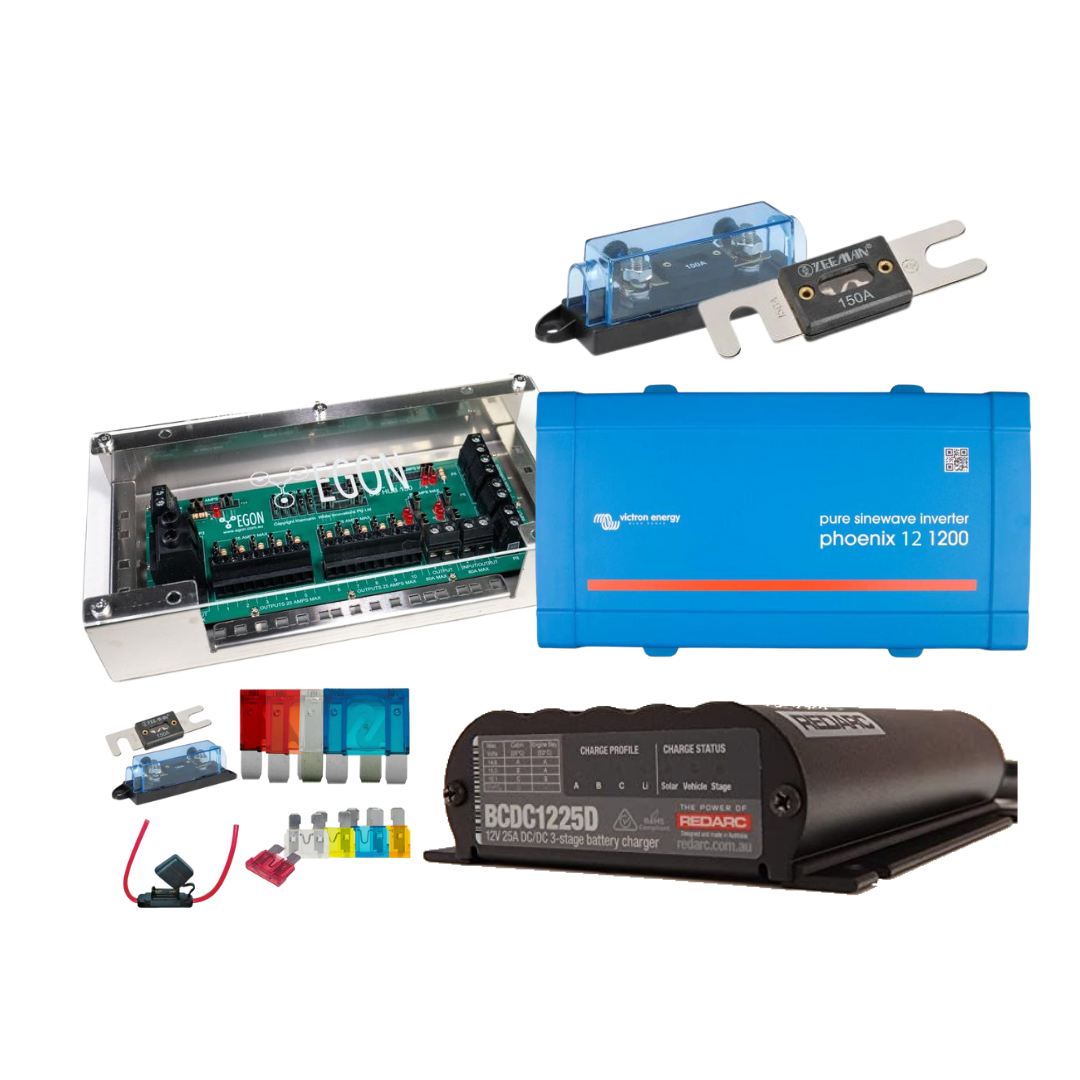

Victron Phoenix 12/1200 Inverter (Optional)

Output Power: 1200VA continuous
Output Waveform: Pure sine wave
Input Voltage: 12V DC nominal
Communication: VE.Direct port for monitoring and control
Dimensions: 280mm x 155mm x 125mm (approx.)
Warranty: 2 years

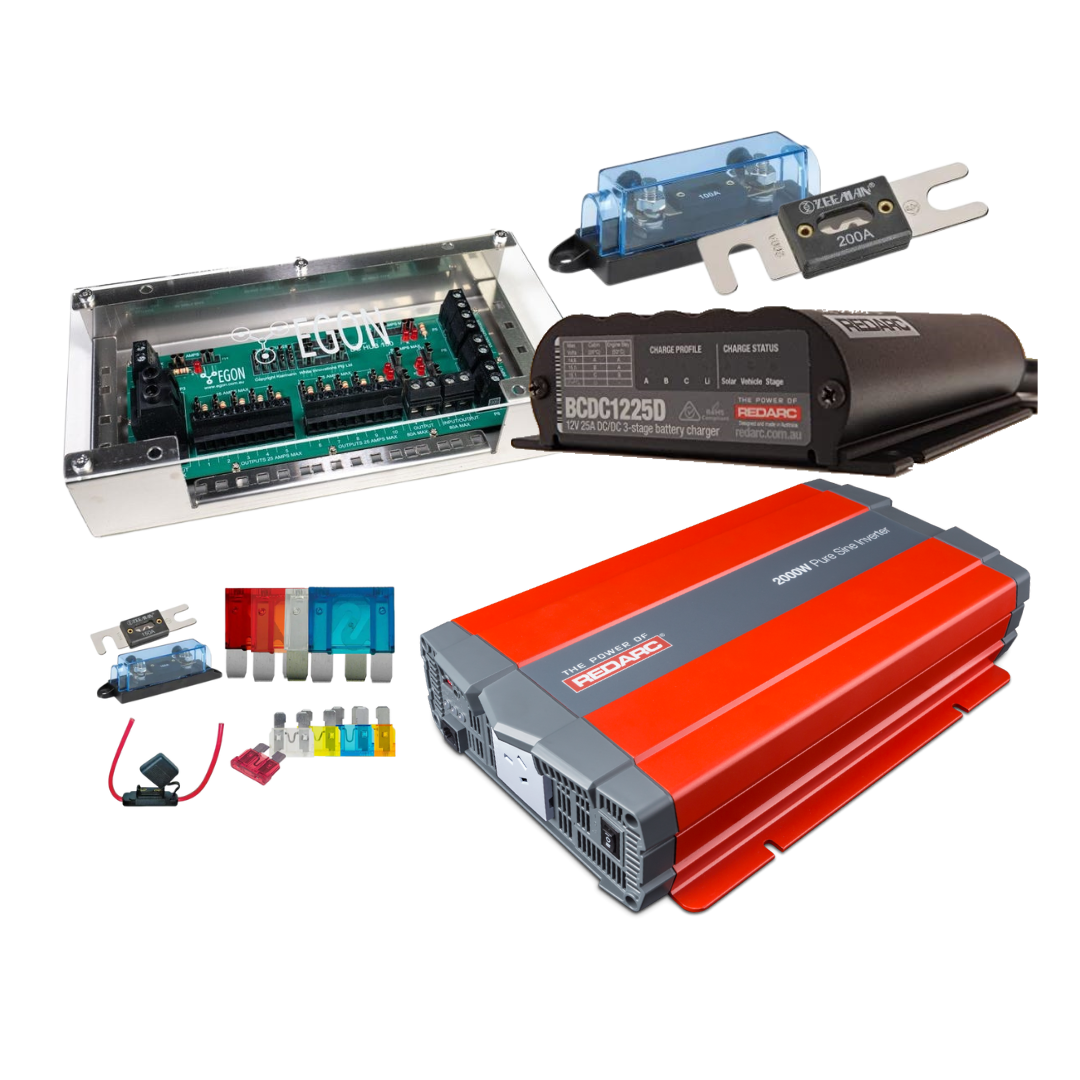

Redarc 2000W Pure Sine Wave Inverter (Optional)

Output Power: 2000W continuous
Output Waveform: Pure sine wave
Input Voltage: 12V DC nominal
Operating Temperature Range: Designed for harsh Australian conditions
Dimensions: Slim and lightweight design
Warranty: 2 years

Installation Information


DIY-friendly with all major wiring routes pre-managed via the EGON DC Hub. No specialised tools or crimping required. Optional inverters may require minor mounting adjustments.

Warranty Information

REDARC BCDC1225D includes a 2-year manufacturer warranty.


EGON components include a 1-year warranty.
Victron Phoenix 1200VA Inverter includes a 2-year manufacturer warranty.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
