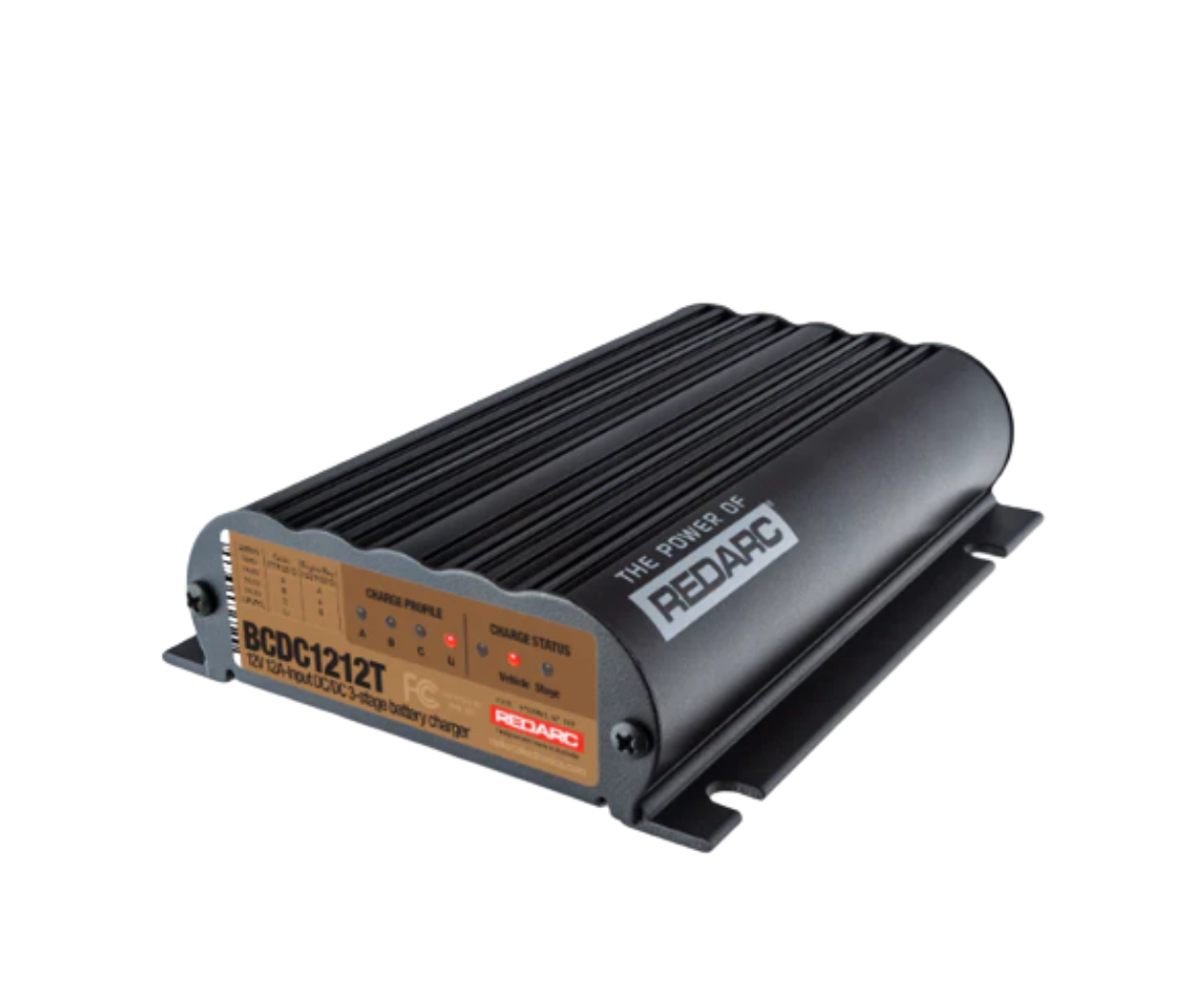

Redarc BCDC1212T Light Duty Battery Charger DC to DC 12A

Name: Redarc BCDC1212T Light Duty Battery Charger DC to DC 12A
Brand: Redarc
SKU: BCDC1212T
Price: 430.0 AUD
Availability: InStock

SKU: BCDC1212T

$430.00

Quantity

VEHICLE
INCLUDED
DIMENSIONS
Note from Manufacturer

Suitable for trailers and vehicles equipped with 12V or 24V electrical systems, including:

Dump trailers

Liftgate trucks

Camper vans

Boat trailers

Car trailers

BCDC1212T 12A DC to DC Battery Charger

Pre-wired wiring harness

Installation manual

Warranty documentation

Length:165 mm (6.5")

Width: 120 mm (4.7")

Height: 37 mm (1.5")

The BCDC1212T is engineered to charge auxiliary trailer batteries to a full 100% state of charge while driving. Its multi-stage charging profile caters to a range of battery chemistries, ensuring optimal battery health and performance.

Redarc BCDC1212T Light Duty Battery Charger DC to DC 12A

$430.00

Description

The REDARC BCDC1212T is a 12V, 12A DC to DC battery charger designed specifically for trailers and vehicles with auxiliary batteries. It ensures your trailer's auxiliary battery reaches 100% charge while on the move, making it ideal for applications like dump trailers, liftgates, camper vans, and boat trailers. Compatible with various battery types—including Standard Lead Acid, Calcium, Gel, AGM, and LiFePO₄—it operates seamlessly in both 12V and 24V vehicles.

FEATURES

Multi-stage charging profile for optimal battery maintenance

Compatible with various battery types, including lithium

Operates in both 12V and 24V vehicle systems

Sealed design to protect against dust and water ingress

Pre-wired with wiring harness for easy installation

Australian made and proven to operate under extreme conditions

FAQ's

Q:Can the BCDC1212T charge lithium batteries?

A:Yes, it is compatible with LiFePO₄ lithium batteries, as well as Standard Lead Acid, Calcium, Gel, and AGM batteries.

Q:Does it work with both 12V and 24V vehicles?

A:Yes, the charger operates in both 12V and 24V vehicle systems.

Q:Is the charger waterproof?

A:The BCDC1212T is sealed to eliminate the risk of dust or water ingress, ensuring durability in various environments.

Specifications

Input Voltage: 9–32V

Output Voltage: 12V

Maximum Charging Voltage: 15.3V

Continuous Output Current: 12A

Nominal Output Power: 147W (12V vehicle) / 294W (24V vehicle)

Input Fuse Rating: 15A to 23A (not supplied)

Output Fuse Rating: 30A (not supplied)

Standby Current Draw: <8mA

Operating Temperature: Up to 80°C (176°F)

Weight: 0.85 kg (1.87 lbs)

Warranty:2 years

Installation Information

The BCDC1212T comes pre-wired with a wiring harness, allowing easy installation into typical trailer battery setups. It connects directly to the trailer plug, drawing charging current from the 12V auxiliary power available on a suitably rated trailer plug and towing harness.

BCDC1212T Manual

BCDC1212T Installation guide

BCDC1212T Brochure

Additional Documents

BCDC1212T Brochure

Warranty Information

Backed by REDARC's 2-year manufacturer warranty, covering defects in materials and workmanship under normal use.
