Redarc Redvision remote LCD Display

SKU: DISP4300-RC
$669.00

Compatible with 12V vehicles equipped with REDARC Manager30 (BMS1230S2/S3), TVMS Rogue (TVMS1240), or TVMS Prime (TVMS1280) systems, commonly used in 4WDs, caravans, and RVs.

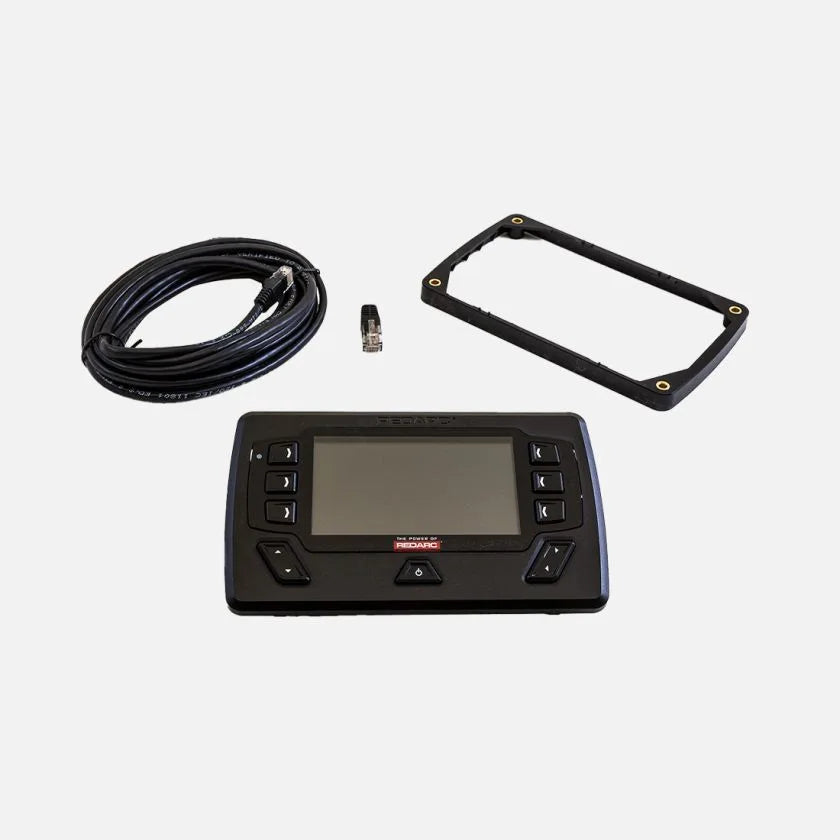

DISP4300-RC Display Unit

Optional mounting spacer and fascia

5m RJ45 R-Bus cable

RJ45 R-Bus terminating resistor

RedVision Instruction Manual English

Width: 178 mm

Height: 108 mm

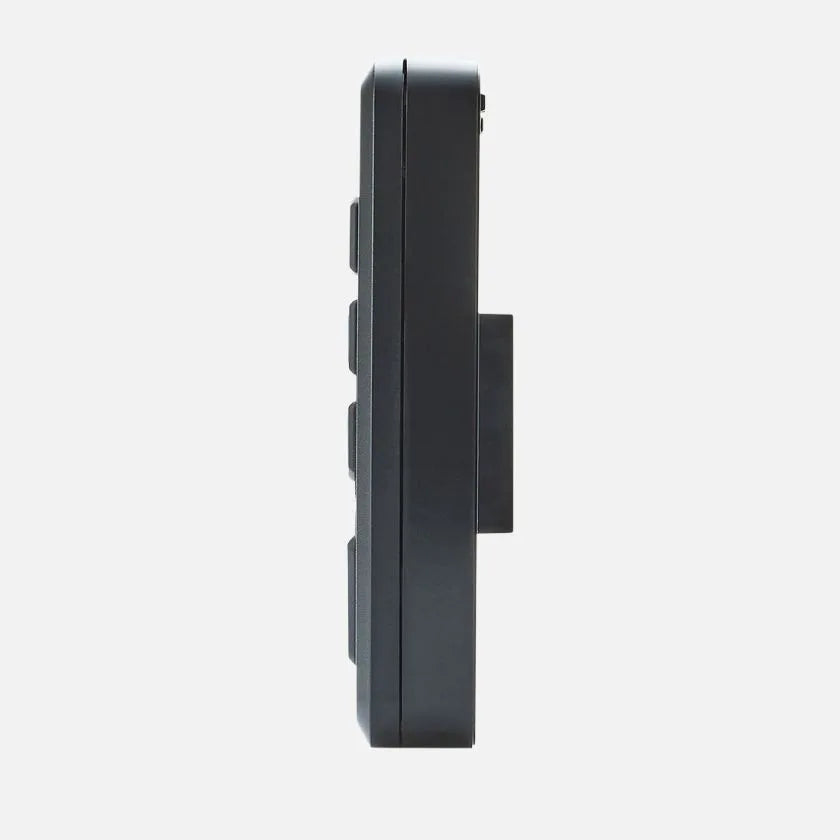

Depth: 26 mm

REDARC Electronics designs rugged, high-quality vehicle management systems tailored for 4WD, caravan, and off-grid applications. The RedVision Display Unit offers an intuitive interface to monitor and control your system with confidence.

[{"variant_id":"47450876510481" , "metafield_value":""}]

Redarc Redvision remote LCD Display

$669.00
Description

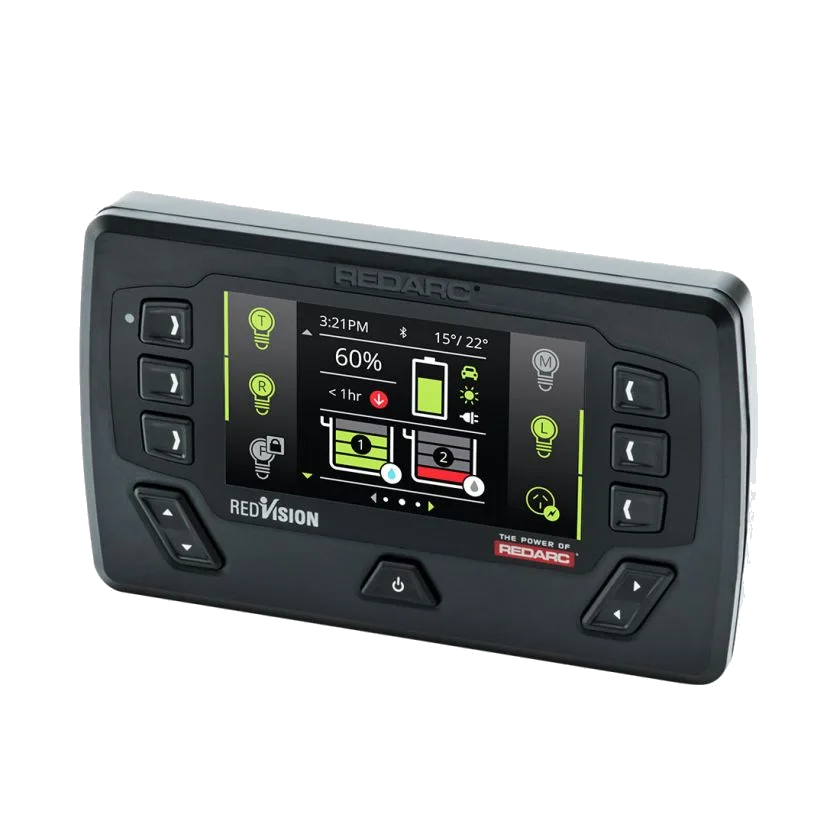

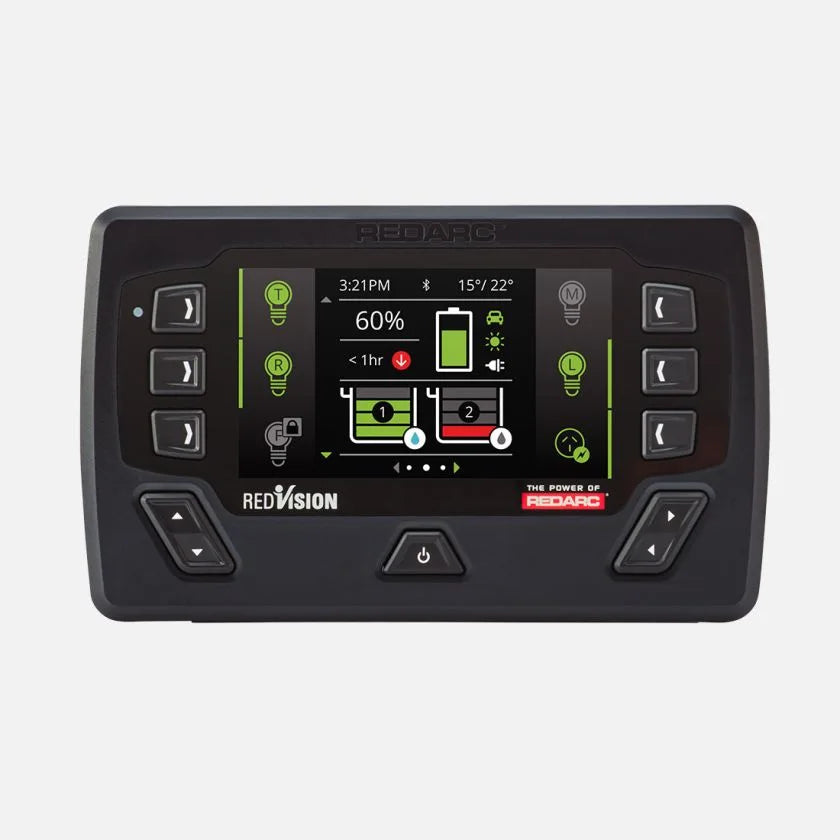

The REDARC RedVision Display Unit (DISP4300-RC) is a sleek, 4.3-inch touchscreen designed to provide real-time monitoring and control of your REDARC vehicle management system. Compatible with Manager30, TVMS Rogue, and TVMS Prime setups, this display lets you easily keep an eye on battery status, water tank levels, and manage multiple onboard devices — all from one intuitive interface.

Built tough to withstand harsh conditions, the RedVision Display Unit integrates seamlessly with your 12V 4WD, caravan, or RV system. With its responsive touchscreen and Bluetooth connectivity, it also works hand-in-hand with the RedVision app, giving you flexible monitoring on the go.

Whether you’re upgrading your current setup or adding a secondary display, the DISP4300-RC is a reliable, user-friendly choice that puts total system control at your fingertips.

FEATURES

Real-time monitoring of batteries and water tanks

Control multiple on-board devices

User-friendly touchscreen interface

Bluetooth connectivity for RedVision app integration

Rugged and weather-resistant design



FAQ's

Q: Is this display compatible with all REDARC systems?
A: No, it works with Manager30 units (BMS1230S2/S3), TVMS Rogue, and TVMS Prime systems only.

Q: Can it monitor water tank levels?
A: Yes, when paired with compatible Manager30 systems.

Specifications

Display size: 4.3" LCD touchscreen

Operating temperature: -20°C to 75°C

Weight: 300 g

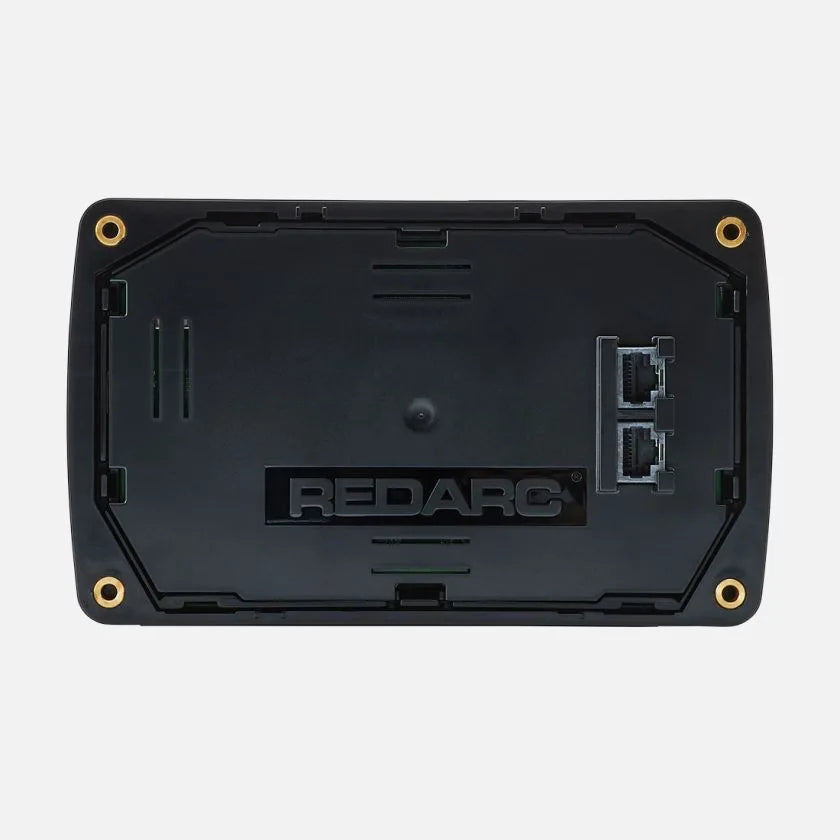

Connectivity: RJ45 R-Bus cable, Bluetooth integration


Installation Information

Easy installation using the supplied 5m RJ45 R-Bus cable and mounting hardware. Designed as a direct replacement or secondary display for compatible REDARC systems.

RedVision Instruction Manual English

RedVision Display Quick Start Guide EN

Warranty Information

This product includes a 2-year manufacturer warranty covering defects in materials and workmanship.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
