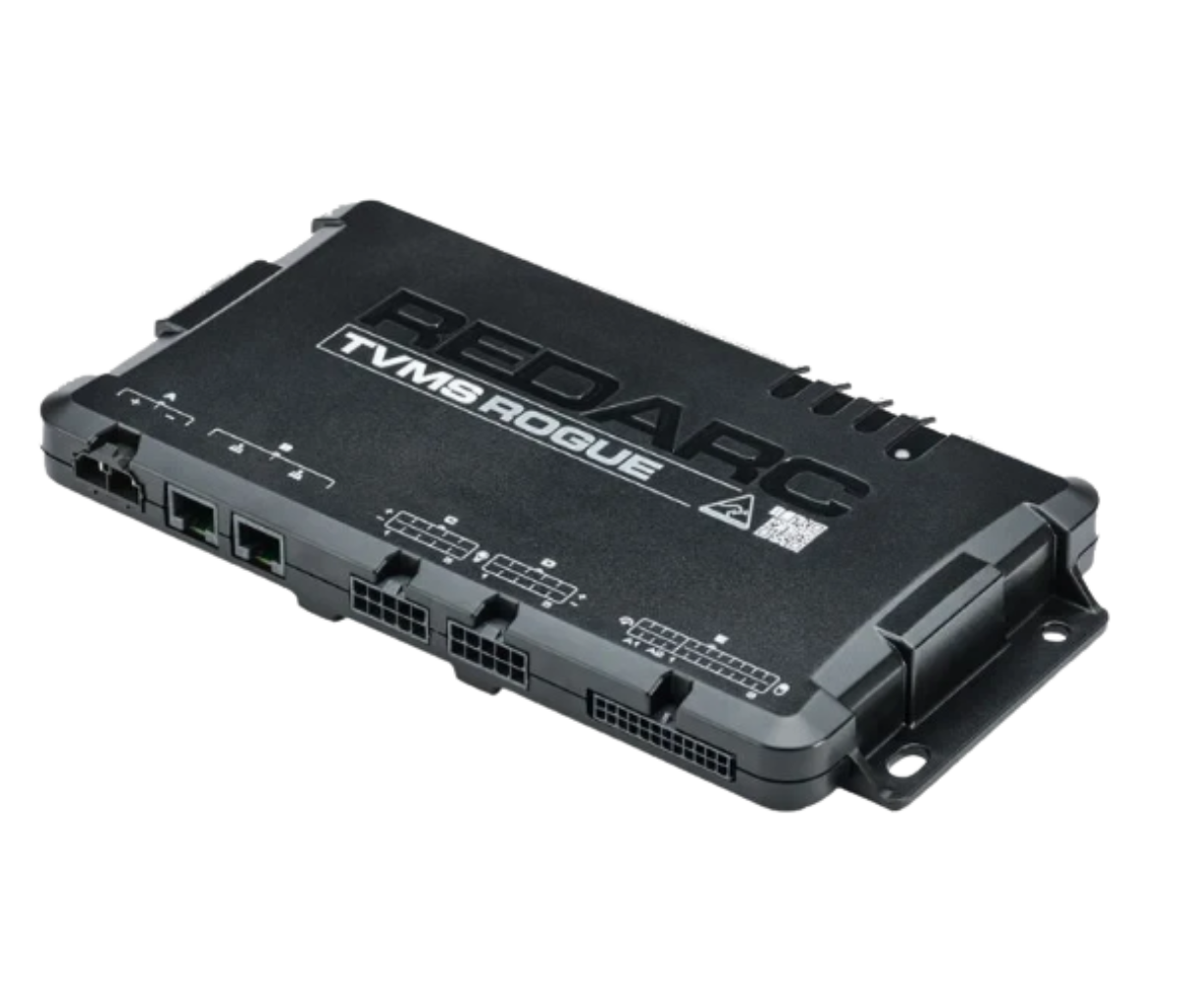

Redarc TVMS1240 ROGUE CONTROL MODULE

SKU: TVMS1240
$790.00

Ideal for use in:

Touring 4WDs

Caravans & campers

RVs & vans

Work or fleet vehicles

Dimensions: 250mm (L) x 130mm (W) x 25mm (H)

The TVMS Rogue is part of REDARC’s award-winning RedVision system and is designed to pair with the RedVision Display (DISP4300-RC) and the Manager30 Battery Management System. It is suitable for both 12V caravan and 4WD builds and offers advanced programmable control and automation.

[{"variant_id":"45850285900049" , "metafield_value":""}]

Redarc TVMS1240 ROGUE CONTROL MODULE

$790.00
Description

Total control at your fingertips.


The REDARC RedVision TVMS Rogue brings intelligent power control and automation to your 4x4, caravan, camper, RV, or work vehicle — all from one ultra-compact unit. Control your setup from the RedVision display or your smartphone via Bluetooth.

Whether you’re managing lights, fridges, pumps or more, the TVMS Rogue gives you the power to simplify your setup, monitor performance in real-time, and automate tasks to save battery and stress.

At just 25mm thick, it’s made to fit tight spaces and harsh Australian conditions — making it ideal for those who want pro-level functionality with minimal hassle.

 Manual



FEATURES

Compact & low-profile (only 25mm thick)

10x dimmable outputs for lights and accessories

8x inputs for physical switches

2x analogue tank sensor inputs

Smart fuse protection built in

Fully programmable via app

Seamless control via screen, phone, or manual switches

Bluetooth connectivity





FAQ's

Q: Can I use this without the Manager30?
A: Yes — for switching/control features only. To unlock full monitoring (like battery SOC), the Manager30 is required.

Q: Is the app available for Android?
A: The RedVision user app is available for both iOS and Android. The TVMS Configurator app (used for setup) is iOS-only for now.

Q: What devices can I control with the Rogue?
A: Lights, fans, fridges, water pumps, inverters, and more. You can also use inputs for switches and automation.

Specifications

Brand: REDARC

Model: TVMS Rogue

Operating Voltage: 9 – 16V DC

Max Output Current: 40A

Operating Temp: -20°C to 70°C

Outputs: 10x 10A dimmable channels

Inputs: 8x switch-compatible inputs

Tank Monitoring: 2x analogue level inputs

Weight: 0.43kg

Dimensions: 250mm (L) x 130mm (W) x 25mm (H)









Installation Information

Compatible with DISP4300-RC screens (from Jan 2023 onwards)

Upgradeable screens from July 2022 – Jan 2023 (SNs “2207” to “2212”)

Connects with Manager30 for full monitoring features

Requires TVMS Configurator app (iOS only for now)

Warranty Information


Backed by REDARC’s standard 2-year warranty.
