LED Autolamps - LED Stop/Tail/Indicator Lights Lamp 12-24V

SKU: LED-280ARRM
$115.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ideal for small trailers, caravans, and vehicles requiring compact rear lighting solutions operating on 12 or 24 volts.

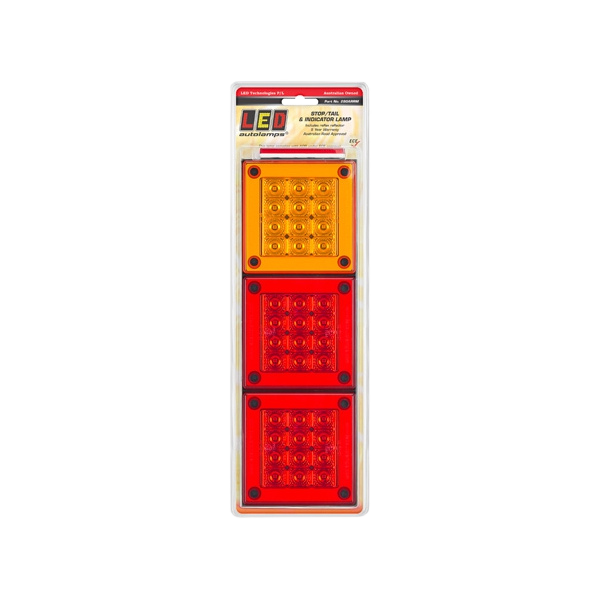

1 x LED Autolamps 280 Series Triple Combination Lamp

Mounting bolts and caps

1.2m pre-wired cable

User instructions

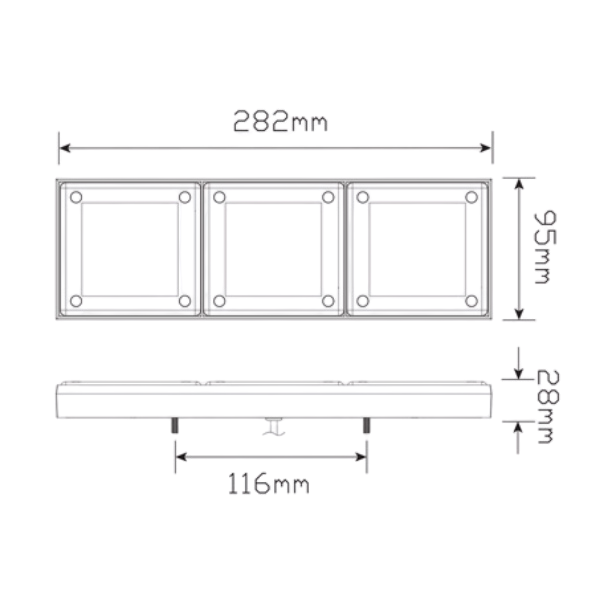

Length: 282mm

Width: 95mm

Depth: 28mm

Designed for small vehicles and trailers, this compact lamp integrates stop, tail, indicator, and reverse functions into a single unit. Built to meet stringent ADR and ECE standards, ensuring reliability and compliance.

 [{"variant_id":"33220447207533" , "metafield_value":""}]

LED Autolamps - LED Stop/Tail/Indicator Lights Lamp 12-24V

$115.00
Description

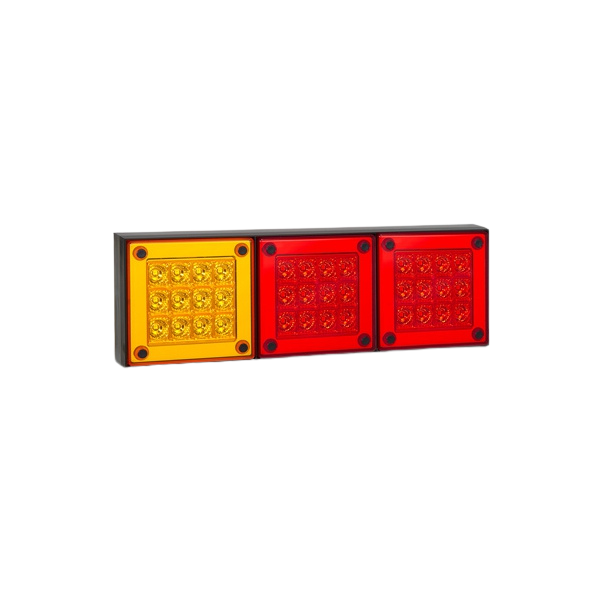

The LED Autolamps 280 Series Triple Combination Lamp features two red Stop/Tail lights and one amber Indicator light in a compact mini jumbo format.

Designed for small vehicles and trailers, this low-profile lamp is fully ADR and ECE compliant, waterproof to IP67, and ideal for rugged outdoor use.

FEATURES

Compact mini jumbo design

Black ABS housing

Faceted reflector with red and amber acrylic lenses

Fully sealed and encapsulated circuitry

Compliant with Australian road regulations (ADR/ECE approved)

Surface mount design for easy installation

FAQ's

Q: Is this lamp waterproof?
A: Yes, rated IP67, fully sealed against dust and water.

Q: What voltage systems is this lamp compatible with?
A: Supports dual voltage operation, 12V and 24V DC systems.

Q: Does this include mounting hardware?
A: Yes, mounting bolts and a 1.2m pre-wired cable are included.

Specifications

Voltage: 12-24V DC

Current Draw:

Stop: 0.30A @ 13.8V, 0.22A @ 28V

Tail: 0.04A @ 13.8V, 0.06A @ 28V


Indicator: 0.14A @ 13.8V, 0.11A @ 28V

Ingress Protection: IP67

Approvals: ECE Stop/Tail R1-S1-E9-02.11544, ECE Indicator 2a-E9-01.11545, ECE Reverse AR-E9-00.1207, CTA Stop/Tail/Ind/Rev CTA-060088

280 Triple Series Spec Sheet

Installation Information

Surface mount horizontally or vertically onto a flat surface using the stainless steel bolts provided.

Run the cable through a 12mm hole for a clean and secure fit. Refer to ADR 13/00 for compliant mounting instructions.

Warranty Information


Covered by a 5-year manufacturer warranty against defects in materials and workmanship.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
