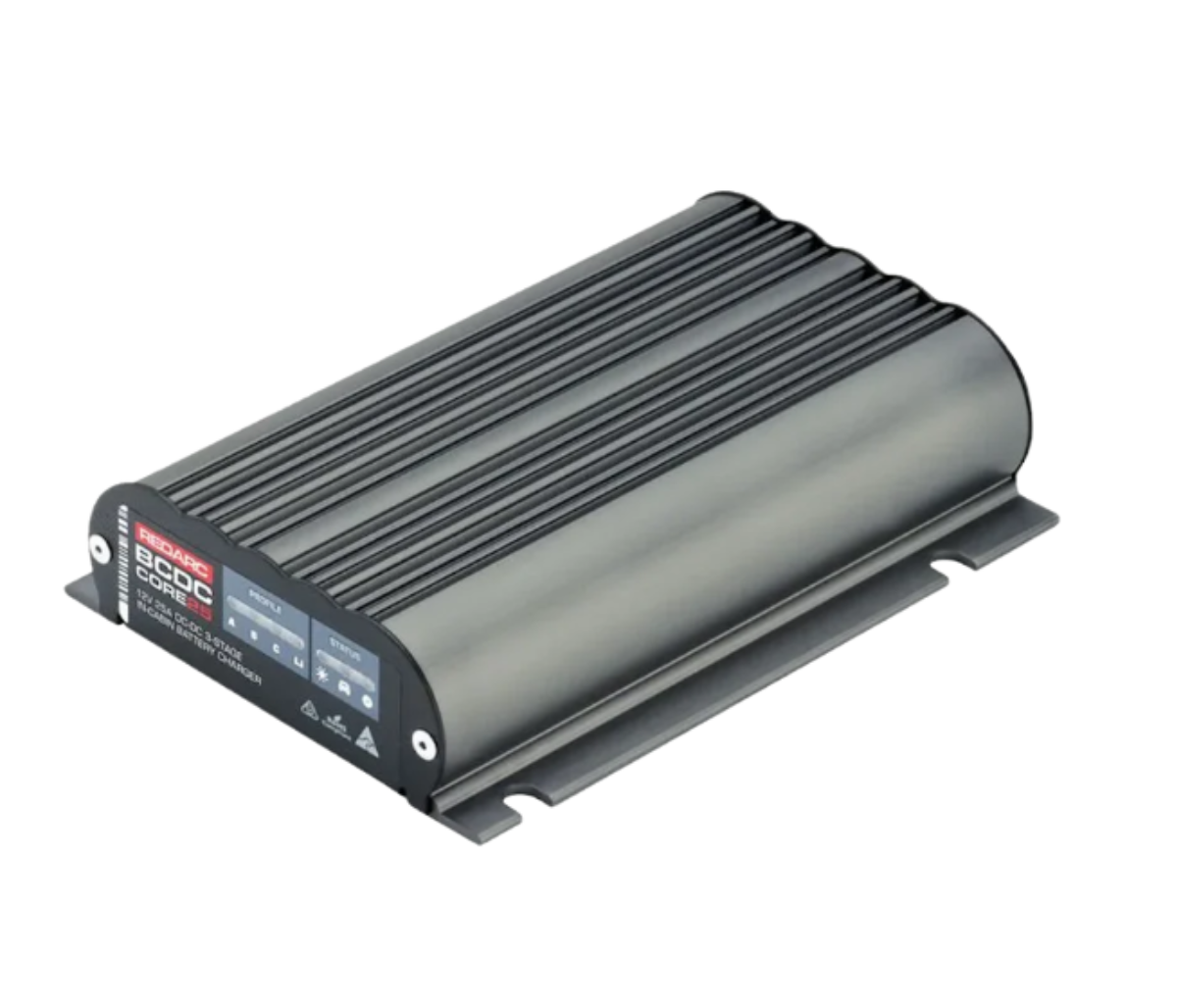

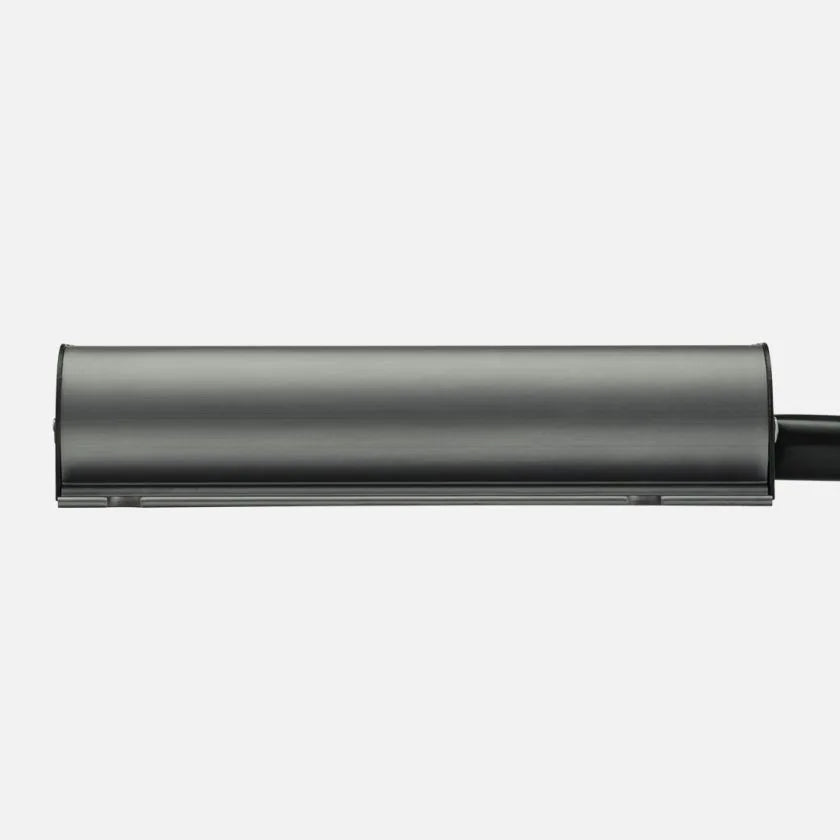

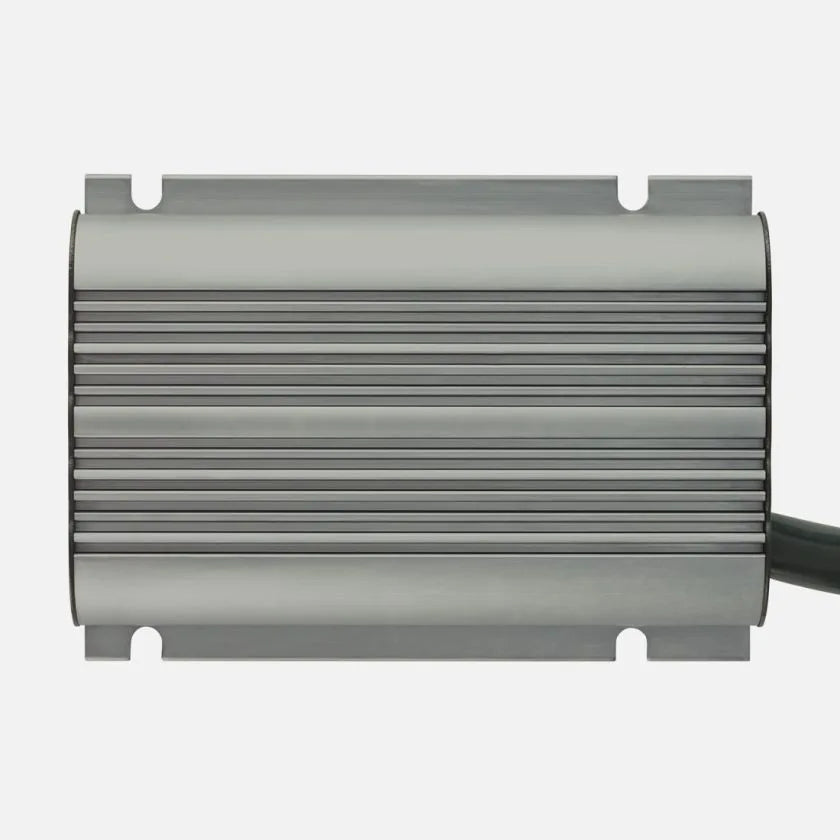

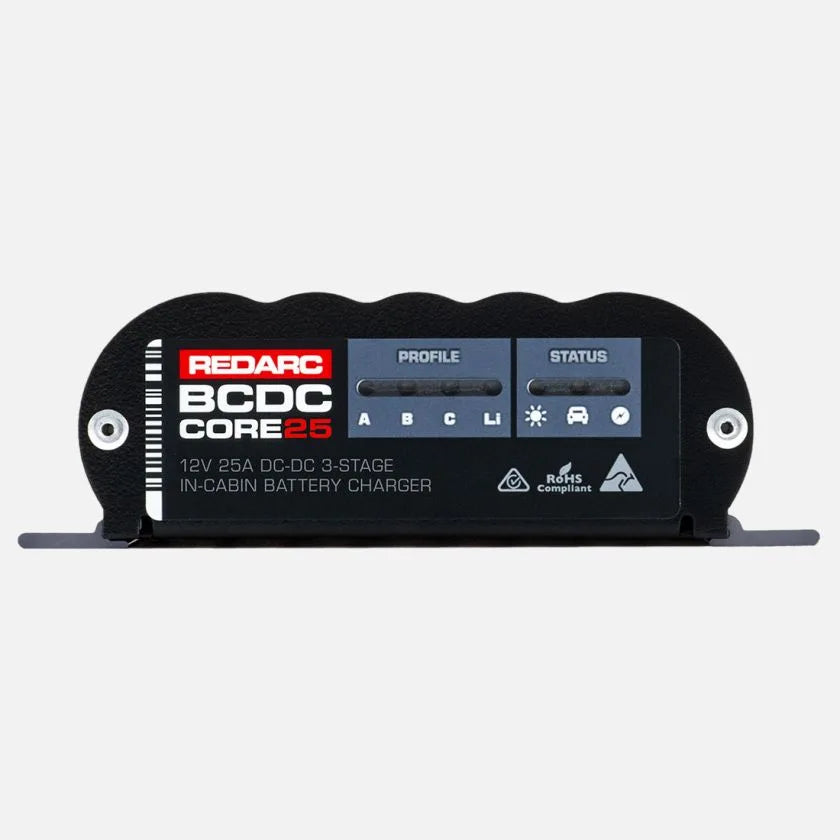

Redarc BCDCN1225 In-Cabin Core Battery Charger DC to DC 25A In-Cabin | DC Chargers

SKU: BCDCN1225
$390.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Compatible with most vehicles using 12V dual battery systems including 4WDs, caravans, camper trailers, and work vehicles. Suitable for batteries AGM, GEL, standard lead acid, calcium, and Lithium (LiFePO₄).

REDARC BCDC Core 25A DC to DC charger unit

Installation and user manuals

Length: 165 mm

Width: 120 mm

Height: 37 mm

Weight: 0.9 kg

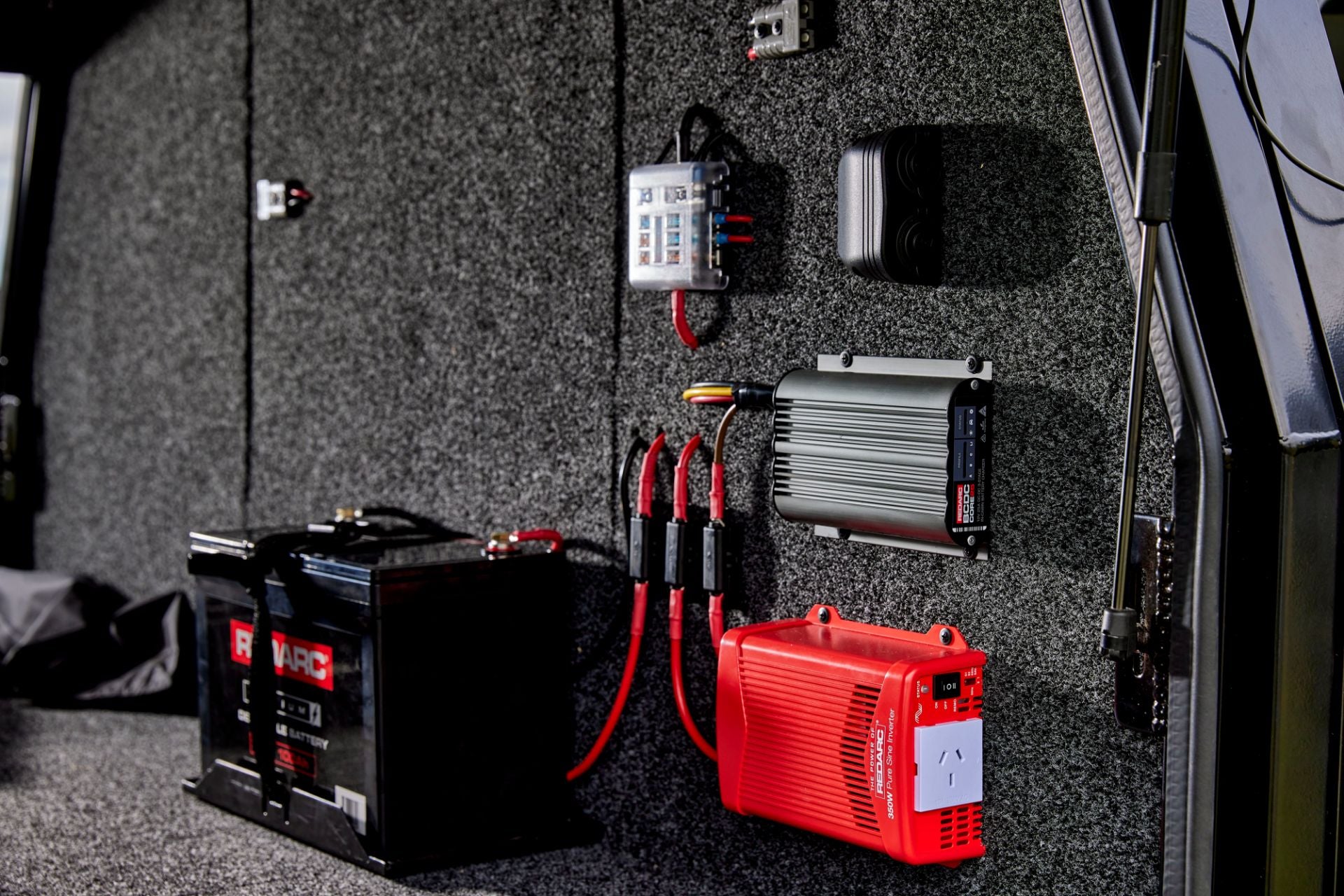

REDARC’s BCDC Core 25A is engineered for in-cabin and canopy battery charging setups where dust and waterproofing aren’t essential. It features advanced dual input charging technology with MPPT solar regulation for maximum charge efficiency.

 [{"variant_id":"40286330060909" , "metafield_value":""}]

Redarc BCDCN1225 In-Cabin Core Battery Charger DC to DC 25A In-Cabin | DC Chargers

$390.00
Description

The REDARC BCDC Core 25A is a lightweight, silent, and powerful DC to DC charger built for in-cabin and canopy installs where waterproofing isn’t needed. Designed for dual battery systems, it provides simultaneous alternator and solar charging with an MPPT regulator for maximum efficiency.

Whether you're running AGM, GEL, lead acid, calcium or LiFePO₄ lithium batteries, the BCDC Core keeps your setup fully charged and adventure-ready.

FEATURES

Compact, fanless design

Simultaneous alternator and solar input charging

MPPT solar regulator with Green Power Priority

Suitable for smart and conventional alternators

Compatible with AGM, GEL, lead acid, calcium, and lithium batteries

Lithium-ready charging profiles

Designed and manufactured in Australia

FAQ's

Q: Can I use this charger under the bonnet?

A: No, this model is designed only for in-cabin or canopy installs. For under bonnet options, see REDARC BCDC Classic range.

Q: Is it lithium compatible?

A: Yes, it includes specific charging profiles for Lithium (LiFePO₄) batteries.

Q: What battery sizes are supported?

A: Suitable for battery banks from 60-200Ah (AGM/Lead Acid) and up to 100Ah lithium.




Specifications

Input Voltage: 9 - 32VDC

Output Voltage: 12VDC

Max Charging Voltage: 15.3V

Continuous Output Current: 25A

Input Fuse Rating:40A

Output Fuse Rating: 40A

Standby Current< 8 mA

InstallationIn-cabin only

Type Approval: E-Mark

Warranty: 2 years

Output Power: 375 W


Installation Information


Designed for in-cabin or canopy installation only. Not suitable for under bonnet mounting. Compact form factor allows for easy concealment. Installation requires connection to the vehicle’s electrical system and battery bank.

BCDC Core Instruction Manual

BCDC Brochure

Additional Documents

Warranty Information


Backed by REDARC’s 2-year manufacturer warranty covering defects and performance issues under normal use.
