Wema Fuel/Water Tank Level Senders Flanged 0-190 Ohms

• Durable stainless steel construction.
• Five-hole SAE flange mounting with gasket and screws.
• Water-resistant cable entry.
• Non-corrosive materials for harsh environments.
• Complies with ISO, CE, NMMA, ABYC, USCG standards.



Q: What Ohm rating should I use?

A: The sender is rated 0-190 Ohm; match this with your gauge’s rating for accurate measurement.

Q: What media can this sender be used with?

A: Suitable for diesel, petrol, potable water, and grey water (not black water).

Q: How do I test the sender?

A: Unscrew the sender, connect to a multimeter on resistance mode, move the float. Reading should range 0 Ohm (float down) to 190 Ohm (float up).

• Mounting: 5-hole SAE flange.
• Resistance: 0-190 Ohm.
• Operating Voltage: 12/24 VDC.
• Medium: diesel, petrol, potable water, grey water (not black water).
• Material: AISI 316 stainless steel.
• Operating Temperature: -40° to +85°C.
• Termination: Two tinned flying leads, 290mm sheathed.
• Length Options: 150mm to 1000mm (longer lengths available on request).

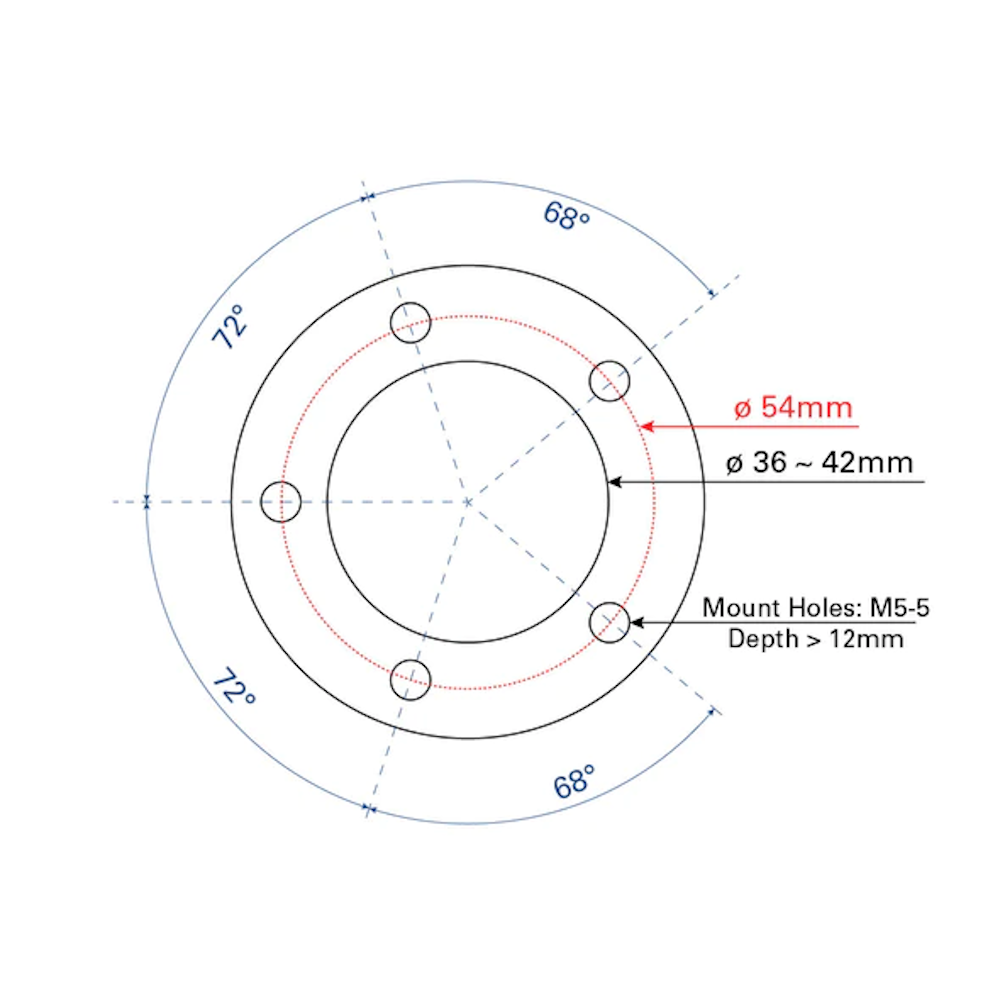

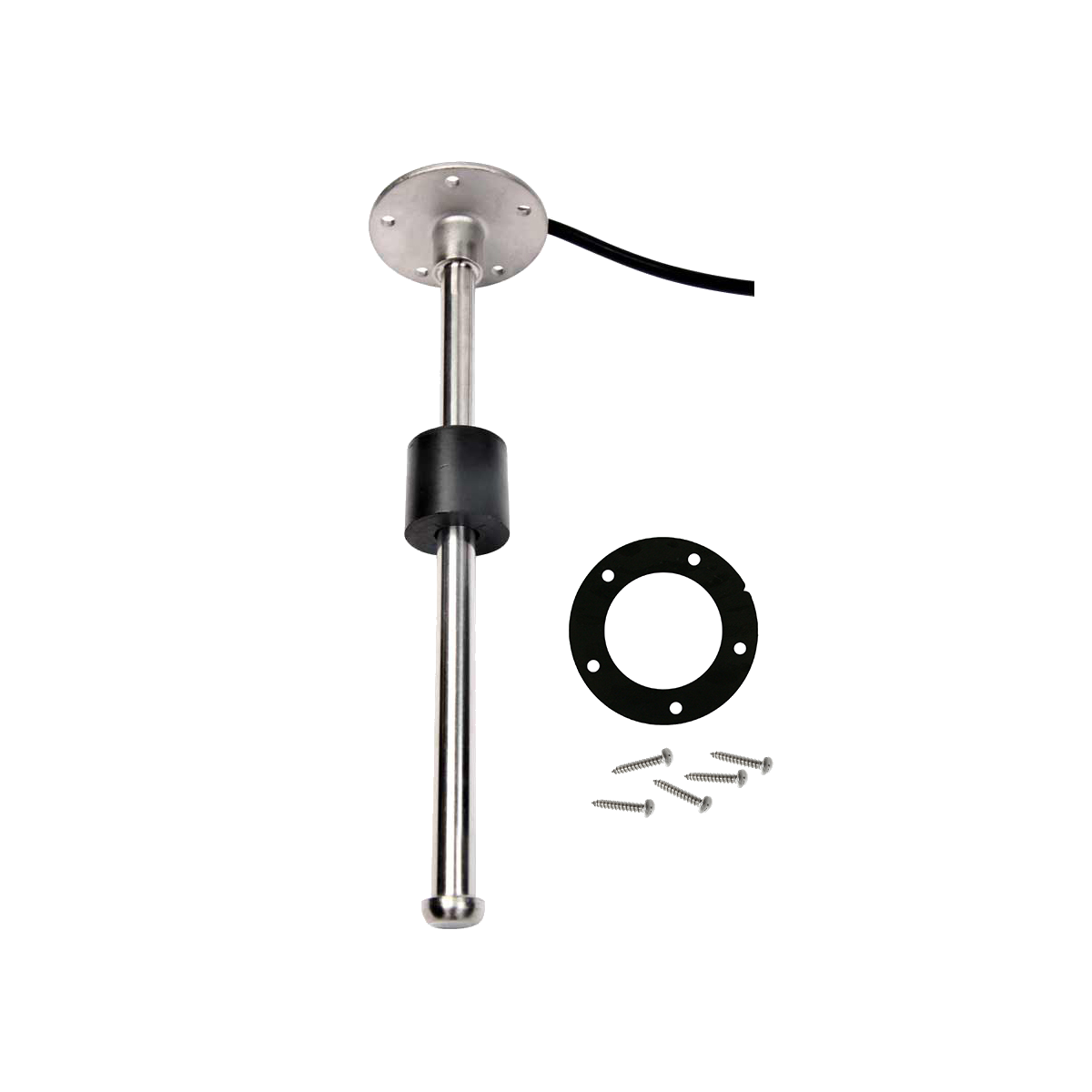

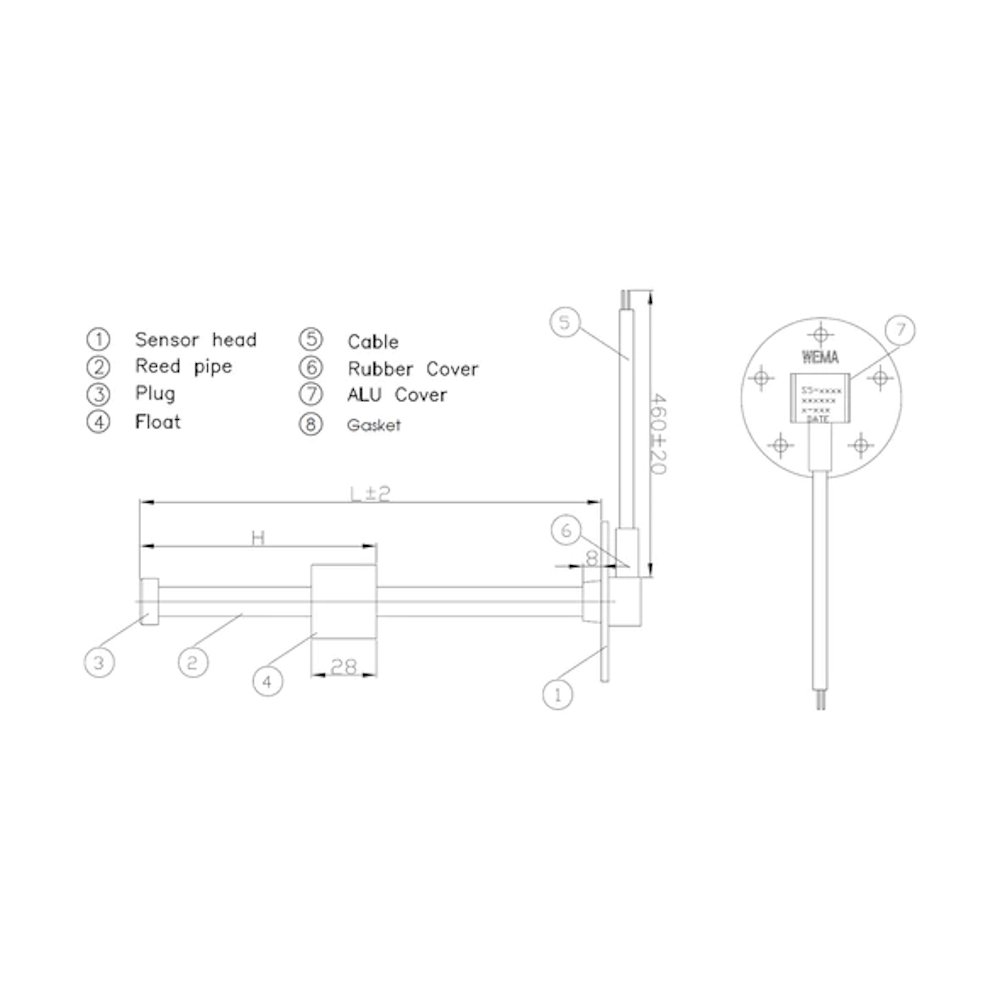

Mounts via five-hole SAE flange. Length measured from underside of flange to base of shaft. Installation includes gasket seal and screws. Ensure matching Ohm rating between sender and gauge.

12 months manufacturer warranty covering defects in materials and workmanship.

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
