If you’re a 4WD enthusiast who loves off-grid adventures, having a reliable power system is essential. Adding solar power to your 4WD setup can keep your lights, fridge, and devices running well. This way, you won’t drain your vehicle’s battery. In this step-by-step guide, we’ll cover everything you need to know to install solar power in your 4WD safely and efficiently.

Why Solar Power is Essential for 4WD Adventures

Off-grid travel often means being far from mains power. A solar setup provides:

Sustainable energy: Harness the sun for eco-friendly power.
Extended trips: Keep fridges, lights, and electronics running for days.
Reduced engine reliance: Less need to run your vehicle’s alternator to charge batteries.
Peace of mind: Avoid unexpected battery drain in remote locations.

Step 1: Determine Your Power Needs

Before buying solar panels, calculate how much energy you’ll need. Consider:

Fridge/freezer
Lights
Water pumps
Charging devices (phones, laptops, cameras)
Other accessories (spotlights, inverters)

Tip: Use a power consumption calculator to estimate daily watt-hours. For example, a small 12V fridge may use ~60–80Ah per day, while lights and devices may use another 20–30Ah.

Step 2: Choose the Right Solar Panels

There are two main types of panels for 4WDs:

Monocrystalline Panels – Highly efficient, ideal for limited roof space.
Polycrystalline Panels – Slightly less efficient but more affordable.

Panel size tip: A 200–300W panel is usually enough for a small fridge, lights, and device charging on shorter trips. For longer trips or more accessories, consider 400–600W combined.

Related products: How to Size Your Solar Setup for Off-Grid Camping

Step 3: Select a Solar Controller

A solar charge controller protects your batteries from overcharging. There are two main types:

PWM Controllers: Affordable and simple; works for smaller systems.
MPPT Controllers: More efficient, especially for larger panels and batteries.

Pro Tip: MPPT controllers are preferred for serious off-grid 4WD setups, as they extract maximum power from your solar panels.

Step 4: Choose Your Battery Setup

Solar works best with deep-cycle batteries:

Lithium Batteries: Lightweight, high capacity, and longer lifespan.
AGM Batteries: Cheaper, maintenance-free, but heavier and lower usable capacity.

Dual battery systems are common: one battery powers your vehicle, the other powers your accessories.

Step 5: Mount Your Solar Panels

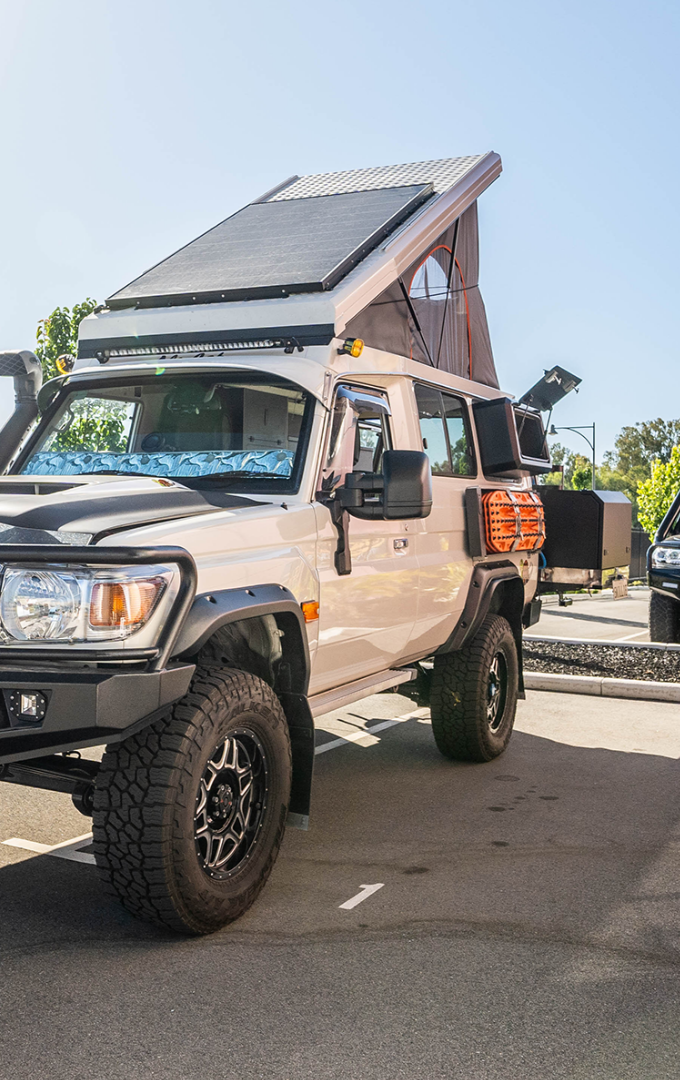

Roof Mount: Permanent, ideal for larger panels.
Portable Panels: Flexible, can be angled for maximum sun exposure.

Mounting tips:

Use durable brackets or adhesive pads.
Keep panels free of debris and shade.
Angle portable panels for best sunlight during the day.

Related products: DIY Guide – Installing a Fridge in Your 4x4

Step 6: Wire the System

Basic wiring setup:

Solar panels → Solar controller
Solar controller → Auxiliary battery
Auxiliary battery → Inverter or 12V accessories

Safety tips:

Use proper gauge cables to handle current.
Include fuses between panels, controller, and battery.
Double-check polarity to prevent damage.
