Solar Panel Mounting Kits & Brackets in Perth

A cheap set of stick-on brackets on a canopy roof will let go on the first proper corrugation. Proper aluminium EZY rails and corner brackets bolted through the roof (with sealed penetrations) will hold a 200W panel down forever. The panel is the cheap part — the mounting and the sealed roof entry are what keep it there.

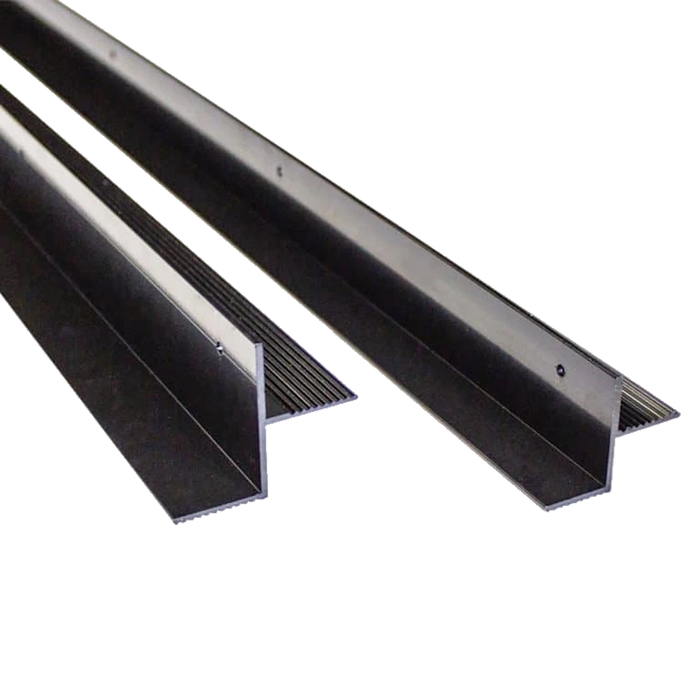

KT's small and large EZY mounting rail twin-packs suit the common 120W-200W monocrystalline panel sizes. Corner bracket kits work for lighter fixed panels on caravan roofs. Elevate's SB50 Anderson solar input bracket with cover gives you a clean, waterproof plug-in point on the outside of a canopy or camper — pull it out for a blanket, plug it in when you're done.

KT Solar mounting hardware is aluminium, black anodised, and priced right for most canopy and caravan builds. Elevate Automotive's SB50 solar input bracket is made in-house at Bayswater — proper mounting flange, gasketed cover, sized to take the standard SB50 Anderson plug that every solar blanket in the country ships with.

If you're running long cable runs from a roof panel or a solar blanket to the battery, use the [inline MPPT](/collections/solar-controllers) at the battery end, not at the panel. Higher voltage on the run means less cable loss. A 200W panel at 30V into a proper MPPT at the battery beats the same panel at 14V into a PWM at the roof every time.

We do canopy and caravan solar installs at 1/6 Radius Loop, Bayswater — panel, mounting, sealed roof gland, cable run, MPPT, monitor. Bring the vehicle in and we'll build the whole solar loop as one job, done in a day for most rigs.
