Isuzu Dmax Behind the Seat 2022+

SKU: ASM-IDMAX-RV

If selecting the Orion variant - Solar regulator will be required between the solar panel and solar input

$3,415.25 $3,595.00
Charger & MonitoringRedarc Core 25 & Victron Shunt
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

vehicle-isuzu-dmax-2022-onwards

100Ah lithium battery

Pre-wired fuse block system (4-way MIDI + MEGA + 12-way fuse box)

Rear seat mounting enclosure

Vehicle input and solar input Anderson plugs

Bluetooth-compatible battery shunt (Redarc or Victron)

Your choice of DCDC charger: Redarc Alpha, Redarc Core, or Victron Orion XS

Optional: Add heavy-duty in-vehicle charging harness for true plug & play

Length: 1140mm

Height: 470mm

Depth: 120mm

Weight: 19kg

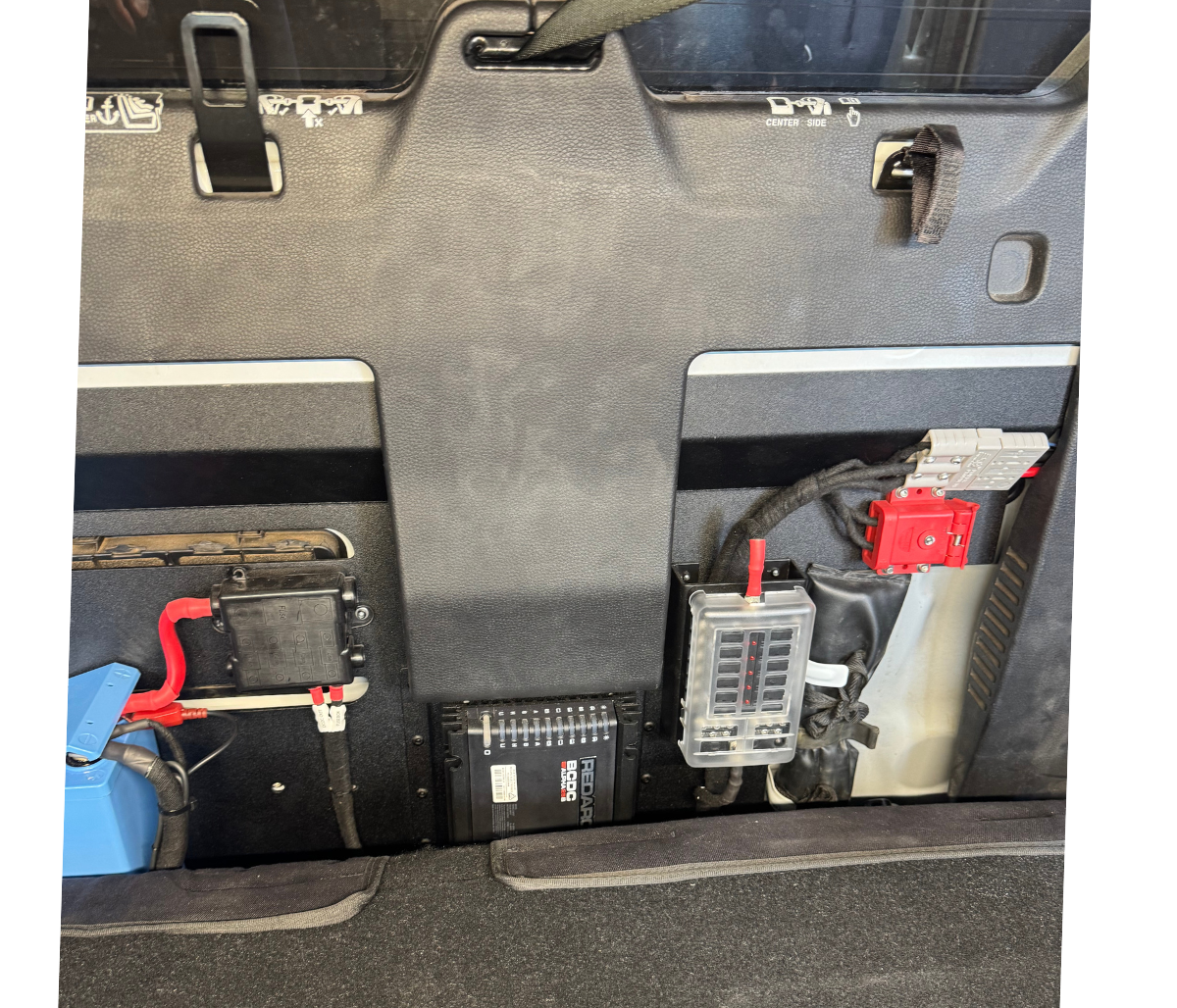

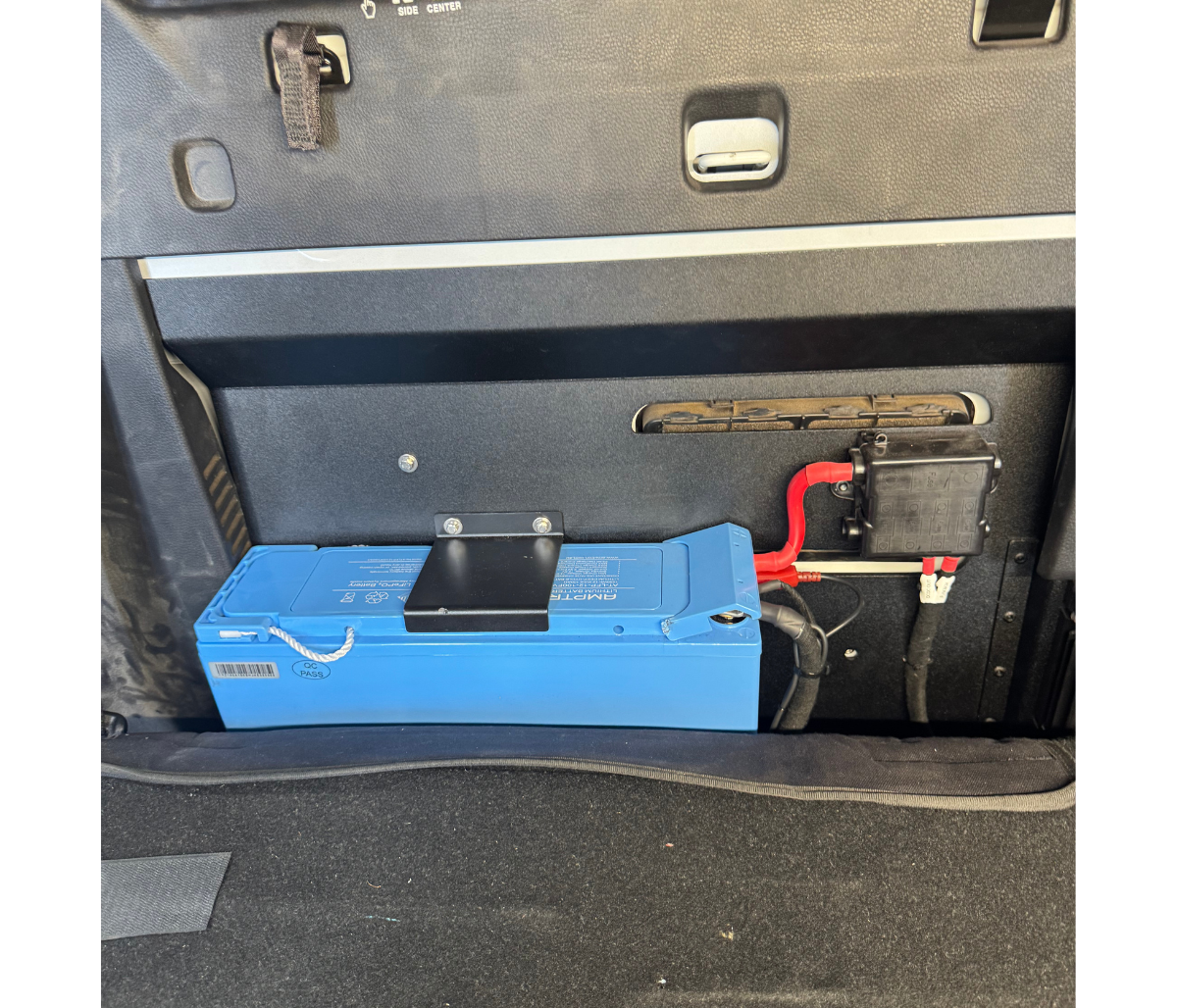

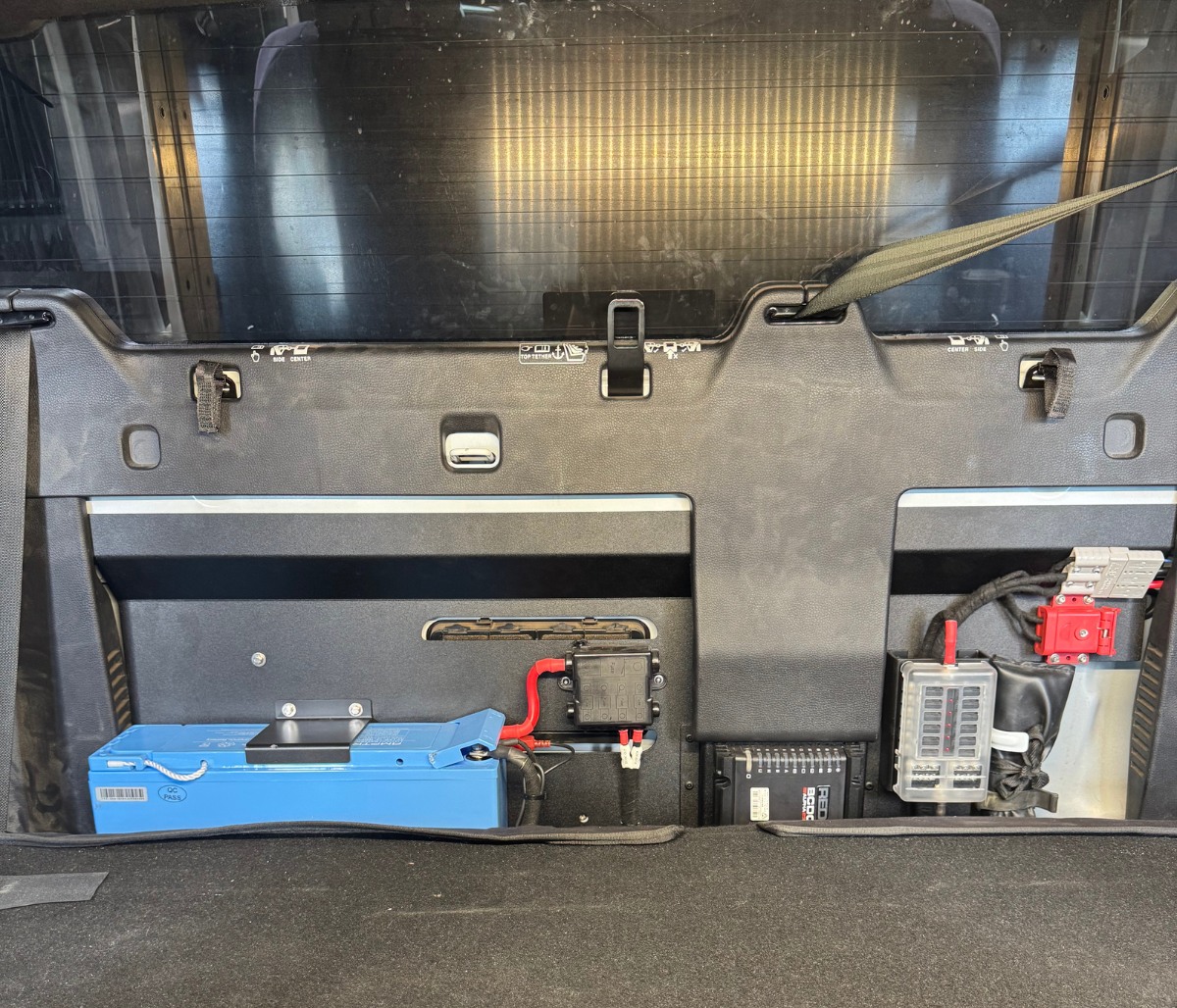

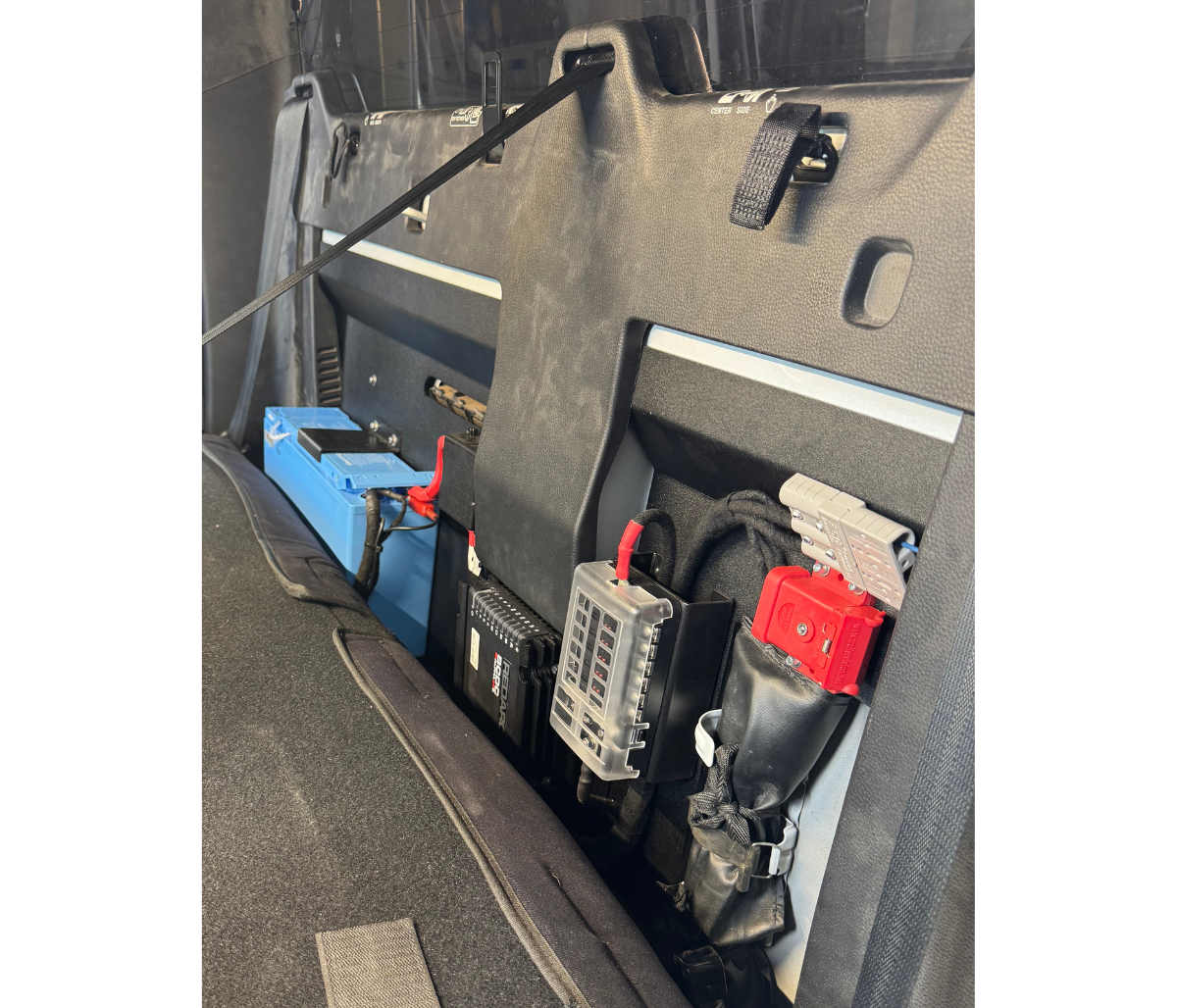

This system is custom-built to fit the Isuzu D-MAX (2022 onwards) behind the rear seat. It will not suit other vehicles. Designed using factory mounting points — no drilling, cutting, or welding required.

 [{"variant_id":"51402257367313" , "metafield_value":""},{"variant_id":"51402257498385" , "metafield_value":""},{"variant_id":"51402257662225" , "metafield_value":""}]

Isuzu Dmax Behind the Seat 2022+

$3,415.25 $3,595.00
Description

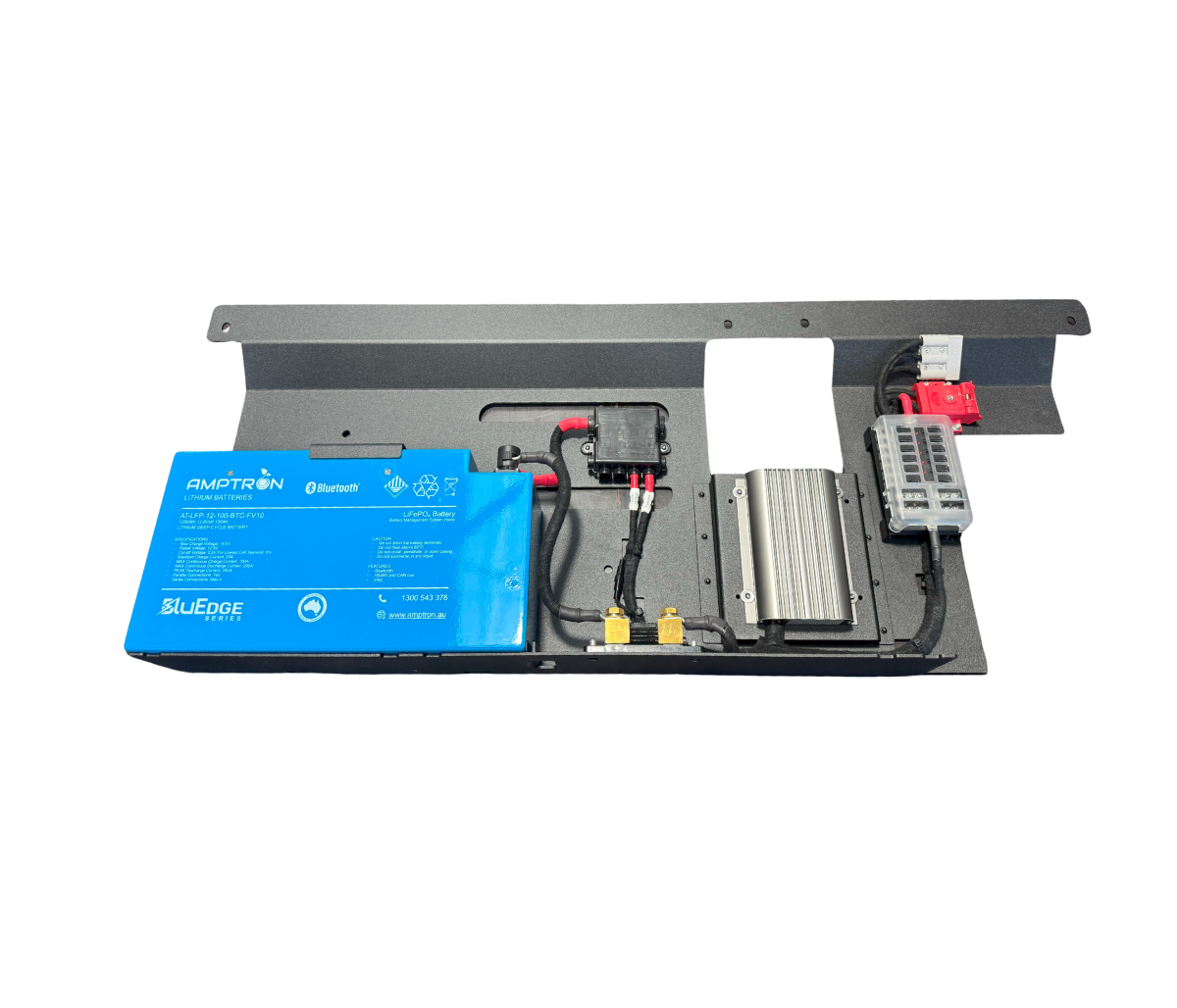

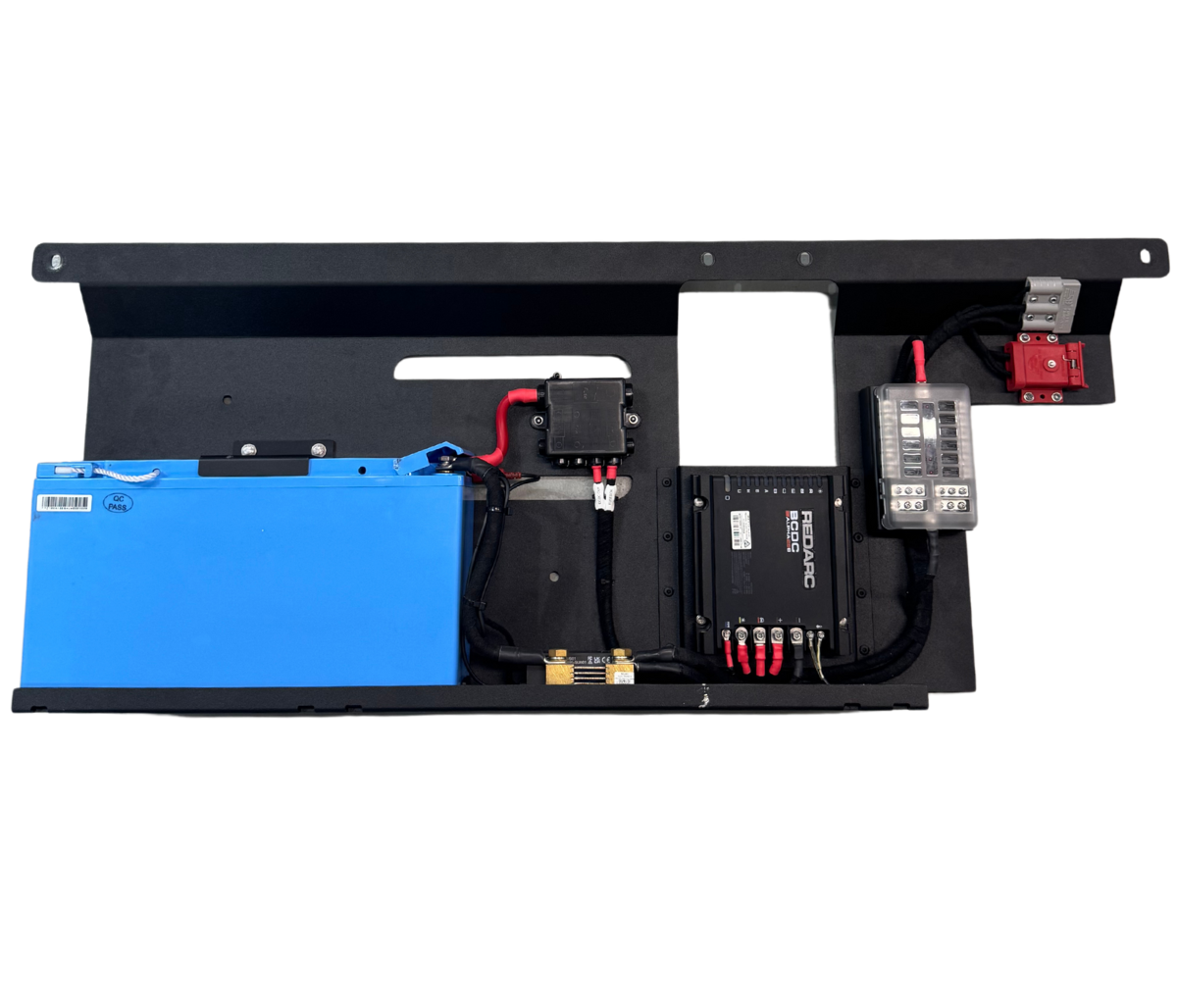

Designed in-house by Elevate Automotive, the Isuzu D-MAX Behind-the-Seat Lithium Battery System is a fully integrated, plug-and-play power solution.

Engineered specifically for the Isuzu D-MAX (2022 onwards), this setup mounts cleanly behind the rear seats using factory mounting points — no drilling required.

Whether you're heading off-grid for a weekend of adventure or you're a tradie needing reliable power on the job site, this system is built to deliver. All the wiring is pre-installed, so you're ready to go from the moment it arrives.

FEATURES

Fully integrated lithium system designed specifically for the Isuzu D-MAX (2022+)

Mounts cleanly behind rear seats using factory mounting holes – no drilling required

Plug & Play wiring design – all connections pre-installed and labelled

Includes 100Ah lithium battery and complete fuse setup

Supports Victron or Redarc DCDC charging systems

Bluetooth shunt for battery monitoring from your phone

Compatible with external solar input

Heavy-duty optional in-vehicle charging harness available

Professional appearance with clean cable routing

Saves space – no need for rear tub or tray battery setups

FAQ's

Q: Does this system fit older D-MAX models?
A: No, this system is designed specifically for the 2022+ Isuzu D-MAX only.

Q: What’s included in the pre-wiring?
A: All fuses, fuse boxes, connections, and battery shunt wiring is completed. Simply add the compatible charger harness.

Q: What’s the difference between the Redarc and Victron versions?
A: Both are high-quality. Redarc offers Australian-made reliability with the Alpha Core featuring charge-back, while Victron Orion XS gives advanced programmability via Bluetooth.

Q: Is an external solar regulator required?
A: Yes, if you choose the Orion XS variant, a separate solar regulator is required.

Specifications

System Type: Behind-the-seat lithium battery system

Battery: 100Ah LiFePO4 lithium battery included

DC Charging Options: Redarc Alpha, Redarc Core BCDC, Victron Orion XS (user selectable)

Shunt Options: Redarc Manager Shunt or Victron SmartShunt (user selectable)

Solar Input: Anderson plug input (external regulator required for Orion XS)

DIY Ready: Fully pre-wired with labelled connections

Weight: 19kg

Installation Information


The system is pre-wired for DIY installation, designed to plug directly into compatible Redarc or Victron harnesses. Professional installation is available at our Perth workshop on request.

Warranty Information


Each battery and electronic component carries its own manufacturer's warranty. Please refer to individual product documentation for warranty terms.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Shipping: Australia-wide shipping
