Choosing between high voltage vs low voltage solar panels really comes down to how your setup is built and how you actually use it day to day.

If you’re running an off-grid 4WD or caravan, this isn’t just a technical choice. It affects how well your batteries recharge after a long day, how your system handles long cable runs from roof panels and how reliably everything works when multiple devices are running.

For example, if your panels are mounted farther away (like on a caravan roof or a canopy setup), voltage can make a noticeable difference in how efficiently power is returned to your battery. On the flip side, some simpler setups closer together might not need that extra complexity.

In this blog, we break down the differences, where each option makes the most sense, and how to choose a setup that actually works for the way you travel.

What is the difference between high and low voltage solar panels?

The difference between high and low voltage solar panels is how power moves through your system, especially across cables and into your battery. In practical terms, higher voltage systems push power at lower current, reducing energy loss over longer distances. Lower voltage systems rely on higher current, which can lead to greater losses, but keeps the setup simpler and easier to manage. This is why high voltage is often used in larger or more spread-out systems, while low voltage suits smaller 12V setups where everything is close together.

High voltage vs low voltage solar panels: quick comparison

When comparing high voltage vs low voltage solar panels, the best option depends on how your system is configured and where the panels are located in relation to your battery bank.

How does voltage affect solar system performance?

Voltage effects how efficiently power moves through your system. Higher voltage reduces the amount of current needed to deliver the same power, which lowers heat loss in cables and improves charging efficiency. Lower voltage systems require more current, which increases resistance and can reduce overall efficiency as the load increases.

Why charge controller type matters: MPPT vs PWM

Your charge controller plays a major role in how efficiently your solar system operates.

• PWM (Pulse Width Modulation) controllers are generally suited to lower-voltage systems where panel voltage closely matches battery voltage. They’re simple and cost-effective but less efficient when there is a large voltage difference between the panel and battery.

• MPPT (Maximum Power Point Tracking) controllers can convert higher panel voltage into usable charging power for a 12V battery system. This makes them the preferred choice for high-voltage solar setups, particularly when maximising efficiency across longer cable runs.

Real-world example: a touring canopy setup

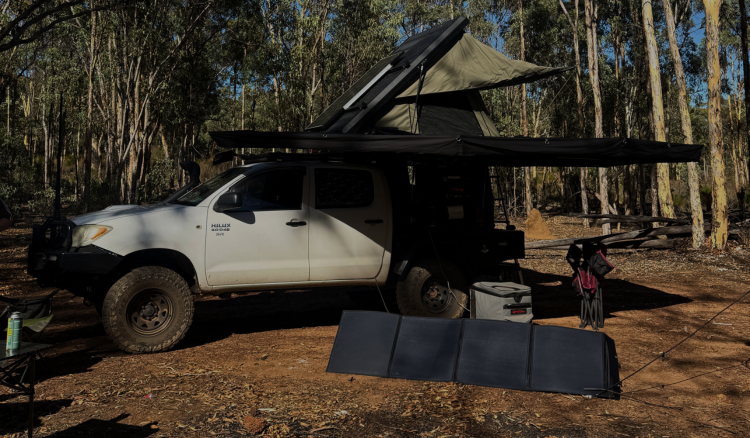

Imagine a touring 4WD with a canopy-mounted battery system and solar panels positioned on the roof or deployed away from the vehicle at camp. Because the panels may be several metres from the batteries, voltage drop can become a factor.

In this situation, a high-voltage solar setup paired with an MPPT controller can help reduce power loss through the cable run and improve charging efficiency. This is one reason high-voltage systems are becoming increasingly popular in larger touring and off-grid builds.

Which solar panel type is better for 4WD and caravan setups?

Neither option is universally better, as the right choice depends on your system layout, cable distance and how much power you need day to day. Low voltage systems are well suited to compact setups where components are mounted close together, such as under-bonnet dual battery systems or simple weekend touring rigs. They are straightforward to install and work well when power demand is modest.

High voltage setups are better suited to builds where panels and batteries are separated or where the system needs to support higher and more consistent energy use. These setups are commonly seen in canopy builds, caravans and full touring rigs where system layout and demand are more complex. The same considerations can apply when using portable solar blankets, particularly when they're positioned some distance from the battery system.

How do solar panels actually create high or low voltage systems?

Solar panels themselves are usually low voltage, and system voltage is created by how the panels are connected. Connecting panels in series increases voltage, while connecting them in parallel increases current. This is where your system’s design becomes important, as the final voltage must match the operating range of your charge controller and overall setup. Poorly matched systems can cause charging to drop out, trigger controller faults or push components beyond their rated limits.

What should you consider before choosing a solar setup?

Before you lock anything in, it’s worth looking at how your setup actually comes together, not just the parts on paper.

Panel distance from your batteries, daily power usage and system compatibility will all influence your decision on whether to use high voltage vs low voltage solar panels. In a 4WD or caravan, it usually comes down to how everything’s been installed and how it all works together as a system.

A well-thought-out setup keeps your panel voltage in line with your cable runs and your controller’s limits, so everything runs where it should. That means more consistent charging, fewer headaches and a lower chance of chasing faults later on.

This is also where good design and proper install work matter. The way your system is mounted, wired and laid out plays a big role in how it performs once you’re out using it, not just when it’s sitting in the driveway.

Get the right solar setup for your vehicle with Elevate Automotive

There’s no one-size-fits-all when it comes to solar; the right setup really depends on how you use your rig.

In the real world, that means thinking about things like how far your panels are from your batteries, whether your charge controller is running in its sweet spot and making sure everything works together without losing power along the way. Get that right, and you’ll end up with a system that’s reliable, easy to fault-find if something goes wrong and built to handle life on the road.

That’s how we approach every build at Elevate Automotive. Our work is more than just bolting parts together; it’s about designing a system that actually works for your setup. With in-house fabrication and full auto electrical capability, we handle everything from 12V through to 240V, all signed off properly.

If you’re still unsure about tackling high-voltage vs. low-voltage solar panels for your setup, get in touch with our team. We’ll run through your vehicle and how you use it, and point you in the right direction.

FAQs

• Is high-voltage solar better for 4WD and caravan setups?

Not always. High-voltage systems can offer better efficiency over longer cable runs, making them well suited to many caravan, canopy and off-grid touring setups. However, smaller systems with short cable runs may perform perfectly well with a low-voltage configuration.

• Can I use high-voltage solar panels with a 12V battery system?

Yes. A high-voltage solar panel can charge a 12V battery system when paired with a compatible MPPT charge controller that can safely convert the incoming voltage.

• Do high-voltage solar panels need an MPPT controller?

In most cases, yes. MPPT controllers are designed to work with higher-voltage solar inputs and convert that power efficiently into usable battery charging current.

• When does a low-voltage solar setup make more sense?

Low-voltage systems often make sense when panels, batteries and accessories are located close together, such as in simple dual-battery systems or compact weekend touring setups where cable distances are minimal.
