The Prospector Canopy System

SKU: FAB-ASM-PROSPECTOR
$7,962.00
Optionsw/ 2000VA Victron Multiplus Compact
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for all full-width canopies on dual cab or canopy-converted 4WDs including Toyota LandCruiser, Hilux, Ford Ranger, Isuzu D-MAX, BT-50, Nissan Patrol, Navara, and more. Designed for universal canopy fitment — not limited to any specific make or model.


1x Fully assembled Prospector canopy power system

1x EGON DC Hub with protective access cover

1x Victron Orion XS 50A DC-DC charger

1x Victron SmartSolar MPPT 100/50 regulator

1x Cerbo GX and Touch 50 screen

1x 8-way Roadpower switch panel

240V AC and 12V DC output ports

Pre-fitted wiring and internal circuit protection

Mounting hardware

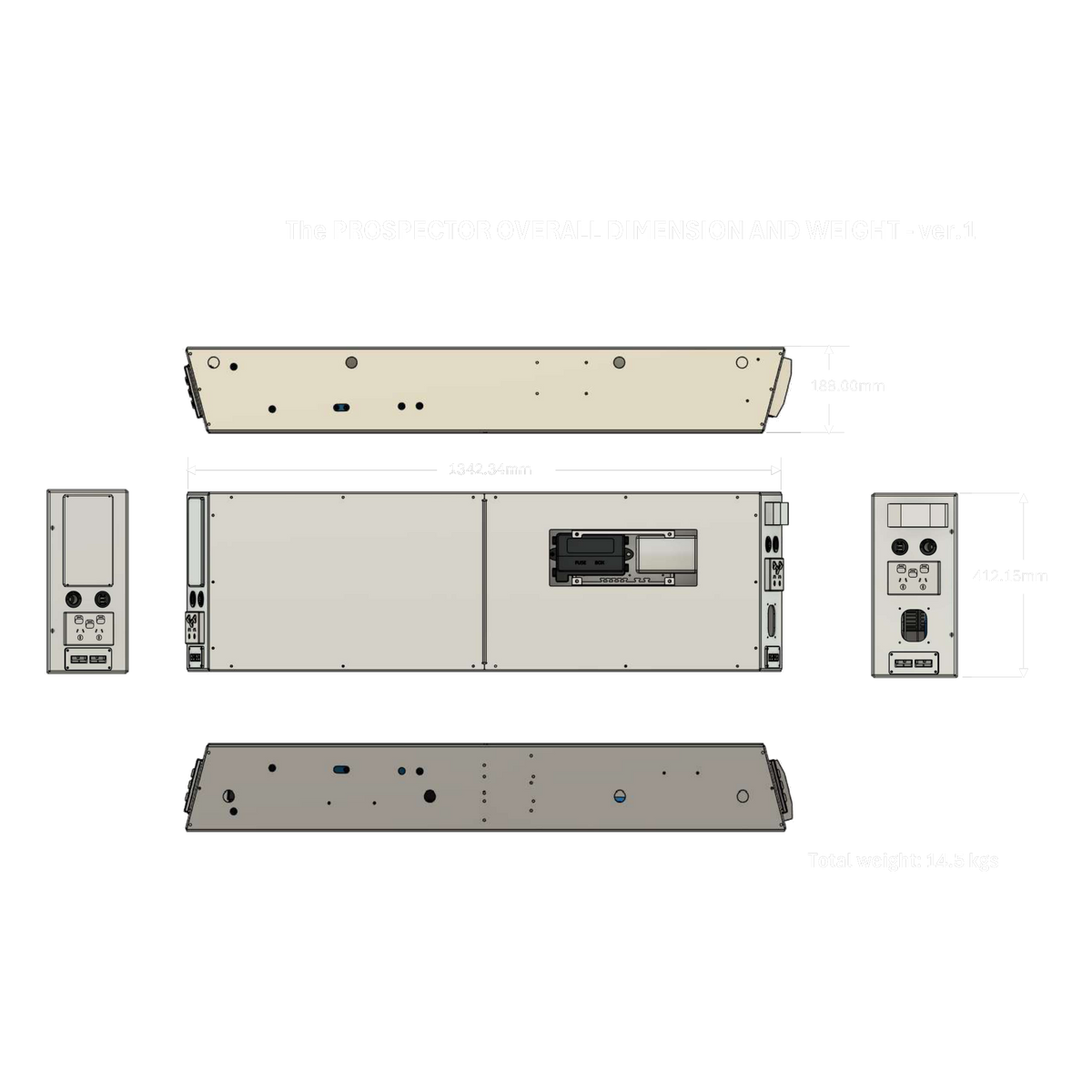

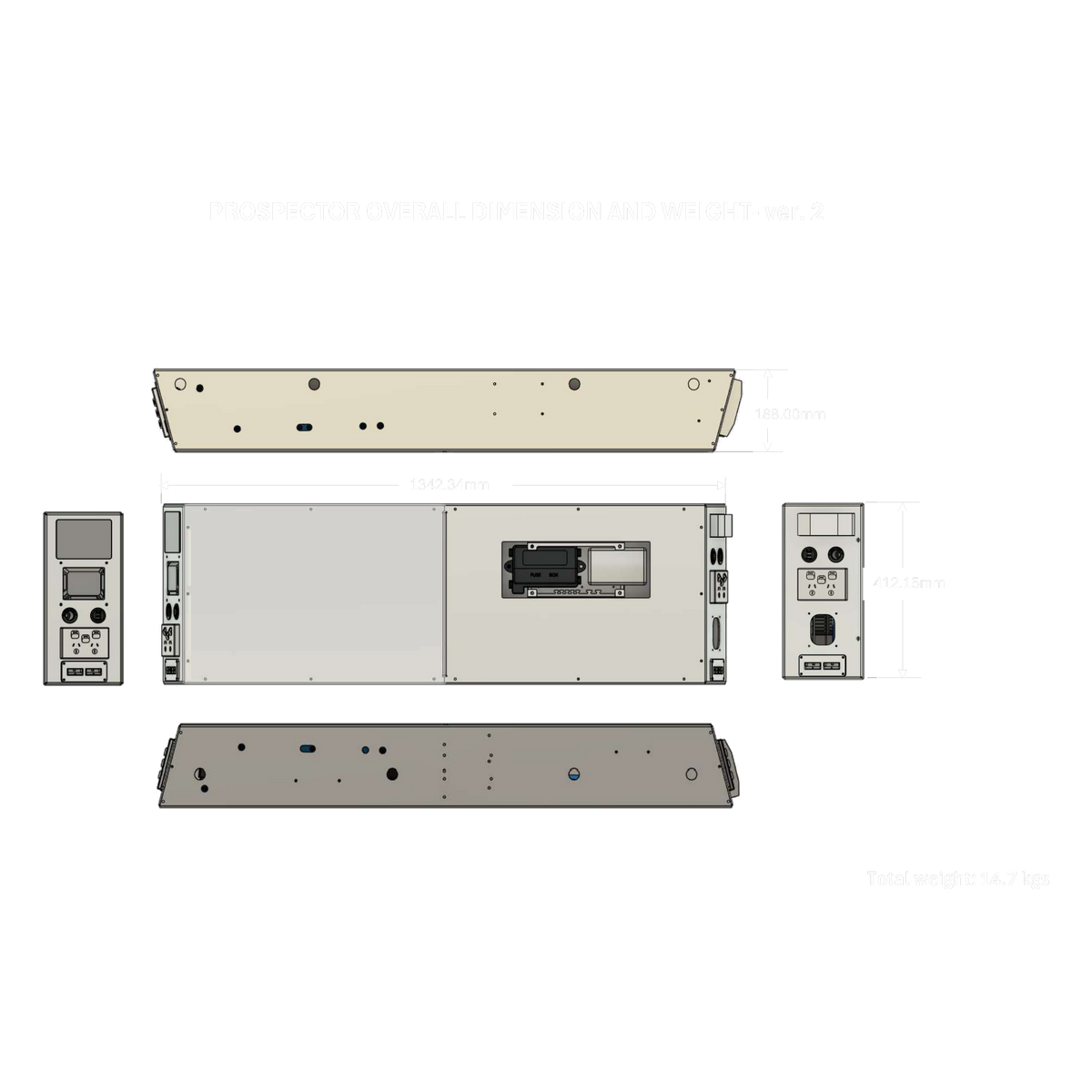

Length: 1366mm

Height: 440mm

Width: 166mm

The Prospector system is built in-house at Elevate Automotive using genuine Victron and EGON hardware. All wiring and layout designs follow Australian standards and are tested for safe installation in mobile and off-grid environments. Custom variants and specific vehicle adaptations may be available upon request.

 [{"variant_id":"50219430740241" , "metafield_value":""},{"variant_id":"50219430904081" , "metafield_value":""},{"variant_id":"50219431067921" , "metafield_value":""}]

The Prospector Canopy System

$7,962.00
Description

The Prospector is Elevate Automotive’s in-house designed plug-and-play canopy power system, built for 4WD enthusiasts who need reliable off-grid power. Whether you're running a fridge, camp lights, tools, or an induction cooktop, the Prospector makes powering your setup easy and safe.

Designed to suit most full-width canopies, this all-in-one system uses premium Victron gear and EGON’s DC Hub to create a clean, expandable and future-ready power solution. Each system comes standard with a 50A Victron Orion DC-DC charger, a 100/50A Victron MPPT solar regulator, Victron Cerbo GX with Touch 50 display, EGON DC Hub, 240V shore power inlet, solar input, dual 12V cig and USB outlets, RCBO-protected 240V sockets (1x 15A and 4x 10A), and an 8-way Roadpower switch panel.

You can choose between variants with a 2000VA Victron MultiPlus Compact inverter or a larger 3000VA MultiPlus II. For a complete solution, select the version with a 200Ah Slimline Amptron battery and mounting bracket included.

Optional pre-wired heavy-duty harnesses are also available for faster in-vehicle install.

FEATURES

Universal fit canopy power system

Fully pre-wired with plug-and-play installation

Supports shore power, solar, and alternator charging

Real-time monitoring with Victron Cerbo GX and Touch 50

DC and AC output integration in one compact housing

EGON Hub for safe and expandable accessory management

Pre-drilled mounting holes for flexible installation

Supports high-draw appliances like induction cookers

Expandable system with extra ports and switch panel

Australian built and tested

FAQ's

Q: Can I run an induction cooktop off this system?
Yes — if you select the 2000VA or 3000VA inverter variant and pair it with a suitable lithium battery, the system can support most portable induction cookers.

Q: Does this come pre-wired?
Yes — the entire system is fully pre-wired and tested in-house before dispatch.

Q: Can I monitor everything from my phone?
Yes — the Victron Cerbo GX and Touch 50 interface allow remote monitoring and control via the VictronConnect app.

Q: Can I add central locking, lights, or accessories?
Yes — the EGON DC Hub and 8-way switch panel make it easy to expand your setup with accessories.

Specifications


Victron Orion XS 50A DC-DC Charger

Victron SmartSolar MPPT 100/50

Victron Cerbo GX with Touch 50 screen

EGON DC Hub with protective cover

Roadpower 8-way switch panel

1x 15A and 4x 10A 240V AC outlets (RCBO protected)

2x 12V cig outlets, 2x dual USB sockets

240V shore power inlet

Anderson plug solar input

Optional Victron MultiPlus 2000VA or 3000VA inverter

Optional Amptron 200Ah Slimline lithium battery

Optional custom vehicle charging harness

Installation Information

Installation is straightforward for professionals and experienced DIYers with basic 12V/240V knowledge.

Systems can be bolted or riv-nutted into the canopy frame via pre-drilled side mounting holes.

Cable entry points are provided (4 top, 5 bottom) for tidy routing.

For true plug-and-play install, we recommend pairing with our optional custom vehicle-specific harnesses.

Warranty Information

Victron components carry a 5-year manufacturer warranty. EGON DC Hub includes a 2-year warranty. Elevate Automotive covers workmanship and wiring for 12 months from date of purchase. Optional Amptron batteries include a 5-year limited warranty.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Shipping: Australia-wide shipping
