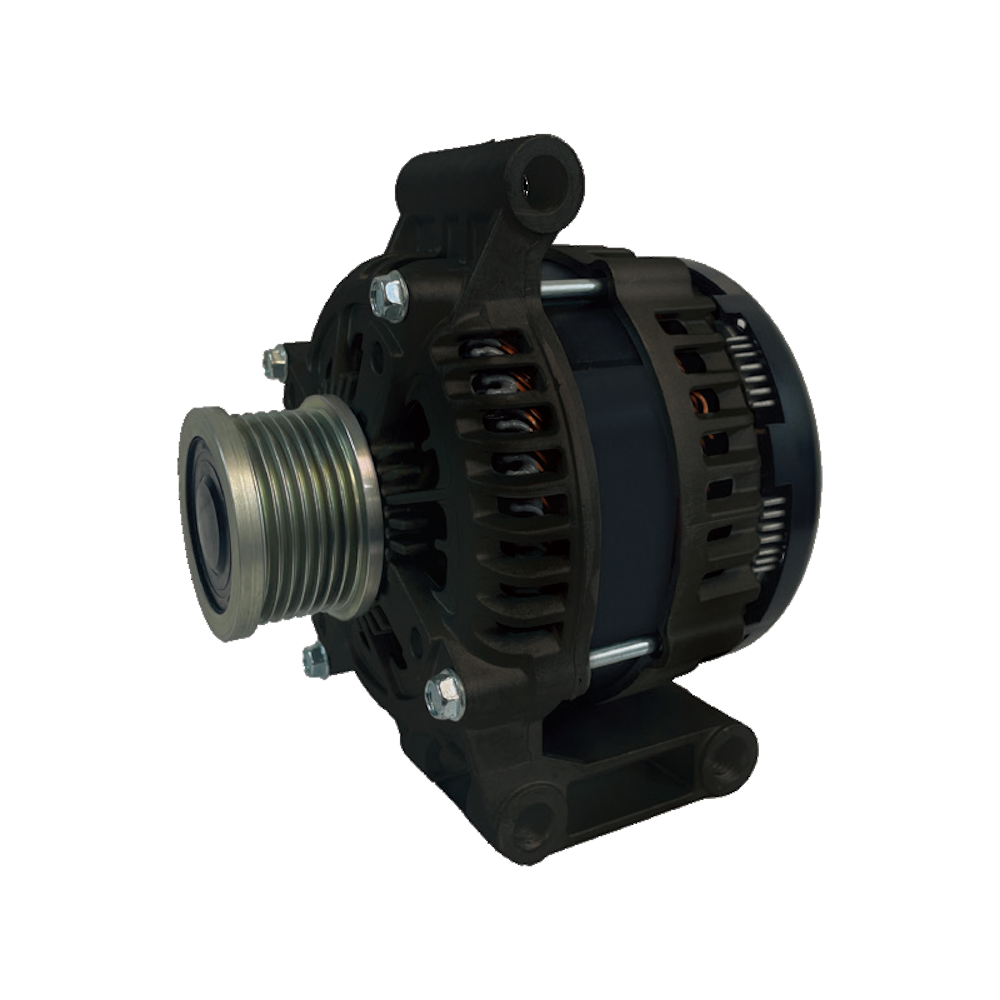

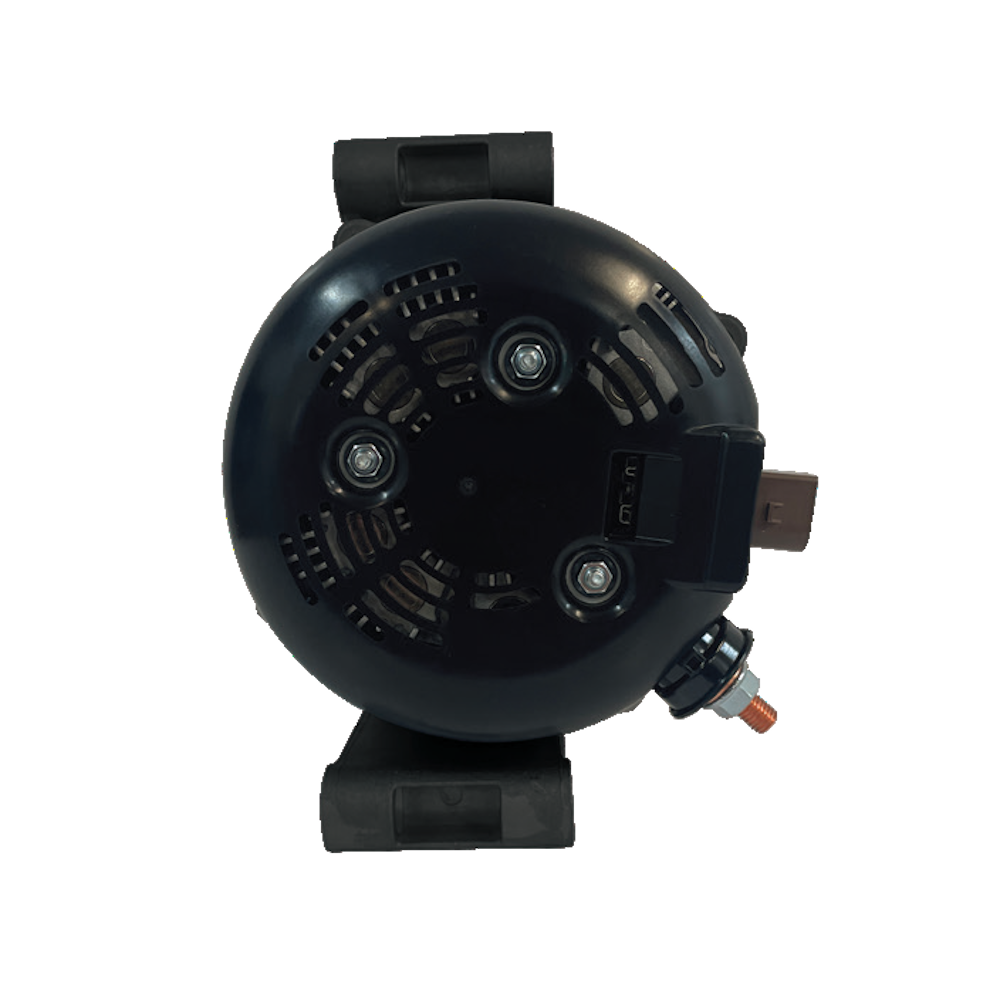

Black Series ALT 12V 240A, FORD RANGER, W/- P5AT ENGINE

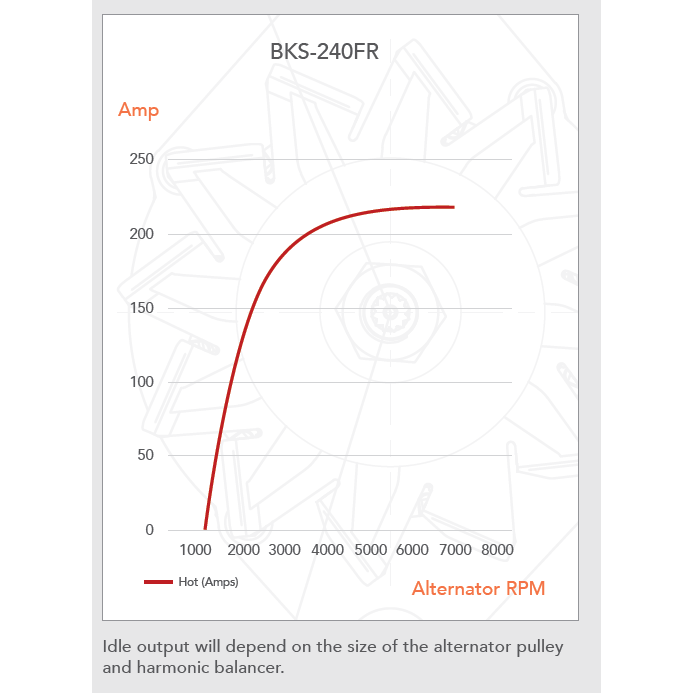

High output performance at idle and low RPM

Maintains full battery charge with upgraded technology

Suitable for vehicles with high electrical loads and multiple accessories

Black powder-coated finish for corrosion resistance and professional look

Direct OE replacement with clutch pulley and rectifier included

Voltage: 12V

Amperage: 240A (Cold), 217A (Hot)

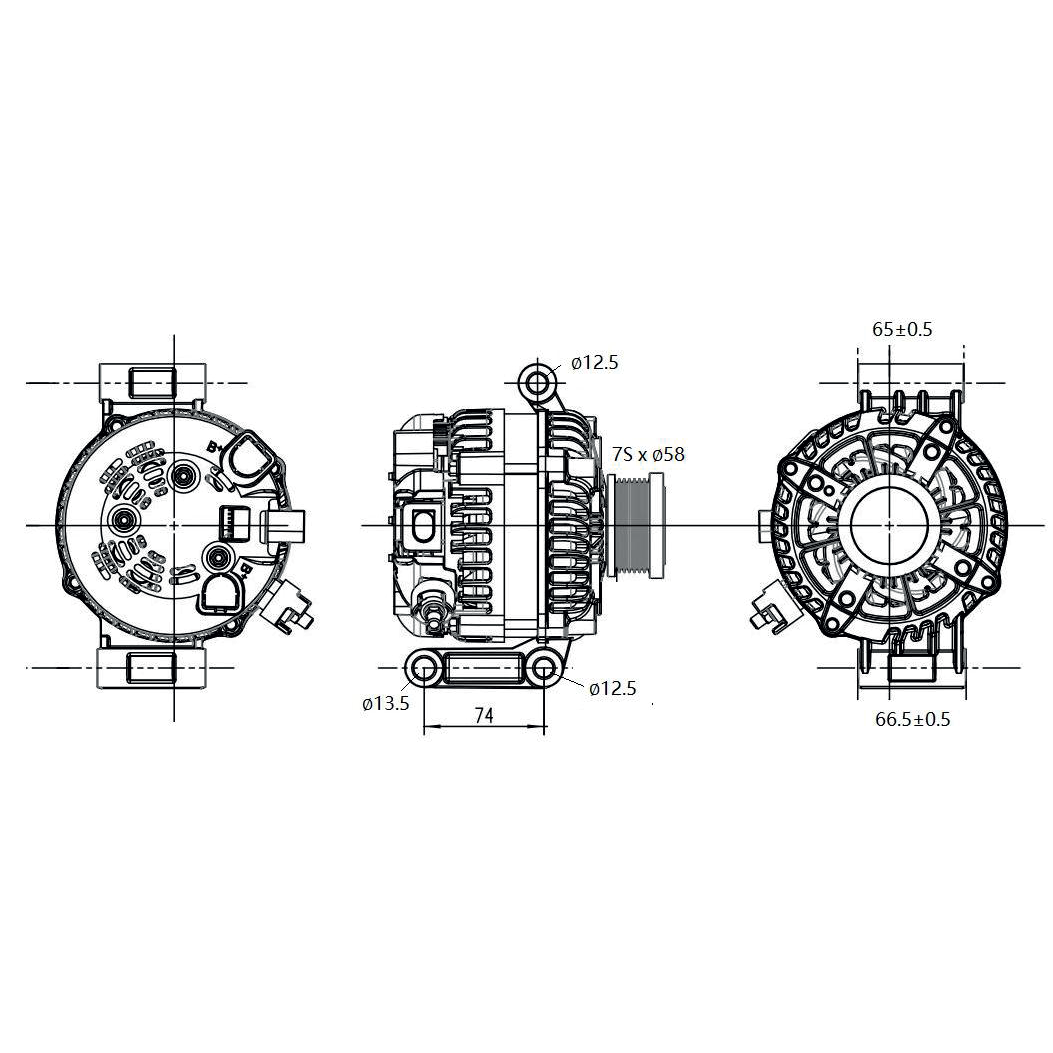

Mount Leg ID: 74mm

Center-to-Center Mounts: 174mm

Hole ID Top: 13mm

Hole ID Bottom: 13mm

Pulley Type: 7PV Clutch

Pulley Grooves: 7

Pulley Diameter: 58mm

Connections Plug #: P82-2

Terminals: B+, COM/LIN, D

Weight: 9.2kg

Direct fit for the specified vehicle model.

Main wiring modification is necessary before installation.

Compatible only with models matching OE part numbers.

Installation should be performed by a qualified technician.

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

Q: Will this alternator fit all Ford Ranger models?
A: No, this alternator is specifically designed for the Ford Ranger P5AT engine and must be matched by OE part numbers. It may not fit other Ranger models without modifications.

Q: Is any wiring modification required for installation?
A: Yes, a battery positive wiring upgrade is required to ensure proper operation and compatibility with this high-output alternator.

Q: Can I install this alternator myself?
A: While it is a direct fit, professional installation is recommended to ensure wiring upgrades and mounting are correctly completed.

Q: Does this alternator come with a warranty?
A: Warranty terms depend on the manufacturer. Please check the warranty information provided at purchase or contact the supplier for details.

Q: What makes this alternator better than the standard OE alternator?
A: It delivers higher amperage at lower RPMs, supports additional high-demand electrical accessories, and maintains battery health more effectively.

Q: Will this alternator work with my vehicle’s existing charging system?
A: It is designed as a direct replacement for specified Ford Ranger models but requires wiring upgrades. Verify compatibility with your vehicle’s system before installation.

Q: What should I do if my vehicle has additional accessories?
A: This alternator is ideal for vehicles with upgraded electrical loads, such as winches and extra lighting. Ensure wiring and battery systems are appropriately upgraded as recommended.
