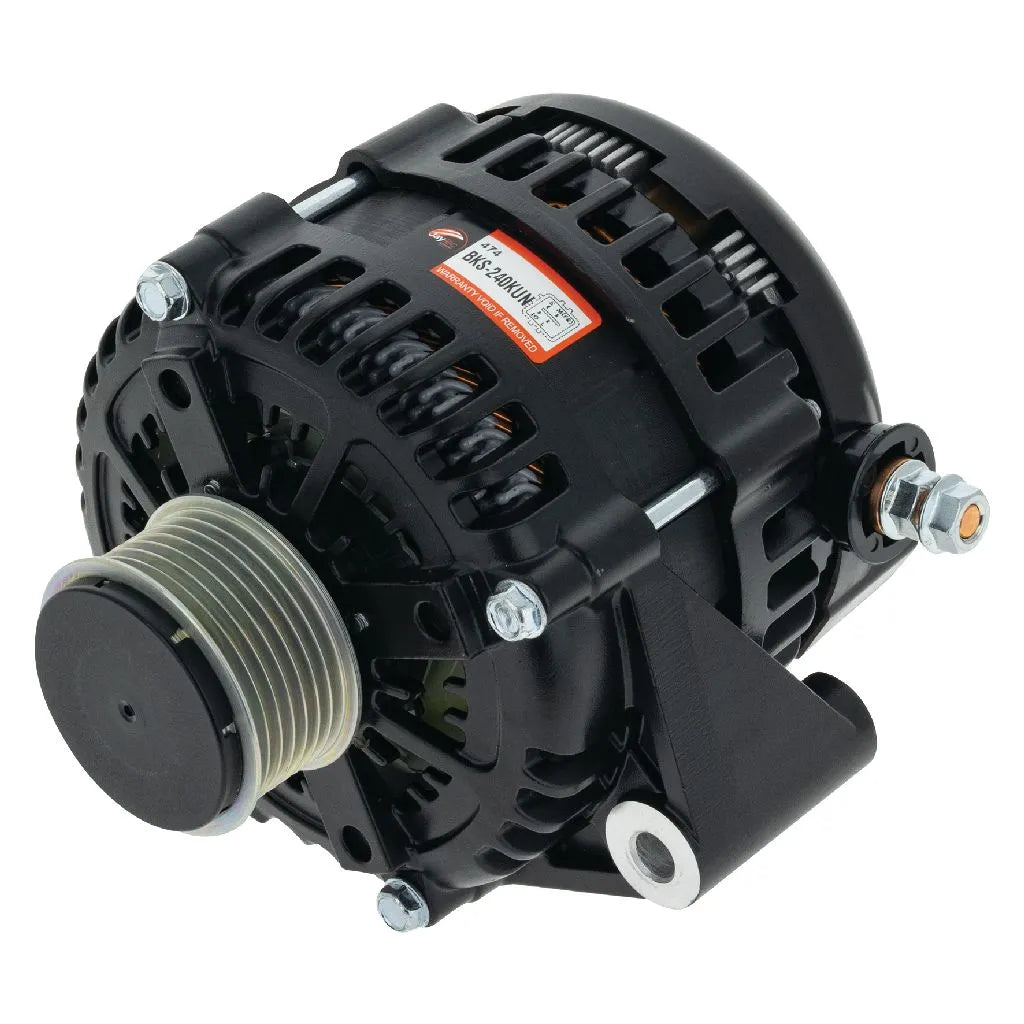

Black Series ALT 12V 240A, Hilux KUN26 / 1KD-FTV

The BKS-240KUN alternator boasts a high-output 240A capacity, making it ideal for vehicles with substantial electrical demands. Its 4-phase alternator and stator design, along with NSK bearings and anti-vibration protection, ensure durability and consistent performance under various driving conditions.

Voltage: 12V
Amperage: 240A

Mount Leg ID: 58mm
Centre to Centre Mounts: 165mm
Top Hole ID: M8
Bottom Hole ID: 10mm

Shaft Size: 17mm

Pulley Type: 7PV Clutch
Pulley Grooves: 7
Pulley Diameter: 62mm

Regulator Type: Internal

Connections Plug #: EP35
Terminals: B+, S, IG, M (FR), L

Excitation: External
Ground: Negative

Manufacturer Type: Toyota Hilux KUN26 (1KD-FTV 3.0L Diesel)

The BKS-240KUN alternator features a mount leg ID of M8 with center-to-center mounts at 170mm. The top hole ID is 10mm, and the bottom hole ID is 56mm. It utilizes a single "A" type pulley with a diameter of 64mm. The regulator is internal, and the excitation is external. Installation should be performed by a qualified technician to ensure proper fit and function

Instructions

12-month warranty covering manufacturing defects and workmanship.

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

Q: Is this alternator compatible with other Toyota models?
A: The BKS-240KUN is specifically designed for the Toyota Hilux KUN26 with the 1KD-FTV 3.0L diesel engine. Compatibility with other models is not specified.

Q: Does this alternator require any modifications for installation?
A: The alternator is designed for direct fitment on the specified vehicle model. However, installation should be carried out by a professional to ensure proper setup.
