Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

SKU: BKS-240MUX
$939.00
  • VEHICLE
  • INCLUDED

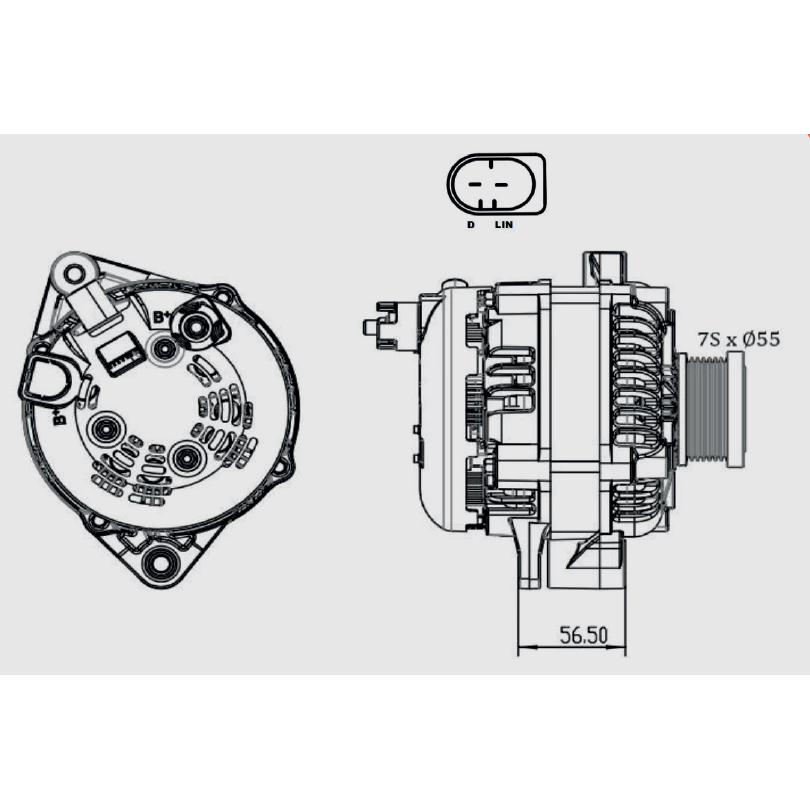

  • DIMENSIONS
  • Note from Manufacturer

Compatible with Isuzu MU-X models equipped with 4JJ1 and 4JJ3-TCX Diesel engines.

Black Series high-performance alternator

OE stator, rotor, regulator, rectifier, and clutch pulley

Mount Leg ID: 55mm

Center-to-Center Mounts: 161mm

Hole ID Top: M8

Hole ID Bottom: 10mm

Shaft Size: 17mm

Pulley Diameter: 62mm

Jaylec alternators are designed and tested for use with standard lead-acid battery systems. These units are not suitable for direct use with lithium (LiFePO4) battery setups

 [{"variant_id":"47954561204497" , "metafield_value":""}]

Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

$939.00
Description

MOUNT: Direct Fit
VEHICLE: Isuzu MU-X 4JJ1 4JJ3-TCX DSL



FEATURE:
• 13.5V @ 240A Cold
13.5V @ 217A Hot
• Upgraded technology




BENEFITS:
• Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higher
outputs than the standard 130A Alternator.
• Allows the battery packs to be maintained in a full state of charge.
• Higher charge @ lower RPM.
• Professional look



THIS UNIT IS LIN REG FUNCTION. AND WILL NOT INTERCHANGE WITH ALTERNATORS THAT ARE L,M REGULATOR FUNCTION. THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR, RECTIFIER AND CLUTCH PULLEY. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.



Voltage 12V
Amperage 140A
Mount Leg ID 55mm
C-C Mounts 161mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 62mm
Regulator Type INTERNAL
Series
Connections Plug #
Terminals B+, LIN
Excitation EXTERNAL
Ground NEGATIVE
FEATURES

High output: 13.5V at 240A cold, 217A hot

Designed for vehicles with high electrical loads

Maintains battery charge at idle and low RPM

Black powder-coated for durability and professional appearance

OE matched fitment for easy installation

LIN regulator function for advanced charging management

Specifications

Voltage: 12V

Amperage: 140A

Mount Leg ID: 55mm

Center-to-Center Mounts: 161mm

Hole ID Top: M8

Hole ID Bottom: 10mm

Shaft Size: 17mm

Pulley Type: 7PV, Clutch

Pulley Grooves: 7

Pulley Diameter: 62mm

Regulator Type: Internal (LIN)

Terminals: B+, LIN

Excitation: External

Ground: Negative

Installation Information

Direct fit replacement alternator designed to match OE mounting points. Requires battery positive wiring upgrade due to LIN regulator function. Not compatible with alternators using L or M regulator types.

Warranty Information

12 months warranty on manufacture and build defects. Warranty does not cover installation errors or misuse.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

FAQ's

Q: Will this alternator fit my Isuzu MU-X?
A: Compatible with Isuzu MU-X 4JJ1 and 4JJ3-TCX Diesel engines only.

Q: Does it require wiring changes?
A: Yes, a battery positive wiring upgrade is necessary.

Q: Is this a direct replacement?
A: Yes, designed for direct OE fitment.
