Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT

Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT

SKU: BKS-240GM
$899.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for GM, US, and Australian vehicles (with some modifications for Australian models). Designed for performance, heavy-duty, road transport, and 4x4 applications.

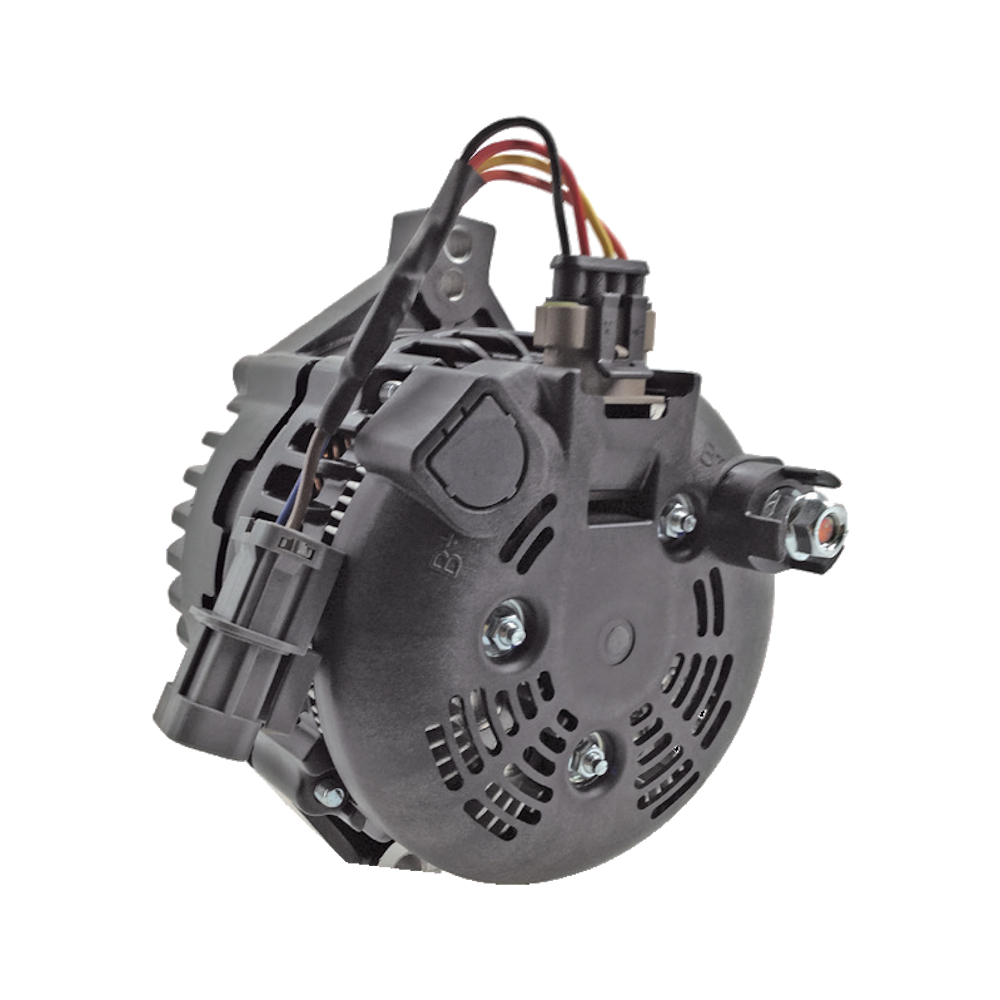

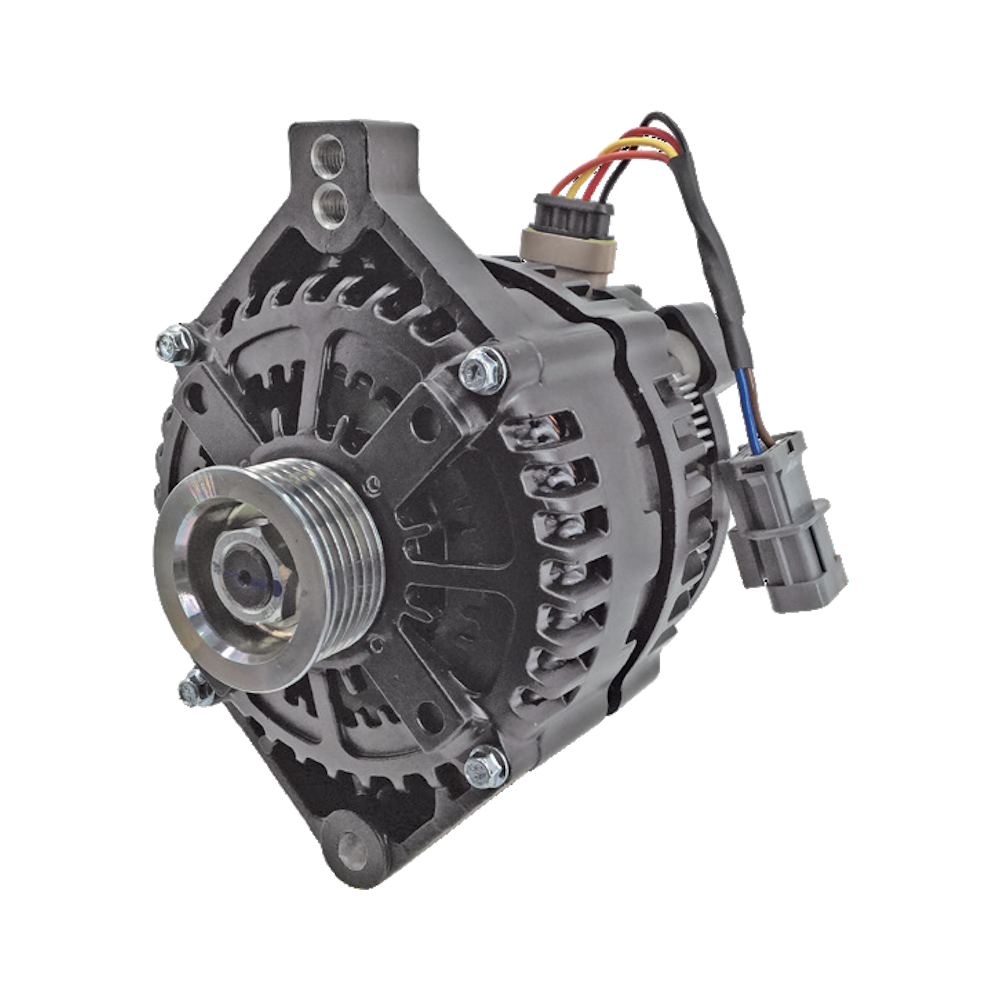

Black Series 12V 240A alternator

OE stator, rotor, regulator, rectifier, and clutch pulley

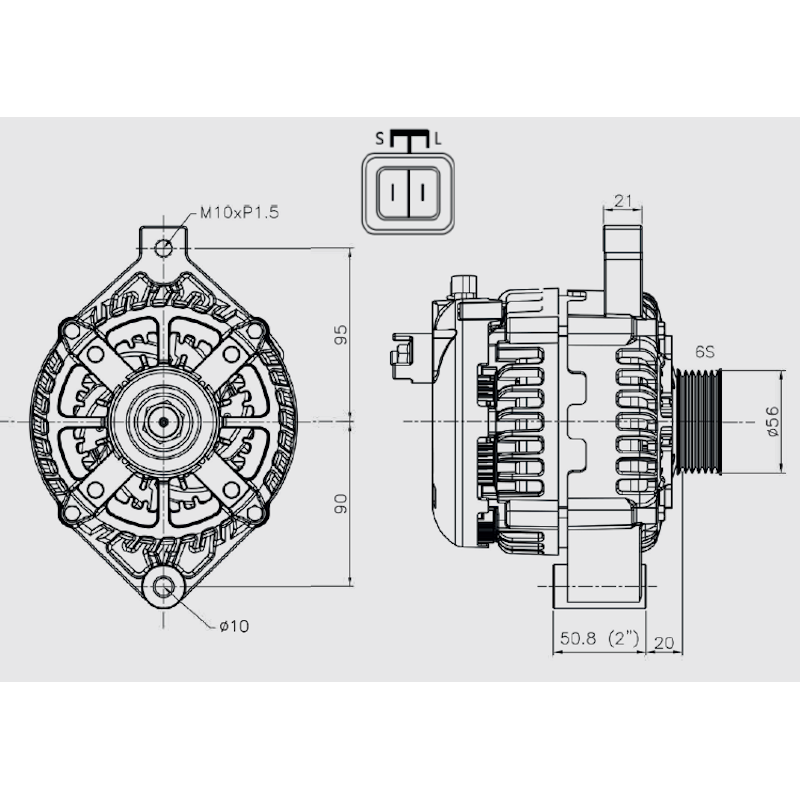

Pulley Diameter: 56mm

Mounting Leg ID: 50mm

Mount Center-to-Center: 185mm

Overall dimensions compatible with standard 2-inch GM/Holden mounts

Jaylec alternators are designed and tested for use with standard lead-acid battery systems. These units are not suitable for direct use with lithium (LiFePO4) battery setups

 [{"variant_id":"47954552619281" , "metafield_value":""}]

Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT

$899.00
Description

MOUNT: Universal GM & Holden Applications
VEHICLE: GM, US & Australian Applications*



FEATURE:

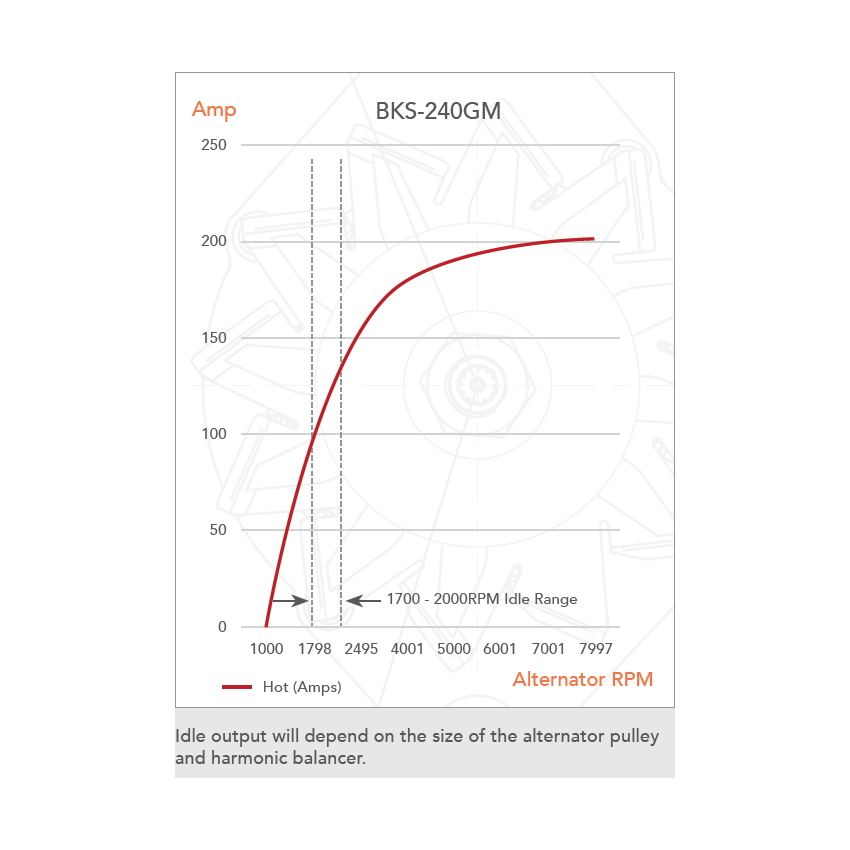

• 13.5V @ 240A Cold / 13.5V @ 202A Hot
• Upgraded technology
• Black powder coated



BENEFITS:
• Suitable for vehicles with high electrical loads - performance and 4X4 vehicles,
dual thermo-fans, injection systems, air conditioning, electric steering,
monitoring systems, upgraded lighting systems, winches and maintaining
the battery at the desired levels.
• Higher charge @ lower RPM.
• Professional look.



*(Aust application needs some modifications)



WIRING MUST BE UPGRADED BEFORE FITTMENT
THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR AND RECTIFIER. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

Specifications:
Voltage 12V
Amperage 240A
Mount Leg ID 50mm
C-C Mounts 185mm
Hole ID Top M10
Hole ID Bottom 10mm
Shaft Size
Pulley Type 6PV, FIXED
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 56mm
Regulator Type INTERNAL
Series HAIR PIN
Connections Plug # EP39
Terminals B+,
Excitation EXTERNAL
Ground NEGATIVE
FEATURES

High output 240A charging capacity

Designed for heavy electrical loads (thermo-fans, injection, AC, steering, lighting, winches)

Black powder-coated finish for durability and professional appearance

Maintains battery charge at low RPM

OE-quality components with upgraded technology

Specifications

Voltage: 12V

Amperage: 240A

Mount Leg ID: 50mm

Center-to-Center Mounts: 185mm

Hole ID Top: M10

Hole ID Bottom: 10mm

Pulley Type: 6PV, Fixed

Pulley Grooves: 6

Pulley Diameter: 56mm

Regulator Type: Internal

Series: Hair Pin

Connections Plug #: EP39

Terminals: B+

Excitation: External

Ground: Negative

Installation Information

Requires wiring upgrade before installation to accommodate the increased amperage.

Professional installation is recommended to ensure proper fitment and operation.

Warranty Information

12 months warranty on manufacture and build defects.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

FAQ's

Q: Will this fit my vehicle?
A: Compatible with most GM, US, and Australian vehicles using a 2-inch standard mount. Australian models may need minor modifications.

Q: Is wiring upgrade necessary?
A: Yes, to safely handle the higher amperage output.

Q: Does it come with all parts needed?
A: It includes OE stator, rotor, regulator, rectifier, and clutch pulley.
