Home / Lighting / Driving & light bars

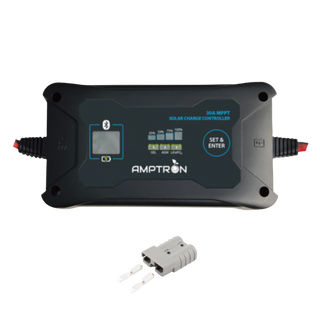

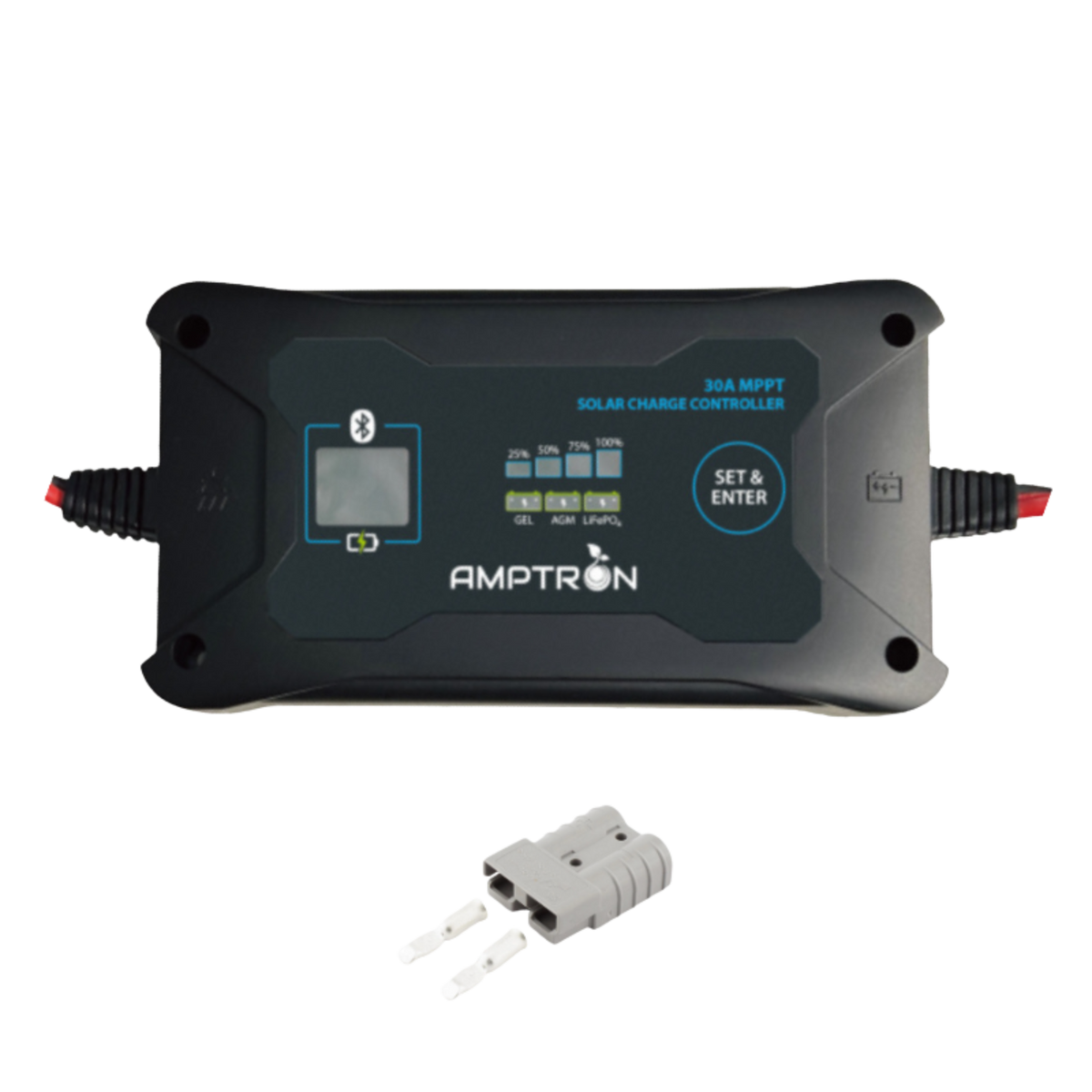

Amptron 30A MPPT solar charge controller, the black moulded case printed 30A MPPT Solar Charge Controller with a Bluetooth symbol beside the display window, battery-type buttons for gel, AGM and LiFePO4, charge indicators at 25, 50, 75 and 100 per cent, and a Set and Enter button, shown with the grey Anderson connector supplied with itConnection diagram for the inline MPPT controller: the solar panel at one end runs through an Anderson connector into the controller, and a second lead leaves the controller through another Anderson connector to the battery, with positive and negative marked at each bare-wire endThe charge controller app on a phone showing the Data History screen, with daily cumulative charge, daily cumulative discharge, maximum charge power, and lowest and highest battery voltage listed for the selected date, and tabs across the bottom for real-time monitoring, data history, parameter setting and device info

Amptron

30A 12V/24V Inline AM MPPT Solar Charge Controller w/ Bluetooth

AT-SOLCHR-AM2430PV01

The Amptron 30A 12V/24V Inline AM MPPT Solar Charge Controller (AT-SOLCHR-AM2430PV01) is an advanced, high-efficiency, and ultra-fast Multi-peak Maximum Power Point Tracking (MPPT) controller with built-in Bluetooth. Designed to maximize solar energy harvest, it supports various battery types, including Lithium…

$127.80$142.00 Save $14.20

4 interest-free payments of $31.95 with
or pay over time with
We accept
Suitable for a wide range of 12V and 24V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable solar charge management.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Amptron 30A 12V/24V Inline AM MPPT Solar Charge Controller (AT-SOLCHR-AM2430PV01) is an advanced, high-efficiency, and ultra-fast Multi-peak Maximum Power Point Tracking (MPPT) controller with built-in Bluetooth. Designed to maximize solar energy harvest, it supports various battery types, including Lithium Iron Phosphate (LiFePO₄), Sealed Lead Acid, Gel, and AGM. With its compact design and robust features, it's ideal for applications such as RVs, marine systems, off-grid setups, and portable solar solutions

This controller features a smart MPPT algorithm that ensures optimal tracking in multiple power points, enhancing energy efficiency by 15% to 20% over traditional PWM controllers. It includes built-in Bluetooth for real-time monitoring via Android and iOS apps, supports historical data storage with 300 days of data logging, and offers extensive electronic protections, including over-temperature, reverse polarity, and reverse current protection.

BATTERY VOLTAGES
Flooded Lead Acid
Sealed Lead Acid
Gel (Default)
User
(adjustable)
Lithium (adjustable)
Equalize Charge Voltage
14.8V*n
14.6V*n
–
Default: GEL
–
Boost Charge Voltage
14.6V*n
14.4V*n
14.2V*n
Default: GEL
Default: 14.2V*n
Float Charge Voltage
13.8V*n
13.8V*n
13.8V*n
Default: GEL
–
Boost Charge Recovery Voltage
13.2V*n
13.2V*n
13.2V*n
Default: GEL
–
Over-discharge Recovery Voltage
12.6V*n
12.6V*n
12.6V*n
Default: GEL
–
Over-discharge Voltage
11.1V*n
11.1V*n
11.1V*n
Default: GEL
Default: 11.1V*n
Auto Temperature Compensation
-3mV/2V/℃
-3mV/2V/℃
-3mV/2V/℃
Default: GEL
–
  • Advanced MPPT algorithm for efficient solar energy harvest. Built-in Bluetooth for real-time monitoring via mobile apps. Compatible with multiple battery types, including LiFePO₄. Supports historical data storage with 300 days of data logging. Extensive electronic protections, including over-temperature and reverse polarity. Compact and lightweight design for versatile installation.

Product Code – AT-SOLCHR-AM2430PV01

Battery System Voltage – 12V/24V

No-load Loss – 20mA (12V), 12mA (24V)

Max. Solar Input Voltage – 30V (12V batteries), 50V (24V batteries)

Rated Charge Current – 30A

Max. Usable PV Input Power – 450W (12V), 900W (24V)

Operating Temperature – -20°C to +45°C

Internal Temperature Protection – -40°C to +80°C

IP Protection – IP45

Product Dimensions – 150mm x 80mm x 35.3mm

Weight – 350g

Length: 150mm

Width: 80mm

Height: 35mm

Weight: 0.35kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Designed for straightforward installation with genuine Anderson connectors. The controller's compact dimensions (150mm x 80mm x 35.3mm) and lightweight design (350g) allow for versatile mounting options. Ensure all connections are clean and secure to maintain system integrity.

User Manual

Suitable for a wide range of 12V and 24V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable solar charge management.

Q: Can this controller be used with lithium batteries?

A: Yes, it is compatible with Lithium Iron Phosphate (LiFePO₄) batteries, as well as Sealed Lead Acid, Gel, and AGM batteries.

Q: Does it support Bluetooth monitoring?

A: Yes, it has built-in Bluetooth for real-time monitoring via Android and iOS apps.

Q: What is the maximum solar input voltage?

A: 30V for 12V battery systems and 50V for 24V battery systems.

Q: Is it suitable for outdoor use?

A: The controller has an IP45 rating, indicating limited protection against dust and water. It is not recommended for outdoor use without additional protection.
