BluEdge LCD 2.4-inch full-colour RS485 BMS display
AT-BMSMON-2.4-COL-RS485-AV01
The Amptron BluEdge LCD 2.4-inch Full-Colour RS485 BMS Display is designed to provide real-time monitoring of your Amptron BluEdge battery system. With a vibrant full-colour screen and built-in audible alarm, it displays key battery metrics such as State of Charge…
$157.50$175.00 Save $17.50
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

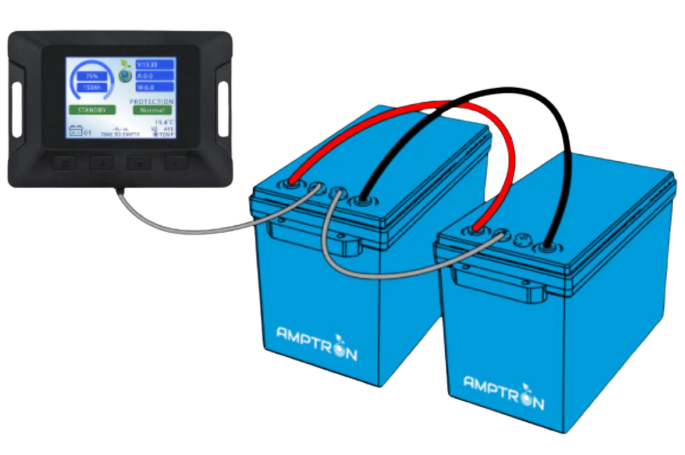

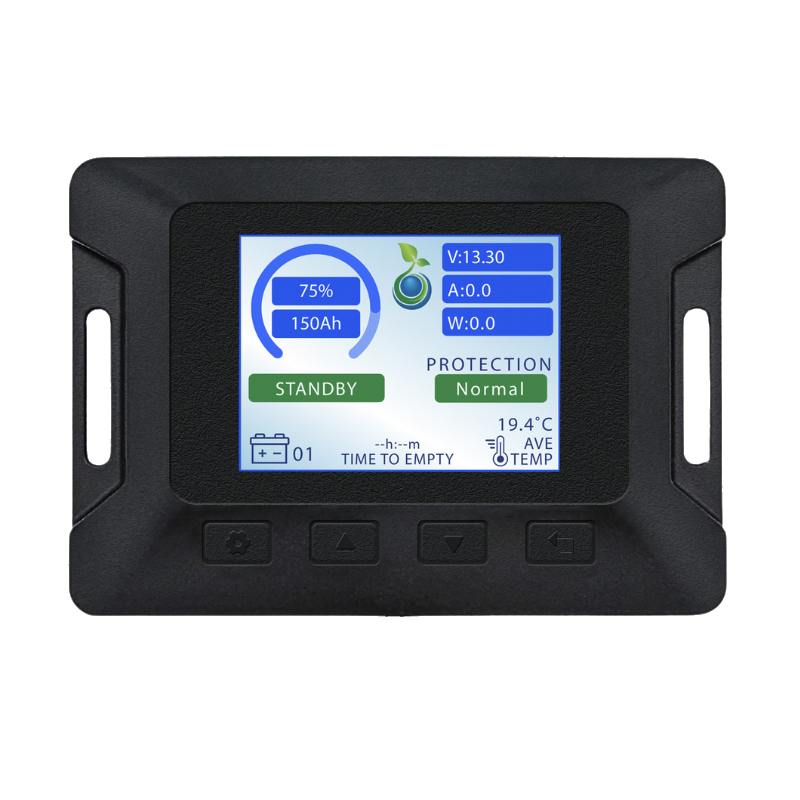

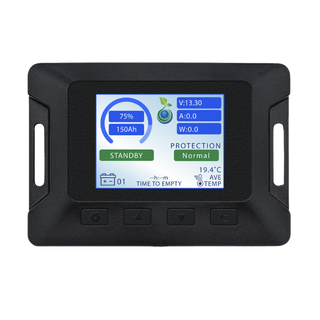

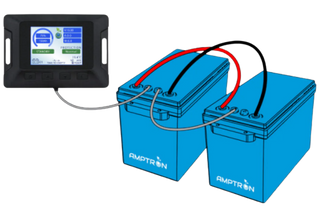

The Amptron BluEdge LCD 2.4-inch Full-Colour RS485 BMS Display is designed to provide real-time monitoring of your Amptron BluEdge battery system. With a vibrant full-colour screen and built-in audible alarm, it displays key battery metrics such as State of Charge (SOC), voltage, current draw (Amps and Watts), temperature, and cycle count. This display supports consolidated data viewing for parallel-connected battery banks and offers detailed cell voltage information for 24V, 36V, and 48V batteries. Its flush-mounted design and RS485 communication interface ensure seamless integration into your power management setup.
The display requires a compatible RS485 communication adapter cable to connect to your battery. Please refer to the compatibility table below to select the appropriate cable for your battery model.
| Battery Model | Communication Adapter Cable | Parallel Communication Supported |
|---|---|---|
| AT-LFP-12-100-BTC-BV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 4 batteries |
| AT-LFP-12-200-BTC-BV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 4 batteries |
| AT-LFP-12-200-BTC-DV10 | AT-BE-CAN-RS485-COMM-BV01 | No |
| AT-LFP-12-400-BTC-BV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 4 batteries |
| AT-LFP-12-400-BTC-DV10 | AT-BE-CAN-RS485-COMM-BV01 | No |
| AT-LFP-24-100-BTC-BV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
| AT-LFP-24-200-BTC-BV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
| AT-LFP-36-100-BTC-AV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
| AT-LFP-48-100-BTC-AV10 | AT-BE-CAN-RS485-COMM-BV01 | Yes, up to 16 batteries |
- Real-time monitoring of key battery metrics. Built-in audible alarm for adverse battery conditions. Supports consolidated data viewing for parallel-connected battery banks. Displays individual cell voltages for 24V, 36V, and 48V batteries. Flush-mounted design with RS485 communication interface. Suitable for compliance with AS/NZS 3001.2:2022 and AS/NZS 3004.2:2014 standards.
