2 Pin Heavy Duty Connector to suit 5mm (2.9mm^2) Auto Cable
CMP-DTP2-2

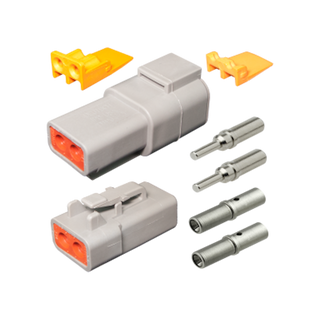

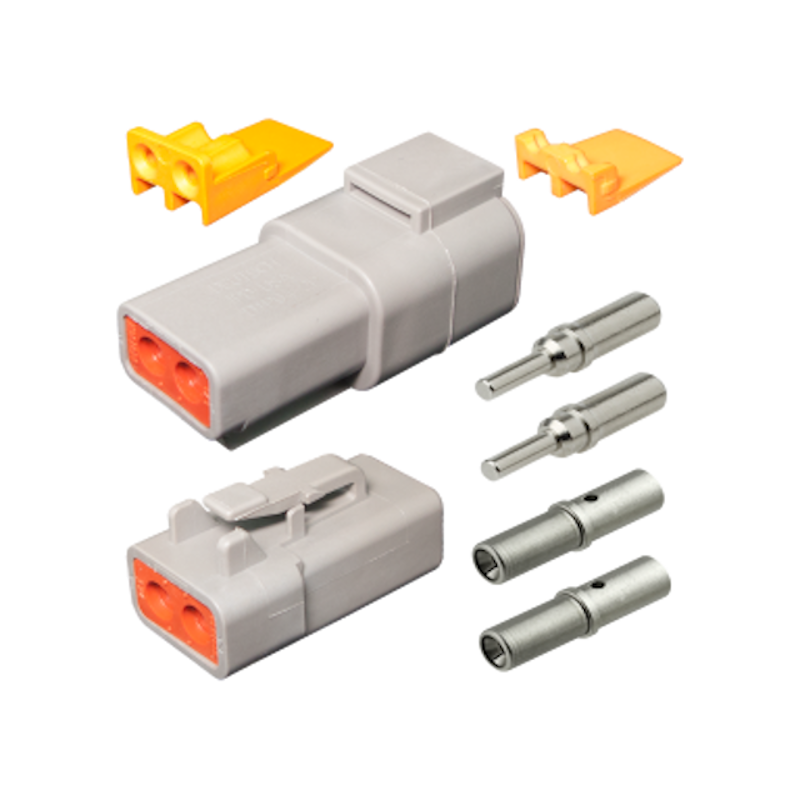

This Deutsch 2-Way DTP Connector Kit offers a weatherproof, pluggable solution for automotive and industrial wiring. Designed for high-current applications in harsh environments, this kit includes all components needed to form a complete connection—crimp pins, gasket, male and female thermoplastic…
$37.00
Constructed with thermoplastic housings, silicone seals, and precision wedge locks, this 2-way DTP connector kit is rated IP68/IP6K9K for extreme durability in automotive, marine, and industrial environments. Each connector is oil-resistant, vibration-rated, and heat-tolerant.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
This Deutsch 2-Way DTP Connector Kit offers a weatherproof, pluggable solution for automotive and industrial wiring.
Designed for high-current applications in harsh environments, this kit includes all components needed to form a complete connection—crimp pins, gasket, male and female thermoplastic connector bodies, and wedge locks.
The latched design ensures a secure fit, while the size 12 contacts support up to 25A continuous current at 125°C.
- Complete plug-and-play connector kit
- Latched mating system for secure locking
- IP-rated weatherproof design
- Handles up to 25A continuous load
- Oil- and vibration-resistant
- Quick and reliable assembly
HousingThermoplastic
SealSilicone rubber
WedgelockThermoplastic
Contact Rating25A @ 125°C
Ingress ProtectionIP68, IP6K9K
Shock Rating50G
Vibration Rating20G RMS (10–2000Hz)
Operating Temperature-55°C to +125°C
ApprovalsUL-94 flame retardant rating
Cable CompatibilitySuits 5mm auto cable (2.9mm²)
