Home / Lighting / Driving & light bars

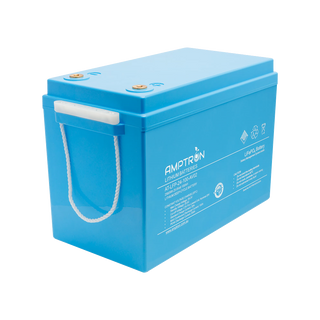

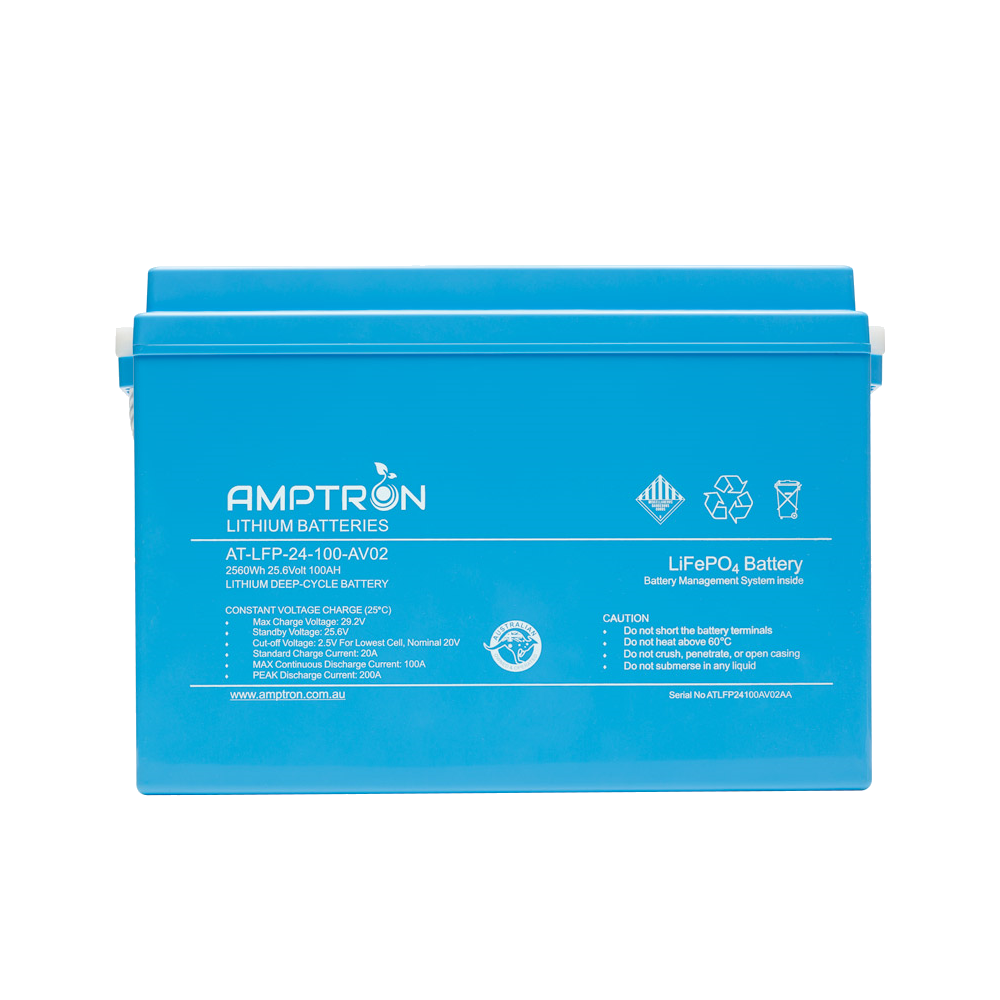

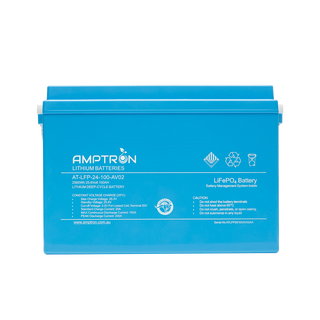

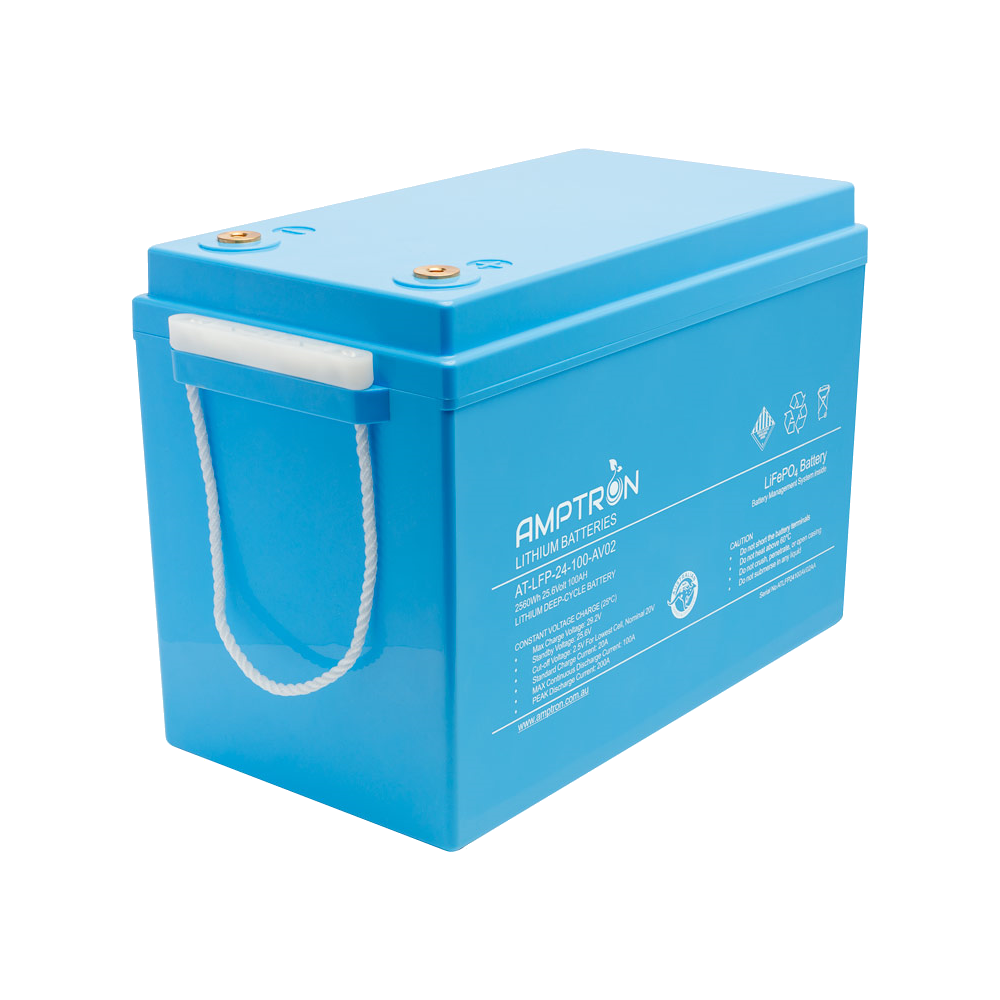

Amptron AT-LFP-24-100-AV02 lithium battery at a three-quarter angle, 2560Wh 25.6 Volt 100Ah, the blue case with a rope carry handle and two terminals on the top faceThe 24V 100Ah battery square on, the label listing max charge voltage 29.2V, standby 25.6V, cut-off 2.5V per cell nominal 20V, standard charge 20A, max continuous discharge 100A and peak discharge 200A

Amptron

24V 100 Ah / 100A Cont. Discharge LiFePO4 Lithium Battery

AT-LFP-24-100AV02

The Amptron AT-LFP-24-100AV02 is a high-performance 24V 100Ah lithium iron phosphate (LiFePO₄) battery engineered for demanding applications such as solar energy storage, electric vehicles, marine systems, and industrial equipment. Featuring a robust Battery Management System (BMS), this battery ensures optimal…

$1,820.00

4 interest-free payments of $455.00 with
or finance your build with
We accept
Suitable for integration into 4WDs, RVs, caravans, boats, and industrial machinery requiring a dependable 24V power source.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Amptron AT-LFP-24-100AV02 is a high-performance 24V 100Ah lithium iron phosphate (LiFePO₄) battery engineered for demanding applications such as solar energy storage, electric vehicles, marine systems, and industrial equipment. Featuring a robust Battery Management System (BMS), this battery ensures optimal performance, safety, and longevity, making it a superior alternative to traditional deep-cycle batteries.
Designed with high-quality prismatic cells and a durable aluminum casing, the AT-LFP-24-100AV02 offers exceptional energy density and thermal stability. The integrated BMS provides comprehensive protection against overcharging, over-discharging, short circuits, and temperature extremes, ensuring reliable operation in various environments.
  • High energy density and long cycle life.
  • Integrated BMS for enhanced safety and performance.
  • Lightweight and compact design for easy installation.
  • Environmentally friendly with no hazardous materials.
  • Maintenance-free operation.

Product Code – AT-LFP-24-100AV02

Chemistry – Lithium Iron Phosphate (LiFePO₄)

Nominal Voltage – 25.6V

Capacity – 100Ah (2560Wh)

Cycle Life – >2000 cycles at 100% DoD; up to 5000 cycles at 80% DoD

Maximum Continuous Discharge Current – 100A

Peak Discharge Current – 200A (10 seconds)

Recommended Charge Current – 20A

Maximum Charge Current – 100A

Charge Voltage – 28.8V

Cut-off Voltage – 20V

Operating Temperature – Charge: 0°C to 45°C; Discharge: -20°C to 65°C

Storage Temperature – -20°C to 45°C

Impedance – ≤20mΩ

Ingress Protection – IP65

Downloadable

Length: 370mm

Width: 190mm

Height: 245mm

Weight: 23kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Install in a well-ventilated area, securing the battery firmly to prevent movement. Connect using appropriate gauge wiring and ensure all connections are tight and free from corrosion. Consult the user manual for detailed installation guidelines and safety precautions.

Suitable for integration into 4WDs, RVs, caravans, boats, and industrial machinery requiring a dependable 24V power source.

Q: Can this battery be used in parallel or series configurations?

A: Yes, multiple batteries can be connected in parallel or series to achieve desired voltage and capacity levels.

Q: Is the battery suitable for under-bonnet installations?

A: No, this battery is not recommended for under-bonnet applications due to temperature constraints.
