Home / Lighting / Driving & light bars

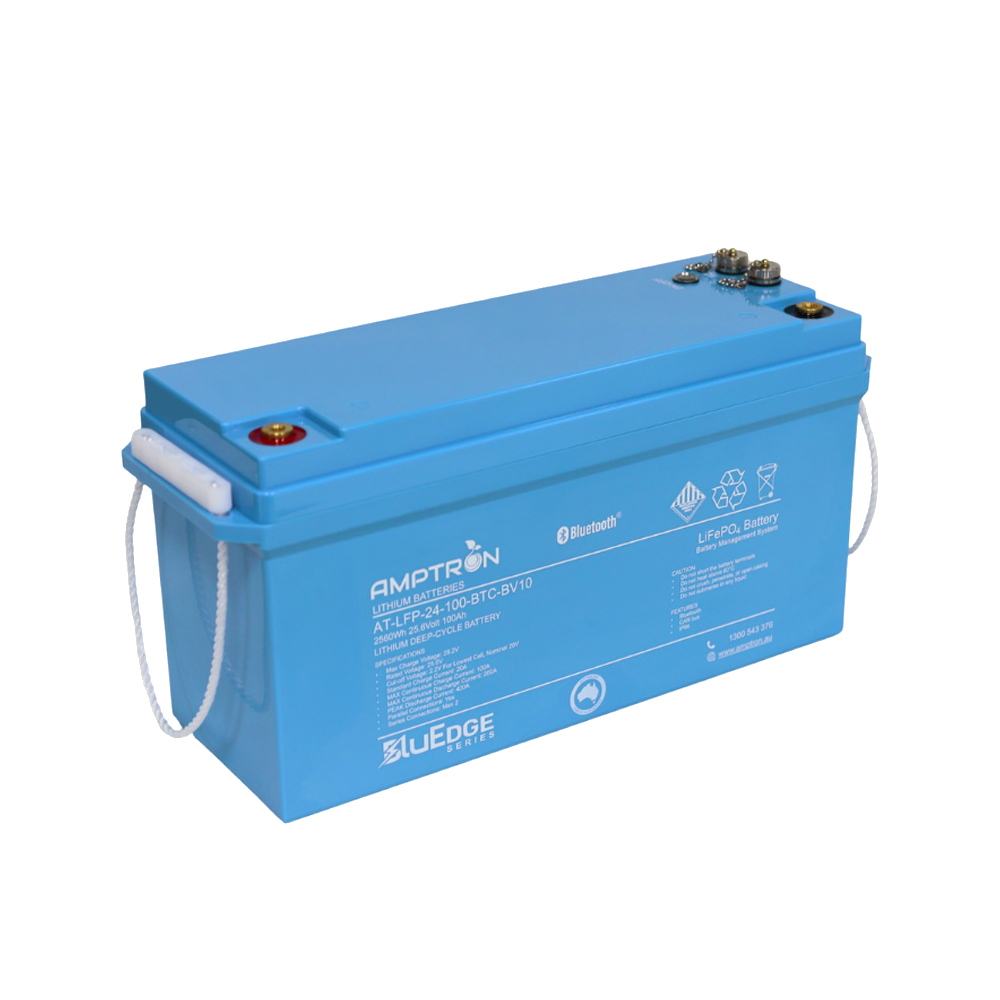

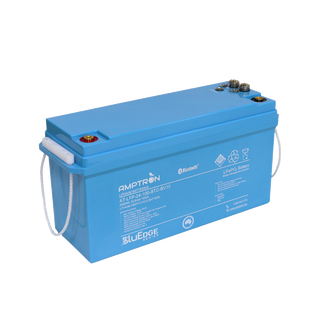

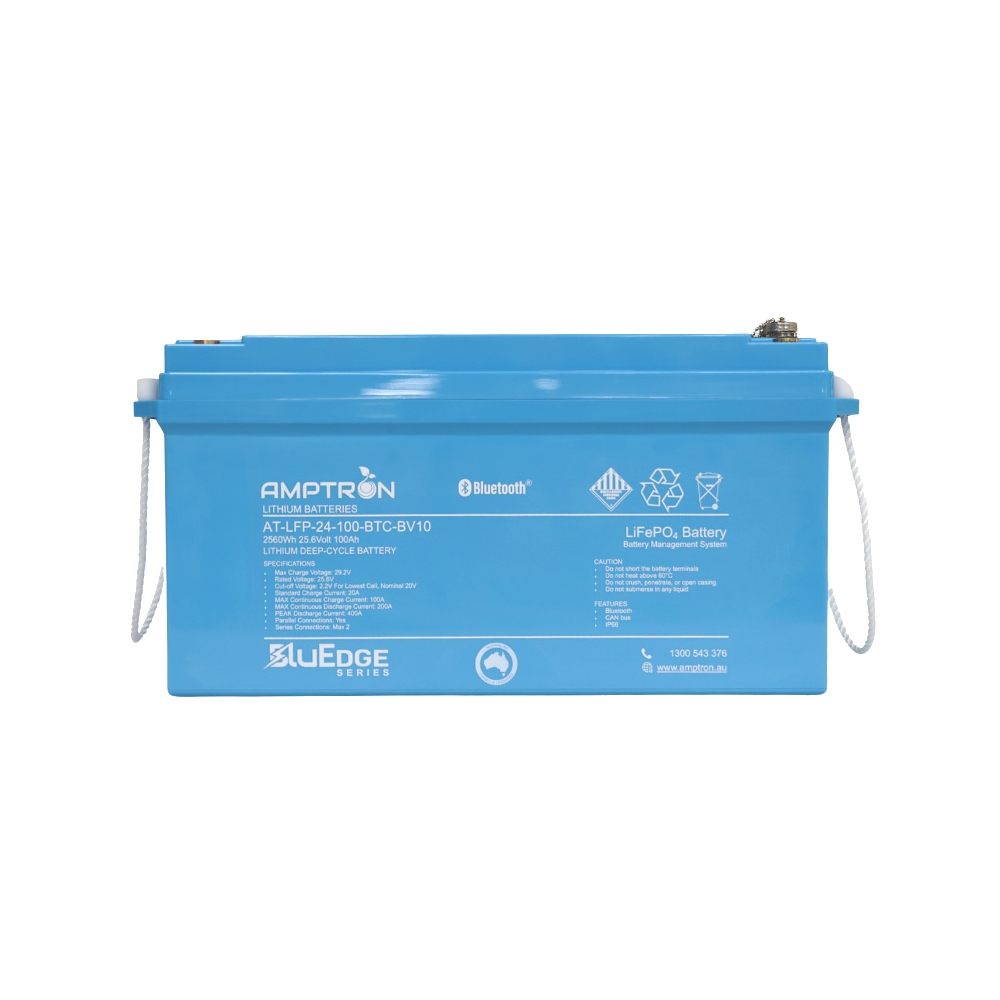

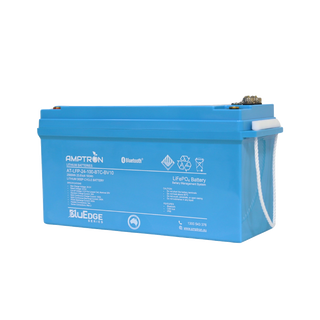

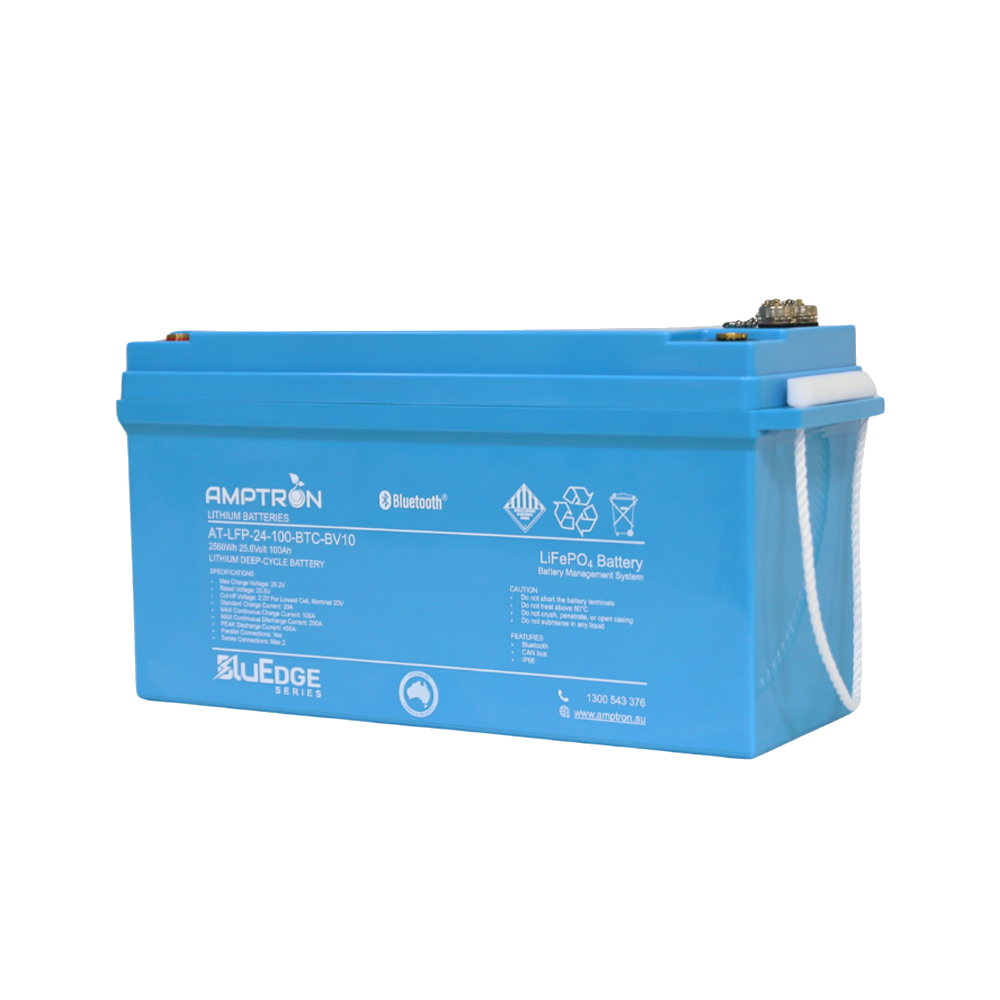

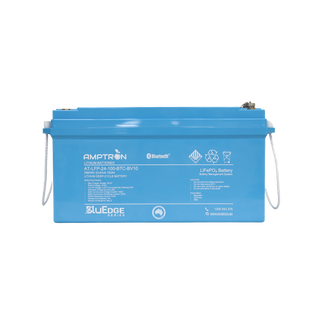

Amptron BluEdge AT-LFP-24-100-BTC-BV10 battery at a three-quarter angle, 2560Wh 25.6 Volt 100Ah, the long blue case with rope handles, terminals and communication ports on top and the BluEdge Series mark on the frontThe BluEdge 24V 100Ah battery square on, the label listing max charge voltage 29.2V, standard charge 20A, max continuous charge 100A, max continuous discharge 200A, peak discharge 400A, parallel connections yes and series max two, with Bluetooth, CAN bus and IP65The BluEdge 24V 100Ah battery from the opposite corner, showing the length of the case, the rope handle and the communication connector on the top face

Amptron

Bluedge 24V 100Ah / 200A Cont. Discharge LiFePO4 Lithium Battery

AT-LFP-24-100-BTC-BV10

The Amptron BluEdge 24V 100Ah LiFePO₄ Battery is engineered for high-performance applications requiring reliable, long-lasting power. With a continuous discharge rate of 200A and a peak discharge of 400A for 2 seconds, this battery is ideal for demanding environments such…

$1,999.00

4 interest-free payments of $499.75 with
or finance your build with
We accept
Suitable for a wide range of 24V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable deep cycle power.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Amptron BluEdge 24V 100Ah LiFePO₄ Battery is engineered for high-performance applications requiring reliable, long-lasting power. With a continuous discharge rate of 200A and a peak discharge of 400A for 2 seconds, this battery is ideal for demanding environments such as RVs, marine systems, off-grid setups, and industrial equipment. Its robust design allows for versatile installation options, including on its side, without compromising performance.

Constructed with high-quality components, including a robust Battery Management System (BMS) with integrated communications (Bluetooth, RS485, and CANbus), aluminum-encased prismatic cells, solid busbar connectors, and a solid frame to reduce movement and damaging vibrations. The integrated BMS maximizes performance by automatically balancing the cells and protecting them from overcharging, over-discharging, over-temperature, and excessive charge or discharge currents. The BluEdge series batteries are independently tested to comply with the IEC62619 safety standard and are UN38.3 certified. They also comply with all the requirements of the AS/NZS 3001.2:2022 standard for RVs, as well as the marine standard AS/NZS 3004.2:2014.

  • High energy density, more usable energy in less space.
  • Lightweight and compact design.
  • Can safely use 100% of rated capacity.
  • Built to service higher loads without loss of capacity.
  • Flat discharge curve for longer run time and more efficient use of capacity.
  • Heavy-duty built-in Battery Protection System (BPS) with multiple safety features.
  • Explosion-proof nickel-plated steel prismatic case.
  • Flame-retardant electrolyte.
  • Integrated Bluetooth, RS485, and CANbus communication interfaces.

Product Code – AT-LFP-24-100-BTC-BV10

Chemistry – Lithium Iron Phosphate (LiFePO₄)

Nominal Voltage – 25.6V

Capacity – 100Ah / 2560Wh

Standard Charge Current – 20A

Maximum Charge Current – 100A

Maximum Continuous Discharge Current – 200A

Peak Discharge Current – 400A (for 2 seconds)

Cycle Life – >4000 cycles at 0.2C standard charge and discharge

Operating Temperature – Charge: 0°C to 55°C; Discharge: -20°C to 60°C

Storage Temperature – -20°C to 40°C (within 2 months); -10°C to 35°C (within 6 months)

Impedance – ≤20mΩ

Terminals – M8

IP Rating – IP66

Length: 370mm

Width: 190mm

Height: 245mm

Weight: 23kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Can be installed in various orientations, including on its side, without the risk of components coming loose or loss of usable capacity. Ensure all connections are clean and secure to maintain system integrity.

User Manual

Suitable for a wide range of 24V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable deep cycle power.

Q: Can this battery be used as a direct replacement for AGM or Gel batteries?

A: Yes, it is designed as an alternative replacement for most applications currently using a deep cycle Gel, AGM, or Flooded Lead Acid battery.

Q: Is the battery suitable for high-current applications?

A: Yes, with a maximum continuous discharge current of 200A and peak discharge current of 400A for 2 seconds, it is suitable for high-current applications.
