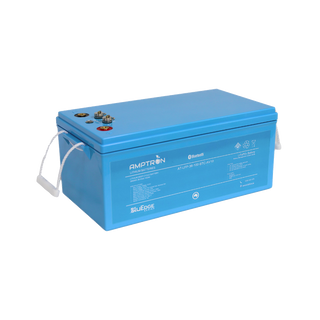

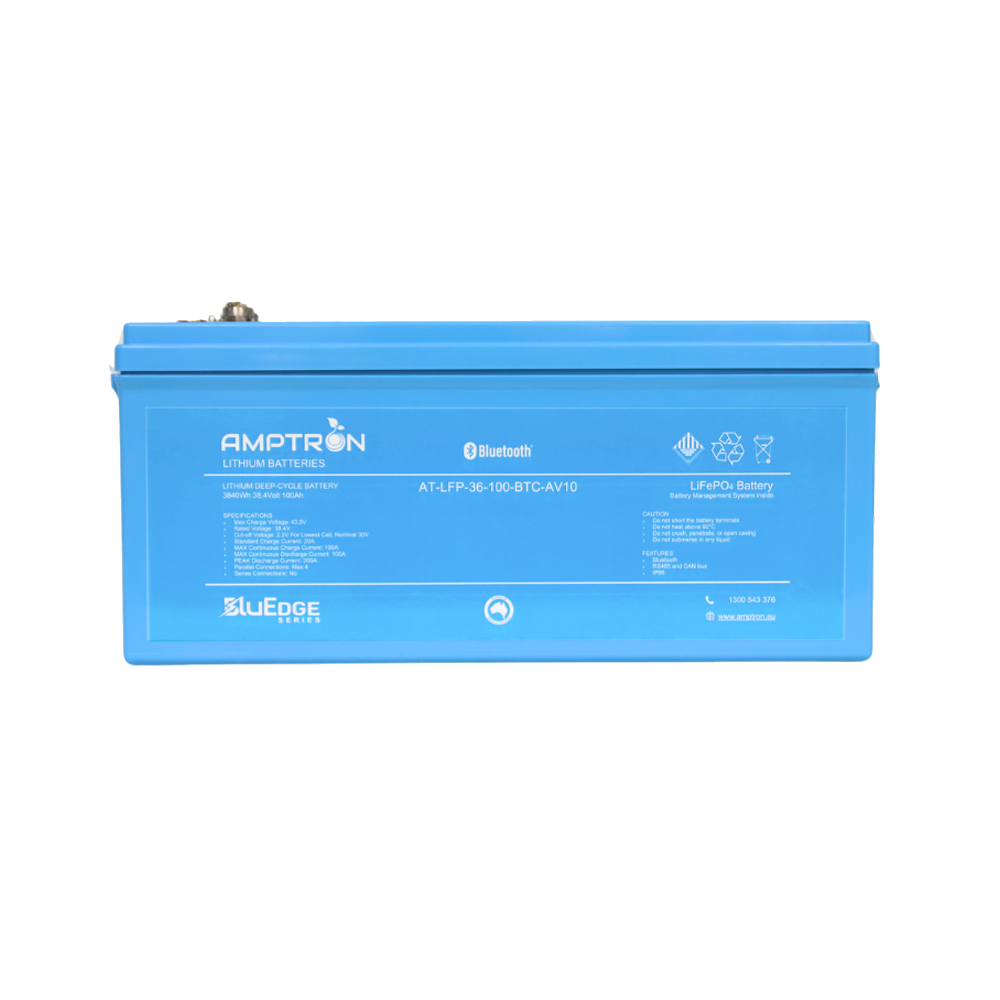

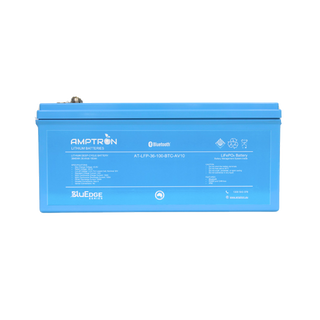

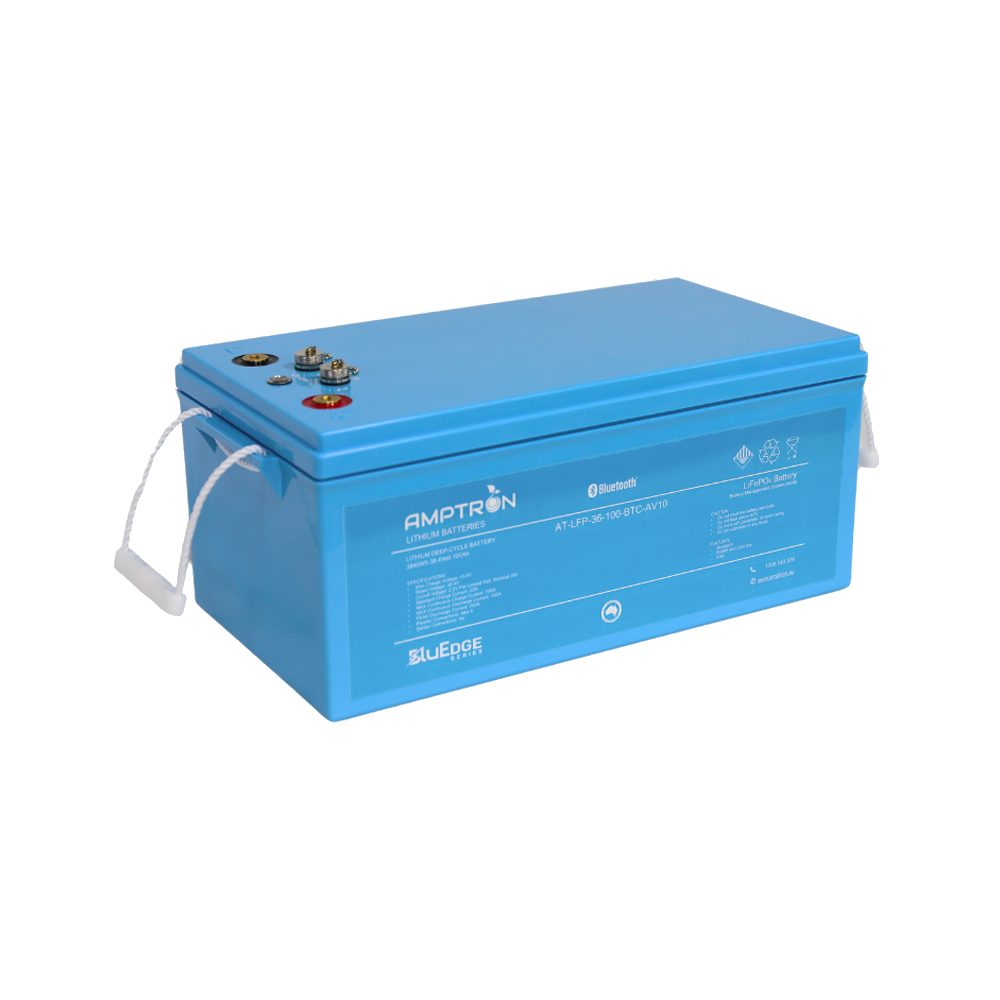

Amptron BluEdge AT-LFP-36-100-BTC-AV10 battery at a three-quarter angle, 3840Wh 38.4 Volt 100Ah, the blue case with rope handles and the terminal and communication cluster on the top faceThe BluEdge 36V 100Ah battery square on, the label listing max charge voltage 43.8V, rated 38.4V, cut-off 2.5V per lowest cell nominal 30V, standard charge 20A, max continuous charge 100A, max continuous discharge 100A and peak discharge 200A, with Bluetooth, RS485 and CAN bus and IP66

Amptron

Bluedge 36V 100Ah / 100A Cont. Discharge LiFePO4 Lithium Battery

AT-LFP-36-100-BTC-AV10

The Amptron BluEdge 36V 100Ah LiFePO₄ Battery (AT-LFP-36-100-BTC-AV10) is part of Amptron's premium BluEdge series, designed for high-performance applications requiring reliable, long-lasting power. With a continuous discharge rate of 100A and a peak discharge of 200A for 2 seconds, this…

$2,899.00

4 interest-free payments of $724.75 with
or finance your build with
We accept
Suitable for a wide range of 36V systems, including golf carts, marine vessels, solar energy storage, and industrial applications requiring dependable deep cycle power.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Amptron BluEdge 36V 100Ah LiFePO₄ Battery (AT-LFP-36-100-BTC-AV10) is part of Amptron's premium BluEdge series, designed for high-performance applications requiring reliable, long-lasting power. With a continuous discharge rate of 100A and a peak discharge of 200A for 2 seconds, this battery is ideal for demanding environments such as golf carts, marine systems, off-grid setups, and industrial equipment. Its robust design allows for versatile installation options, including on its side, without compromising performance.

Constructed with high-quality components, including a robust Battery Management System (BMS) with integrated communications (Bluetooth, RS485, and CANbus), aluminum-encased prismatic cells, solid busbar connectors, and a solid frame to reduce movement and damaging vibrations. The integrated BMS maximizes performance by automatically balancing the cells and protecting them from overcharging, over-discharging, over-temperature, and excessive charge or discharge currents. The BluEdge series batteries are independently tested to comply with the IEC62619 safety standard and are UN38.3 certified. They also comply with all the requirements of the AS/NZS 3001.2:2022 standard for RVs, as well as the marine standard AS/NZS 3004.2:2014.

  • High energy density, more usable energy in less space.
  • Lightweight and compact design.
  • Can safely use 100% of rated capacity.
  • Built to service higher loads without loss of capacity.
  • Flat discharge curve for longer run time and more efficient use of capacity.
  • Heavy-duty built-in Battery Protection System (BPS) with multiple safety features.
  • Explosion-proof nickel-plated steel prismatic case.
  • Flame-retardant electrolyte.
  • Integrated Bluetooth, RS485, and CANbus communication interfaces.

Product Code – AT-LFP-36-100-BTC-AV10

Chemistry – Lithium Iron Phosphate (LiFePO₄)

Nominal Voltage – 38.4V

Capacity – 100Ah / 3840Wh

Standard Charge Current – 20A

Maximum Charge Current – 100A

Maximum Continuous Discharge Current – 100A

Peak Discharge Current – 200A (for 2 seconds)

Cycle Life – >6000 cycles at 0.2C standard charge and discharge

Operating Temperature – Charge: 0°C to 55°C; Discharge: -20°C to 60°C

Storage Temperature – -20°C to 40°C (within 2 months); -10°C to 35°C (within 6 months)

Impedance – ≤20mΩ

Terminals – M8

IP Rating – IP66

Length: 520mm

Width: 268mm

Height: 228mm

Weight: 33kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Can be installed in various orientations, including on its side, without the risk of components coming loose or loss of usable capacity. Ensure all connections are clean and secure to maintain system integrity.

User Manual

Suitable for a wide range of 36V systems, including golf carts, marine vessels, solar energy storage, and industrial applications requiring dependable deep cycle power.

Q: Can this battery be used as a direct replacement for AGM or Gel batteries?

A: Yes, it is designed as an alternative replacement for most applications currently using a deep cycle Gel, AGM, or Flooded Lead Acid battery.

Q: Is the battery suitable for high-current applications?

A: Yes, with a maximum continuous discharge current of 100A and peak discharge current of 200A for 2 seconds, it is suitable for high-current applications.
