Home / Lighting / Driving & light bars

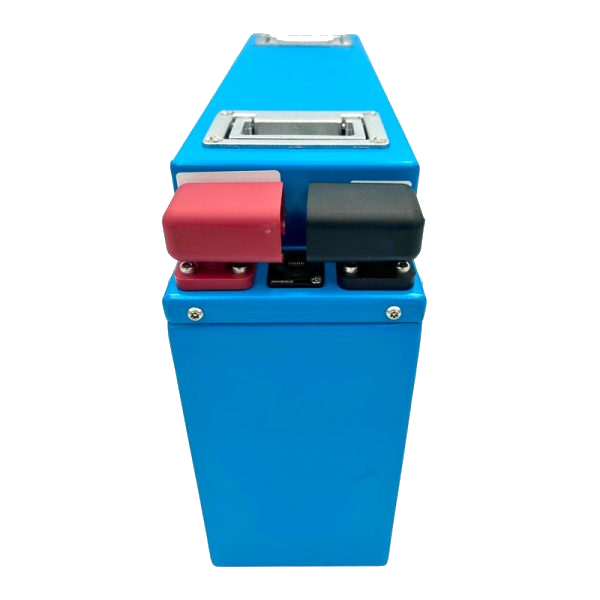

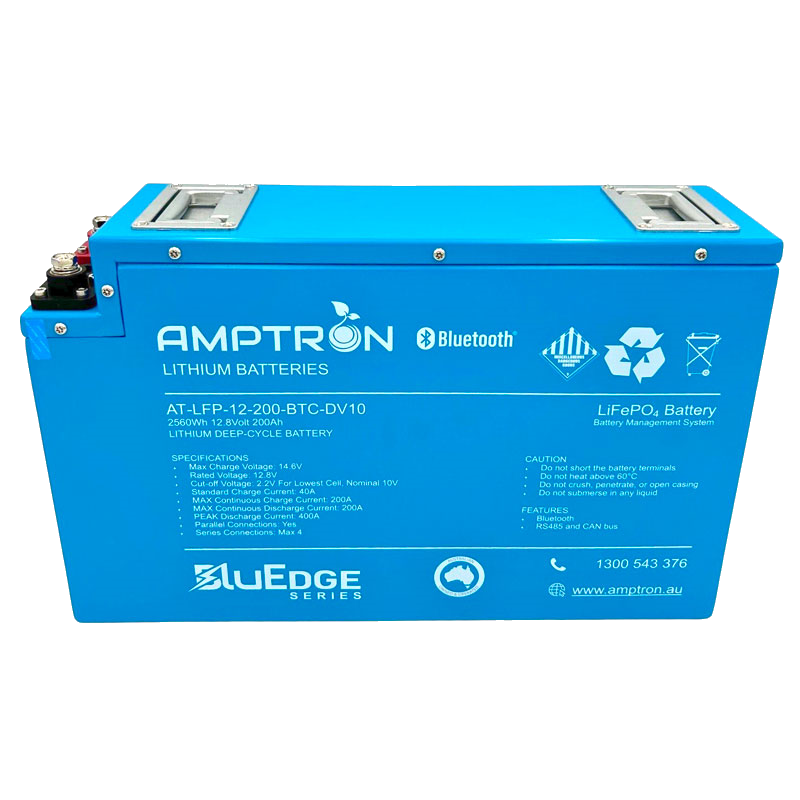

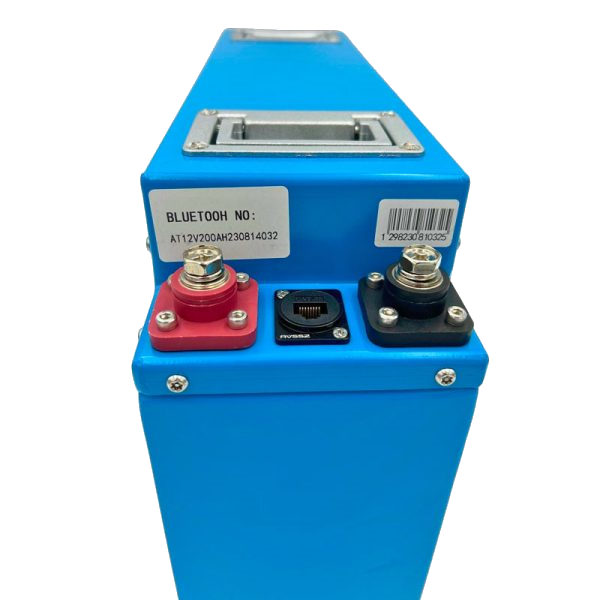

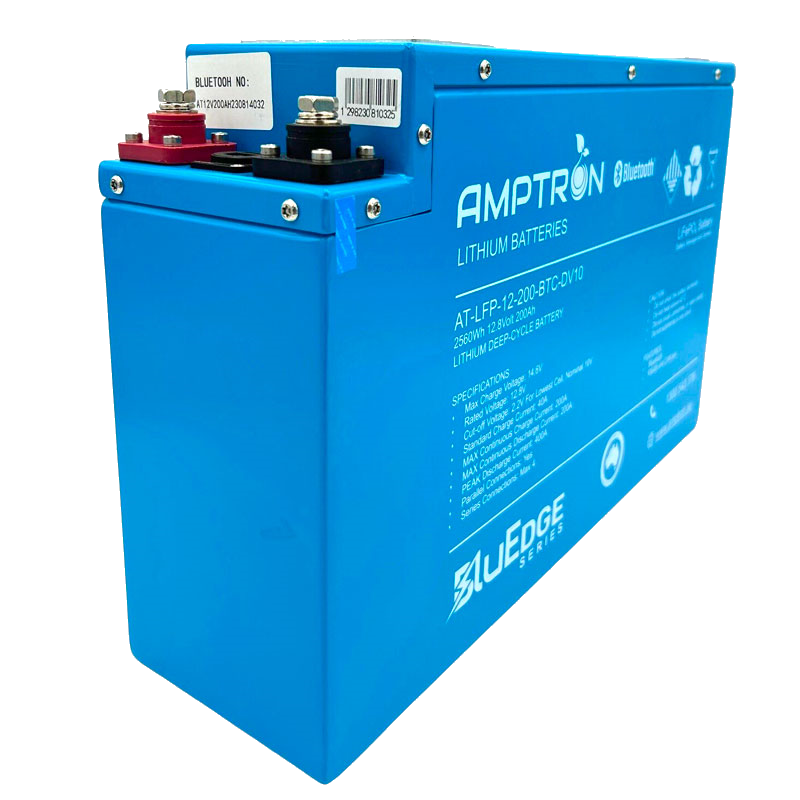

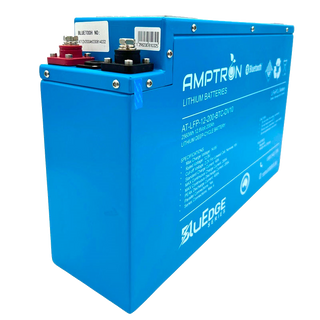

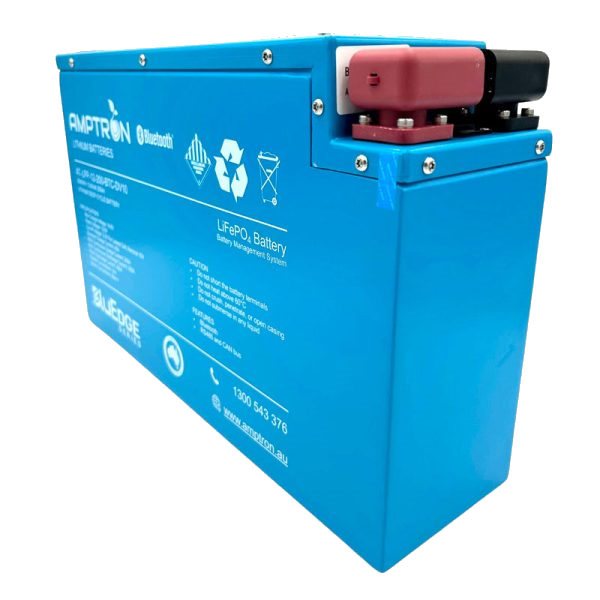

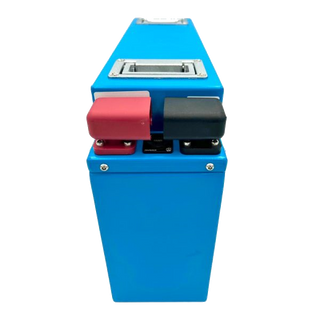

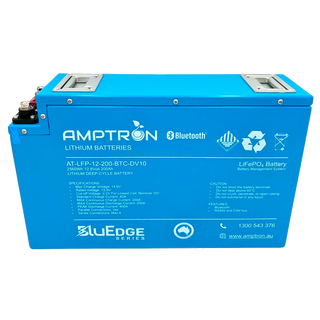

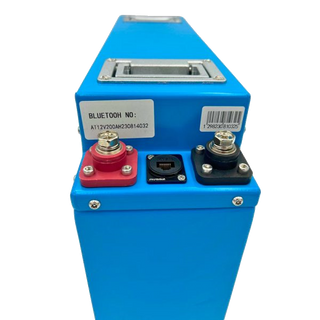

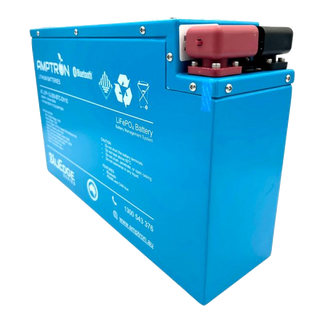

A blue Amptron BluEdge 12V 200Ah lithium iron phosphate battery with Bluetooth and RS485 communication interfaces.Amptron slimline BluEdge battery at a three-quarter angle, a tall narrow blue aluminium case with the red and black terminal covers and a communication port grouped at the top of one endAmptron AT-LFP-12-200-BTC-DV10 slimline battery square on, 2560Wh 12.8 Volt 200Ah, the label listing max charge voltage 14.6V, standard charge 40A, max continuous charge 200A, max continuous discharge 200A, peak discharge 400A, parallel connections yes and series max four, with Bluetooth, RS485 and CAN busEnd view of the slimline battery, looking at the red positive and black negative terminal covers with the communication socket between them and the folded carry handle aboveTop of the slimline battery showing the recessed carry handle, the red and black terminal blocks with their stainless bolts, and the sealed communication socket between them, with the Bluetooth serial number sticker alongside

Amptron

Bluedge Slimline 12V 200Ah / 200A Cont. Discharge LiFePO4 Battery

AT-LFP-12-200-BTC-DV10

The Amptron BluEdge Slimline 12V 200Ah LiFePO₄ Battery is a high-performance, compact power solution ideal for RVs, marine systems, off-grid setups, and industrial use. With a 200A continuous and 400A peak discharge (3 sec), it's built for demanding applications where…

$1,899.00

4 interest-free payments of $474.75 with
or finance your build with
We accept
Suitable for a wide range of 12V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable deep cycle power.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Amptron BluEdge Slimline 12V 200Ah LiFePO₄ Battery is a high-performance, compact power solution ideal for RVs, marine systems, off-grid setups, and industrial use. With a 200A continuous and 400A peak discharge (3 sec), it's built for demanding applications where space is limited.

The slimline design supports flexible installation—including on its side—without compromising performance. Built with aluminum-encased prismatic cells, solid busbars, and a reinforced frame, it's durable and vibration-resistant.

An advanced BMS with Bluetooth, RS485, and CANbus provides intelligent protection and real-time monitoring. Certified to IEC62619, UN38.3, and compliant with AS/NZS 3001.2:2022 (RVs) and AS/NZS 3004.2:2014 (marine), this battery ensures safe, efficient, and long-lasting energy delivery.

  • High energy density, more usable energy in less space.
  • Lightweight and compact design.
  • Can safely use 100% of rated capacity.
  • Built to service higher loads without loss of capacity.
  • Flat discharge curve for longer run time and more efficient use of capacity.
  • Heavy-duty built-in Battery Protection System (BPS) with multiple safety features.
  • Explosion-proof nickel-plated steel prismatic case.
  • Flame-retardant electrolyte.
  • Integrated Bluetooth, RS485, and CANbus communication interfaces.

Product Code – AT-LFP-12-200-BTC-DV10

Chemistry – Lithium Iron Phosphate (LiFePO₄)

Nominal Voltage – 12.8V

Capacity – 200Ah / 2560Wh

Standard Charge Current – 40A

Maximum Charge Current – 200A

Maximum Continuous Discharge Current – 200A

Peak Discharge Current – 400A (for 3 seconds)

Cycle Life – >6000 cycles at 100% DoD

Operating Temperature – Charge: 0°C to 55°C; Discharge: -20°C to 55°C

Storage Temperature – -20°C to 40°C

Impedance – ≤20mΩ

Terminals – M8

IP Rating – IP50

Length: 520mm

Width: 108mm

Height: 337mm

Weight: 22kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Can be installed in various orientations, including on its side, without the risk of components coming loose or loss of usable capacity. Ensure all connections are clean and secure to maintain system integrity.

User Manual

Get a Quote - We can provide a quote on installing individual products such as a dual battery, lightbar or UHF or quote the installation of an entire build. Contact us via our contact form to discuss your needs. We'll provide a personalized quote for a complete system based on your preferences and budget, including installation services.



Please note we do not usually do installations on products purchased from other companies; exceptions may apply. It is best to contact us for further information.



We currently have one workshop located in Bayswater, Western Australia.

Suitable for a wide range of 12V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable deep cycle power.

Q: Can this battery be used as a direct replacement for AGM or Gel batteries?

A: Yes, it is designed as an alternative replacement for most applications currently using a deep cycle Gel, AGM, or Flooded Lead Acid battery.

Q: Is the battery suitable for high-current applications?

A: Yes, with a maximum continuous discharge current of 200A and peak discharge current of 400A for 3 seconds, it is suitable for high-current applications.
