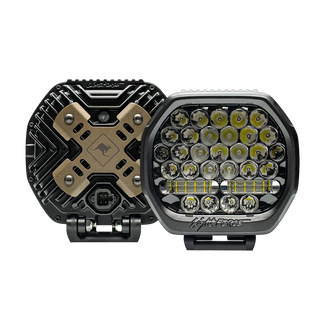

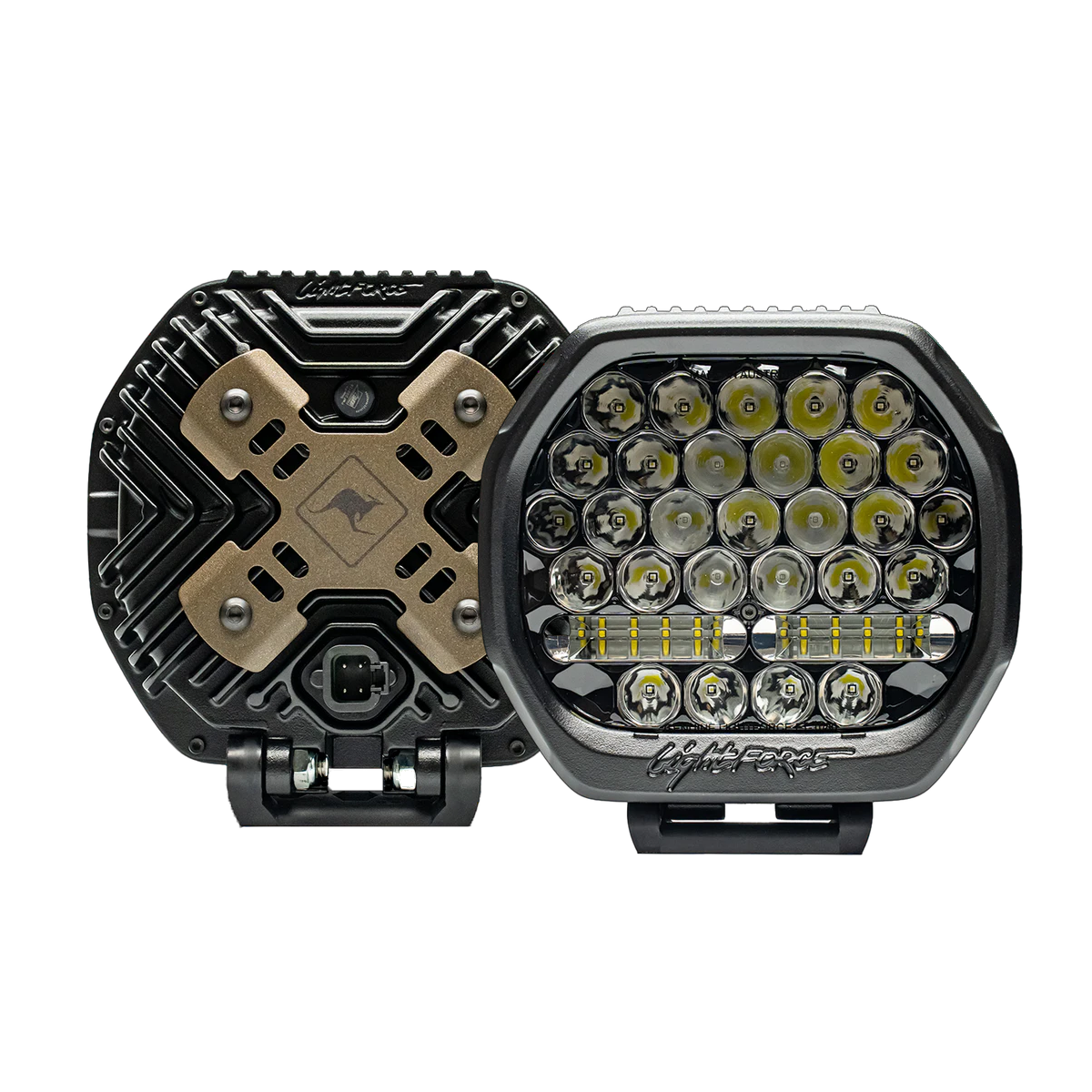

Pair of Lightforce BEAST 230mm driving lights, one showing the finned rear housing with bronze bash plate and 4-pin connector, the other showing the 36 LED front lens

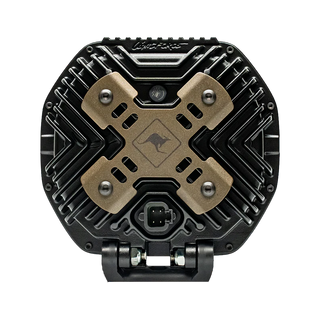

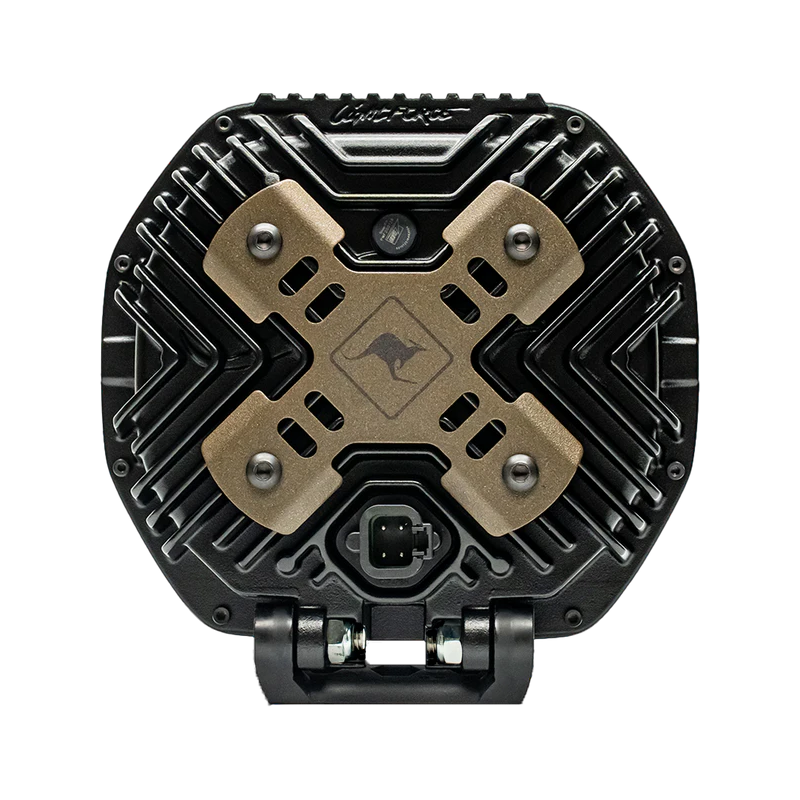

Rear of a Lightforce BEAST 230mm driving light showing the finned alloy housing, bronze X-shaped bash plate with kangaroo emblem, 4-pin waterproof connector and mounting bracket

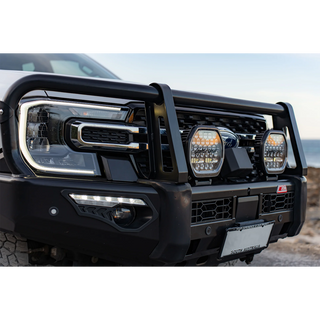

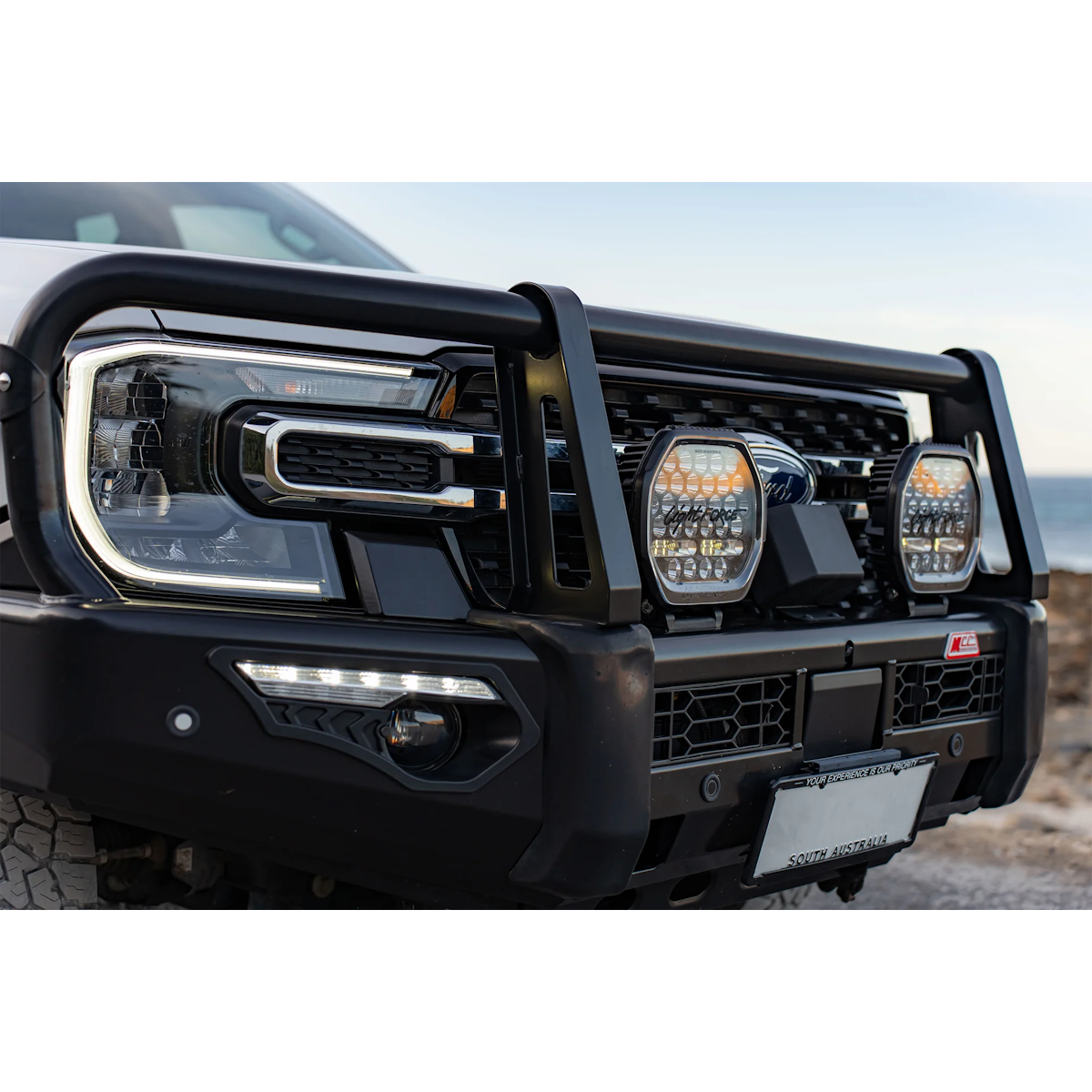

Pair of Lightforce BEAST driving lights fitted to the bullbar of a white Ford Ranger, photographed in daylight

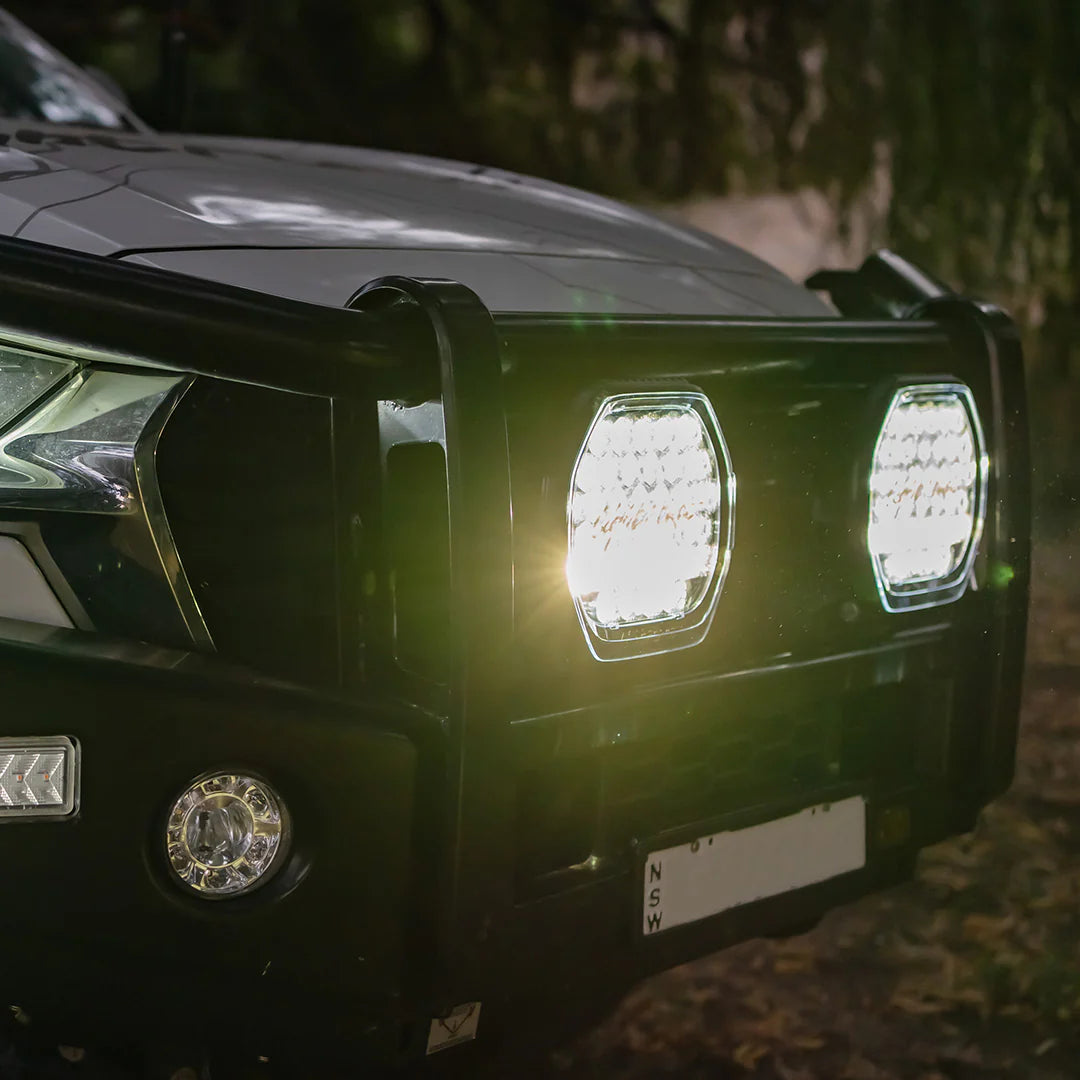

Pair of Lightforce BEAST driving lights switched on at night, mounted to a 4WD bullbar in bushland

Lightforce

BEAST 230mm LED Driving Light Pack

Name: Lightforce BEAST 230mm LED Driving Light Pack - PAIR
Brand: Lightforce
SKU: BEAST230PK
Price: 1099.00 AUD
Availability: InStock

Pair · BEAST230PK

A 230mm driving light with three beam patterns you switch from the dash — long-range spot, wide flood, or both together — instead of stopping to change covers. Designed and built in Adelaide.

Beam distance1,497m at 1 lux in Spot, as a pair

Effective lumens13,269 lm in BEAST mode

Colour temperature5700K

$1,099.00

4 interest-free payments of $274.75 with Afterpay

or finance your build with Allied Finance

Important note

You'll also need the harness — these won't operate without the dedicated Lightforce BEAST wiring harness, which carries the Smart Rocker Switch. Sold separately.

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal fitmentSuits any 12V or 24V vehicle, with an operating range of 11V to 32V

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

3 MODES, ONE LIGHT

Spot, Flood or both, switched from the dash

11V TO 32V

One light for 12V and 24V vehicles

1,497m AT 1 LUX

Spot mode beam distance as a pair, or 13,269 effective lumens in BEAST mode

IP69K AND IK16

Sealed against high pressure water, rated for impact

MADE IN ADELAIDE, SA

Built in Australia and backed by a 5 year warranty

Three beam patterns from one 230mm driving light — Spot for distance, Flood for width, or BEAST mode for both — switched from a rocker on the dash. So the same light does long-range work on an open road and wide fill on a tight bush track without you stopping to change covers.

Lightforce designs and builds the BEAST in Adelaide, and backs it with a 5-year warranty. Rated for Australian conditions: IP69K sealed, IK16 for impact, MIL-STD-810H vibration tested.

What each mode does

Spot — 1,497m throw · 60m wide. Distance at speed on open road.
Flood — 778m throw · 140m wide. Corners and tight bush tracks.
BEAST — 1,375m throw · 140m wide · 13,269 effective lumens. Most total light of the three.

All three run at 5700K — a clean white that holds detail without the yellow cast of a halogen.

The BEAST needs the dedicated wiring harness to operate — it carries the Smart Rocker Switch that gives you the three-mode change, and it is sold separately.

Lightforce BEAST Driving Light Universal Wiring Harness - 12V

$150.00

Three beam patterns from one light, switched from the dash
5700K colour temperature, holding colour and detail at distance
Runs 11V to 32V — 12V and 24V vehicles, no converter
Reversible bracket, rotating 180° for extra clearance
1,497m at 1 lux in Spot, or 13,269 effective lumens in BEAST mode
36 LEDs per light, rated to 50,000 hours
IP69K sealed against dust and high pressure water
Made in Adelaide, backed by a 5 year Lightforce warranty

Light output

Beam modes: 3 selectable

Beam distance, pair at 1 lux: 1,497 / 778 / 1,375m

Beam width: 60 / 140 / 140m

Effective lumens: 10,275 / 7,826 / 13,269 lm

Raw lumens: 16,496 / 11,025 / 19,965 lm

Candela: 1,105,100 / 302,740 / 945,300 cd

Colour temperature: 5700K

CRI: 70

Electrical

LEDs per light: 36 · 50,000 hrs

Power: 172W *

Current draw at 13.2V: 11.2 / 6.5 / 13A

Voltage range: 11V to 32V

Connector: DTP 4-pin

* Total power figure is the peak draw across both LED banks in BEAST mode at 13.2V. Spot and Flood modes draw less — see the current-draw row above for per-mode figures.

Durability & compliance

Ingress rating: IP69K

Impact rating: IK16, bash plate

Vibration: MIL-STD-810H tested

Lens & breather: Hard-coated, Gore

Environmental: Salt, UV, chemical

Compliance: RCM, CE, FCC, RoHS, CISPR25

Made in: Adelaide, SA, Australia

Width233mm

Height, light body only222mm

Height, including mounting bracket235mm

Depth, front to back82mm

Nominal size230mm

Weight2.2kg per light, 4.4kg the pair

Everything this install needs

4 of 6 in the box

2 × BEAST 230mm driving lightsIn the box

2 × Reversible mounting bracketsStainless hardware, fitted loose to the lightIn the box

2 × Clear filtersWith Lightforce logo, clip on and off by handIn the box

User instructionsIn the box

BEAST wiring harnessRequired, the lights won't operate without it. Carries the Smart Rocker Switch

17mm socket, torque wrench, anti-seizeBolts go to 35Nm. Most workshops will have these.Your tools

Mounting the lights

Tools needed are a 17mm socket on a ratchet and a torque wrench.
Apply a small amount of anti-seize to the thread of the 35mm mounting bolts before fitting the stainless steel hardware.
Each light uses one M10 x 35mm bolt through the base of the bracket and two M10 x 35mm side bolts. Tighten all of them to 35Nm.
The bracket is reversible and can be rotated 180 degrees for extra clearance and more fitment options.
Mount so the base of the bracket is fully supported, and check the mounting point is rated for the weight of the light.
In extreme conditions, recheck the torque of the mounting bolts and nuts periodically.

Wiring and switching

The dedicated Lightforce BEAST wiring harness is required for the lights to operate and to give the three-mode switching. It is sold separately and comes with the Smart Rocker Switch.
The lights use a DTP 4-pin connector. Harness adapters are available separately if you are fabricating your own loom.

Full fitting steps and the wiring tables are in the user instructions, downloadable from this page.

Do not

Do not use a rattle gun on the mounting hardware. Only mount driving lights where they are legal to use, and check the road rules in your state.

Comparing against

The two lights in our range a customer most often weighs it against.

You're viewingLightforceBEAST 230mmOn this page

LightforceBEAST 190View product →

LazerlampsSentinel 9″ EliteView product →

Throw at 1 luxMetres, higher is further

1,497m pair

1,260m pair

742m single†

ModesHow the beam changes

3 patterns, from the dash

Boost + road-legal low

LED count per lightMore = more redundancy & output

Colour temperature5000K is best for true white

5700K

5700K · 5400K Flood

5000K

SealingWater and dust ingress

IP69K

IP68 · 1.5m

Impact ratingIK scale, higher = tougher

IK16

Not published

VibrationMIL-STD-810H is the top tier

MIL-STD-810H

Not published

Weight per lightLighter is easier on the bar

2.2kg

1.6kg

2.5kg

Road-legal low modeCan it be used on-road at low power?

Yes

Made inCountry of manufacture

Adelaide, Australia

Australia

United Kingdom

WarrantyBacking on the light itself

5 years

† Lightforce publishes beam distance for a pair; Lazerlamps publishes for one. No published pair figure exists for the Sentinel, so 742m is not directly comparable with the Lightforce numbers.

Suits any 12V or 24V vehicle, with an operating range of 11V to 32V

Fits 4WDs, utes, SUVs, trucks and light commercials with a bullbar, nudge bar or roof bar mounting point

Won't operate without the Lightforce BEAST wiring harness, which is sold separately

Q: What do the three modes actually do?
As a pair, Spot reaches 1,497m at 1 lux in a 60m wide beam, which is the mode for distance at speed on an open road. Flood pulls the throw back to 778m but opens the beam to 140m wide, so you see into corners and off the edges of a track. BEAST runs both together for 1,375m of throw at the full 140m width and 13,269 effective lumens, the most total light of the three.

Q: What colour is the light?
5700K, a clean white. It holds colour and detail at distance rather than washing everything yellow the way a halogen does, and it is not so blue that it glares back off dust and fog.

Q: Do I need the wiring harness?
Yes. The BEAST will not operate without the dedicated Lightforce harness, and the harness is what carries the Smart Rocker Switch that changes the mode. It is sold separately.

Q: Will it run on a 24V truck?
Yes. The operating range is 11V to 32V, so the same light suits 12V and 24V systems with no converter.

Q: How much current does the pair draw?
At 13.2V the draw is 11.2A in Spot, 6.5A in Flood and 13A in BEAST mode. Total power is 172W.

Q: How long do the LEDs last?
Lightforce rate the LEDs to 50,000 hours.

Q: What torque do the mounting bolts go to?
35Nm, on a 17mm socket. Each light takes one M10 x 35mm bolt through the base of the bracket and two M10 x 35mm side bolts. Lightforce ask that you put a little anti-seize on the threads first and do not use a rattle gun.

Q: What filters come with them?
Each light comes with a clear filter carrying the Lightforce logo. Filters clip on and off by hand using the tab at the right of the light, so alternative filters can be fitted later without tools.

Q: How much room do I need on the bar?
Each light is 233mm wide, 222mm high and 82mm deep, and 235mm tall once the bracket is counted. The bracket rotates 180 degrees if you need extra clearance.

Q: Where are they made?
Adelaide, SA, Australia. Lightforce design, engineer and manufacture the BEAST there.

Q: What certifications do they hold?
Lightforce list RCM, CE, FCC, RoHS, CISPR25 and UN ECE R10 and R149. Sealing is IP69K, impact is IK16, and they have passed MIL-STD-810H vibration testing.
