Home / Lighting / Driving & light bars

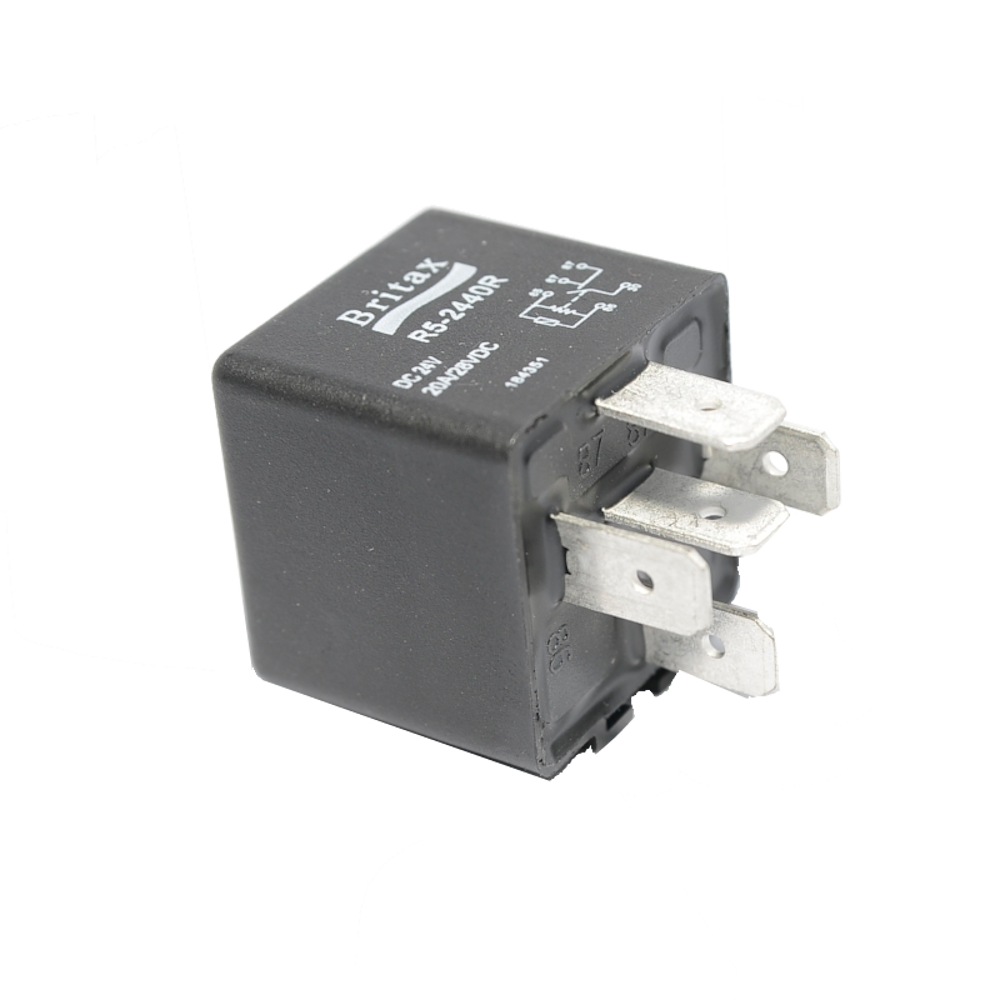

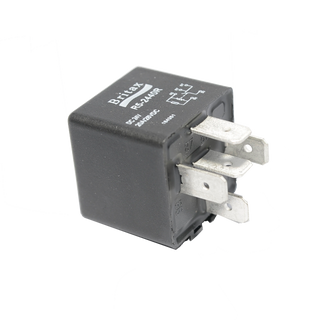

Britax Mini Relay 24V 40A N/O 5Pin ResistorBritax Mini Relay 24V 40A N/O 5Pin Resistor

Britax

Mini Relay 24V 40A N/O 5Pin Resistor

R5-2440R

The Britax 24V 40A Mini Relay (R5-2440R) is a compact, heavy-duty electro-mechanical relay designed for switching high-current loads in 24V vehicle and industrial applications. Its 5-pin configuration and built-in resistor protection ensure reliable performance and reduced voltage spikes in demanding…

$10.00

4 interest-free payments of $2.50 with
or finance your build with
We accept
Suitable for 24V trucks, buses, heavy equipment, marine, and industrial systems requiring high-current switching with resistor protection.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Britax 24V 40A Mini Relay (R5-2440R) is a compact, heavy-duty electro-mechanical relay designed for switching high-current loads in 24V vehicle and industrial applications. Its 5-pin configuration and built-in resistor protection ensure reliable performance and reduced voltage spikes in demanding electrical systems.

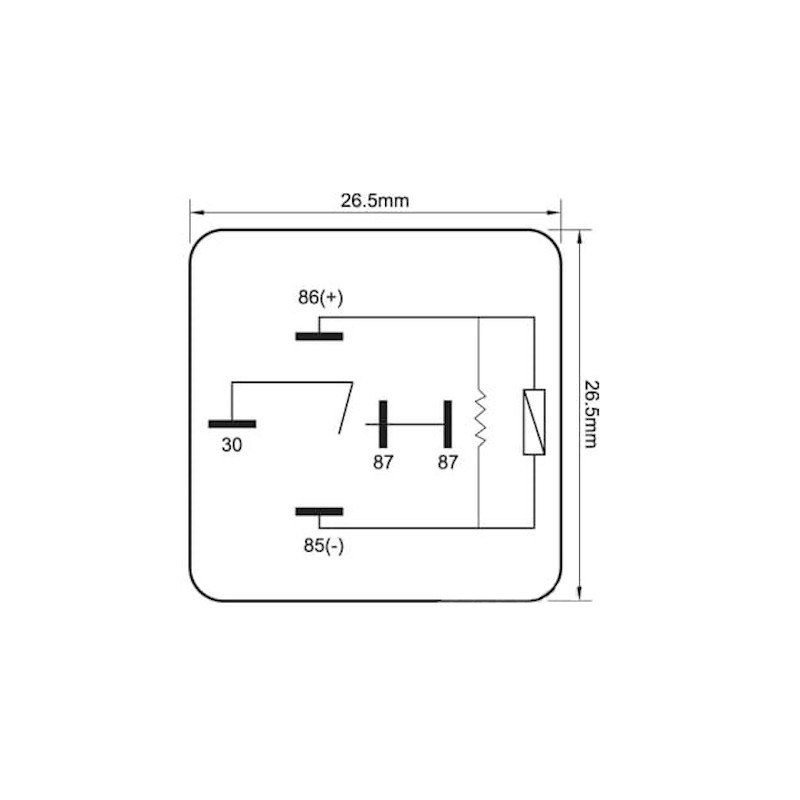

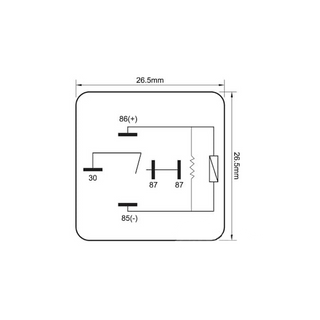

Features a 5-pin configuration with a normally open contact rated at 40A. Built-in resistor protection suppresses voltage spikes to protect sensitive electronics. Compact mini relay design allows for easy installation in space-limited applications.

  • 40A normally open contact for high-current applications. Built-in resistor protection for voltage spike suppression. Compact and durable mini relay housing. Suitable for 24V automotive, heavy vehicle, marine, and industrial systems.


Voltage: 24V

Amperage: 40A (Normally Open)

Contacts: Normally Open

Terminals: 5 Pin

Protection: Resistor Protected

Relay Type: Mini Changeover Relay


Length: 26mm

Width: 26mm

Height: 25mm

Weight: 0.05kg

Everything this install needs

0 of 0 in the box


Designed for straightforward installation into standard 5-pin relay bases or sockets. Ensure proper wiring and secure mounting for safe operation.

Suitable for 24V trucks, buses, heavy equipment, marine, and industrial systems requiring high-current switching with resistor protection.

Q: Is this relay resistor protected?

A: Yes, the Britax R5-2440R includes integrated resistor protection to minimize voltage spikes during switching.

Q: Can this relay handle continuous high-current loads?

A: Yes, it is rated for 40A continuous operation on the normally open contact.
