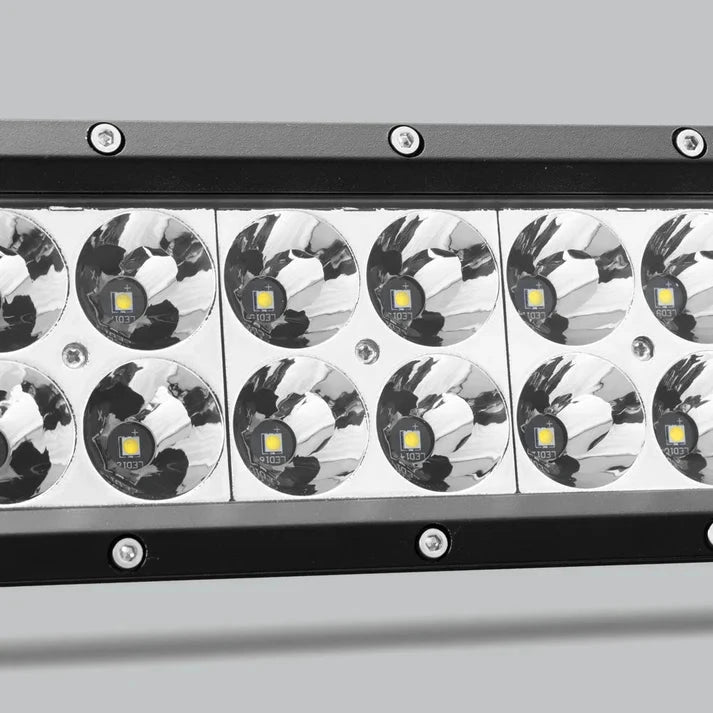

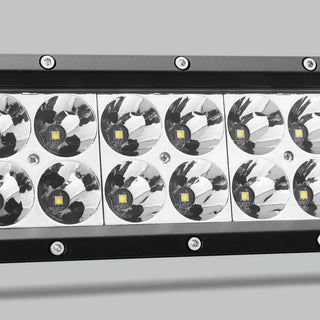

Close-up across the spot section of the double row bar, two rows of LEDs each seated in a deep polished reflector behind the lens

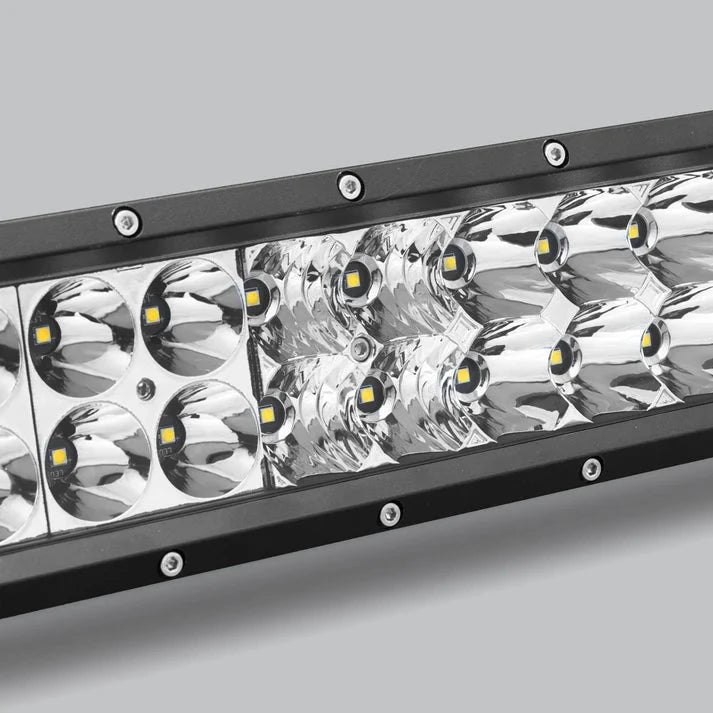

Close-up of the double row bar at an angle, showing where the round spot optics meet the rectangular flood block and the screws along the bezel

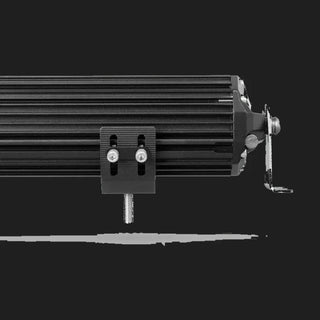

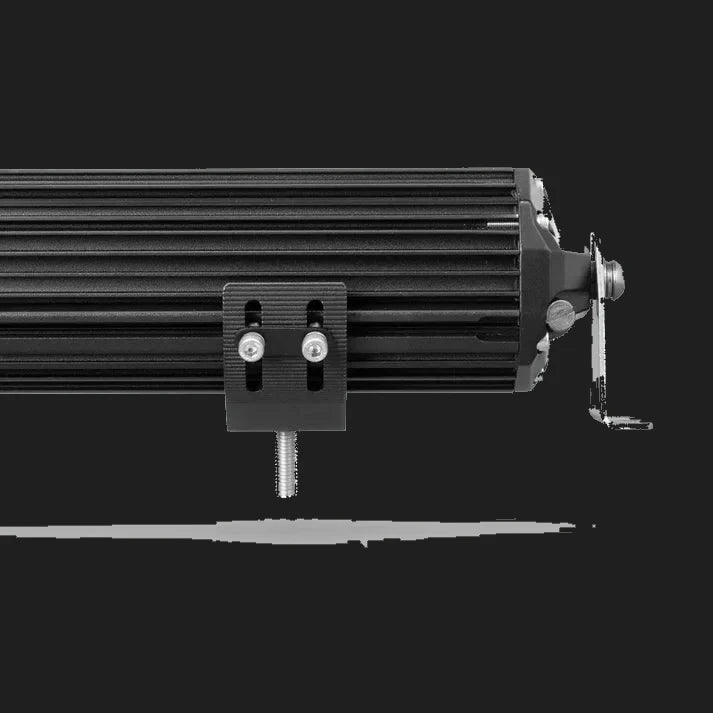

Back of the double row bar, showing the extruded finned housing, a sliding mounting block with its threaded stud, and the end bracket with its pivot bolt

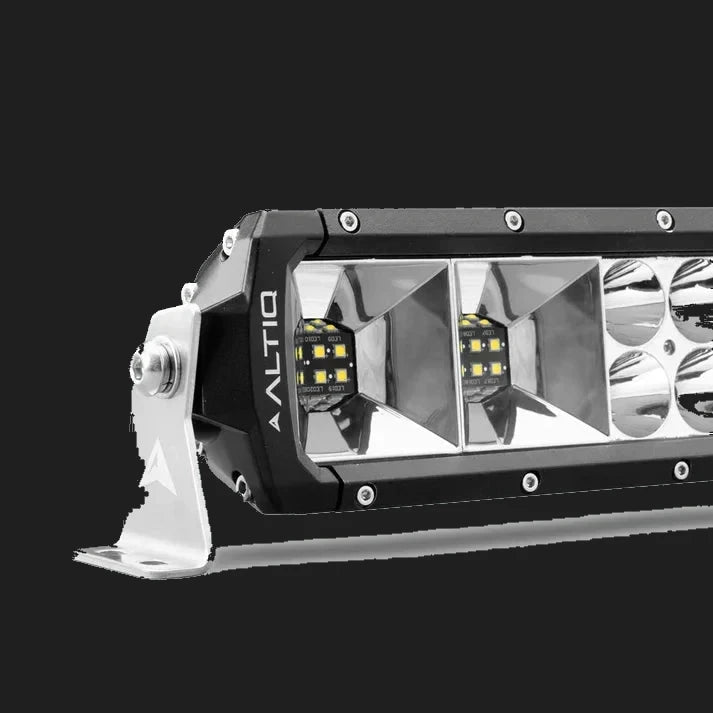

End of the double row hybrid light bar, showing two rectangular flood optics with dense LED blocks at the near end and round spot reflectors beyond, with the ALTIQ name on the end cap and a stainless side bracket

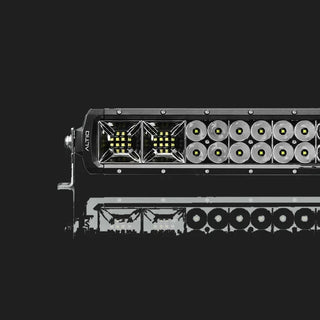

The double row bar seen along its length, the flood section at the near end giving way to two rows of round spot optics, with a stainless foot at the end

Altiq

Hybrid Double Row LED Light Bar — 22 to 72 Inch

cmlb22

Hybrid double row LED light bar with Osram P9 chips, GE Lexan lens, IP69K sealing. Seven lengths from 22 to 72 inches.

Reach: 1 lux @ 746-1019m

Lumens: 12,622-19,800

Sealing: IP69K

$329.00

4 interest-free payments of $82.25 with Afterpay

or finance your build with Allied Finance

Size

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal fitmentOff-road LED driving light bar for bull bars, roof racks and loop bars

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A double row LED light bar that puts flood coverage up close and spot distance down the track in one housing. Runs Osram P9 LEDs across the full length with a hybrid optics setup: round reflectors for the hyperspot throw, rectangular flood blocks at the ends for wide corner fill. Fits bull bars, roof racks, nudge bars and loop bars with the included side and undermount brackets.

The lens is 3mm GE Lexan over a DuPont powder-coated black alloy housing with marine-grade stainless steel brackets. Seven lengths from 22 inches (560mm, 1.76kg) through to 72 inches (1823mm, 5.5kg). Fast-fit wiring harness runs 10 to 30V DC with CISPR 25 Class 3 shielding so there is no interference on CB or AM radio. IP69K sealed against dust, water immersion and high-pressure wash.

Light bars this bright are off-road only under ADR 13/00. Fit a dash switch, draw through the house battery or dedicated circuit, and fuse at the source. Current draw climbs with length, so size the loom and fuse for the actual variant.

Hybrid optics — flood block plus hyperspot in one bar
Osram P9 LEDs — 5W per chip, 5700K cool white
IP69K sealed — dust, immersion, pressure wash
GE Lexan lens — 3mm anti-shatter polycarbonate
DuPont finish — black powder-coat on alloy housing
Stainless brackets — marine-grade side and undermount
CISPR 25 Class 3 — no CB or AM radio interference
10-30V DC input — fast-fit harness included
10-year warranty — direct from Altiq

Driving Performance

LEDs: 56-80 Osram P9

Lumens: 12,622-19,800

Reach: 1 lux @ 746-1019m

Beam type: Hybrid flood+spot

Colour temp: 5700K

CRI: 82+

Electrical

Voltage: 10-30V DC

Current draw: 11.3-15.4A @12V

EMC: CISPR 25 Class 3

Build

Lens: 3mm GE Lexan

Housing: DuPont powder-coat

Brackets: Marine stainless

Sealing: IP68/IP69K

22" (cmlb22)560mm × 101mm × 82mm, 1.76kg

28" (cmlb28)711mm × 101mm × 82mm, 2.48kg

32" (cmlb32)814mm × 101mm × 82mm, 2.48kg

42" (cmlb42)1067mm × 101mm × 82mm, 3.10kg

52" (cmlb52)1321mm × 101mm × 82mm, 3.76kg

65" (cmlb62)1651mm × 110mm × 85mm, 3.56kg

72" (cmlb72)1823mm × 110mm × 85mm, 5.50kg

Off-road LED driving light bar for bull bars, roof racks and loop bars

12V and 24V DC vehicle systems (10-30V DC input)

Not road-legal in Australia under ADR 13/00 — off-road use only

Q: Is it waterproof?
IP69K sealed. Dust-tight, submersible, rated for high-pressure wash cleaning. Highest common sealing rating.

Q: Does it interfere with my CB or AM radio?
No. CISPR 25 Class 3 shielded, the strongest common EMC class before military grade.

Q: Can I run it on 24V systems?
Yes. Input range is 10-30V DC, so 12V and 24V vehicles both work without a dropper or converter.

Q: What does hybrid optics mean?
The bar carries two optic types in one housing: rectangular flood blocks for wide corner coverage at the ends, round spot reflectors through the middle for long-distance throw. One bar does the job of a dedicated spot bar plus flood lights.

Q: What does IP69K actually mean?
Highest common sealing rating. The bar survives dust ingress and immersion, and will not leak when hit with a hot high-pressure wash (80°C, 100 bar). A step above IP67 and IP68.

Q: Is this road-legal in Australia?
No. ADR 13/00 limits total driving-light output visible to oncoming traffic. This bar's output puts it off-road use only. Fit a dash switch wired to run the bar only off a dedicated off-road circuit.

Q: Which size fits a bull bar?
The 22 and 28 inch bars fit most 4WD bull bars. The 32 and 42 inch bars suit wider bull bars or dual-mount brackets. The 52 inch is for extended bull bars or roof mounts. The 65 and 72 inch bars are roof-mount only on most vehicles.

Q: What is the amp draw at 12V?
Scales with length. The 22 inch draws about 11.3A, the 72 inch draws up to 15.4A. Fuse at the source for the actual variant and size the wiring loom accordingly.

Q: Does it come with a wiring harness?
Yes. A fast-fit wiring harness ships in the box. Dash switch and inline fuse are not included and need to be fitted separately for the chosen variant.
