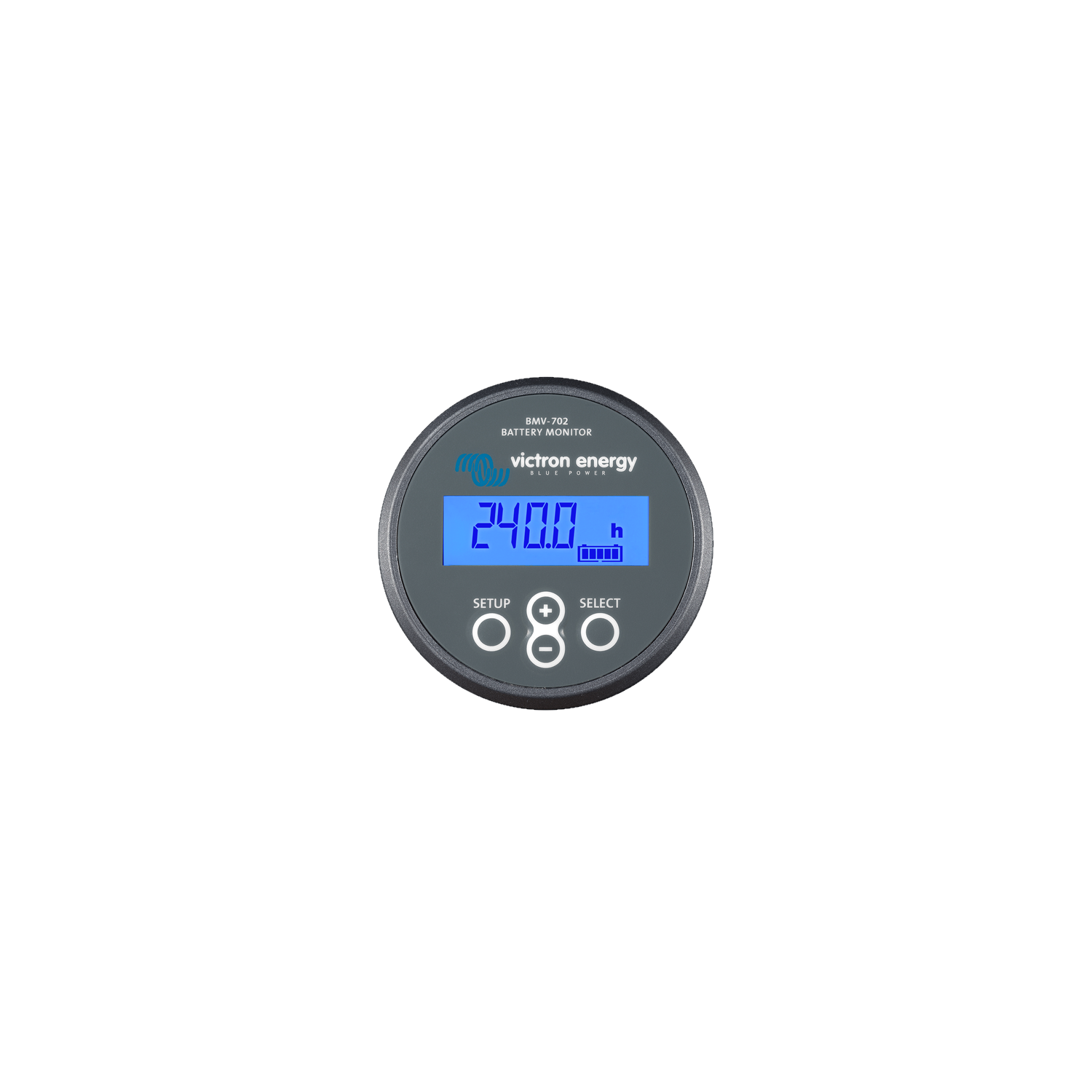

Victron Battery Monitor BMV-702 for dual battery monitoring
- VEHICLE
- INCLUDED
- DIMENSIONS
- Note from Manufacturer
The Victron BMV-702 is a high-precision battery monitor designed to track ampere hours consumed and the state of charge of your battery. It offers additional input for monitoring a second battery, battery temperature, or midpoint voltage, making it ideal for dual battery systems.
Description
Monitors state of charge and Voltage for one Battery (House Battery) and can monitor Voltage for additional Battery (Start Battery).
Be confident your batteries will last! The Victron BMV-702 is packed with features and is the ultimate battery monitor. It gives you command over your power load.
If you are long range touring, or taking a weekend break, a flat or deeply discharged battery will ruin your plans and hit your back pocket. To steer clear of this scenario you need to control and manage your power use and have confidence that your batteries can handle the load.
The new VICTRON BMV 702 provides you with the most advanced information about your battery system, in a way that’s easy to understand and simple to use, so you can stay powered up to enjoy the good times.
Driven by a powerful microprocessor and super-accurate shunt technology, the BMV 702 delivers precision monitoring using a simple push button display. If you’re running lights, fridges or a compressor off your battery, the BMV 702 places incredibly useful information at your fingertips. The new “fuel gauge” status bar shows your remaining power. Its “power measurement” function (voltage times current) instantly calculates watts. With the BMV 702, you no longer have to manually determine your power use, so it’s easy to assess the load on your system and prevent harmful battery discharge or failure.
Along with these new features the VICTRON BMV 702 will automatically detect if you’re running a 12V, 24V, or 48V battery. It allows you to program a visual and audible alarm for its battery voltage and battery charge/discharge display. You can choose to see your battery’s state of charge, the percentage of energy consumed by the battery and the amount of time you can continue to support the current load. All of this means you’ll be able to take care of your batteries, extend their lifetime and save money. Plus, you’ll have a hassle-free break not having to worry about flat batteries, a win win!
Features
- Battery Fuel Gauge
- State of charge display
- Time to go indicator display
- Discharge current display
- Charge current display
- Voltage display
- Current display
- Power consumption display
- Easy DIY Install
Included
- Victron Energy Precision Battery Monitor BMV-702 battery monitor
- Victron Energy Precision Battery Monitor BMV-702 square bezel
- Victron Energy Precision Battery Monitor BMV-702 shunt 500A/50mV
- 10m UTP cable (For connection between shunt and battery monitor)
- Positive supply cable with fuse
Click here to see the Datasheet
| RESOLUTION & ACCURACY (with a 500 A shunt) | |
| Current | ± 0,01 A |
| Voltage | ± 0,01 V |
| Amp hours | ± 0,1 Ah |
| State of charge (0 – 100 %) | ± 0,1 % |
| Time to go | ± 1 min |
| Temperature (0 – 50°C or 30 – 120°F) | n. a. |
| Accuracy of current measurement | ± 0,4 % |
| Accuracy of voltage measurement | ± 0,3 % |
| INSTALLATION & DIMENSIONS | |
| Installation | Flush mount |
| Front | 63 mm diameter |
| Front bezel | 69 x 69 mm (2.7 x 2.7 inch) |
| Body diameter | 52mm (2.0 inch) |
| Body depth | 31mm (1.2 inch) |
| STANDARDS | |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Automotive | ECE R10-4 / EN 50498 |
| ACCESSORIES | |
| Shunt (included) | 500 A / 50 mV |
| Cables (included) | 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection |
