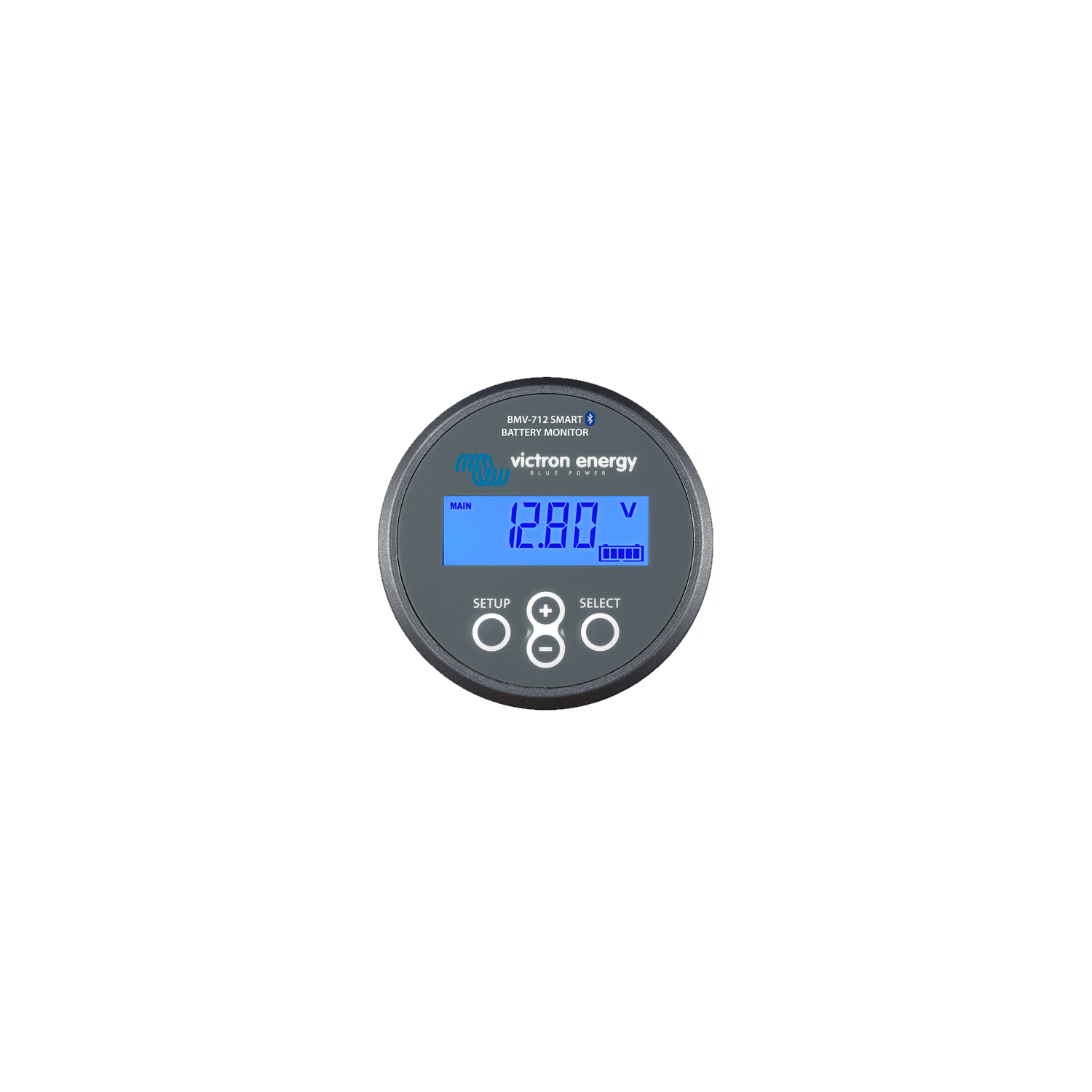

Victron Battery Monitor Smart Bluetooth BMV-712 for dual battery monitoring ( BLACK )
- VEHICLE
- INCLUDED
- DIMENSIONS
- Note from Manufacturer
Victron BMV 712 battery monitor for two batteries with Bluetooth including shunt. Battery 1 volts, amps, amp-hours and Battery 2 volts. Be confident your batteries will last! The Victron BMV-712smart is packed with features and is the ultimate battery monitor. It gives you command over your power load.
Description
Victron BMV 712 battery monitor for two batteries with Bluetooth including shunt. Battery 1 volts, amps, amp-hours and Battery 2 volts.
Be confident your batteries will last! The Victron BMV-712smart is packed with features and is the ultimate battery monitor. It gives you command over your power load.
Victron Battery Monitor Smart Bluetooth BMV-712 For Dual Battery Monitoring
The Victron Battery monitor BMV-712 is a high precision battery monitor with a fuel gauge type of display. The essential function of a battery monitor is to calculate ampere-hours consumed and the condition of the charge of the battery. Ampere-hours consumed are calculated by integrating the current flowing in or out of the battery.
With Bluetooth built-in, the BMV-712 Smart is compatible to your bluetooth smart* device. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
The BMV-712 is easy to install as all electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable.
FEATURES
- Built-in Bluetooth Communication – Monitor your batteries on Apple or Android smartphones, tablets, macbooks, and other devices
- Easy to Install – The shunt interrupts the negative coming off the battery bank connects to the monitor with a standard RJ12 telephone cable.
- Easy to Program – A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.
- Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
- Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.
INCLUDED
-
- BMV 712 battery monitor
- 500A shunt and adapter board
- 10m cable to connect shunt to BMV
- 2x Positive voltage sense wire with fuse
SPECIFICATIONS
- Supply voltage range – 6.5 to 95 VDC
- Current draw, back light off – < 1mA
- Input voltage range, auxiliary battery – 6.5 to 95 VDC
- Battery capacity – 20 – 9999 Ah
- Operating temperature range – (- 40 to + 50C)
- Measures voltage of second battery, temperature and midpoint – Yes
- Temperature measurement range – ( – 20 to + 50C)
- VE.Direct communication port – Yes
- Bistable relay – 60V / 1A
Resolution & Accuracy
- Current – +/-0.01A
- Voltage – +/-0.01V
- Amp hours – +/-0.1Ah
- State of charge – +/-0.1%
- Time left – +/-1 minute
- Temperature – +/-1C
- Accuracy of current measurement – +/-0.4%
- Accuracy of voltage measurement – +/-0.3%
Installations & Dimensions
- Installation – Flush mount
- Front – 63 mm diameter
- Front bezel – 69 x 69 mm
- Body diameter – 52 mm
- Body depth – 31 mm
Standards
- Safety – EN 60335-1
- Emission / Immunity – EN 55014-1 / EN 55014-2
- Automotive – ECE R10-4 / EN 50498
BLUETOOTH CONNECTIVITY
With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
Download the Victron Bluetooth app : Use a smartphone or other Bluetooth enabled device to
– customise settings
– monitor all important data on single screen
– view historical data, and to update the software when new features become available.
Click here to see the Datasheet
Victron BMV 712 battery monitor for two batteries with Bluetooth including shunt. Battery 1 volts, amps, amp-hours and Battery 2 volts.
The BMV-712 is the latest high precision battery monitor from Victron. The BMV-712 monitors voltage and current of a single battery bank and calculates power, state-of-charge and time-to-go. It also features an additional voltage input that can be used to measure an auxiliary or starter battery voltage, midpoint voltage or temperature with the optional temperature sensor. Data can be transferred to smartphones or computers with the inbuilt bluetooth module and external alarms can be triggered with the relay contact.
Installation is simply a case of connecting the supplied shunt in the negative battery cable, mounting the monitor in a 52mm diameter hole and connecting the wires. An optional wall enclosure is available if surface mounting is preferred.
