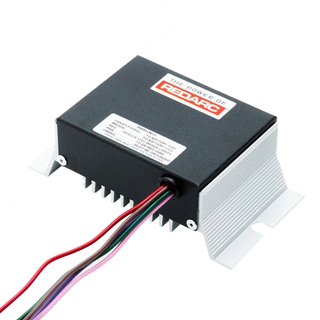

Redarc Electric Trailer Brake Adaptor for 24V Vehicles

Redarc

Electric Trailer Brake Adaptor for 24V Vehicles

Name: Redarc Electric Trailer Brake Adaptor for 24V Vehicles
Brand: Redarc
SKU: EB24A
Price: 459.00 AUD
Availability: InStock

EB24A

The REDARC EB24A Electric Trailer Brake Adaptor is engineered to enable the operation of a 12V electric brake controller within a 24V vehicle system. This adaptor ensures seamless integration between differing voltage systems, facilitating safe and efficient trailer braking.

$459.00

4 interest-free payments of $114.75 with Afterpay

or finance your build with Allied Finance

Important note

The EB24A is designed to operate a 12V brake controller in a 24V vehicle, allowing 24V brake lights to activate the controller and providing 24V to 12V charging so braking power can be sourced from a single battery.

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Suitable for 24V vehicles requiring integration with 12V electric brake controllers.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

LETS TOW-PRO ELITE RUN ON 24V

Takes 24V input and outputs the 12V feed the Tow-Pro Elite needs — supports the red wire (brake trigger) and power supply.

24V BRAKE LIGHT COMPATIBLE

The Tow-Pro override button switches on the 24V vehicle's brake lights through the adaptor.

BATTERY EQUALISATION BUILT IN

Protects the two 12V batteries in a 24V bank from imbalance when drawing the 12V feed.

REQUIRED FOR ELECTRIC/HYDRAULIC ON 24V

On 24V vehicles running electric/hydraulic trailer brakes or ESC, Redarc's install guide calls out the EB24A.

2 YEAR REDARC WARRANTY

Backed by 2 years direct from Redarc. Repair or replacement in accordance with Redarc's warranty policy.

The REDARC EB24A Electric Trailer Brake Adaptor is engineered to enable the operation of a 12V electric brake controller within a 24V vehicle system. This adaptor ensures seamless integration between differing voltage systems, facilitating safe and efficient trailer braking.

Enables 12V brake controller operation in 24V vehicles
Allows 24V brake lights to activate the controller
Provides 24V to 12V charging for braking power
Compact design for easy installation
LED status indicators for monitoring

Input Voltage: 24V DC

Output Voltage: 12V DC

Protection: Reverse Polarity, Short Circuit

Length: 135mm

Width: 70mm

Height: 50mm

Weight: 0.5kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Mount the adaptor securely within the vehicle's electrical system.

Connect the 24V input and 12V output as per the installation manual.

Ensure proper grounding and secure all connections.

EB24A Manual

Suitable for 24V vehicles requiring integration with 12V electric brake controllers.

Q: When do I need the EB24A?
A: On 24V vehicles running a 12V Tow-Pro Elite brake controller. Also required on 24V vehicles pulling trailers with electric/hydraulic brakes, or where the tow vehicle has an electronic stability control system sensitive to 24V inputs.

Q: Does it work with electric-only trailer brakes on a 24V vehicle?
A: The Tow-Pro Elite drives 24V electric trailer brakes directly — the EB24A is not required in that case. Fit the EB24A when the trailer has electric/hydraulic brakes or when ESC integration needs a 12V feed.

Q: What does the EB24A actually do?

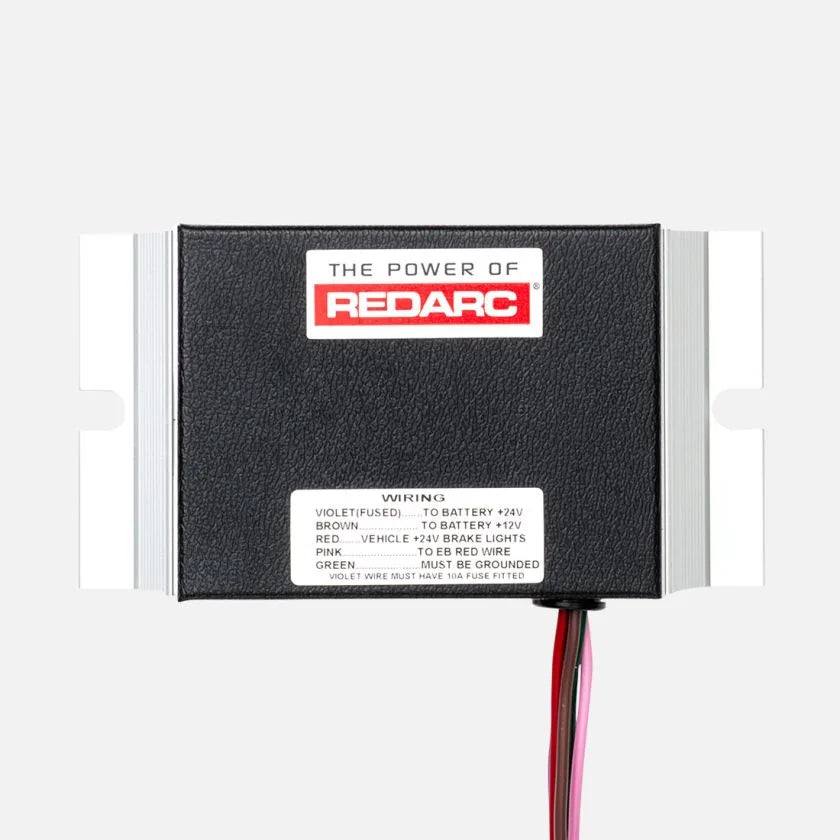

A: Two jobs. It converts the vehicle's 24V brake signal to 12V for the Tow-Pro Elite's red wire input, and it supplies a 12V feed from the 24V battery bank with battery equalisation so the two 12V batteries don't get out of balance.

Q: Does the Tow-Pro Elite override still work?
A: Yes. The EB24A switches the vehicle's 24V brake lights when the Tow-Pro override button is pressed.

Q: How long is the warranty?
A: 2 years, direct from Redarc.
