A Redarc Tow-Pro Elite V3 Electric Brake Controller with a black casing and a red detail on the front, including a control knob.

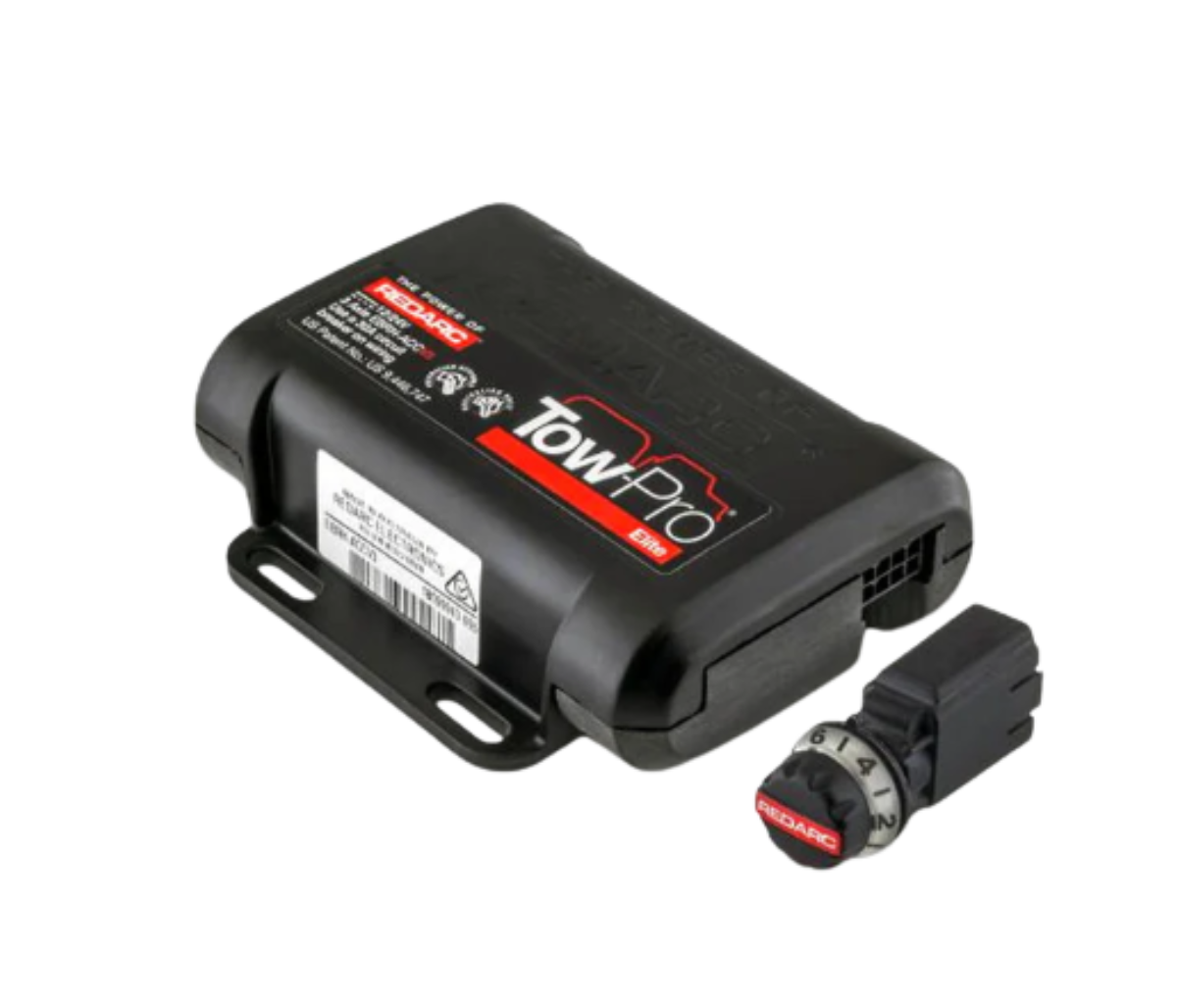

Redarc Tow-Pro Elite V3 Electric Brake Controller EBRH-ACCV3

Redarc

Tow-Pro Elite V3 Electric Brake Controller EBRH-ACCV3

Name: Redarc Tow-Pro Elite V3 Electric Brake Controller EBRH-ACCV3
Brand: Redarc
SKU: EBRH-ACCV3
Price: 349.00 AUD
Availability: InStock

EBRH-ACCV3

The REDARC Tow-Pro Elite V3 is a premium electric brake controller designed for seamless towing across various terrains. It offers two distinct braking modes: Proportional Mode: Utilizes inertia sensing for smooth, highway driving conditions. User-Controlled Mode: Allows the driver to…

$349.00

4 interest-free payments of $87.25 with Afterpay

or finance your build with Allied Finance

Important note

The Tow-Pro Elite V3 is ADR-approved and compatible with all modern vehicle technologies, including AL-KO ESC and Dexter Sway Control systems.

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Suitable for vehicles with 12V or 24V systems.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

TWO BRAKING MODES, ONE DIAL

Proportional inertia sensing for the highway, User Controlled for off-road — flick the dial to switch.

12V AND 24V, 9–32V RANGE

25A on 12V and 30A on 24V, so it drives 12V or 24V electric and electric/hydraulic trailer brakes.

MOUNTS IN ANY ORIENTATION

3-axis accelerometer and Active Calibration let the main unit sit hidden behind the dash in any position.

ADR COMPLIANT

ADR compliant when installed to the instruction manual — legal on Australian roads.

2 YEAR REDARC WARRANTY

Backed by 2 years direct from Redarc. Repair or replacement in accordance with Redarc's warranty policy.

The REDARC Tow-Pro Elite V3 is a premium electric brake controller designed for seamless towing across various terrains. It offers two distinct braking modes:

Proportional Mode: Utilizes inertia sensing for smooth, highway driving conditions.
User-Controlled Mode: Allows the driver to set the braking force, ideal for off-road or low-traction situations.

This controller is compatible with both electric and electric/hydraulic trailer brakes and supports 12V and 24V systems. Its compact design enables hidden installation behind the dashboard, with only the control knob visible, ensuring a clean and unobtrusive setup.

Two braking modes at the turn of a dial: Proportional inertia sensing for everyday highway towing, and User Controlled for off-road descents, sand and mud
Active Calibration: self-levels and learns direction of travel automatically, no manual setup
3-axis accelerometer allows the main unit to be mounted in any orientation, hidden behind the dash
Compact remote head, dash-mount only
Compatible with 12V and 24V vehicle systems, and both electric and electric/hydraulic trailer brakes
Works alongside modern electronic stability control systems including AL-KO ESC and Dexter Sway Control
ADR compliant when installed to Redarc's instructions

Part Number: EBRH-ACCV3

Operating Voltage: 9V to 32V

Nominal Input System Voltage: 12V or 24V

Max Rated Output Current: 25A on 12V systems, 30A on 24V systems

Max Trailer Axles: 3

Nominal Current Draw: 18A

Standby Current: less than 5mA

Operating Temperature: -20°C to +60°C

Braking Modes: Proportional inertia sensing, and User Controlled

Compatibility: Electric and electric/hydraulic trailer brakes

ADR: Compliant when installed per Redarc's instructions

GTIN: 9338628004720

Main Unit: 100mm x 104mm x 30mm

Remote Head Cable: 1 metre

Main Unit Wires and Connector: 0.5 metre

Weight: 200g

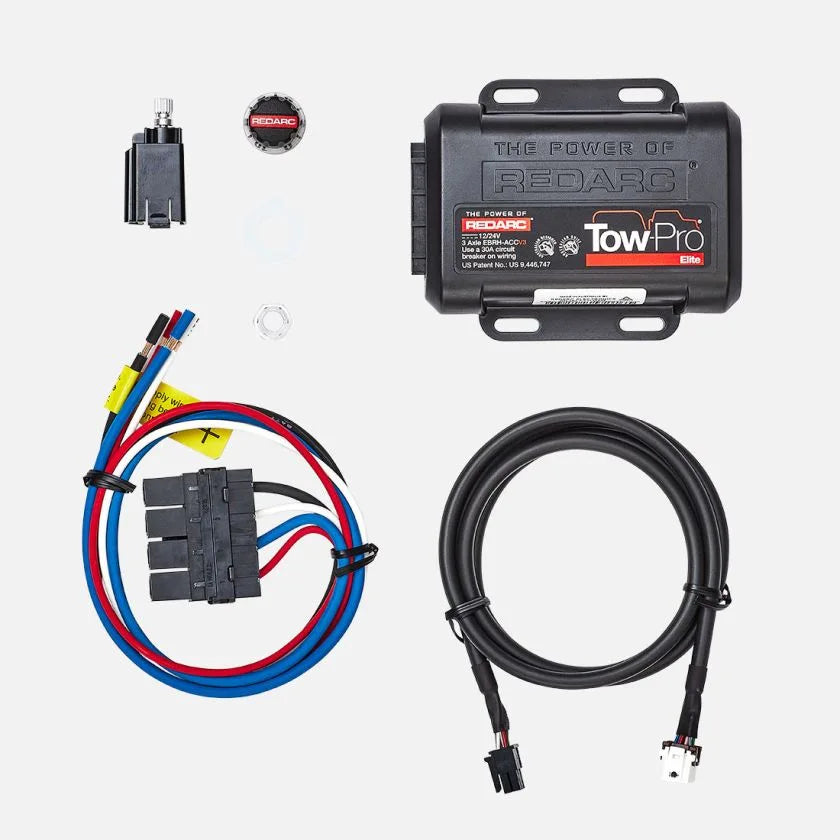

Everything this install needs

0 of 0 in the box

Mounting: main unit mounts inside the vehicle cabin, in any orientation, securely fixed to the vehicle body — not to a cable loom or any surface that vibrates independently. Use M4 screws at the mounting points. The remote head mounts through the dashboard.

Circuit protection: 25A fuse or 30A circuit breaker on the black input wire, fitted as close as possible to the start battery. The Redarc CBK30-EB circuit breaker fits this application. Never wire through an ignition source — direct to start battery positive only.

Cable size: Redarc's supplied harness uses 3.0mm² (12 AWG) on power, brake output and earth, and 1.25mm² (14 AWG) on the brake light trigger and remote head. For runs longer than the supplied loom, step up one cable size.

24V vehicles running 12V electric/hydraulic brakes or ESC systems: a Redarc EB24A adaptor is required to supply the 12V feed.

Installation must be carried out by a suitably trained professional. See the owner manual below for the full wiring diagrams and vehicle-specific requirements.

Suitable for vehicles with 12V or 24V systems.

Compatible with electric and electric/hydraulic trailer brakes.

Q: Does the Tow-Pro Elite V3 work on 12V and 24V vehicles?
A: Yes. The main unit operates from 9V to 32V and drives up to 25A on 12V systems or 30A on 24V systems.

Q: Does it work with electric/hydraulic trailer brakes?
A: Yes. It runs both electric trailer brakes and 12V or 24V electric/hydraulic brake systems. On a 24V vehicle a Redarc EB24A is required to feed the 12V hydraulic pump.

Q: What is the difference between Proportional and User Controlled modes?
A: Proportional Mode uses the internal accelerometer to match trailer braking to the tow vehicle — the everyday highway setting. User Controlled Mode lets you brake the trailer independently of the vehicle using the dial, which is useful on steep descents, in sand, mud or snow.

Q: Where does the main unit mount?
A: Hidden inside the vehicle cabin, in any orientation. Only the small remote head sits on the dash. Do not mount to the firewall, cable looms or any surface that vibrates independently of the vehicle body.

Q: What fuse size do I need?
A: Redarc specify a 25A fuse or 30A circuit breaker on the black input wire, connected direct to the start battery positive — never through an ignition source.

Q: What cable size for the run to the battery?
A: Redarc's supplied harness uses 3.0mm² (12 AWG) on the power, output and earth wires and 1.25mm² (14 AWG) on the brake light trigger and remote head wiring. For longer runs, step up to the next size.

Q: Do I need to calibrate the controller?
A: No. Active Calibration self-levels the unit and learns the direction of travel automatically. No manual level setting is required.

Q: Is it ADR compliant?
A: Yes, when installed to Redarc's printed instructions.

Q: Does it work with modern electronic stability control systems?
A: Yes. The Tow-Pro Elite is compatible with AL-KO ESC, Dexter Sway Control and similar systems.

Q: How many axles can it drive?
A: Up to 3 axles.
