Tow-Pro Link Electric Brake Controller

Name: Tow-Pro Link Electric Brake Controller
Brand: Redarc
SKU: EBRHX-ADH
Price: 769.00 AUD
Availability: InStock

EBRHX-ADH

The REDARC Tow-Pro Link is a towbar-mounted 12V electric trailer brake controller. Its IP57-sealed main unit lives on the towbar or under the chassis, and control is via a dash-mounted remote and an adhesive-mount USB remote inside the cabin.Two braking…

$769.00

4 interest-free payments of $192.25 with Afterpay

or finance your build with Allied Finance

Important note

Please note: The Tow-Pro Link is not suitable for Ford vehicles featuring Autonomous Emergency Braking (AEB), including Ford PX3 Ranger and Everest (MY18 onwards).

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Compatible with most vehicles requiring trailer brake control, excluding certain Ford models as noted above.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

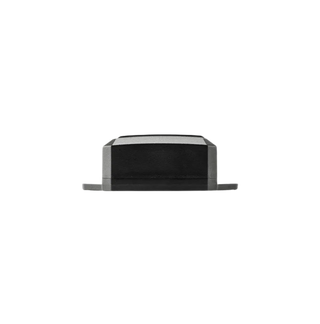

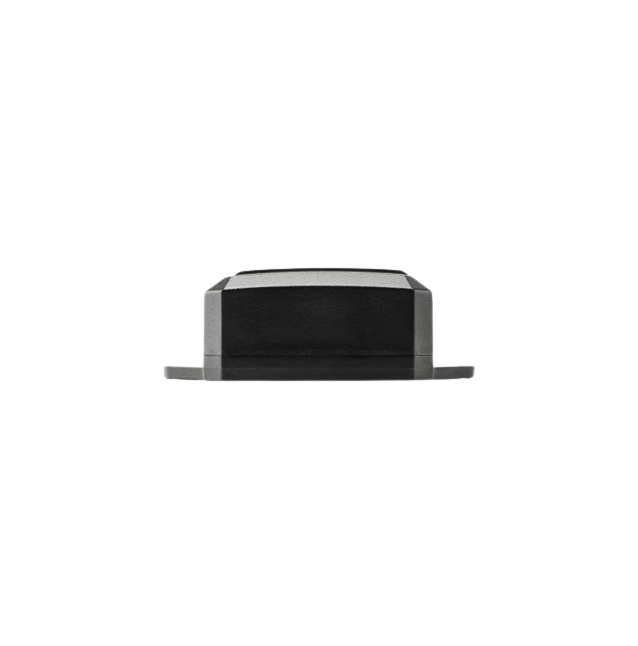

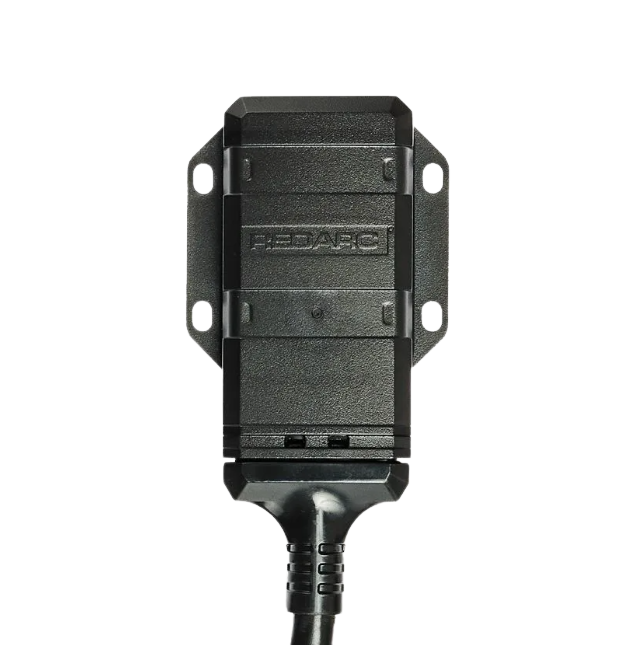

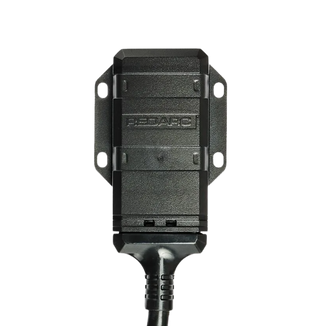

TOWBAR-MOUNTED MAIN UNIT

Sits weatherproof on the towbar — no dash cutting and no cabin cable run.

SWAYSTOP PLUS SWAY CONTROL

6-axis sensor detects trailer sway and applies the brakes automatically to bring it back into line.

UP TO 4 AXLES, IP57 RATED

25A max on 12V, drives 4-axle trailers, IP57 sealed for underbody life.

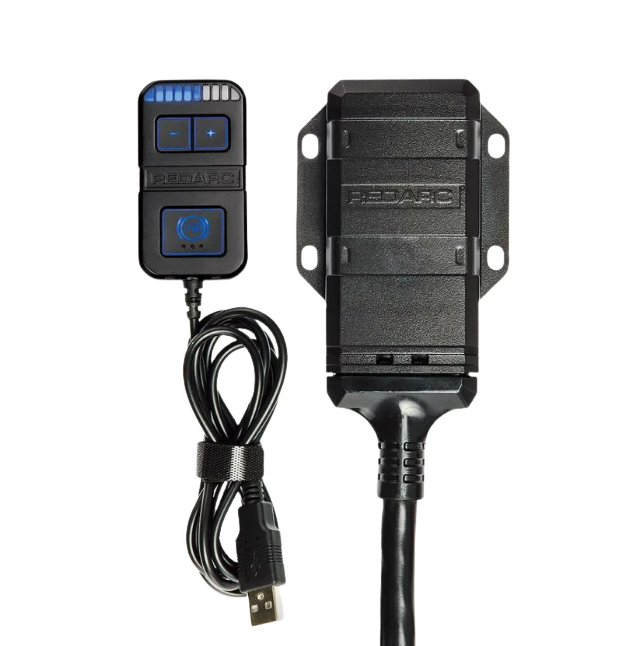

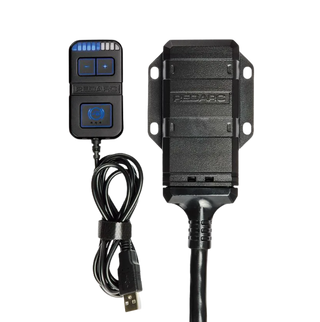

DASH REMOTE + USB REMOTE

Includes an adhesive-mount dash remote and a USB remote so the driver has controls in reach.

2 YEAR REDARC WARRANTY

Backed by 2 years direct from Redarc. Repair or replacement in accordance with Redarc's warranty policy.

Two braking modes: Everyday Mode uses proportional inertia sensing for on-road towing, and Manual Off-road Mode gives you direct control on steep descents, sand and mud. SwayStop Plus adds active trailer-sway control using a 6-axis sensor.

This is a 12V-only brake controller rated to drive up to 4 axles. For a 12V or 24V dash-mount alternative, see the Redarc Tow-Pro Elite V3.

Bluetooth control via the Redarc app. Designed, built and tested in Australia. Backed by a 2 year Redarc warranty.

Two braking modes: Everyday Mode (proportional) and Manual Off-road Mode
SwayStop Plus™ trailer sway stabilization for enhanced towing safety
USB-powered remote with LED light bar and auto-dimming functionality
Bluetooth connectivity for control via the Tow-Pro Controller app
Streamlined installation with minimal vehicle modifications
Compact and rugged design suitable for various mounting points
Ultrasonic-welded enclosure with moisture-controlled venting for durability

Tow-Pro Link Electric Brake Controller

Weight: 344.5g

Height: 26.7mm

Width: 75.5mm

Depth: 145.2mm

Everything this install needs

0 of 0 in the box

Tow-Pro Link Electric Brake Controller

Compatible with most vehicles requiring trailer brake control, excluding certain Ford models as noted above.

Q: Where does the main unit mount?
A: On the towbar or under the chassis — the Tow-Pro Link main unit is IP57 rated so it lives outside the cabin. Only the dash remote and USB remote sit inside the vehicle.

Q: How many trailer axles will it drive?
A: Up to 4 axles on 12V systems.

Q: Does it work with electric/hydraulic brakes?
A: The Tow-Pro Link is designed for electric trailer brake systems on 12V vehicles. For electric/hydraulic brakes, use the Tow-Pro Elite V3.

Q: What is SwayStop Plus?
A: Redarc's active sway-stabilisation system. A 6-axis sensor detects trailer sway and applies the brakes automatically to bring the trailer back into line.

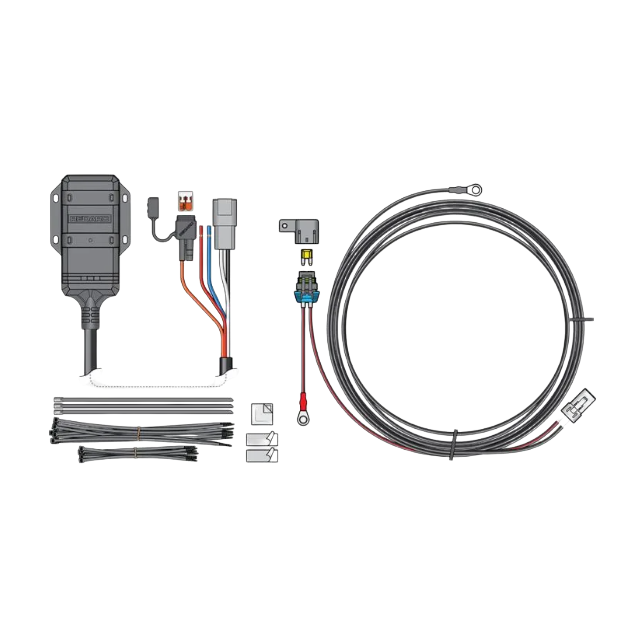

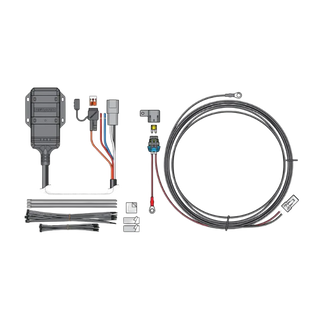

Q: What's in the box?
A: Main unit (towbar-mounted), dash-mounted remote, adhesive-mount USB remote, mounting hardware, USCAR 7-way plug-and-play harness, owner manual and warranty documentation.

Q: Is there a phone app?
A: Yes. The Tow-Pro Link supports Bluetooth control via the Redarc app for setup and monitoring.

Q: How long is the warranty?
A: 2 years, direct from Redarc.
