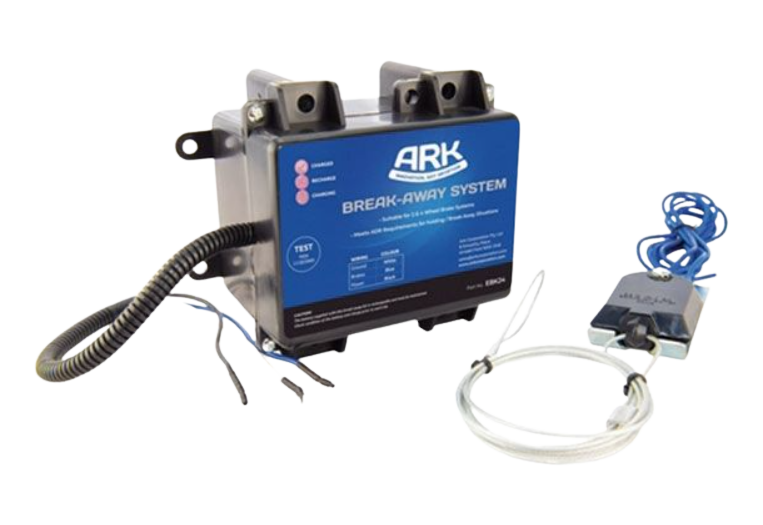

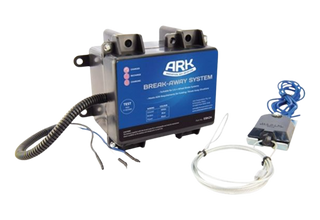

Complete Trailer Break-Away System Kit The Engager

Ark

Complete Trailer Break-Away System Kit The Engager

EBK24

The Engager EBK24 is a comprehensive trailer break-away system designed to activate your trailer's electric brakes in the event of accidental disconnection from the tow vehicle. Equipped with a built-in battery charger and LED test lights, this system ensures your…

$179.10$199.00 Save $19.90

4 interest-free payments of $44.78 with
or pay over time with
We accept
Suitable for a wide range of 12V systems, including trailers, caravans, and other towable vehicles requiring dependable break-away protection.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Engager EBK24 is a comprehensive trailer break-away system designed to activate your trailer's electric brakes in the event of accidental disconnection from the tow vehicle. Equipped with a built-in battery charger and LED test lights, this system ensures your trailer remains compliant with safety regulations and provides peace of mind during transit.

The Engager EBK24 features a built-in battery charger that maintains the 5Ah battery's charge while connected to the tow vehicle. LED indicators provide real-time battery status, ensuring the system is ready when needed. The kit includes a break-away switch and is suitable for trailers equipped with up to four electric brakes.

  • Activates trailer brakes upon separation from tow vehicle. Built-in battery charger maintains battery charge. LED indicators provide real-time battery status. Suitable for trailers with up to four electric brakes. Meets D.O.T. safety regulations.


Product Code – EBK24

Battery – 12V, 5Ah rechargeable

Charger – Built-in, charges while connected to tow vehicle

LED Indicators – Display battery charge status

Compatibility – Trailers with up to 4 electric brakes

Compliance – Meets D.O.T. Regulation 393.43 (d)

Length: 190mm

Width: 140mm

Height: 90mm

Weight: 2.2kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Mount the break-away box securely to the trailer frame using the provided hardware. Connect the black wire to the trailer's 12V auxiliary power, the white wire to ground, and the blue wire to the trailer's electric brake system. Attach the break-away switch cable to the tow vehicle to ensure activation upon disconnection.

Suitable for a wide range of 12V systems, including trailers, caravans, and other towable vehicles requiring dependable break-away protection.

Q: Is the Engager EBK24 compatible with both single and tandem axle trailers?

A: Yes, the system is suitable for trailers equipped with up to four electric brakes, covering both single and tandem axle configurations.

Q: How do I test the battery status?

A: Press the built-in test button on the break-away box. LED indicators will display the battery's charge status.
