Qvee

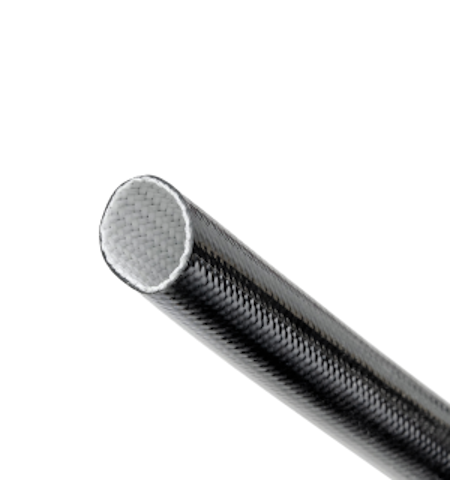

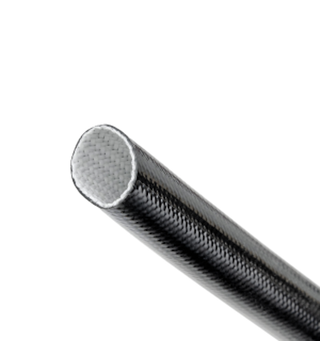

Guard Shield Fiberglass High Temp Sleeving
QVSSR004
The Guard Shield Fiberglass High Temp Sleeving is a high-quality, non-alkali fiberglass sleeve coated with silicone, designed to provide excellent dielectric resistance and flexibility. Its smooth surface finish and high flexibility make it suitable for applications requiring both low and…
$3.20
Guard Shield sleeving is designed for thermal protection and mechanical durability. Manufactured to meet stringent automotive and industrial standards.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
The Guard Shield Fiberglass High Temp Sleeving is a high-quality, non-alkali fiberglass sleeve coated with silicone, designed to provide excellent dielectric resistance and flexibility. Its smooth surface finish and high flexibility make it suitable for applications requiring both low and high-temperature protection.
With an operating temperature range of -60°C to 200°C, it is ideal for automotive, marine, and industrial environments. The sleeving is UL and RoHS approved, ensuring compliance with safety and environmental standards. It is sold per meter, allowing customization to specific length requirements.
- High heat resistance
- Abrasion-resistant fiberglass weave
- Flexible and easy to install
- Ideal for automotive, industrial, and marine use
QVSSR004Internal Diameter: 4mm Wall Thickness @ 4kV: 0.50mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
QVSSR006Internal Diameter: 6mm Wall Thickness @ 4kV: 0.50mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
QVSSR008Internal Diameter: 8mm Wall Thickness @ 4kV: 0.60mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
QVSSR010Internal Diameter: 10mm Wall Thickness @ 4kV: 0.70mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
QVSSR012Internal Diameter: 12mm Wall Thickness @ 4kV: 0.70mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
QVSSR015Internal Diameter: 15mm Wall Thickness @ 4kV: 0.70mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
QVSSR020Internal Diameter: 20mm Wall Thickness @ 4kV: 0.70mm ± 0.05 Material: Fiberglass Voltage Resistance: Up to 4kV Temperature Range: -50°C to 250°C
