Hella - White/Red LED Flexi Chart Table Lamp 150mm

SKU: 2JA 343 720-522
$198.00
  • VEHICLE
  • INCLUDED

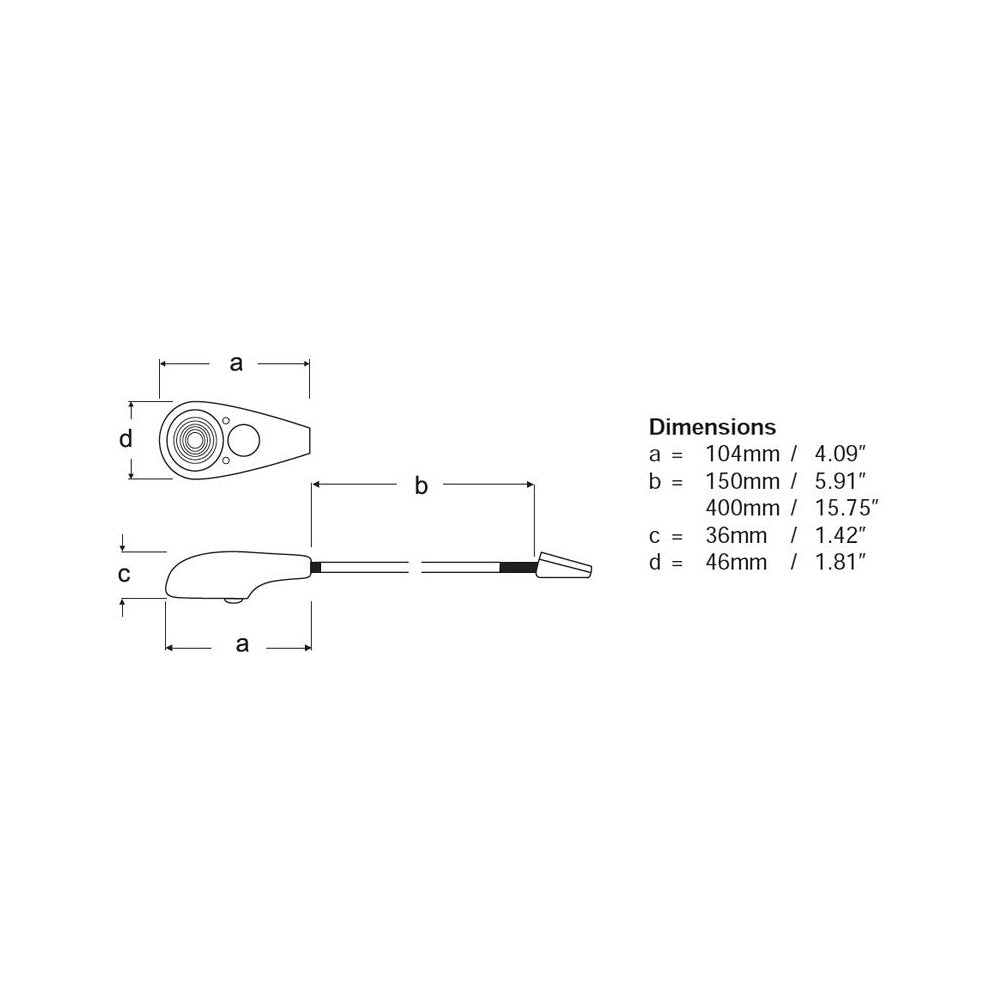

  • DIMENSIONS
  • Note from Manufacturer

Suitable for marine vessels and RV interiors.

Not recommended for automotive or exterior use.

1 x Hella Flexi Chart Table Lamp (150mm)

120mm pre-wired twin core cable

Installation instructions


Arm Length: 150 mm

Weight: 130 g

Mounting: Screw Mount

Built for reliability with UV-resistant plastic housing and a 316 stainless steel arm. Pre-wired and ready for installation. Designed for low power consumption and high light efficiency in confined interior spaces.

 [{"variant_id":"32924811853933" , "metafield_value":""}]

Hella - White/Red LED Flexi Chart Table Lamp 150mm

$198.00
Description

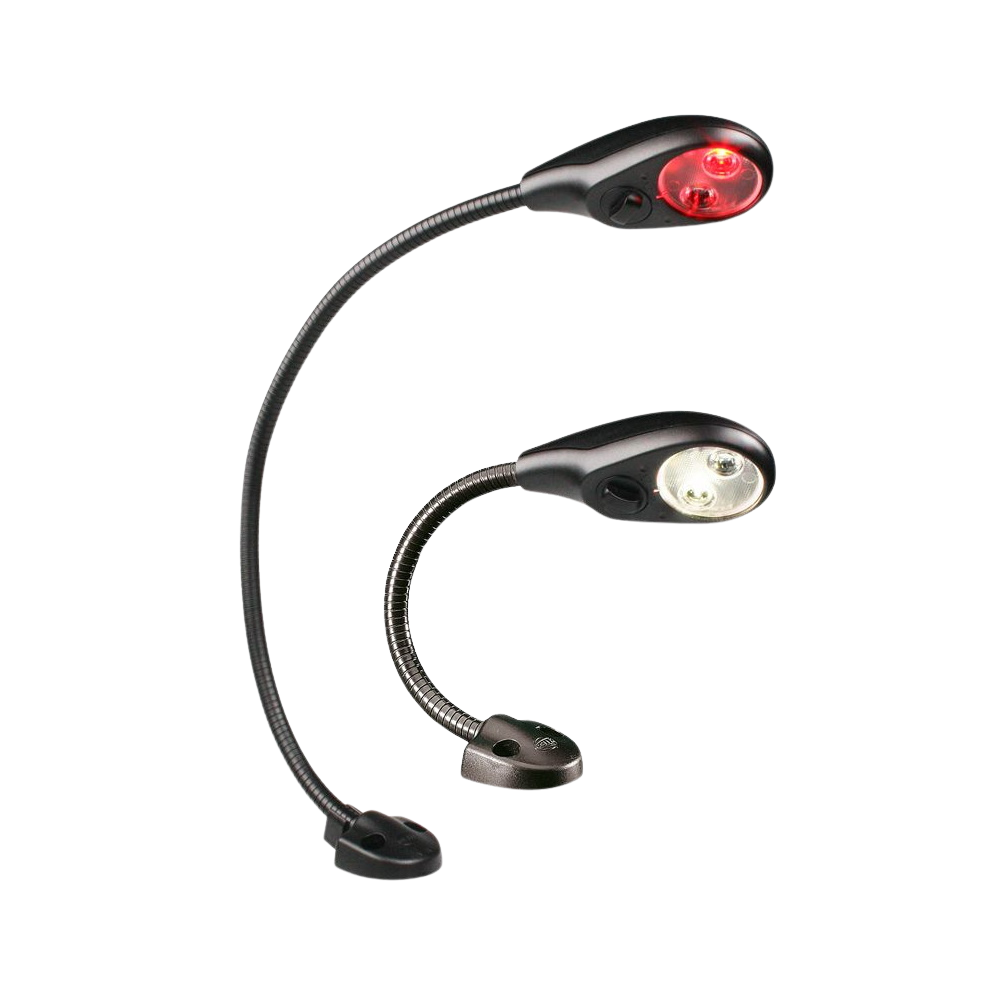

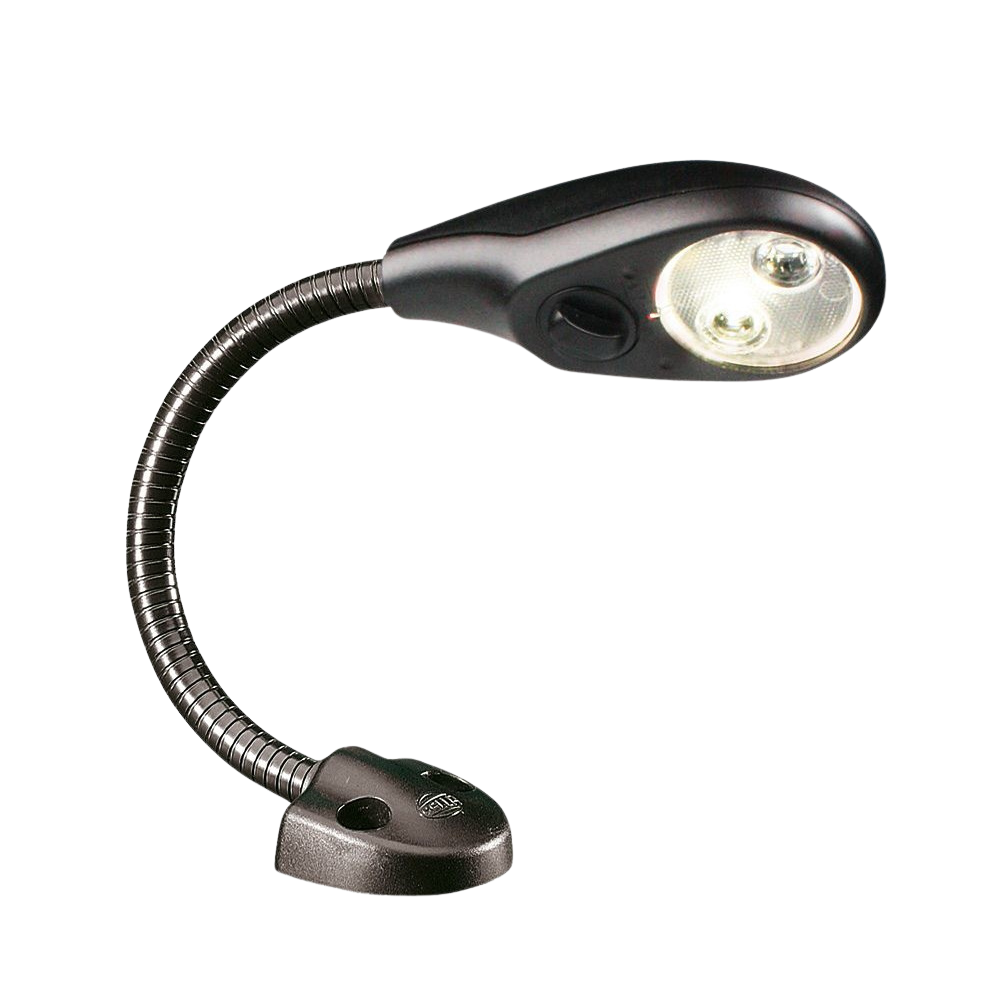

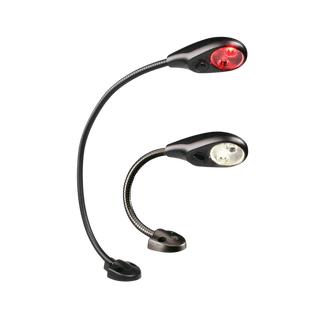

The Hella White/Red LED Flexi Chart Table Lamp (150mm) is a compact, energy-efficient map reading light with a dual-colour LED (white/red) and flexible stainless steel arm.

Designed for interior marine and RV applications, it features an integrated rotary switch for on/off control, dimming, and colour selection. Ideal for chart tables, reading areas, and berths.

FEATURES

Flexible stainless steel shaft

Dual-colour red/white LED with dimmer

Rotary switch built into lamp head

Ultra-low power consumption

Impact-resistant and UV-stable plastic housing

Compact and lightweight design

FAQ's

Q: Is the lamp dimmable?
A: Yes, the built-in rotary switch provides dimming and red/white colour control.

Q: Can it be used outdoors?
A: No, this lamp is IP53 rated and is designed for interior use only.

Q: Is it compatible with 24V systems?
A: Yes, it supports multivolt input from 9–31V DC.

Specifications

Operating Voltage: 9–31V DC

Power Consumption: < 2W

Current Draw: < 0.16A @ 12V / < 0.08A @ 24V

LED Colours: White (4000K) and Red

Protection Rating: IP53

Cable: 120mm pre-wired twin core

Housing: UV and impact-resistant plastic

Arm Material: 316 stainless steel

Certifications: CE Approved

Installation Information

Screw-mounted base.

Pre-wired with 120mm of twin core cable.

Simple installation with basic tools.

Compatible with 12V and 24V systems.

Warranty Information

3 years manufacturer’s warranty against defects in materials and workmanship.
