Home / Lighting / Driving & light bars
LED Autolamps

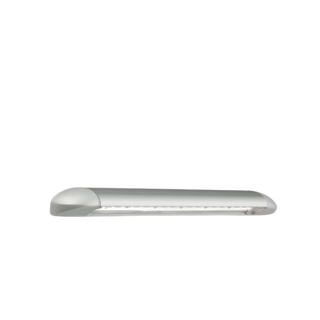

Awning Light Silver 12V 260mm
23260
The 23 Series Awning Light from LED Autolamps is a top choice for camping and awning applications, featuring a sleek silver finish. This exterior-grade LED lamp is easy to install and operates at 12V or 24V with low current draw.…
$44.10$49.00 Save $4.90
Designed for caravans and RVs, the 23 Series Awning Light offers a sleek silver finish with high brightness LEDs, a low current draw, and is 12V only.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
The 23 Series Awning Light from LED Autolamps is a top choice for camping and awning applications, featuring a sleek silver finish. This exterior-grade LED lamp is easy to install and operates at 12V or 24V with low current draw.
It offers bright, warm white light with a 60° spread, available in two sizes: 260mm with 18 LEDs producing 80 Lux at 1 meter, and 443mm with 36 LEDs producing 165 Lux at 1 meter.
The light is rated IP67 for full dust and water protection and comes with a 3-year warranty. Installation is simple—just remove the end caps, mount on a flat surface with supplied screws, then refit the end caps.
- Silver anodised aluminium housing
- 60° light spread
- 3000K warm white light
- Low profile design
- Fully encapsulated circuitry
- Compliant with Australian road regulations (ADR/ECE approved)
Voltage12V DC
Current Draw0.38A @ 13.8V
Ingress ProtectionIP67
Lumens240lm (effective), 320lm (raw)
Illuminance @1m80lx
LED Quantity18
Cable Length20cm
HousingAluminium
BracketABSData Sheet
