The Scout Power System

SKU: FAB-ASM-SCOUT-100-P
$5,830.00
Add Lithium Battery & Trayw/ 100Ah Slimline Lithium + Mounting Tray
Control Panel OrientationPassenger Side
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

This kit is purpose-built for:
Toyota Hilux N80 Dual Cab (2015 onwards)

Fits behind the rear seat using factory mounting points — no modifications required.

Custom-fit mounting panel for Hilux N80

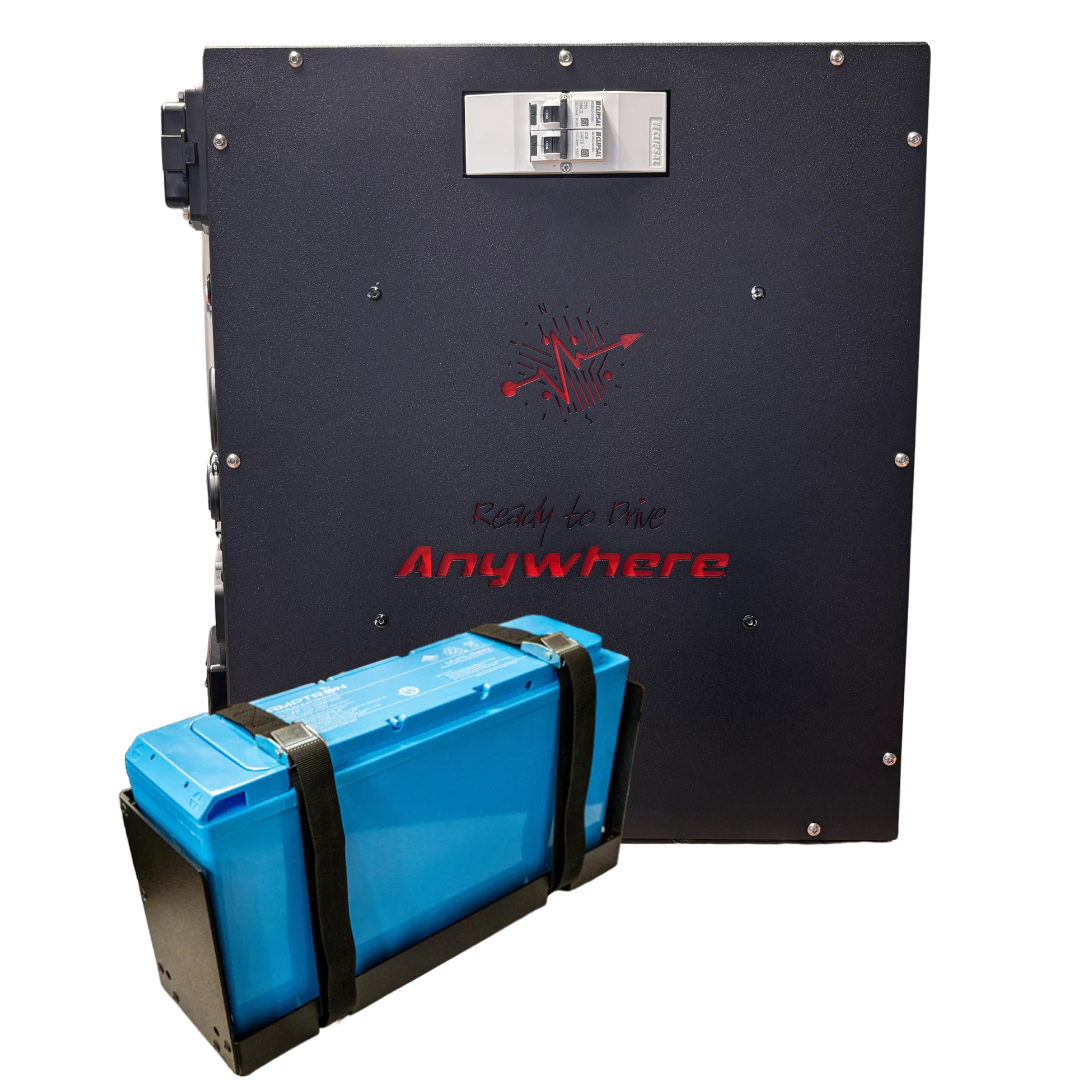

Amptron 100Ah or 200Ah Lithium Battery (based on selection)

Redarc or Victron DCDC Charger (based on selection)

Redarc or Victron Smart Shunt

Victron MPPT Regulator (if applicable)

Egon DC Hub

All fuses, wiring, terminals, and protection

Pre-wired and fully assembled system

Install diagram and basic fitting guide

Panel height – 480mm

Panel width – 700mm

Installed depth – 150mm (may vary slightly depending on selected components)

This product is designed and assembled by Elevate Automotive using Australian-standard parts and wiring methods. Our in-house team has developed this system based on years of experience with dual battery installs and lithium integration in modern 4WDs.

 [{"variant_id":"50895081865489" , "metafield_value":""},{"variant_id":"50895082160401" , "metafield_value":""},{"variant_id":"50895082193169" , "metafield_value":""},{"variant_id":"50895082225937" , "metafield_value":""}]

The Scout Power System

$5,830.00
Description

Designed in-house specifically for the Toyota Hilux N80, this Behind-the-Seat Lithium System is a complete plug-and-play dual battery setup tailored for serious off-roaders, remote tourers, and tradespeople alike. It mounts neatly behind the rear passenger seat using factory bolt holes — no drilling or cutting required — keeping your gear powered without sacrificing space in the tub or canopy.

Each kit is built using premium components from trusted brands like Amptron, Redarc, and Victron, and comes fully pre-wired for easy installation. Whether you’re heading off-grid for days or need reliable power for tools and fridges, this stealthy, hardwired setup gets it done — professionally, and without compromise.

FEATURES

Mounts behind rear seat using factory bolt holes

No drilling, cutting, or permanent mods required

Fully pre-wired system with labelled connections

Compatible with Redarc or Victron chargers and monitors

Connects to solar and alternator inputs

Bluetooth battery monitoring with Redarc or Victron app

Clean, stealth installation keeps tub and canopy space free

Egon DC Hub provides easy 12V access for fridges and gear

Professionally built and tested by Elevate Automotive

Ideal for remote travel, trades, and daily dual cab use

FAQ's

Q: Can I install this myself?
A: Yes, it's designed to be DIY-friendly. All connections are pre-wired and clearly marked. If you're comfortable with vehicle electrics, you can install it using basic tools.

Q: Will it fit behind the seat with my child seat setup?
A: Yes — the system fits behind the rear seat without interfering with child seat anchor points.

Q: Is the system expandable in the future?
A: Yes. The Redarc and Victron units support solar and additional accessories. You can also upgrade your lithium battery later.

Specifications

Battery options:Amptron 12V 100Ah or 200Ah LiFePO₄

Charger options: Redarc Alpha 40A, BCDC Core 25A or 40A, or Victron Orion XS 50A

Battery monitor options: Redarc Smart Shunt or Victron Smart Shunt (Bluetooth)

Solar regulator (Victron only): Victron SmartSolar MPPT 100/30

Egon DC Hub for 12V output

Fully pre-wired system on custom mount panel

Wiring diagram included

Installation Information

Designed as a DIY-friendly, plug-and-play system. The kit is fully pre-wired with labelled connections and comes assembled on a custom mount panel. You can install it using factory bolt holes behind the rear seat.

Optional heavy-duty vehicle-specific harness available for alternator connection.

Professional installation is recommended for users unfamiliar with auto-electrical systems.

Warranty Information

Amptron Lithium Batteries include a 5-year warranty.

Redarc and Victron chargers and shunts include 2–5 year manufacturer warranties depending on the product.

All Elevate Automotive-built systems are covered by a 12-month installation and workmanship warranty.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Shipping: Australia-wide shipping
