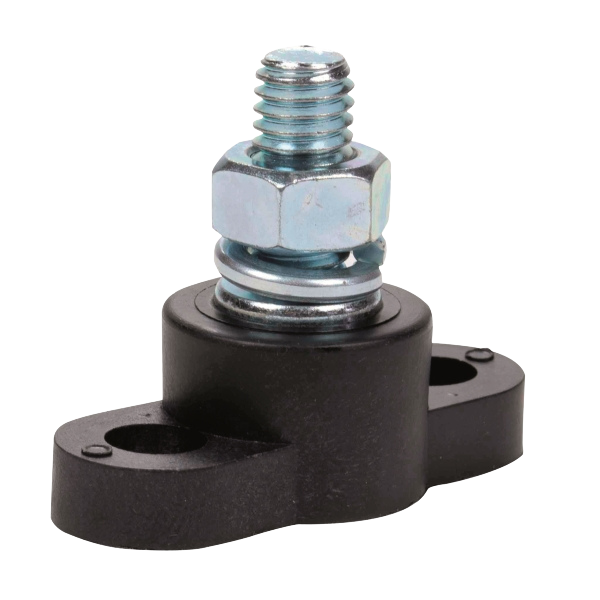

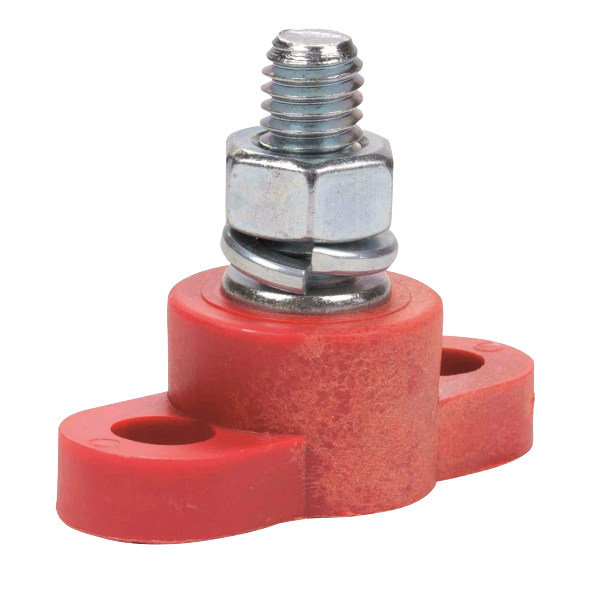

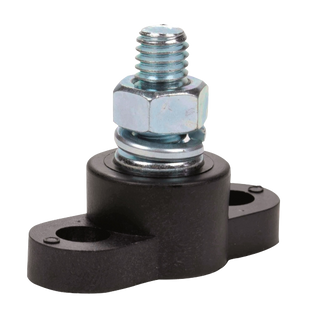

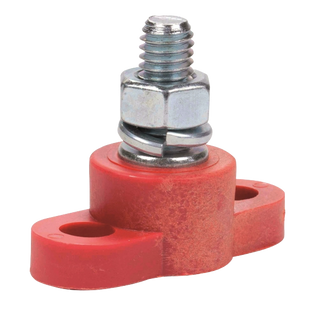

Junction Block black / red Insulated Stud 10mm
Junction Block black / red Insulated Stud 10mm
Junction Block black / red Insulated Stud 10mm
Junction Block black / red Insulated Stud 10mm

Junction Block black / red Insulated Stud 10mm

SKU: JB3816-2
$29.00
ColourBlack
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Universal fit for 12V and 24V electrical systems. Commonly used in 4WDs, trucks, RVs, boats, off-grid solar systems, and industrial setups.

  • 1 x Insulated Junction Block (Black or Red)

Length: 64 mm

Width: 19 mm

Height: 52 mm

Panel Hole: 24 mm

Built to deliver reliable power distribution, this junction block is engineered using premium thermoplastic and zinc-plated brass for high conductivity and durability. Designed for both AC and DC systems across a range of electrical and vehicle-based environments.

 [{"variant_id":"33265692672109" , "metafield_value":""},{"variant_id":"33265692704877" , "metafield_value":""}]

Junction Block black / red Insulated Stud 10mm

$29.00
Description

A heavy-duty insulated junction block designed for secure power or ground connections in AC and DC electrical circuits. Suitable for automotive, marine, RV, industrial, and off-grid applications.

FEATURES

High current 10mm stud terminal

Thermoplastic insulation for safety

Corrosion-resistant brass stud

Surface mount with compact footprint

Colour-coded for polarity identification

Rated 250A for high-current use

Specifications

Amperage: 250A @ 12V

Stud Thread Size: 3/8" (10mm)

Material: Thermoplastic base / Zinc-plated brass stud

Mounting Holes: 5mm, 33mm center-to-center

Colour: Black (Negative) / Red (Positive)

Brand: Bussmann

Mount Type: Surface Mount

Installation Information

Surface mount on any flat panel

Mounting holes spaced 33mm apart (5mm hole size)

Panel hole size: 24mm

Secure with appropriate fasteners (not included)

Use with ring terminals sized to fit a 10mm (3/8”) stud

PICKUP OR SHIPPING

Pickup available from Elevate Automotive. We offer Australia-wide and worldwide shipping.


FAQ's

Q: Can this be used for both positive and negative terminals?
A: Yes. Red blocks are typically used for positive, black for negative.

Q: Is the junction block suitable for marine use?
A: Yes, the materials used are resistant to corrosion and suitable for harsh environments.

Q: What's the maximum amperage rating?
A: 250A at 12V.

Guides & Tutorials

A heavy-duty insulated junction block designed for secure power or ground connections in AC and DC electrical circuits. Suitable for automotive, marine, RV, industrial, and off-grid applications.
