Home / Lighting / Driving & light bars

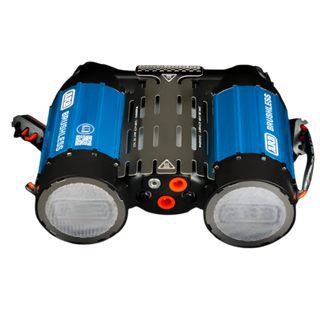

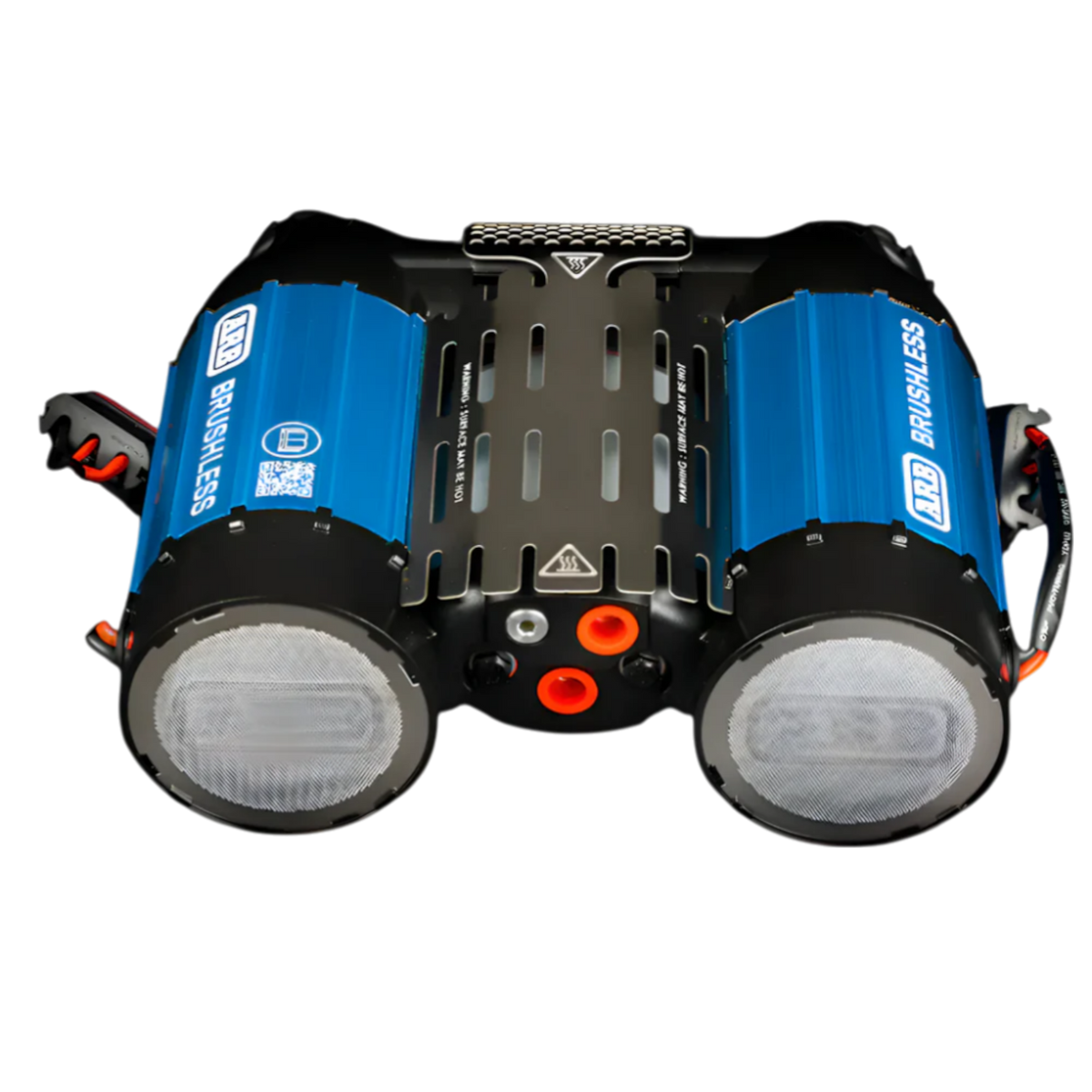

ARB brushless twin compressor seen from the front, two blue anodised cylinders either side of a black vented heatsink, the mesh-covered intake filters on the ends and the orange fittings and outlet ports across the centreARB brushless twin compressor being fitted in an engine bay, the blue anodised cylinders and braided air line in place under the bonnet with a hand resting on the housingThe compressor fitting kit laid out: the main wiring loom, a battery lead with in-line fuse holder and ring terminal, four ring terminals, the black powder-coated mounting bracket and the switch harness with its labelled tails

ARB

Brushless Twin Air Compressor On-Board Max Performance 12V

CKBLTA12

Introducing the ARB Brushless Air Compressor – Built for the Bold. Redefining the limits of on-board air technology, the ARB Brushless Compressor range takes the trusted performance of ARB’s legendary brushed compressor and pushes it into a new era. Engineered…

$1,285.00

4 interest-free payments of $321.25 with
or finance your build with
Important note

The CKBLTA12 is ARB’s first-ever brushless twin onboard compressor, delivering a 50 % boost in airflow compared to their brushed models. It incorporates intelligent electronics, integrated cooling fans, and robust seals for top-tier performance and durability

We accept
Designed for universal fitment across most 12 V vehicles—4×4, trucks, vans, and overlanders

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

Introducing the ARB Brushless Air Compressor – Built for the Bold.

Redefining the limits of on-board air technology, the ARB Brushless Compressor range takes the trusted performance of ARB’s legendary brushed compressor and pushes it into a new era. Engineered with cutting-edge brushless technology, it delivers superior power, efficiency, and durability—making your off-road inflating faster, smoother, and more reliable than ever.

Spend less time waiting and more time exploring with industry-leading airflow and high-output performance designed for extreme environments and serious adventure.

  • brushless motor – faster, quieter, and more durable than brushed versions.
  • 50% increase in airflow – inflates tires/tools much faster.
  • Smart electronics – auto-adjust speed, audio/visual status alerts, and electrical protections.
  • IP67 rating – makes it durable in harsh, wet environments.
  • Portable system compatibility – designed to integrate seamlessly with ARB accessories, hose kits, and tanks .

Model:CKBLTA12

Operating Voltage12 V DC (11.5–15 V)

No-Load Current Draw: 30 A

Peak Current Draw: ~90 A

Maximum Pressure: ~150 psi

Airflow @ 0 psi: 9.18 CFM (260 L/min)

Airflow @ 29 psi: 6.2 CFM

Duty Cycle: 100% continuous

Electrical Protections: Spike/drop, over-current, stall protection

Smart Start Function: Staggered start for twin-motor models

CoolingDual active cooling fans (thermal protection)

Smart DiagnosticsAudio and visual alerts

WiringRelay-free on-board wiring for ease of install

IP Rating: IP67 (dust-tight, water immersion safe)

Warranty: 3 years (manufacturer)

Length: 368mm

Width: 338mm

Height: 170mm

Weight: 7.17kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box
Designed for universal fitment across most 12 V vehicles—4×4, trucks, vans, and overlanders
Seamless compatibility with ARB Air Locker systems, hose kits, and inflators.
Quick-release mounts and fewer wiring components make installation straightforward.

Q: Can it run air lockers or tools?
A: Yes—designed for ARB Air Lockers and most pneumatic tools, with enough flow for short tool operation.

Q: Is it waterproof?
A: Yes—rated IP67, meaning it's protected against dust and immersion up to 1 m.

Q: Will it overheat?
A: No. It has active cooling fans on each motor, which continue operating after shutdown to maintain thermal safety.

Q: Does it handle electrical variables?
A: Yes—features smart speed control, protection against voltage spikes/drops, motor stall safeguards, and staggered start-up to limit current draw.
