Anderson Connector Plugs Grey

SKU: SB50
$9.50
Current50A
  • VEHICLE
  • INCLUDED
  • DIMENSIONS

Suitable for a wide range of vehicles and equipment including 4WDs, RVs, caravans, trucks, forklifts, solar systems, boats, mining machinery, and industrial power systems.

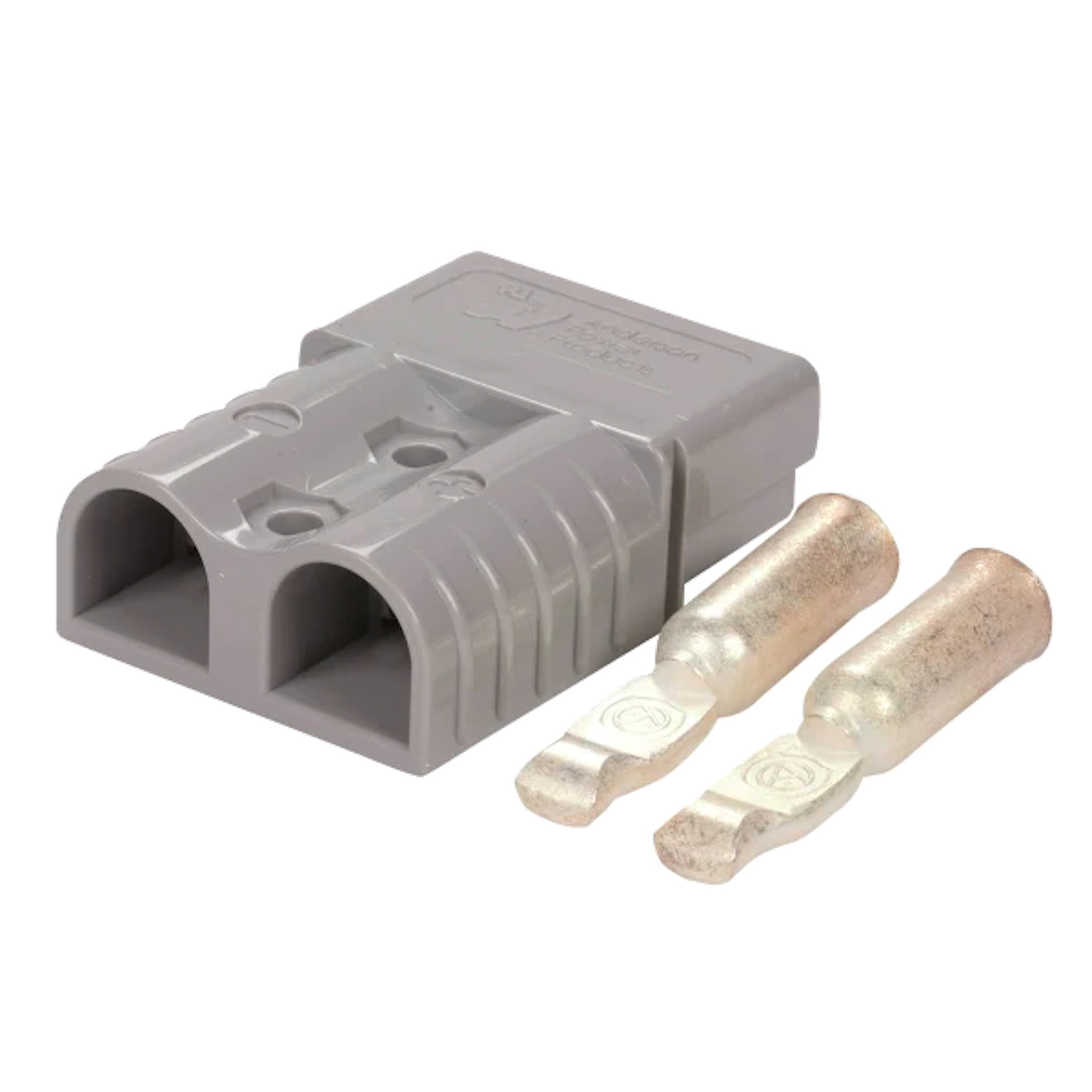

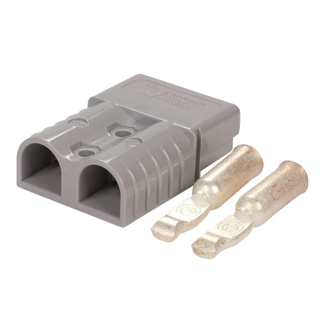

One Grey Anderson Plug Housing (choose SB50, SB120, SB175, or SB350). Matching contact pins for corresponding cable size.


SB50 – 48mm x 36mm x 16mm

SB120 – 71mm x 52mm x 25mm

SB175 – 84mm x 55mm x 27mm

SB350 – 110mm x 80mm x 35mm

 [{"variant_id":"33265690706029" , "metafield_value":""},{"variant_id":"33265690607725" , "metafield_value":""},{"variant_id":"33265690640493" , "metafield_value":""},{"variant_id":"33265690673261" , "metafield_value":""}]

Anderson Connector Plugs Grey

$9.50
Description

The Anderson Power Products SB series plugs feature a genderless design that allows each connector to mate with itself, making them a versatile and reliable solution for 12V power connections.

Widely used in camping, caravans, 4WDs, solar setups, and off-grid applications, these grey Anderson connector plugs deliver rugged, durable, and affordable performance for all your mobile and stationary power needs. Perfect for dual battery systems, fridges, energy storage, and other high-current applications, they ensure a safe, secure, and consistent power connection every time.

Available in multiple ratings: SB50 (50A), SB120 (120A), SB175 (175A), and SB350 (350A) to suit small, medium, and heavy-duty setups.

FEATURES


High-current power connectors designed for secure and reliable DC connections. Silver-plated copper contacts for maximum conductivity. Grey housings prevent cross-polarity connection. Impact-resistant and high-temperature durable housing. Suitable for industrial, off-road, marine, and solar applications.

FAQ's

Q: Can different SB series sizes connect together?

A: No. Each size (SB50, SB120, SB175, SB350) has its own unique mating profile. Only same-size connectors will interlock.

Q: Are the contacts included?

A: Yes, each connector includes the correct number of contacts sized to match the cable rating.

Specifications


Product Code – Varies by size

Housing Colour – Grey

SB50 – 50A continuous, suits 8mm² cable

SB120 – 120A continuous, suits 25mm² cable

SB175 – 175A continuous, suits 35mm² cable

SB350 – 350A continuous, suits 70mm² cable

Voltage Rating – Up to 600V DC

Housing Material – Polycarbonate

Contact Material – Silver-plated copper

Operating Temperature – -20°C to 105°C

Installation Information


Crimp contacts using a heavy-duty Anderson crimping tool appropriate for the cable size. Insert the crimped contacts into the housing until fully locked. Only matching housing sizes will mate (SB50 to SB50, SB175 to SB175, etc.). Grey housings ensure proper polarity connection.

Warranty Information


Supplied with a 12-month manufacturer warranty covering defects in materials or workmanship.

PICKUP OR SHIPPING


Pickup: Available from Elevate Automotive (WA)

Shipping: World-wide shipping
