Home / Lighting / Driving & light bars

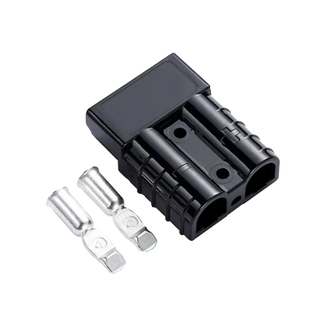

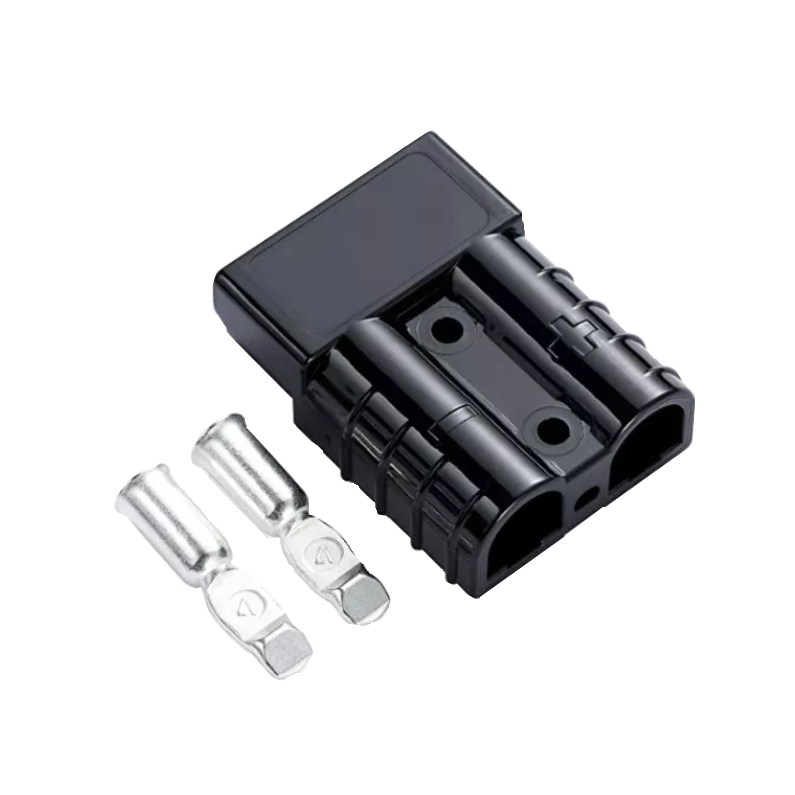

Black Anderson-style 50 amp connector housing at an angle with two silver contacts laid in front, the moulded body showing its two cable cavities and polarity marks

Anderson

Connector Plug 50A Black Pins Suit 8mm2

AL-HDC50BK

The AL-HDC50BK Anderson-style Connector Plug is a heavy-duty 50A power connector designed for 8mm² cable. The black housing and matching contacts allow for easy circuit identification while providing a reliable connection for 12V and 24V power systems. Commonly used in…

$8.55$9.50 Save $0.95

4 interest-free payments of $2.14 with
or pay over time with
We accept
Suitable for use in 4WDs, caravans, RVs, boats, trailers, solar power systems, dual battery setups, and industrial DC systems requiring 50A power connections.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The AL-HDC50BK Anderson-style Connector Plug is a heavy-duty 50A power connector designed for 8mm² cable. The black housing and matching contacts allow for easy circuit identification while providing a reliable connection for 12V and 24V power systems. Commonly used in dual battery setups, trailers, solar systems, 4WDs, marine, and industrial equipment.

Built to Anderson SB50 specifications, this connector ensures secure, high-current connections with minimal voltage loss. Black housing allows for dedicated circuits, commonly used for accessories, solar, or alternate power circuits.

  • 50A Anderson-style plug designed for 8mm² cable. Black housing for circuit separation and polarity control. Secure locking mechanism prevents accidental disconnection. Durable, high-temperature resistant housing for harsh environments. Silver-plated contacts ensure excellent conductivity and minimal voltage drop.


Product Code – AL-HDC50BK

Current Rating – 50A continuous

Voltage Rating – Up to 600V DC

Cable Size – 8mm²

Contact Material – Silver-plated copper

Housing Material – High-impact polycarbonate

Operating Temperature – -20°C to 105°C


Length – 48mm

Width – 36mm

Height – 16mm

Weight – 50g

Everything this install needs

0 of 0 in the box


Crimp contacts onto 8mm² cable using a heavy-duty Anderson crimp tool. Insert the crimped contacts into the housing until fully seated and locked. Only black SB50 connectors will interlock with black housings.

Suitable for use in 4WDs, caravans, RVs, boats, trailers, solar power systems, dual battery setups, and industrial DC systems requiring 50A power connections.

Q: Will this fit with other SB50 connectors?

A: Black housings will only interlock with other black SB50 connectors due to keyed polarity.

Q: Do the contacts come included?

A: Yes, the connector includes a pair of contacts to suit 8mm² cable.
