Home / Lighting / Driving & light bars

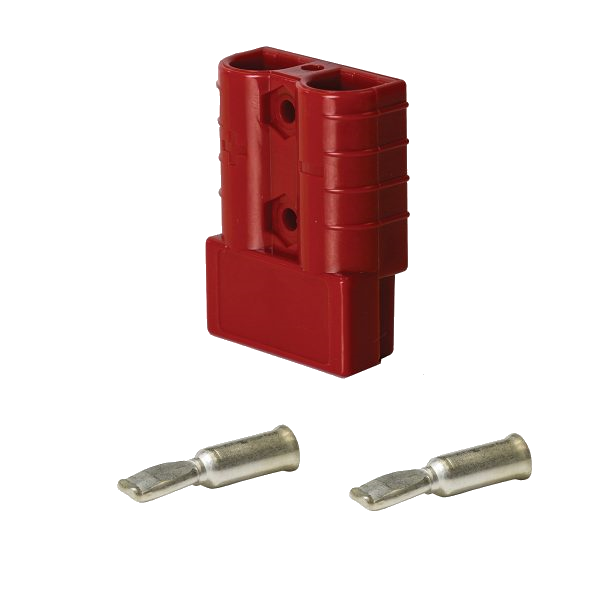

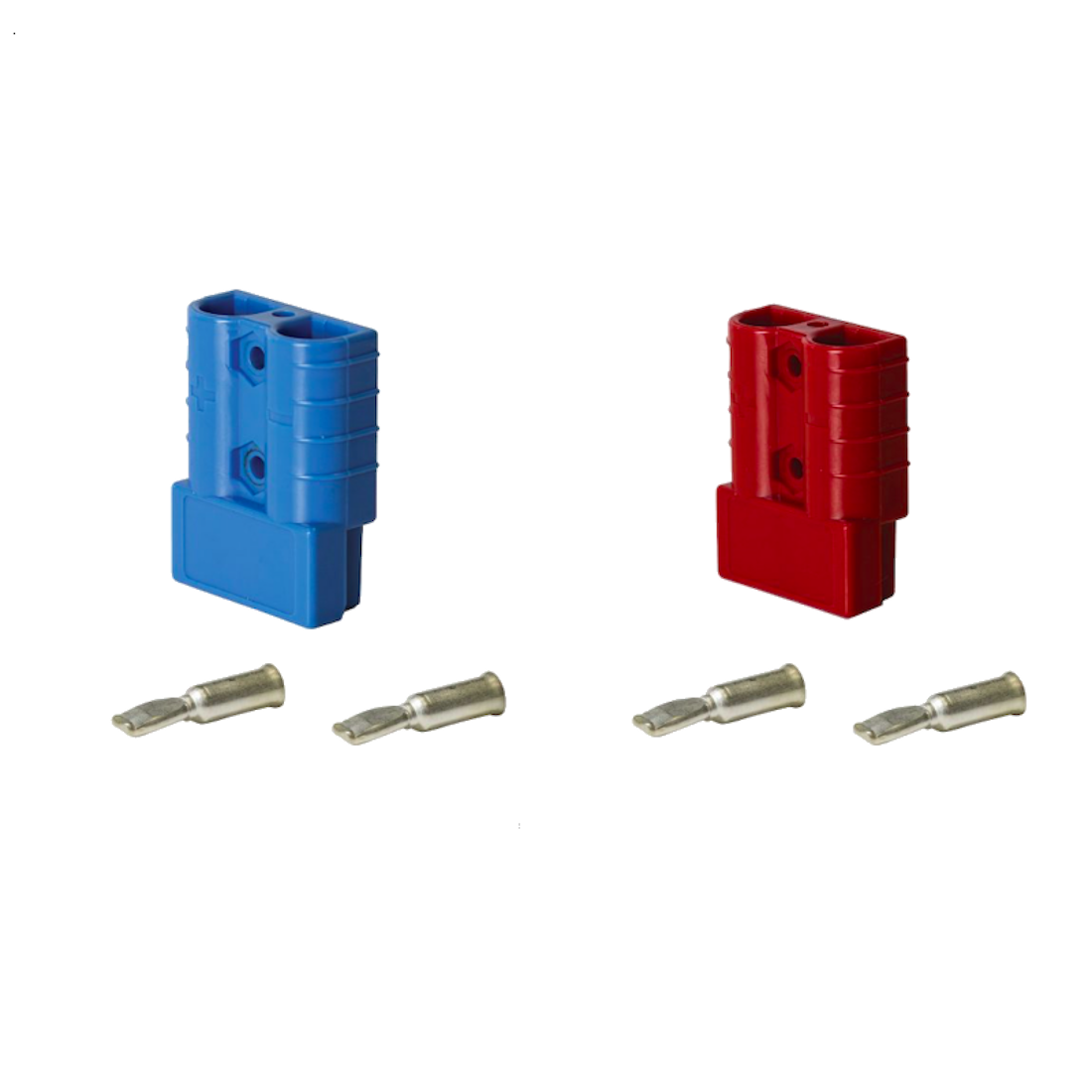

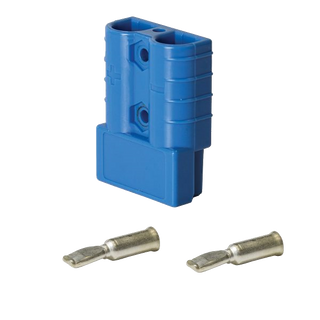

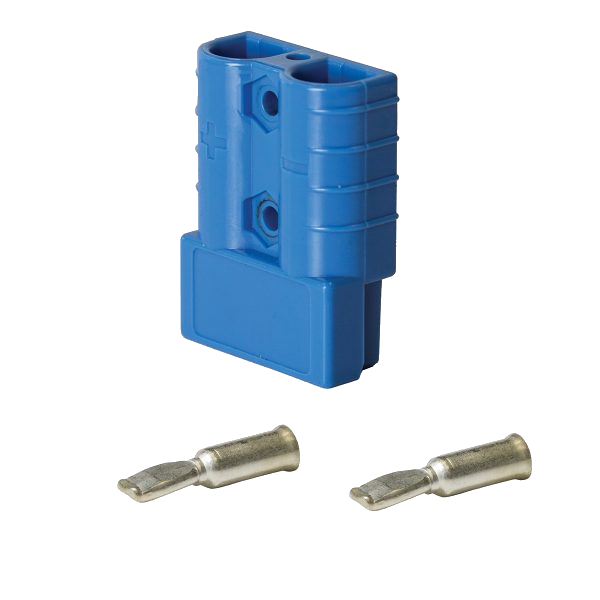

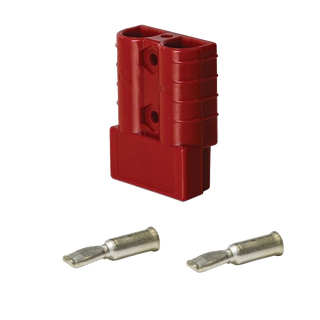

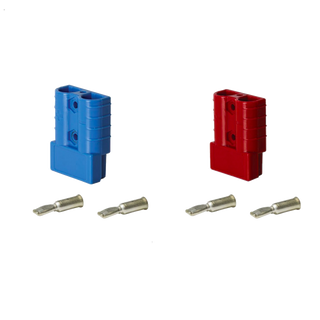

A blue and a red Anderson-style 50 amp connector housing side by side, each with two silver contacts laid out beneathBlue Anderson-style 50 amp connector housing standing upright with two silver contacts laid below it, the plus polarity mark moulded on the bodyRed Anderson-style 50 amp connector housing standing upright with two silver contacts laid below it, the plus polarity mark moulded on the body

Anderson

Connector Plug 50A Suit 8mm2

KTHDC50RD

The Anderson Connector Plug 50A is designed for reliable, high-current power connections in 12V and 24V systems. Rated to handle up to 50 amps, these plugs suit 8mm² cable and are ideal for dual battery systems, solar setups, caravans, trailers,…

$8.55$9.50 Save $0.95

4 interest-free payments of $2.14 with
or pay over time with
Pin Colour
We accept
Suitable for 4WDs, caravans, trailers, trucks, boats, solar systems, and any 12V or 24V application using 50A Anderson-style connectors.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Anderson Connector Plug 50A is designed for reliable, high-current power connections in 12V and 24V systems. Rated to handle up to 50 amps, these plugs suit 8mm² cable and are ideal for dual battery systems, solar setups, caravans, trailers, marine, and industrial applications. Available in multiple colours to simplify polarity or circuit identification.

Manufactured to Anderson SB50 specifications, these connectors feature heavy-duty contacts and durable housings. The KTHDC50RD and KTHDC50BE are functionally identical, with colour differences for easier wiring organisation.

  • Heavy-duty 50A connector plug designed for 8mm² cable. Colour-coded housings for easy circuit management. Secure locking mechanism prevents accidental disconnection. High-temperature, impact-resistant housing for tough environments. Long service life with minimal voltage drop under load.


Product Codes – KTHDC50RD (Red), KTHDC50BE (Blue)

Current Rating – 50 Amps continuous

Voltage Rating – Up to 600V DC

Cable Size – 8mm²

Contact Type – Silver-plated copper contacts

Housing Material – High-impact polycarbonate

Operating Temperature – -20°C to 105°C


Length – 48mm

Width – 36mm

Height – 16mm

Weight – Approximately 50g per connector

Everything this install needs

0 of 0 in the box


Crimp the supplied contacts onto 8mm² cable using a heavy-duty Anderson crimp tool. Insert crimped contacts into the housing until fully locked. Coloured housings help prevent cross-connection errors.

Suitable for 4WDs, caravans, trailers, trucks, boats, solar systems, and any 12V or 24V application using 50A Anderson-style connectors.

Q: Are the red and blue connectors interchangeable?

A: Mechanically yes, but different colours are often used to separate circuits or polarities. Only identical colours will interlock.

Q: Can I use a standard crimp tool?

A: A proper Anderson-style crimp tool is recommended for safe and reliable contact fitment.
