Home / Lighting / Driving & light bars

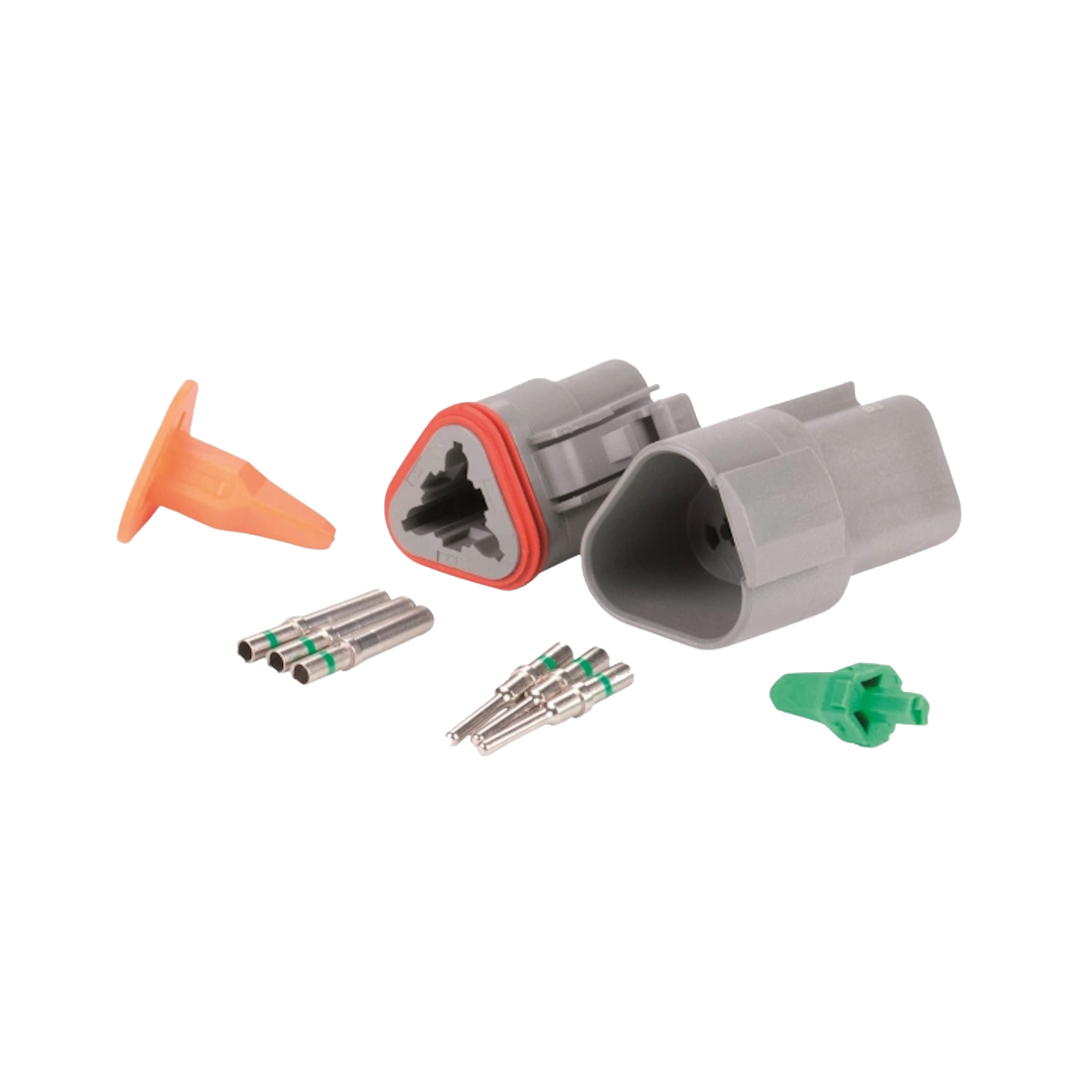

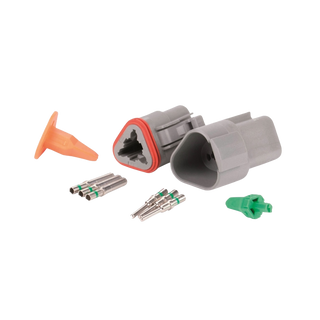

3 Pin Deutsch Plug Connector Complete Kit

Deutsch

3 Pin Plug Connector Complete Kit

DT3

The 3 Circuit DT Series Deutsch Connector Kit includes both male and female housings, terminals, and wedge locks. Designed for secure cable-to-cable connections under the hood, in the cabin, or on the chassis, this kit is ideal for applications requiring…

$12.60$14.00 Save $1.40

4 interest-free payments of $3.15 with
or pay over time with
Important note

Constructed with thermoplastic housings and sealed with silicone rubber, these connectors maintain reliable signal integrity even in extreme conditions. Deutsch DT Series connectors are vibration and temperature tested to ensure optimal performance under load.

We accept
Suitable for 4WD vehicles, off-road builds, trailers, marine equipment, industrial machinery, and any application needing secure and weather-resistant 3-pin connections.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The 3 Circuit DT Series Deutsch Connector Kit includes both male and female housings, terminals, and wedge locks.

Designed for secure cable-to-cable connections under the hood, in the cabin, or on the chassis, this kit is ideal for applications requiring high reliability in demanding environments.

  • IP68 environmental sealing for moisture and dust protection
  • Durable construction suitable for under-hood and heavy-duty use
  • Consistent performance across extreme temperature and vibration conditions
  • Reliable 3-pin signal delivery in harsh environments

SeriesDeutsch DT

Configuration3 Pin

Contact Rating13A per contact at 125°C

Operating Temperature-55°C to +125°C

Housing MaterialThermoplastic

Seal MaterialSilicone Rubber

Ingress ProtectionIP68

Vibration Rating20G RMS at 10–2000Hz

Compact body suitable for space-restricted installations with 3-pin signal and low-voltage power circuits

Everything this install needs

0 of 0 in the box

The kit includes everything needed for assembly.

Simply crimp the provided terminals onto compatible wire, insert into the housing, and secure with the wedge locks.

No soldering or special tools required beyond a standard crimp tool.

Suitable for 4WD vehicles, off-road builds, trailers, marine equipment, industrial machinery, and any application needing secure and weather-resistant 3-pin connections.

Q: Are these suitable for both signal and power wiring?
A: Yes, each contact is rated at 13A and can handle both signal-level and low-voltage power circuits.

Q: Can I use this connector with other DT Series accessories?
A: Yes, this is part of the standard DT Series platform and compatible with other mounts and plugs in the range.
