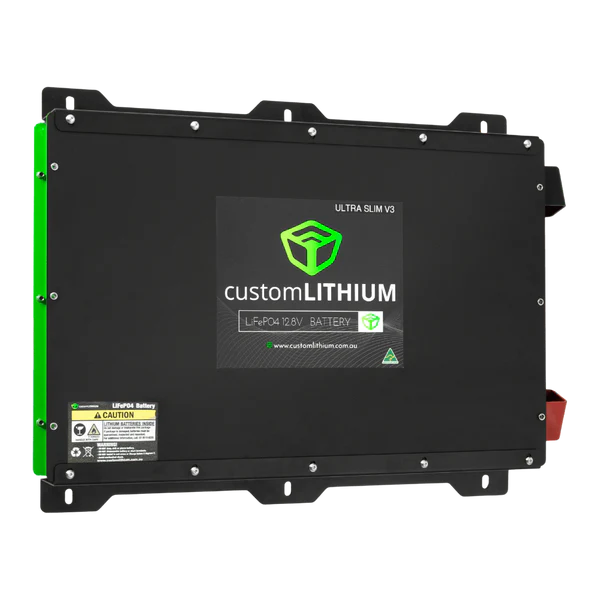

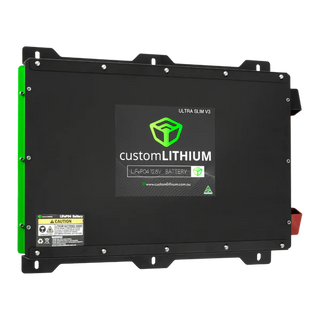

Next Generation 200Ah Ultra Slim Lithium Battery
CL-US-200AH-V3
Custom Lithium Next Generation 200Ah Ultra Slim Lithium Battery The Custom Lithium Next Generation 200Ah Ultra Slim Lithium Battery is a high-capacity, space-efficient power solution engineered for modern 4WD touring, canopy builds, drawer systems, and off-grid setups. Designed to deliver…
$2,180.00
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
Custom Lithium Next Generation 200Ah Ultra Slim Lithium Battery
The Custom Lithium Next Generation 200Ah Ultra Slim Lithium Battery is a high-capacity, space-efficient power solution engineered for modern 4WD touring, canopy builds, drawer systems, and off-grid setups. Designed to deliver exceptional energy density in a compact form, this battery is ideal where space is limited but reliable power is critical.
Using advanced LiFePO₄ (Lithium Iron Phosphate) cell technology, this 200Ah battery provides stable voltage, fast charging capability, and a long service life — making it well-suited for running fridges, inverters, lighting, communications, and other high-draw accessories. Its ultra-slim profile allows installation in locations where traditional batteries simply won't fit, including behind seats, inside drawer systems, or against canopy walls.
An integrated Battery Management System (BMS) actively protects the battery from over-voltage, under-voltage, short circuit, over-current, and temperature extremes, ensuring safe operation in harsh Australian conditions. Built with touring and off-road use in mind, the robust casing and internal design handle vibration, heat, and continuous cycling with ease.
Benefits
-
Maximise usable space — Slim design allows installation where standard batteries won't fit
-
Extended off-grid runtime — 200Ah capacity supports long trips and high electrical loads
-
Improved charging efficiency — Charges faster and more efficiently than AGM alternatives
-
Reliable power delivery — Consistent voltage helps protect connected accessories
-
Long service life — Designed for thousands of charge cycles under normal use
-
Reduced overall weight — Helps keep vehicle GVM under control
Ideal Applications
-
4WD touring and overland vehicles
-
Canopy and service body power systems
-
Custom drawer systems and under-seat installs
-
Caravan, camper trailer, and off-grid setups
-
Vehicles running fridges, inverters, induction cooktops, and communications equipment
- High-capacity 200Ah lithium battery in an ultra-slim footprint LiFePO₄ chemistry
CAPACITY200AH
CONSTANT DISCHARGE330 AMPs
PEAK DISCHARGE850AMP Protection
CONSTANT CHARGE100 AMPs
PEAK CHARGE200 AMPs
OPERATING TEMP-20°C – 60°C
TERMINALSM10 terminals
CHARGE VOLTAGE14.2v – 14.6v
ABSORPTION/FLOAT13.4v – 13.6v
CUT OFF VOLTAGE10.5v
NOMINAL VOLTAGE12.8V
