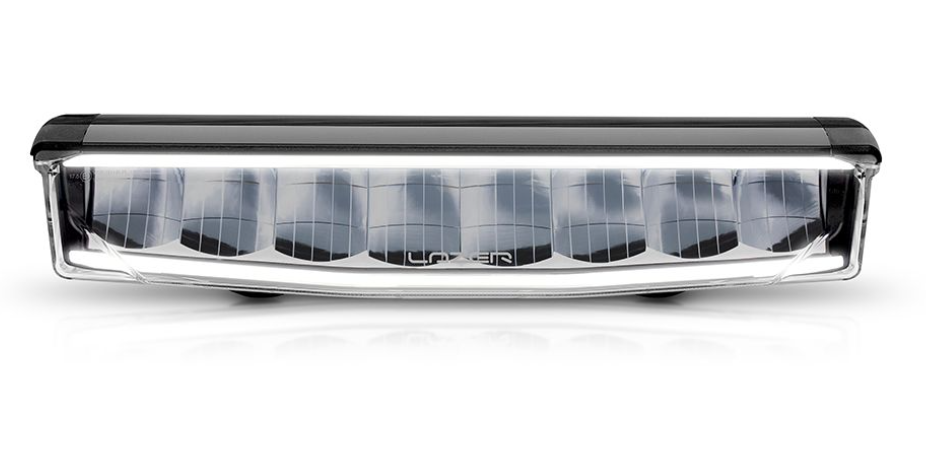

Lazerlamps Air

Models

AIR-55
A compact, ultra-slim LED light bar ideal for smaller vehicles or discreet installations. Delivers impressive performance with a 524m beam distance and integrated white position light.

AIR-55 with Beacon
Same compact form factor as the AIR-55, but with integrated amber beacon functionality (UNECE R65 approved) – perfect for utility and commercial vehicles needing both visibility and safety signalling.

AIR-90
Mid-size light bar offering greater light output and a wider beam pattern than the AIR-55. Suitable for 4x4s, vans, and larger commercial setups.

AIR-90 with Beacon
Combines the AIR-90’s lighting performance with built-in amber beacon mode for multi-function use. Matches the output of a Triple-R 1000 in a low-profile housing.

AIR-130 Elite
Top-tier model in the AIR range. Delivers the highest light output and beam reach (592m), enhanced with black PCB for a stealthy look, and Centre Mount system for OE-level integration.

Common Features

Ultra-Slim, Curved Design
Modern aesthetics with a low-profile fit – designed for seamless integration with OEM styling.

Premium-Bin LEDs
High-intensity lighting with advanced vacuum-metallised optics for precision beam control and distance.

Dual Output with E-Boost™
Switch between full-power mode and road-legal ECE-compliant mode (via removable cap).

Monocoque Polycarbonate Construction
Lightweight, durable, and impact-resistant. Fully sealed to IP67/IP69K standards for all-weather use.

Integrated Position Light Guides
Stylish white DRL-style accents enhance vehicle appearance and on-road visibility.

Amber Beacon Function (on beacon models only)
Built-in R65-compliant strobe function for added safety on worksites and roadside operations.

Flexible Mounting
Each model includes adjustable brackets; AIR-130 Elite features Centre Mount for low-profile installs.





Feature Differences

Feature	AIR-55	AIR-55 w/ Beacon	AIR-90	AIR-90 w/ Beacon	AIR-130 Elite
Raw Lumens	6,800 lm	6,800 lm	9,160 lm	9,160 lm	12,500 lm
1 Lux Distance	524 m	524 m	574 m	574 m	592 m
Horizontal Beam (°)	~28°	~28°	~30°	~30°	~32°
Position/Beacon Light	Position Light	Beacon + Position	Position Light	Beacon + Position	Position Light
Beacon Function	No	Yes	No	Yes	No
Connector Type	2-pin	4-pin	2-pin	4-pin	2-pin
Length (mm)	370	370	500	500	630
Mounting Style	Side	Side	Side	Side	Centre
Current Draw @14.4V	2.2 A	2.2 A	2.7 A	2.7 A	3.5 A

Compatible Wiring Kits

AIR-55
• 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
• 1 x Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)

AIR-55 with Beacon
• 1 x Two-Lamp Wiring Kit - Long (6-Pin, Superseal, 12V)
• 1 x Two-Lamp Wiring Kit (6-Pin, Superseal, 12V)

AIR-90
• 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
• 1 x Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)

AIR-90 with Beacon
• 1 x Two-Lamp Wiring Kit - Long (6-Pin, Superseal, 12V)
• 1 x Two-Lamp Wiring Kit (6-Pin, Superseal, 12V)

AIR-130 Elite
• 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
• 1 x Two-Lamp Wiring Kit - Mid Power (3-Pin, Superseal, 12V)
