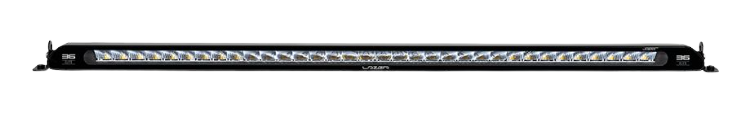

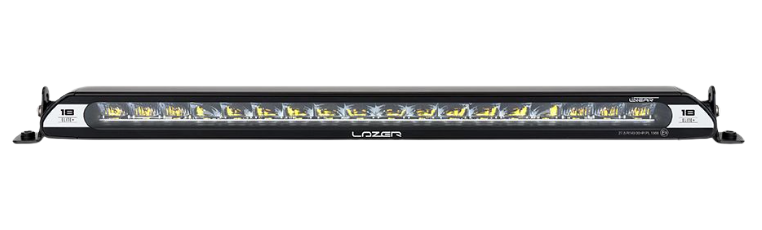

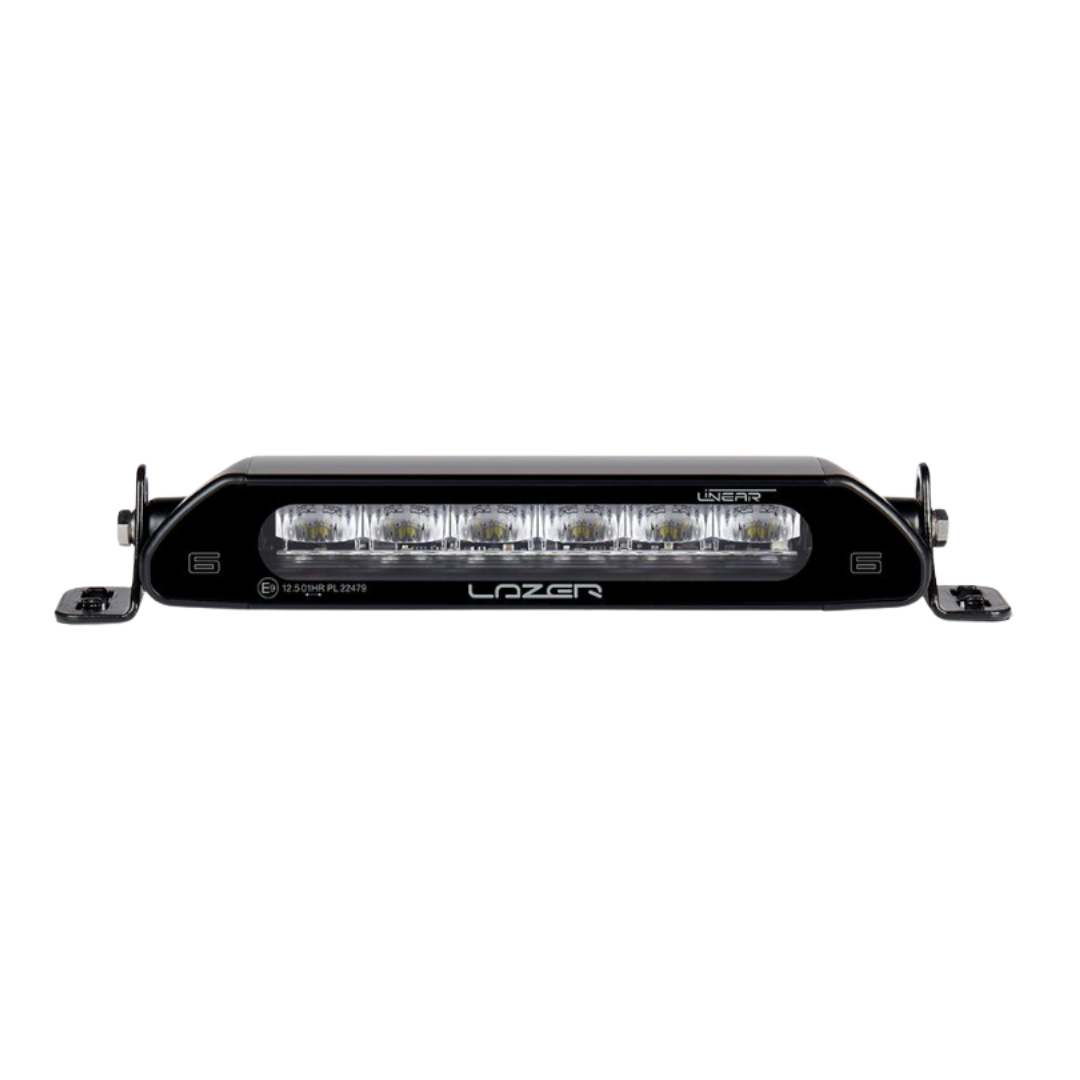

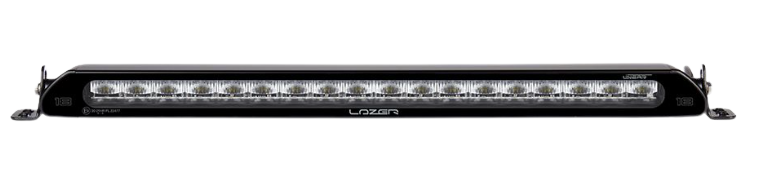

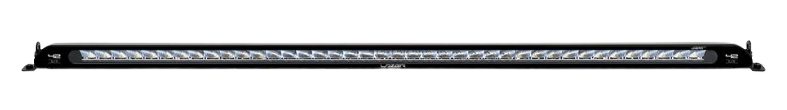

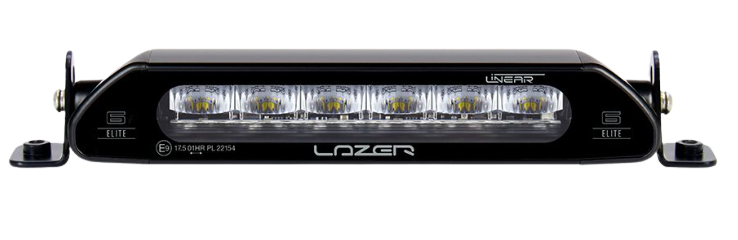

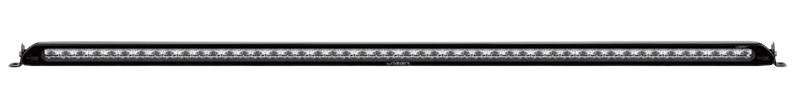

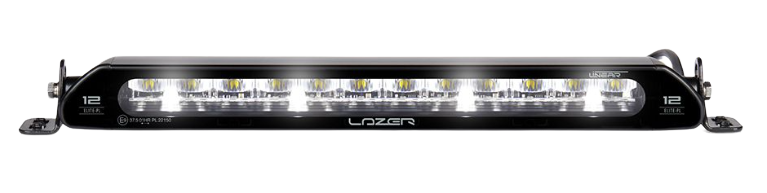

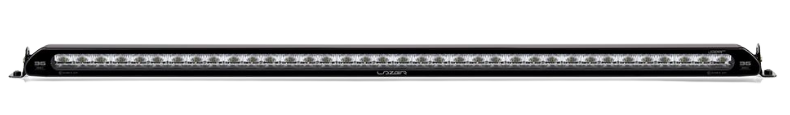

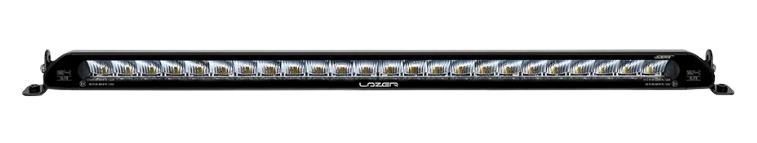

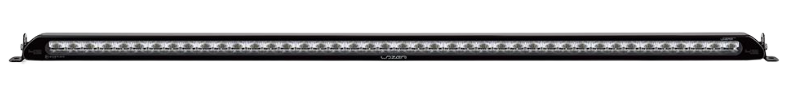

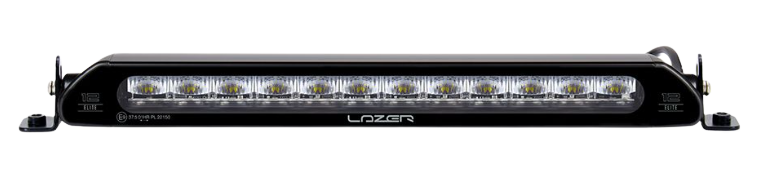

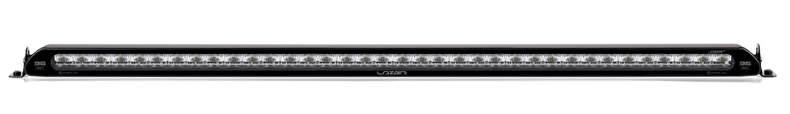

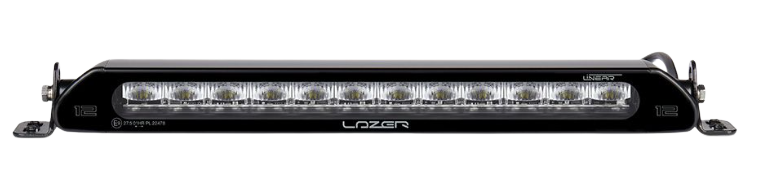

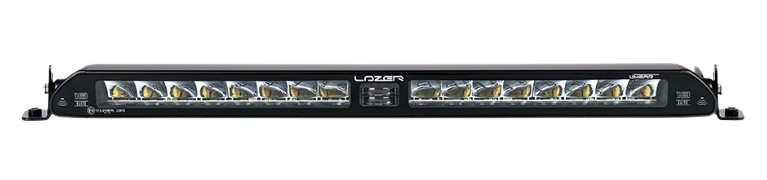

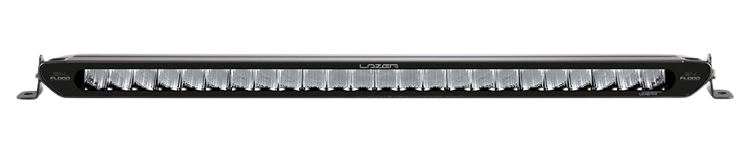

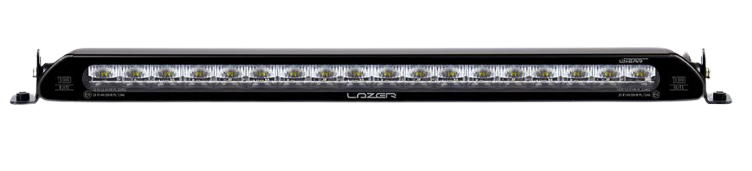

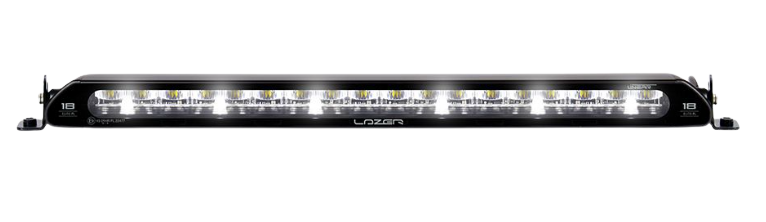

LED light bar with 'Lozer' branding on a white background
LED light bar with 'Lozer' branding on a white background

Lazerlamps Linear Light Bars

SKU: 0L06-LNR
$288.00
Size6
TypeStandard
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Compatible with 12V and 24V passenger vehicles, 4WDs, utes, trucks, agricultural, and commercial fleets.


1 x Linear Series Light Bar

Mounting hardware

Instructions

Dimensions vary by model. For example:

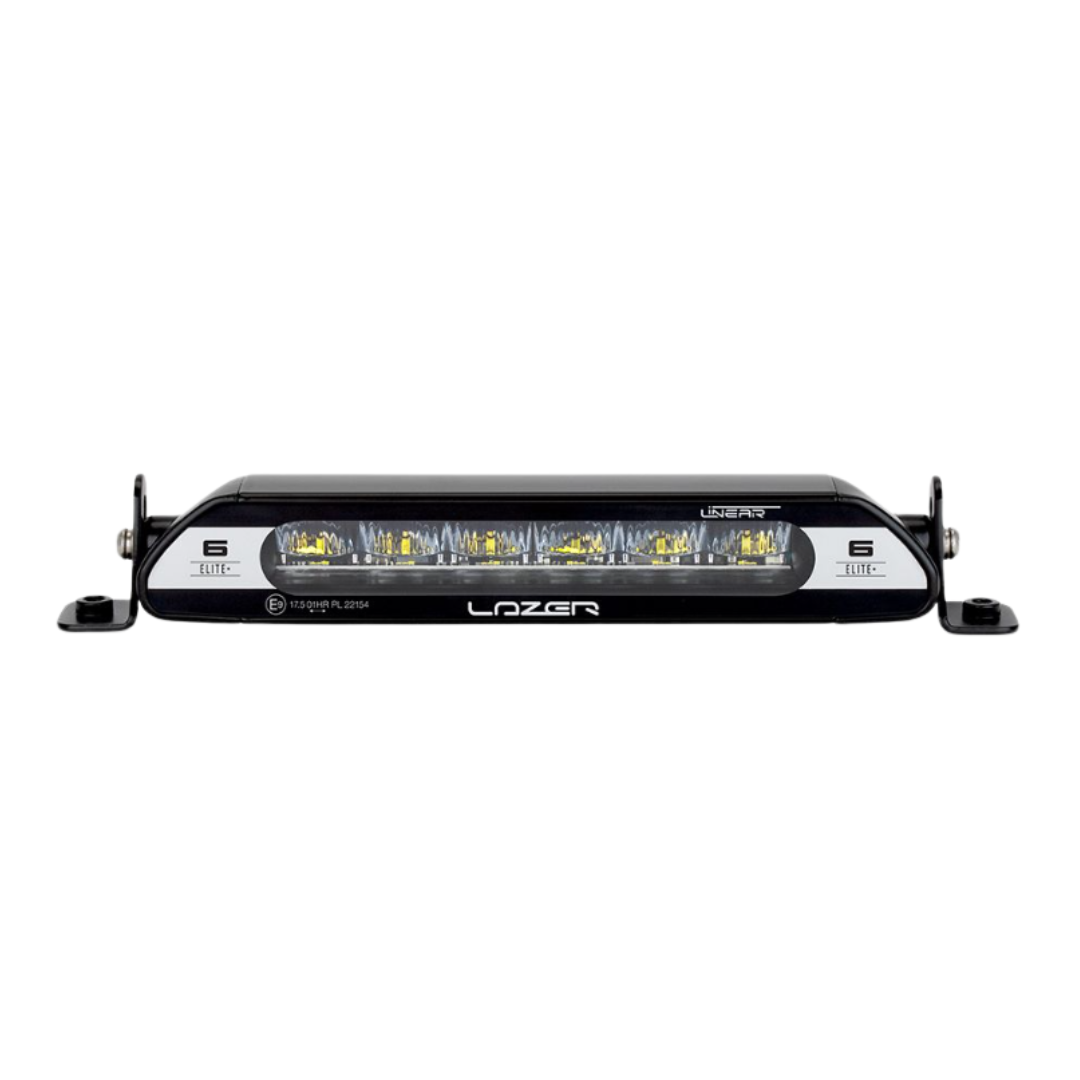

Linear-6: ~232mm width

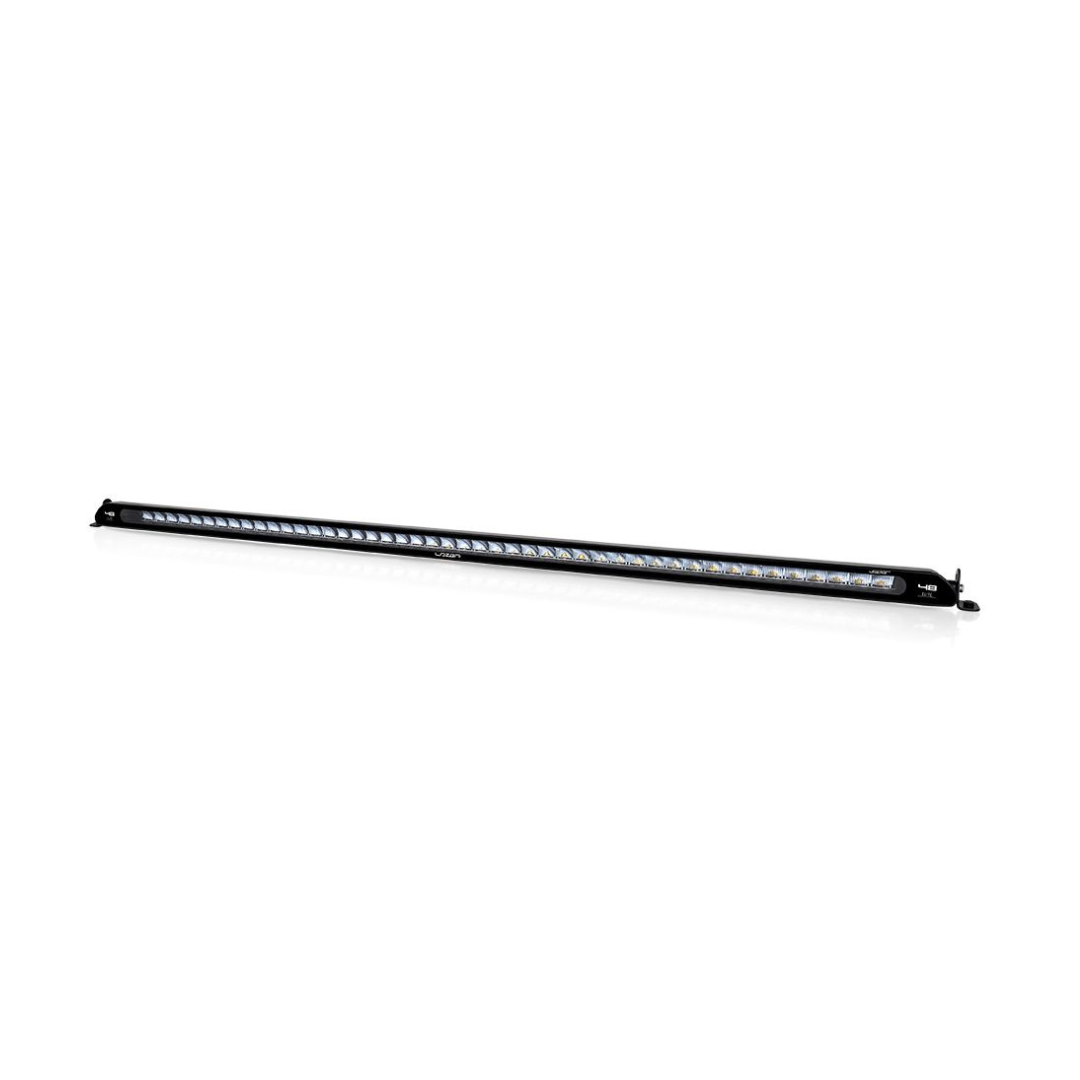

Linear-48: ~1300mm width

Contact us for exact sizing of your preferred model.

Designed and manufactured in the UK. Fully ECE-approved with intelligent E-Boost functionality and premium build quality.

 [{"variant_id":"51487948275985" , "metafield_value":""},{"variant_id":"51487948374289" , "metafield_value":""},{"variant_id":"51487948472593" , "metafield_value":""},{"variant_id":"51487948505361" , "metafield_value":""},{"variant_id":"51487948603665" , "metafield_value":""},{"variant_id":"51487948669201" , "metafield_value":""},{"variant_id":"51487948701969" , "metafield_value":""},{"variant_id":"51487948964113" , "metafield_value":""},{"variant_id":"51487949062417" , "metafield_value":""},{"variant_id":"51487949095185" , "metafield_value":""},{"variant_id":"51487949127953" , "metafield_value":""},{"variant_id":"51487949160721" , "metafield_value":""},{"variant_id":"51487949422865" , "metafield_value":""},{"variant_id":"51487949455633" , "metafield_value":""},{"variant_id":"51487949586705" , "metafield_value":""},{"variant_id":"51487951749393" , "metafield_value":""},{"variant_id":"51487951978769" , "metafield_value":""},{"variant_id":"51487952273681" , "metafield_value":""},{"variant_id":"51487954010385" , "metafield_value":""}]

Lazerlamps Linear Light Bars

$288.00
Description

The Linear Series Elite by Lazer Lamps redefines auxiliary LED driving performance with sleek, road-legal light bars tailored for a wide range of vehicles—from compact 4WDs to commercial machinery.

Engineered in the UK with advanced reflector optics and premium 3W LEDs, the Linear Elite range offers unrivaled beam reach, road compliance, and durability in a low-profile design.

Choose from models with position lights, intelligent low beam assist, or extended bar lengths for ultimate flexibility.



SKU Compatible Wiring
0L06-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
0L06-EL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
0L06-PLUS-LNR 1 x Single-Lamp Wiring Kit with Momentary Switch (3-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit with Momentary Switch (3-Pin, Superseal, 12V)
0L12-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
0L12-EL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
0L12-PL-LNR 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit (3-Pin, Superseal, 12V)
0L18-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
0L18-DBL-EL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit - Mid Power (2-Pin, Superseal, 12V)
0L18-PL-LNR 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V), 1 x Two-Lamp Wiring Kit - Mid Power (3-Pin, Superseal, 12V)
0L18-PLUS-LNR Included
0L18-LBA-B Included
0L24-FL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Deutsch DT, 12V)
0L24-DBL-EL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
0L36-DBL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Single-Lamp Harness Kit - Long (2-Pin, Superseal, 12V)
0L36-EL-LNR Included
0L42-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Single-Lamp Harness Kit - Long (2-Pin, Superseal, 12V)
0L42-EL-LNR Included
0L48-LNR Included
0L48-EL-LNR 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V), 1 x Single-Lamp Harness Kit - Long (2-Pin, Superseal, 12V)
FEATURES


Low-profile aerodynamic design

CAI-Optimised Reflector Technology

Dual-mode E-Boost output

Optional Integrated Position Light

Optional i-LBA (Intelligent Low Beam Assist)

Strobe Beacon (Beacon model only)

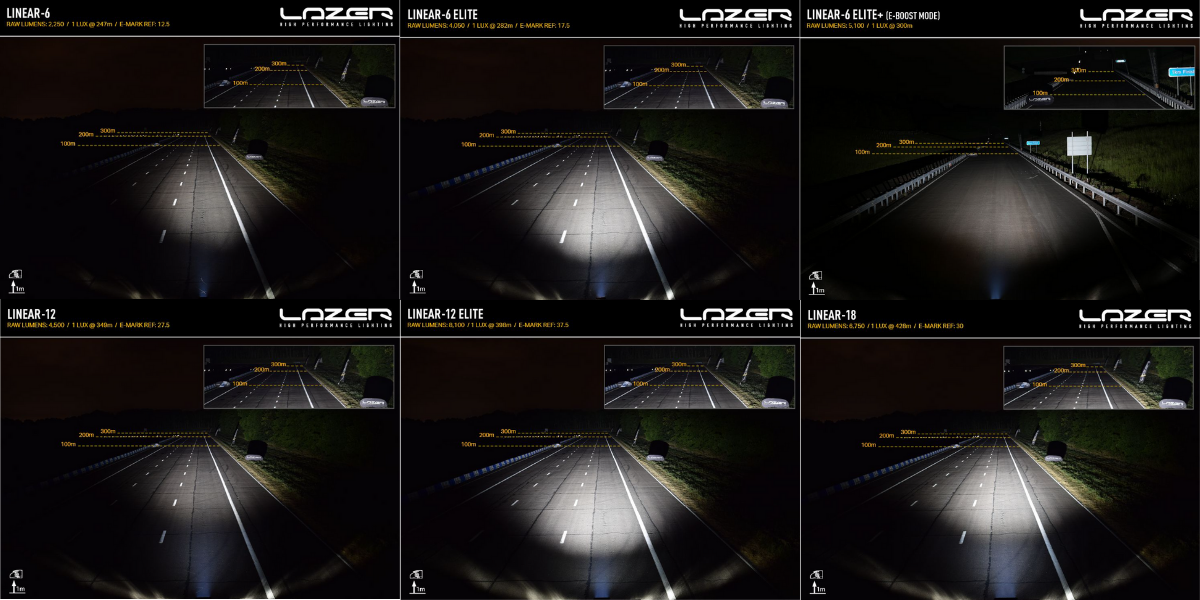

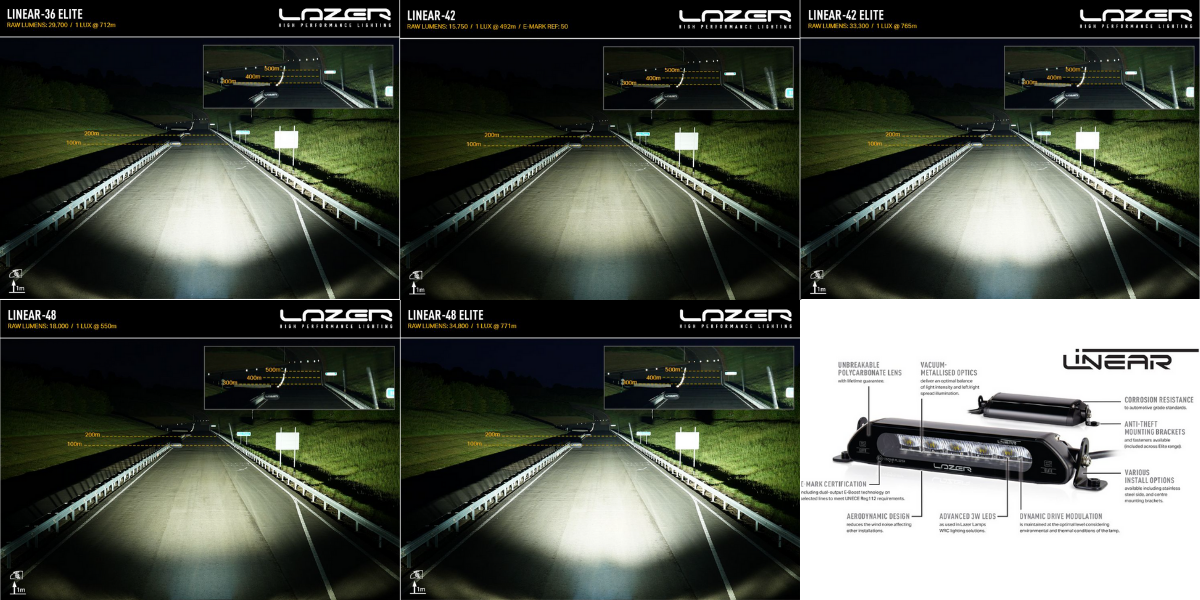

Wide beam angle: ~60–64° horizontal, 15° vertical

Resistant to high pressure washing and vibration

FAQ's

Q: What’s the difference between Boost and ECE mode?
A: Boost mode delivers maximum output, while ECE mode meets road-legal brightness levels.

Q: Is the i-LBA version suitable for highway use?
A: Yes. Intelligent Low Beam Assist automatically reduces glare to oncoming traffic while retaining high visibility.

Q: Can I install these on a 24V vehicle?

A: Yes, all models support 10–32V operation.

Specifications

Voltage: 10–32V DC

LED Type: 3W High-Efficiency

Lifespan: 50,000+ hours

Water/Dust Rating: IP67 & IP69K

Housing: Aluminum

Lens: Polycarbonate (shatterproof)

EMC Approved: Yes (ECE R10)

Installation Information


All lights are multi-voltage (10–32V) and EMC-approved. Mounts easily with included brackets. Wiring harness sold separately.

Warranty Information

5-year manufacturer warranty.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
